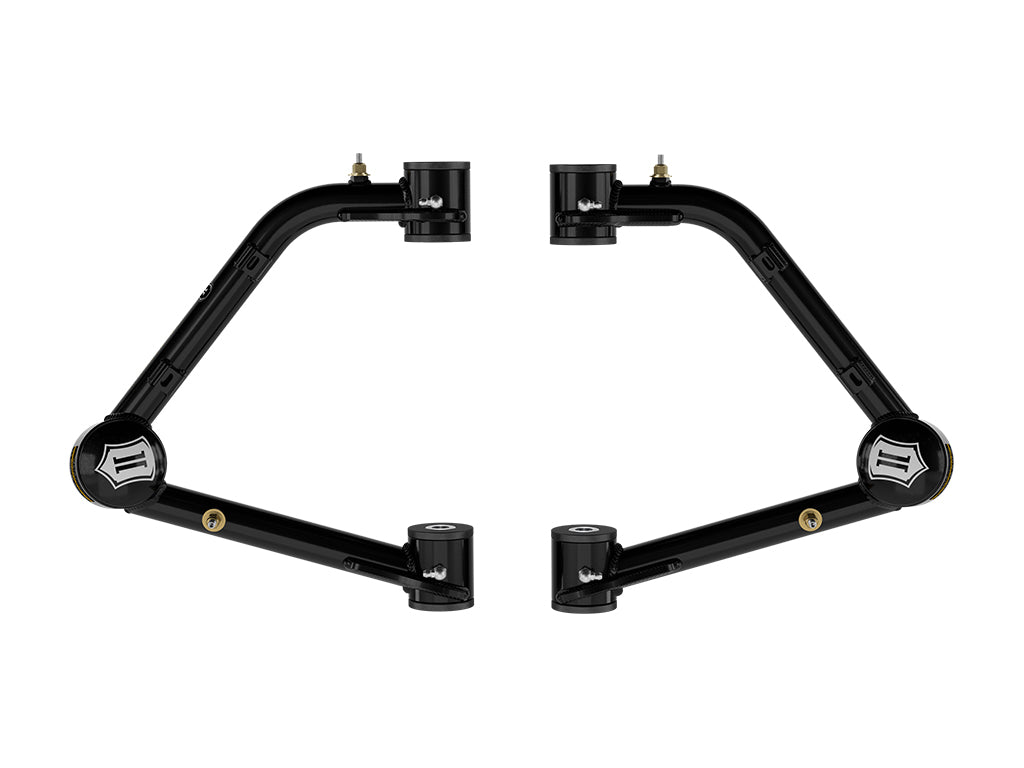

ICON Vehicle Dynamics 78661DJ - 23-24 CHEVROLET COLORADO TUBULAR UCA DJ KIT
Couldn't load pickup availability
ICON tubular UCAs feature 1026 DOM tube construction, polyurethane, and ICON’s rebuildable Delta Joint PRO, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a traditional uniball.
These tubular steel upper control arms free up your 2023-2024 Chevrolet Colorado WT, LT, or Z71's front suspension movement to allow maximum travel for performance shocks and coilovers at an easier price point compared to our range-topping billet components. Specifically designed for the narrower track width of these Colorado submodels with additional caster built in to correct geometry to allow for better front-end alignment on lifted vehicles. The all-new Delta Joint PRO provides a host of durability and performance improvements compared to our standard Delta Joints, including up to 90° of free articulation to maximize suspension travel without bind. It’s also larger and fully rebuildable. The Delta Joint PRO’s grease fitting is protected by an anodized billet aluminum dust cap, included with the kit. Serviceable Heavy Duty Dual Stage bushings at the frame pivots are greaseable and rebuildable, and fit into precision machined bushing housings to ensure a responsive driving experience. ICON Tubular Upper Control Arms are constructed of heavy wall DOM tubing, CNC formed and fixture welded before receiving our multi-stage black powder coat finish. Includes all components and hardware necessary for a complete install, these tubular UCAs are the perfect front end upgrade for the 2023-2024 Chevrolet Colorado WT, LT, or Z71.
Features & Benefits
- Built in added caster for better handling on lifted vehicles
- Delta Joint PRO allows maximum articulation without binding
- Delta Joint PRO is 100% serviceable and rebuildable
- Serviceable dual stage pivot bushings
- CNC machined housings for bushings and Delta Joint PRO
- 1026 DOM tube construction with black powder coat finish
- Includes billet dust caps for Delta Joint PRO
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Adjustable | No |
| Ball Joint Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Bushing Material | Polyurethane |
| Bushings Included | Yes |
| Adjustable Control Arm | No |
| Bushing Color | Black |
| Recommended Aftermarket Wheels | 17x8.5" w/ 5.46” Backspace / 18mm Offset |
| Recommended Aftermarket Tires | 33" x 12.50" |
| End 2 Type | BALL JOINT |
| Control Arm Color | Black |
| Color | Black |
| End 1 Type | Bushing |
| Control Arm Material | DOM Steel |
| Material | DOM Steel |
| Quantity | Pair |
| Grade Type | Performance |
| Finish | Powdercoat |
| Construction | Tubular |
| Control Arm Construction | Tubular |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Reinforced | Yes |
| Pre-Greased | Yes |
| Grease Fitting Included | yes |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Service Parts | 614531 - 78660DJ / 78661DJ REPLACEMENT BUSHING AND SLEEVE KIT |
| Title | ICON 2023-2024 Chevrolet Colorado WT, LT, & Z71, Tubular Upper Control Arms, w/ Delta Joint PRO |
| Suspension Grade Type | Performance |
Installation Guide: Download PDF
