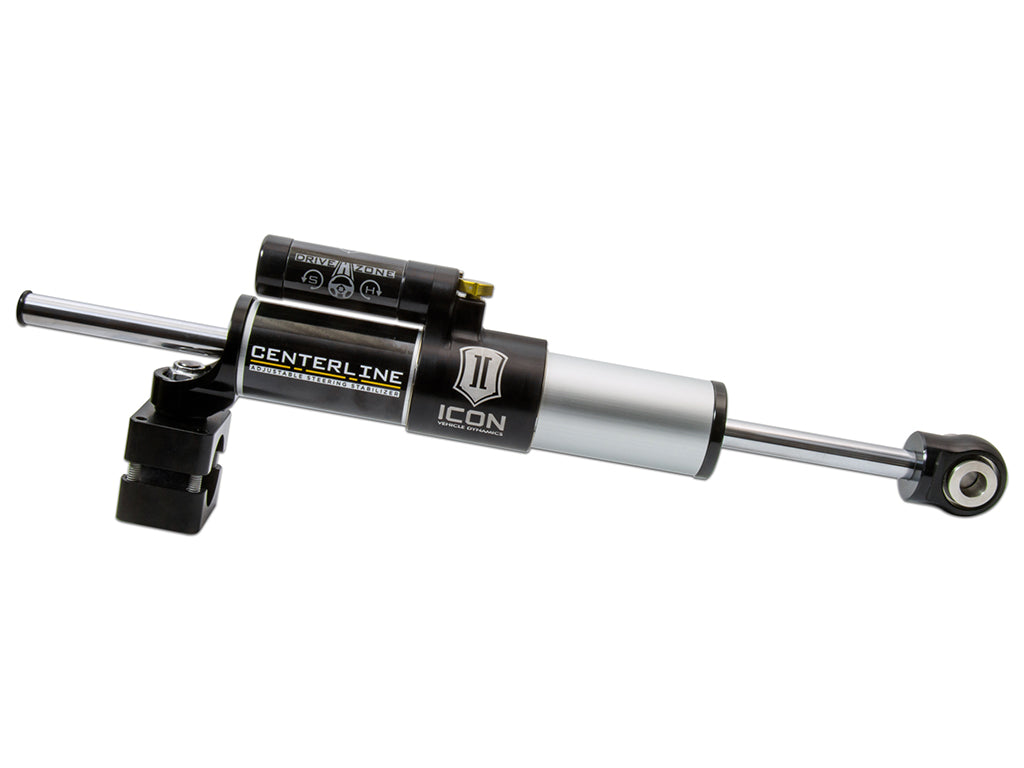

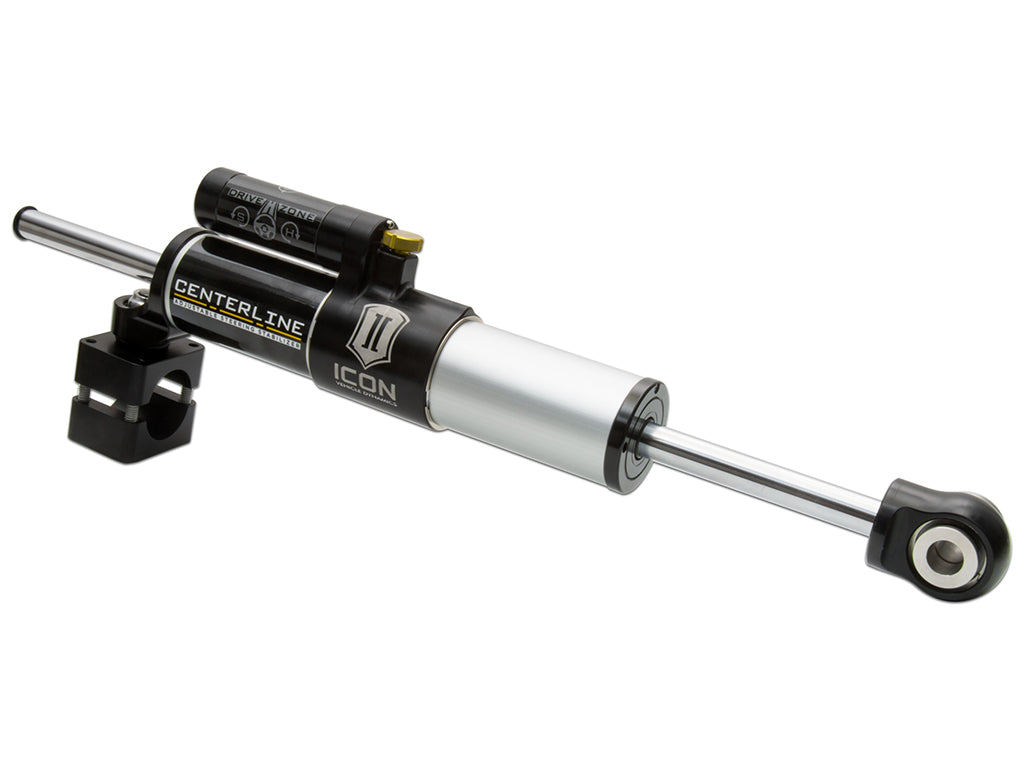

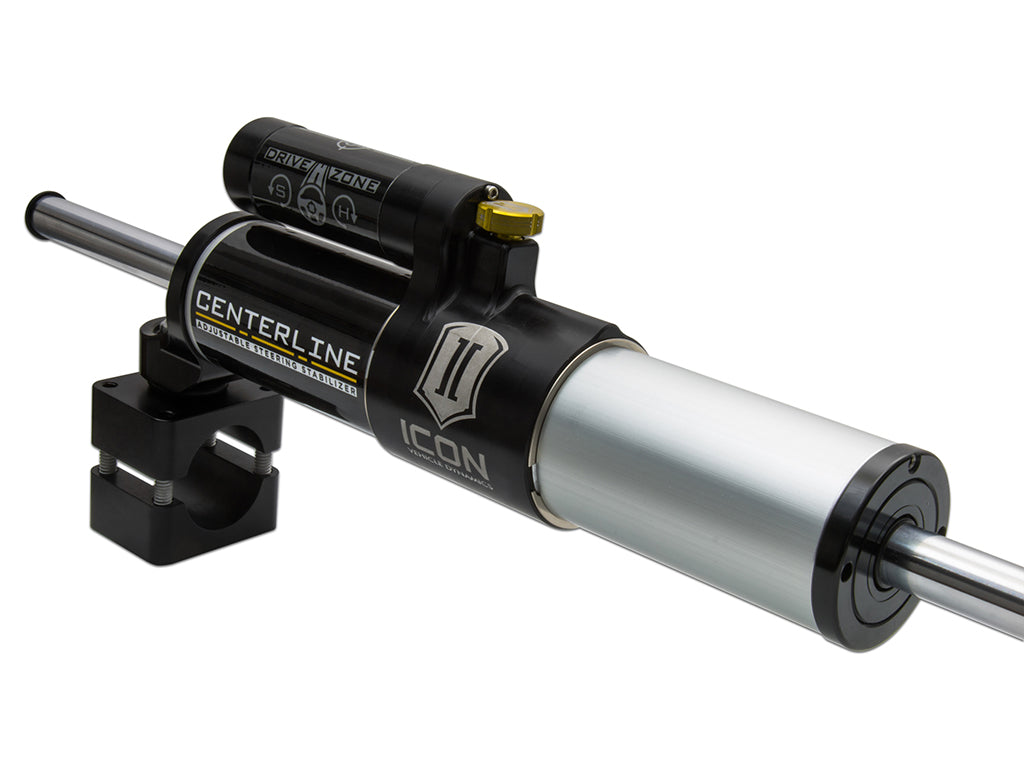

ICON Vehicle Dynamics 82021 Steering Damper Kit
Engineered to provide consistent steering damping with a through-shaft design, the new ICON Centerline Steering Stabilizer features an adjustable “Drive Zone” that can be custom-tailored to an individual’s desired steering feel.
Engineered to provide consistent steering damping with a through-shaft design, the new ICON Centerline Steering Stabilizer features an adjustable “Drive Zone” that can be custom-tailored to an individual’s desired steering feel. In addition to providing steering damping without the push or pull associated with a traditional stabilizer, the ICON Centerline Stabilizer features an adjustable “Drive Zone” with 9 levels of damping that affects 110 degrees of steering wheel input to the left or right of center. This allows the end user to customize how tight or how loose their vehicle handles in the middle of the steering range. This new Centerline Steering Stabilizer shares the same great build features as our proven ICON 2.0 Aluminum Series shocks. These features include a clear anodized 6063 aluminum shock body for corrosion resistance and a 5/8” chrome plated hardened steel shaft for durability, premium 5WT shock oil that provides consistent damping characteristics across a wide operating temperature range , and a high temperature long wear seal pack that stands up to harsh conditions found both on and off-road.
Features
- Through shaft design eliminates the push/pull sensation associated with traditional stabilizers
- 5/8” chrome plated hardened steel shaft
- Adjustable “Drive Zone” with 9 clicks of damping adjustment
- 5WT shock oil for consistent suspension damping along a wide temperature range
- FK Rod End bearings for precise function
- Increased steering damping over stock unit
- Provides symmetrical steering feel throughout input range
- 100% bolt-on installation
- Fully serviceable ICON 2.0 Aluminum Series shock
- 6063 clear anodized aluminum shock body provides excellent corrosion resistance and superb heat dissipation
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Adjustable Damping | Yes |
| Boot Included | No |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Color | Light Grey |
| Cylinder Diameter | 2 IN |
| Cylinder Material | Aluminum |
| Damping Adjustment Type | Manual |
| Damping Type | Oil |
| Grade Type | Performance |
| Lower Mount Type | Eyelet |
| Mounting Bracket Included | yes |
| Service Parts | 202006 - 2.0 CENTERLINE STABILIZER REBUILD KIT |
| Shaft Diameter | 0.625 IN |
| Shaft Material | Chrome |
| Steering Stabilizer Configuration | Through-Shaft |
| Upper Mount Type | Eyelet |
Short Description: STEERING STABILIZER
Invoice Description: 82021
Definition: Steering Damper Kit
Installation Guide: Download PDF
Warranty: 1 Year
