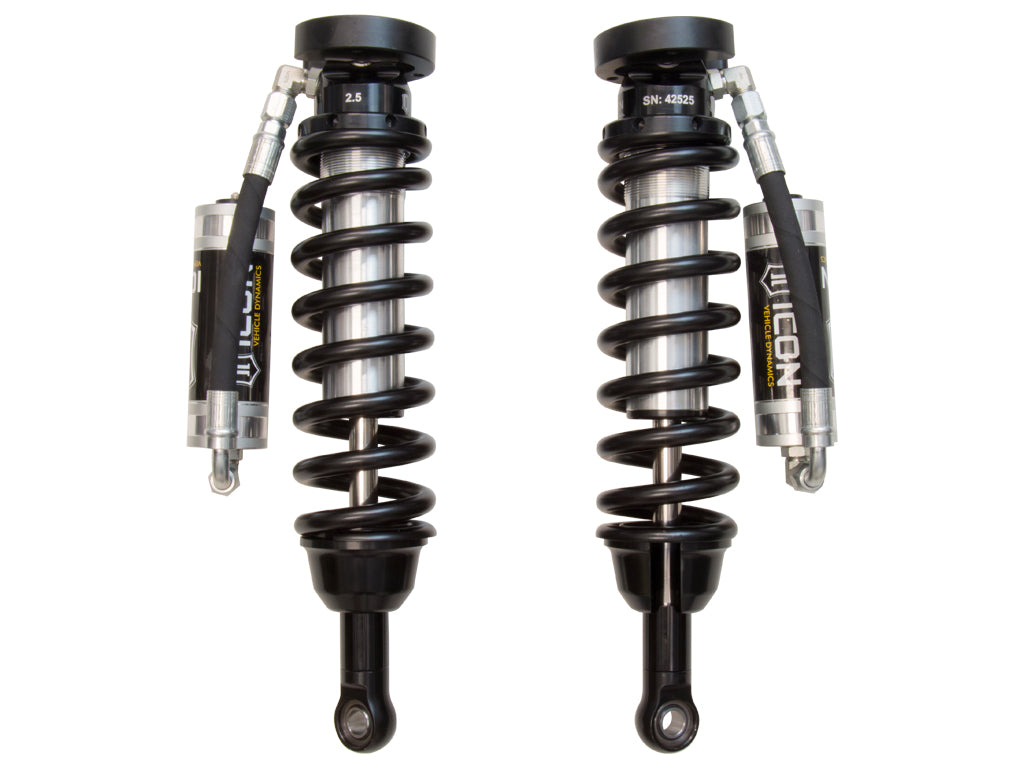

ICON Vehicle Dynamics 91210 Coilover Set
2011-UP RANGER T6 1-3" LIFT 2.5 VS REMOTE RESERVOIR COILOVER KIT
11-UP RANGER T6 1-3" 2.5 VS RR COILOVER KIT
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Self-Leveling | No |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 257338 - 7/8 SHAFT 12.25 OAL, 8.00 TRAVEL |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Travel Length | 5.16 IN |
| Upper Mount Type | MOUNT PLATE |
| Valving Type | Digressive |
| Active or Passive Suspension | Passive |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2,5 IN |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Compressed Length | 15.78 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 20.93 IN |
| Front Spring Rate | 650 PPI |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Steel |
| Maximum Lift | 3 IN |
| Maximum Ride Height Raising Distance | 3 IN |
| Minimum Lift | 1 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 32 x 11.00" Tall Tires (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | 17x8.5" w/ 5” Backspace |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
Note: OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: 8" Wide Wheel With 5" Backspace Recommended Aftermarket Tires: 32 x 11.00" Tall Tires (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Short Description: RANGER T6 COILOVERS
Invoice Description: 11-UP RANGER T6 1-3" 2.5 RR COILOVER KIT
Definition: Coilover Set
Installation Guide: Download PDF
Warranty: 1 Year
