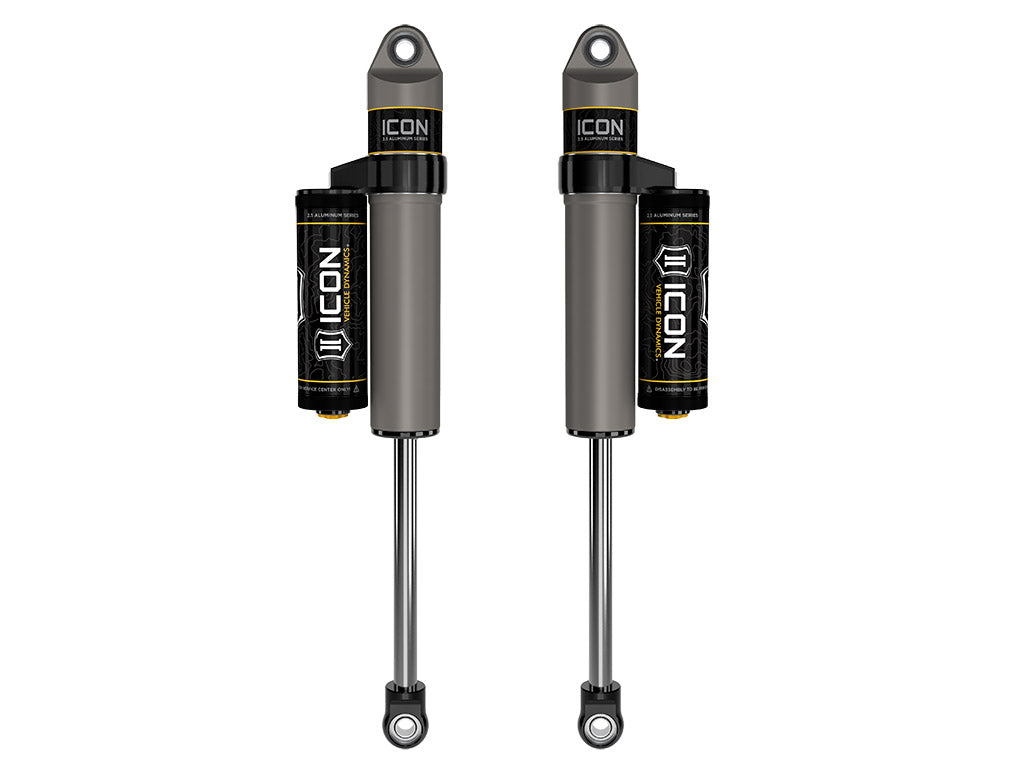

ICON Vehicle Dynamics 97720P - 09-25 F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB PAIR

With a 2.5 in cylinder diameter and a 0.875 in induction hardened, chrome plated shaft, ICON part 97720P is a V.S. 2.5 Aluminum Series piggyback reservoir shock absorber sold as a pair for the rear of the vehicle. Fits the 2004-2026 Ford F-150. The 2.25 in bore is housed in a one-piece, hard anodized, impact extruded aluminum cylinder, and a 6061 billet aluminum manifold creates an internal Bump Zone that generates an additional 20% of damping force as the shock approaches full compression, helping prevent harsh bottom outs at high velocity. The nitrogen charged monotube design is 100% rebuildable and 100% revalveable, and can be upgraded to ICON's Compression Damping Control Valve (CDCV).

• Lift range: 0-1"
• Position: Rear
• Cylinder diameter: 2.5 in
• Bore diameter: 2.25 in
• Shaft diameter: 0.875 in
• Reservoir type: Piggyback
• Bump Zone damping increase: 20%
• Damping type: Oil (passive, digressive valving)
• Shock oil: Premium grade 5WT
• Cylinder material: 6061 aircraft grade aluminum, grey hard anodized finish
• Shaft material: Induction hardened, chrome plated
• Mount type: Eyelet (upper and lower)
• Bearings: PTFE lined spherical
• Adjustable compression / damping / rebound: No
• Boot included: No
• Mounting hardware included: Yes
• Quantity: Pair
• Service part, shock shaft: 257341S (7/8 shaft, 15.25 OAL, 11.00 travel short)
• Service part, spanner wrench: 252002 universal (2.0/2.5/3.0)
• Service part, spanner wrench: 252001 2.5 fixed
• Service part, seal install tool: 252003 (2.5/3.0)
• Service part, rebuild kit: 252011 (2.5 piggyback/remote resi/bypass)
• Service part, reservoir upgrade: 191016 (7.5" finned resi upgrade kit)
• Service part, shock oil: 254100G (1 gallon ICON Performance Shock Oil)
• Adjustable Damping: No
• Adjustable Rebound: No
• Shock Absorber Body End Measuring Point: Center of Eylet
