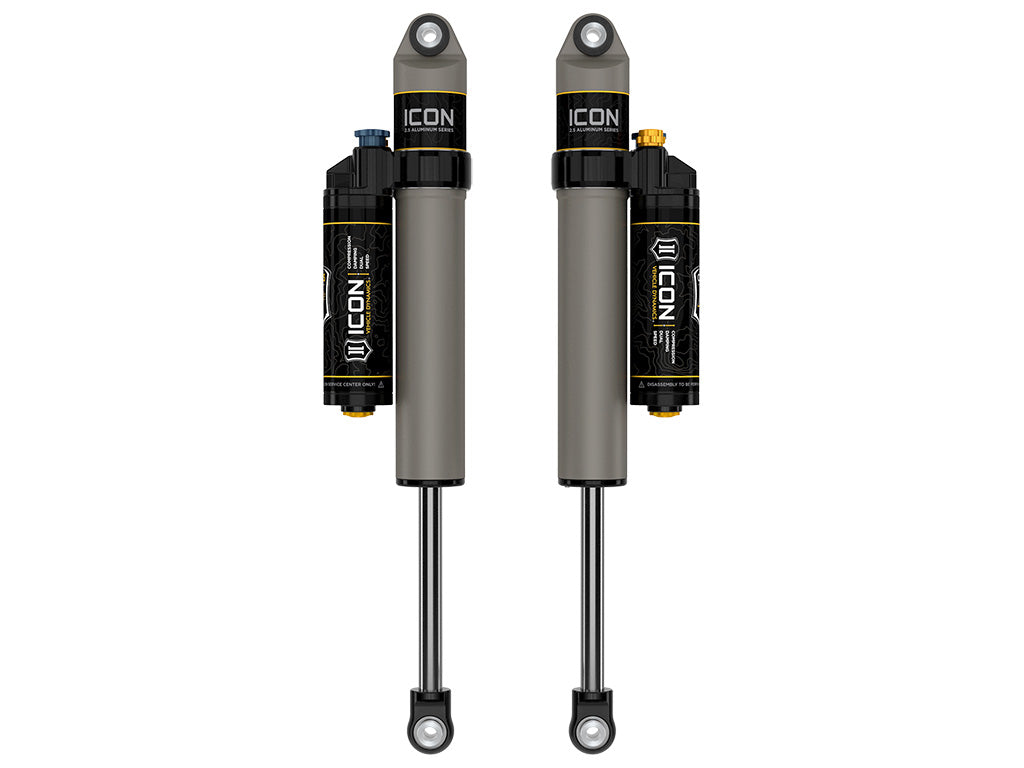

ICON Vehicle Dynamics 97721XP Suspension Shock Absorber Set
ICON 2.5 Series shocks are configured specifically for each application in both length and damping tune. Piggyback reservoir improves cooling and creates an internal Bump Zone that when used creates an additional 20% of damping force.

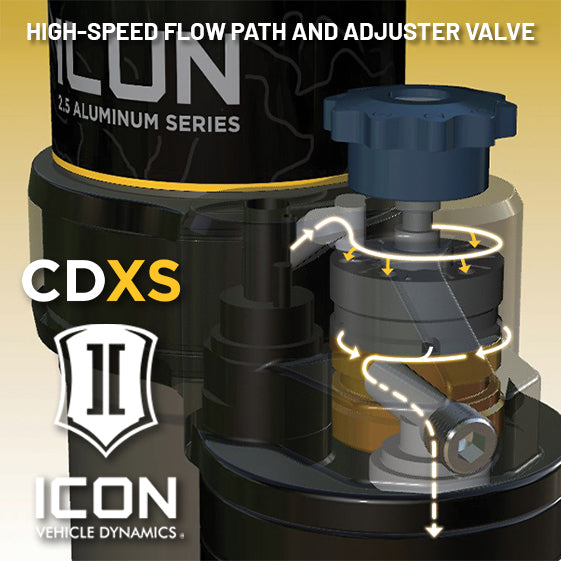

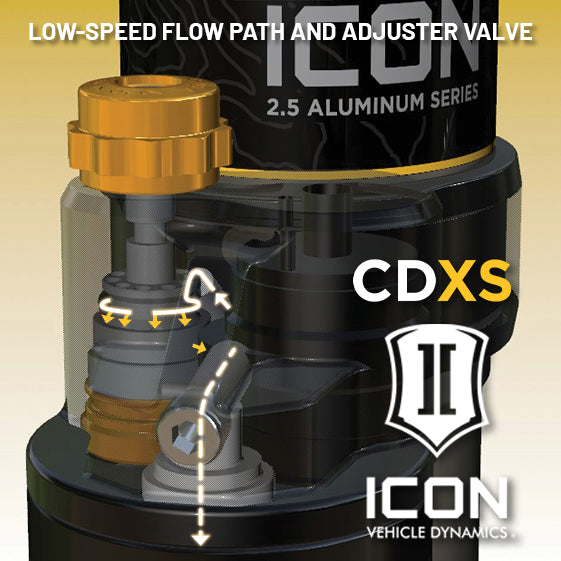

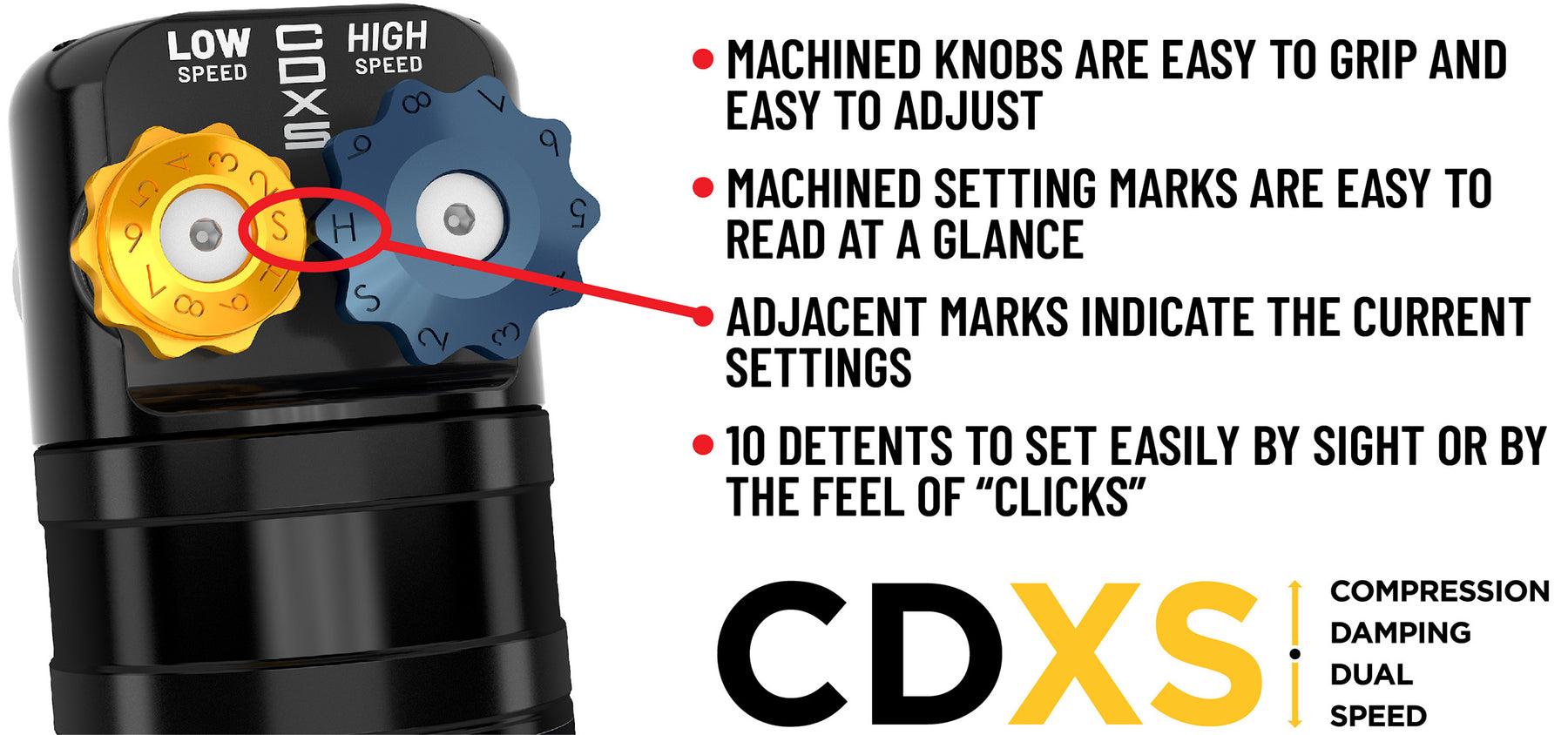

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDCV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness.
Features
- ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
- 6061 aircraft grade aluminum CNC machined components
- 100% Rebuildable
- 100% Revalveable
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression

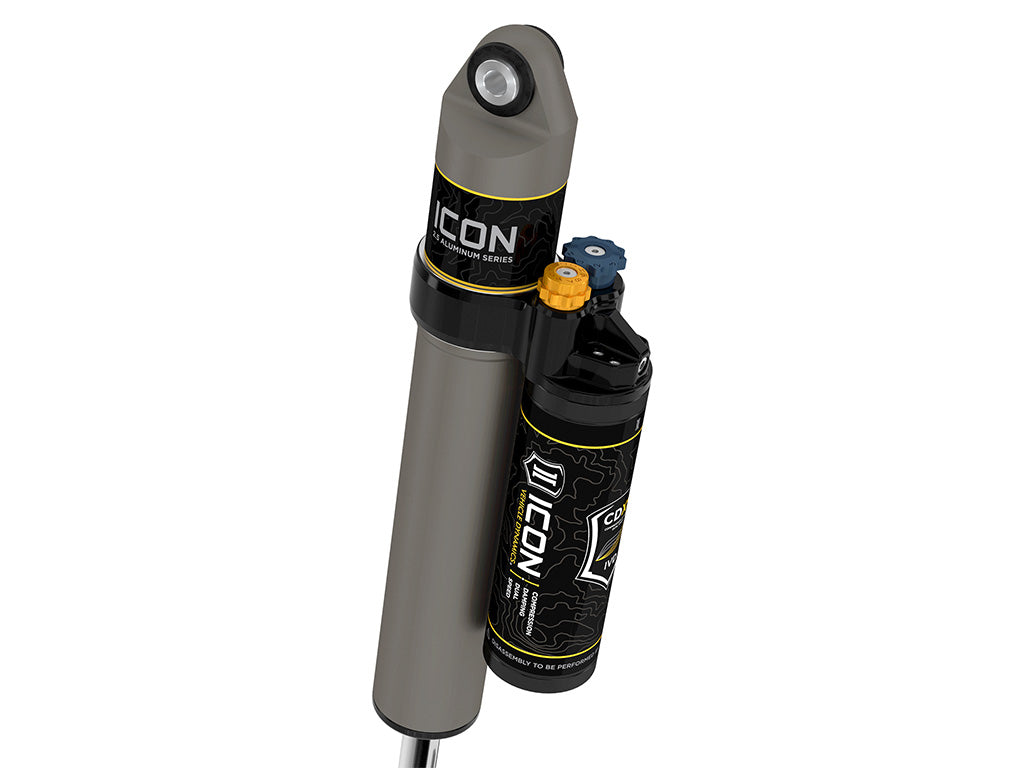

- Nitrogen charged monotube design with piggyback reservoir
- Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- PTFE lined spherical bearings and application specific mounting hardware
Specifications
| Upper Mount Type | EYELET |
| Valving Type | Digressive |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Adjustable | Yes |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Boot Included | NO |
| Bore Diameter | 2.25 IN |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Cylinder Color | Grey |
| Cylinder Diameter | 2.5 IN |
| Cylinder Material | Aluminum |
| Damping Adjustment Type | Dual Speed/Manual |
| Damping Type | Oil |
| External Reservoir | Yes |
| Gas Charged | Yes |
| Grade Type | Performance |
| Lower Mount Type | EYELET |
| Mounting Hardware Included | Yes |
| Reservoir Type | Piggyback |
| Shaft Diameter | 0.875 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Center of Eylet |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Tube Outside Diameter | 2.5 IN |
| Service Parts | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 257341 - 7/8 SHAFT 15.85 OAL, 11.00 TRAVEL |
Note: APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle. APPLICATION NOTE #129: Will not work with factory installed electronically controlled suspension. APPLICATION NOTE #235: Will not fit F-150 Raptor TECH NOTE: Compatible with 0-2" of rear lift over stock on most 2021-2025 F-150 4WD models
Short Description: SHOCK ABSORBERS
Invoice Description: 97721CP
Definition: Suspension Shock Absorber Set
Installation Guide: Download PDF
Warranty: 1 Year
