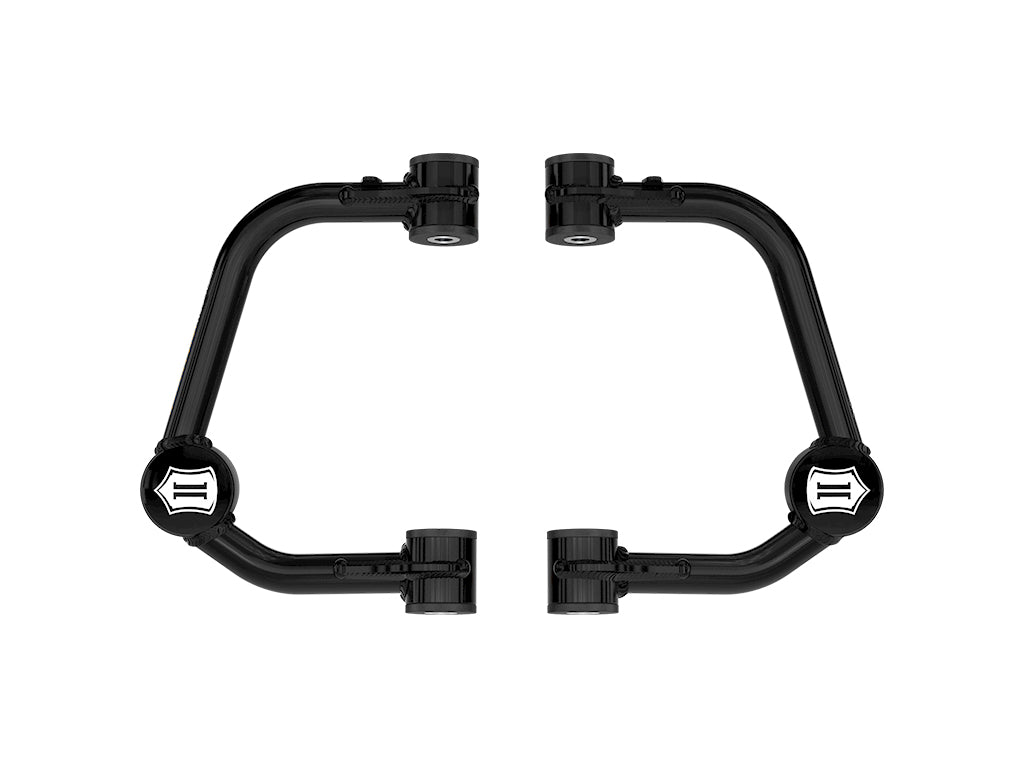

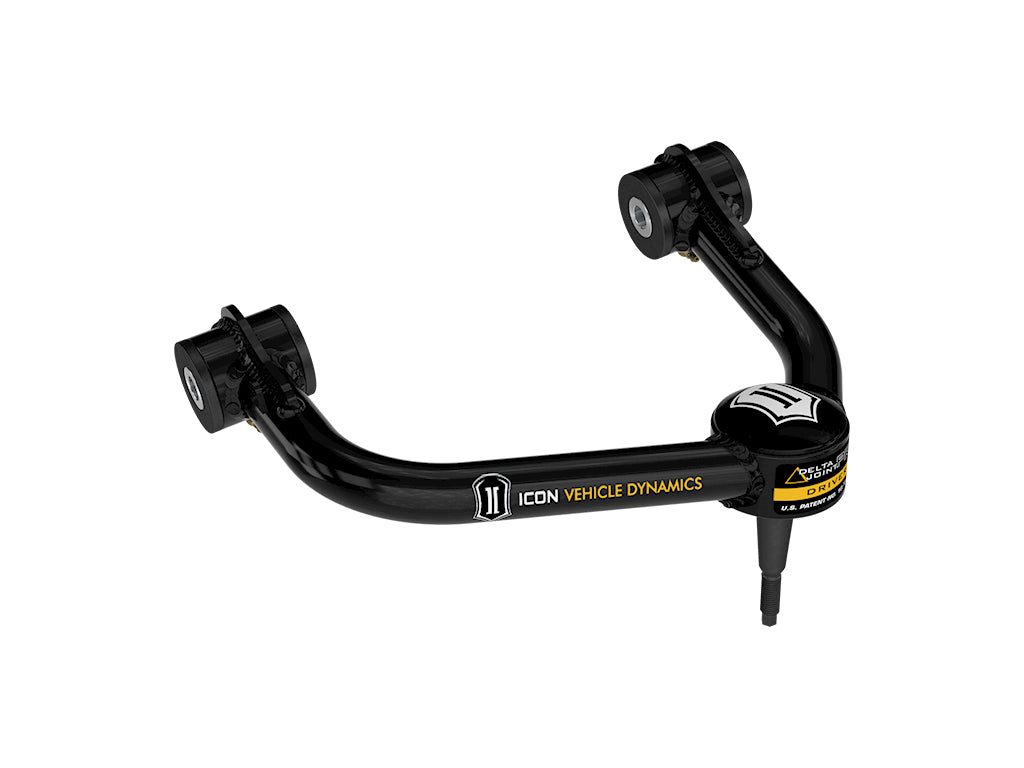

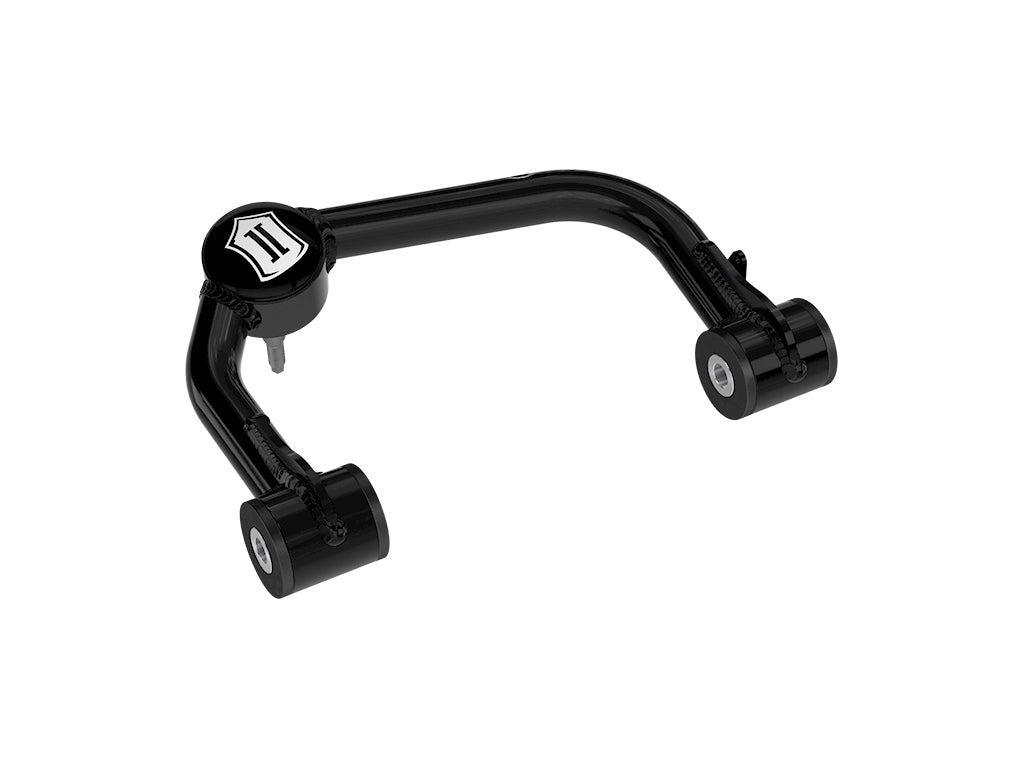

ICON Vehicle Dynamics 98522DJ - 21-25 F150 TUBULAR UCA DJ PRO KIT
Couldn't load pickup availability
ICON tubular upper control arms feature 1026 DOM tube construction, polyurethane bushings, and ICON’s Delta Joint Pro, a rebuildable high-angle ball joint with the the durability of a ball joint and the performance of a traditional uniball.
These tubular steel upper control arms free up your 2021-2025 Ford F-150 front suspension movement to allow maximum travel for performance shocks and coilovers at an easier price point compared to our range-topping billet components. Additional caster is built in to correct geometry to allow for better front-end alignment on lifted vehicles. The all-new Delta Joint PRO provides a host of durability and performance improvements compared to our standard Delta Joints, including up to 90° of free articulation to maximize suspension travel without bind. It’s also larger and fully rebuildable. The Delta Joint PRO’s grease fitting is protected by an anodized billet aluminum dust cap, included with the kit. Serviceable Heavy Duty Dual Stage bushings at the frame pivots are greaseable and rebuildable, and fit into precision machined bushing housings to ensure a responsive driving experience. ICON Tubular Upper Control Arms are constructed of heavy wall DOM tubing, CNC formed and fixture welded before receiving our multi-stage black powder coat finish. Includes all components and hardware necessary for a complete install, these tubular UCAs are the perfect front end upgrade for the 2021-2025 Ford F-150.
Features & Benefits
- Built in added caster for better handling on lifted vehicles
- Delta Joint PRO allows maximum articulation without binding
- Delta Joint PRO is 100% serviceable and rebuildable
- Serviceable dual stage polyurethane pivot bushings
- CNC machined housings for bushings and Delta Joint PRO
- 1026 DOM tube construction with black powder coat finish
- Includes billet dust caps for Delta Joint PRO
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 191018 - UCA CAP ADHESIVE KIT - DELTA JOINT PRO |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Adjustable | NO |
| Ball Joint Mounting Type | Press In |
| Bushing Material | Polyurethane |
| Bushings Included | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Construction | Tubular |
| Attachments Included | No |
| Material | DOM Steel |
| Mounting Bracket Included | No |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended. |
| Pre-Assembled | Yes |
| Pre-Greased | NO |
| Recommended Aftermarket Tires | 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset |
| Reinforced | Yes |
| Service Parts | 614533 - 98522DJ REPLACEMENT BUSHING AND SLEEVE KIT |
| Suspension Grade Type | Performance |
| Suspension Type | Spring |
| Ball Joint Included | Yes |
| Ball Joint Stud Type | Threaded |
| Bushing Color | Black |
| Castle Nut Included | Yes |
| Color | Black |
| Control Arm Color | Black |
| Control Arm Construction | Tubular |
| Control Arm Material | Steel |
| Finish | Powdercoat |
| Grade Type | Performance |
| Grease Fitting Included | yes |
| Grease Fittings Included | Yes |
| Greaseable | yes |
| Title | ICON 2021-2025 Ford F-150, Front, Tubular Upper Control Arms w/ Delta Joint Pro |
Installation Guide: Download PDF
