ICON Vehicle Dynamics K2205 - 07-18 JEEP JK STAGE 5 ULTIMATE FRONT END KIT
Couldn't load pickup availability
The ICON Vehicle Dynamics Ultimate Front End Kits are designed to improve the steering feel, vehicle control, and overall drivability of your vehicle by replacing and upgrading critical worn OE components.
The ICON Vehicle Dynamics Ultimate Front End Kits are designed to improve the steering feel, vehicle control, and overall drivability of your vehicle by replacing and upgrading critical worn OE components. Partnering with our friends at Dynatrac, ICON is happy to pair our suspension components with Dynatrac HD BallJoints to provide a complete front-end suspension solution to solve common steering problems that can lead to loose steering feel, decreased stability, erratic tracking down the road, uneven tire wear, and even death-wobble.
Features & Benefits
- Full set of genuine Dynatrac front upper and lower ball joints
- Provides symmetrical steering feel throughout input range
- Adjustable “Drive Zone” with 9 clicks of steering damping adjustment

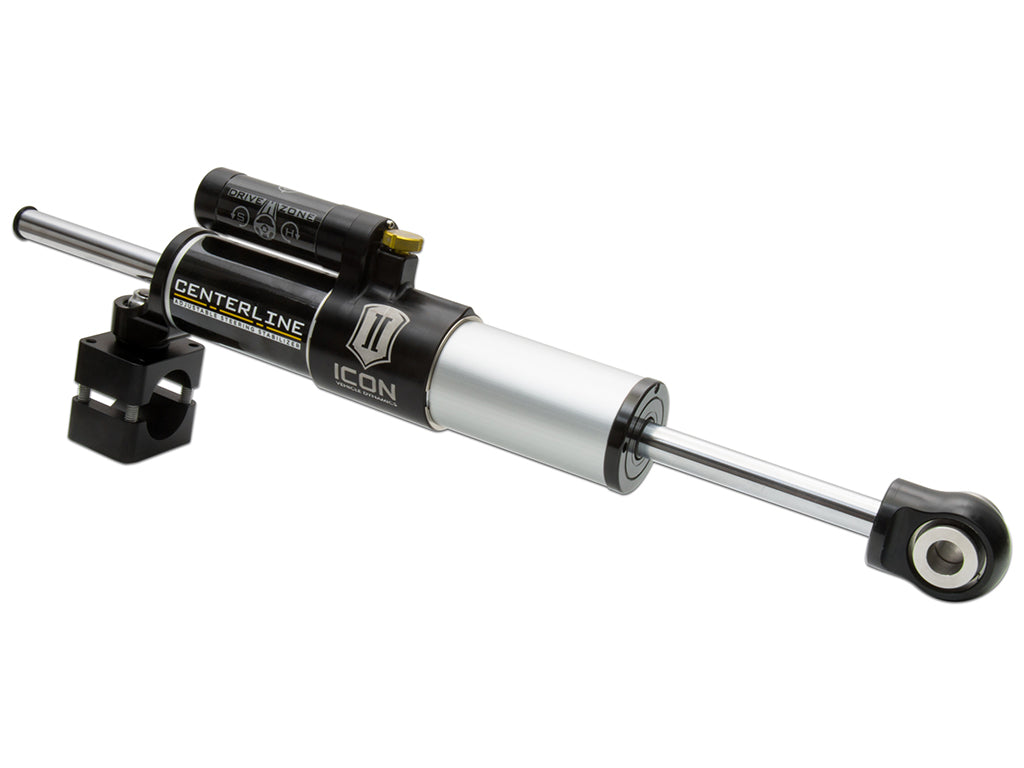

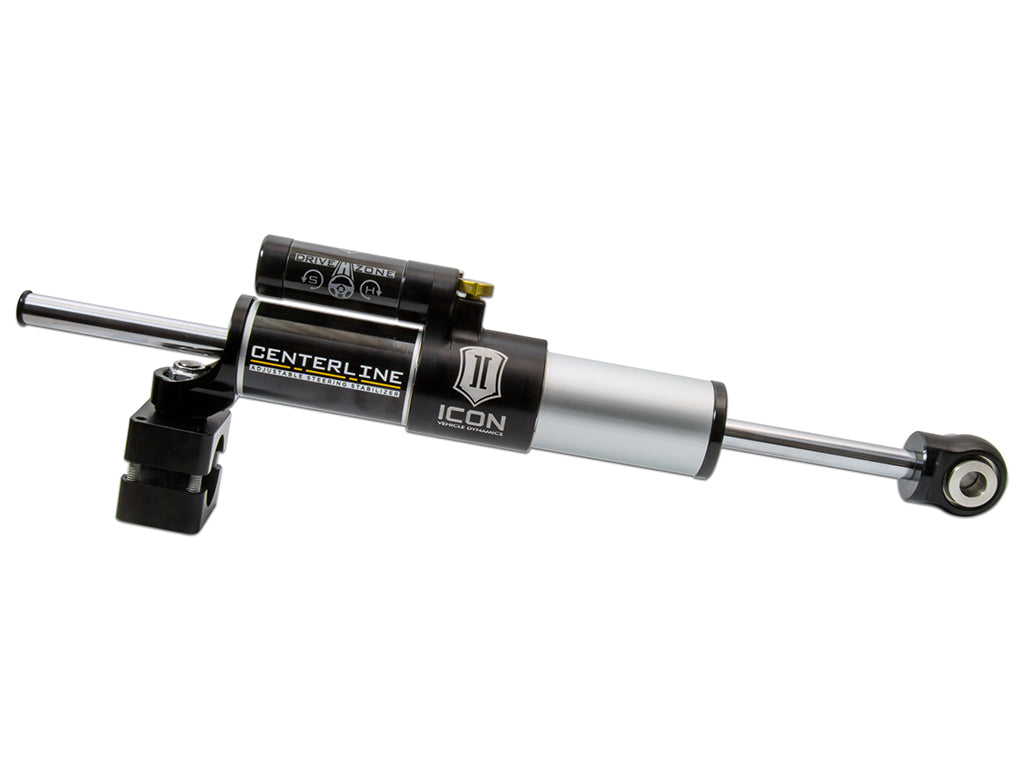

- Centerline steering stabilizer is a fully serviceable ICON 2.0 Aluminum Series piggyback reservoir shock
- 6063 clear anodized aluminum shock body provides excellent corrosion resistance and superb heat dissipation
- 5/8” chrome plated hardened steel shock shafts
- 5WT shock oil for consistent suspension damping along a wide temperature range
- FK Rod End bearings in steering stabilizer for precise function

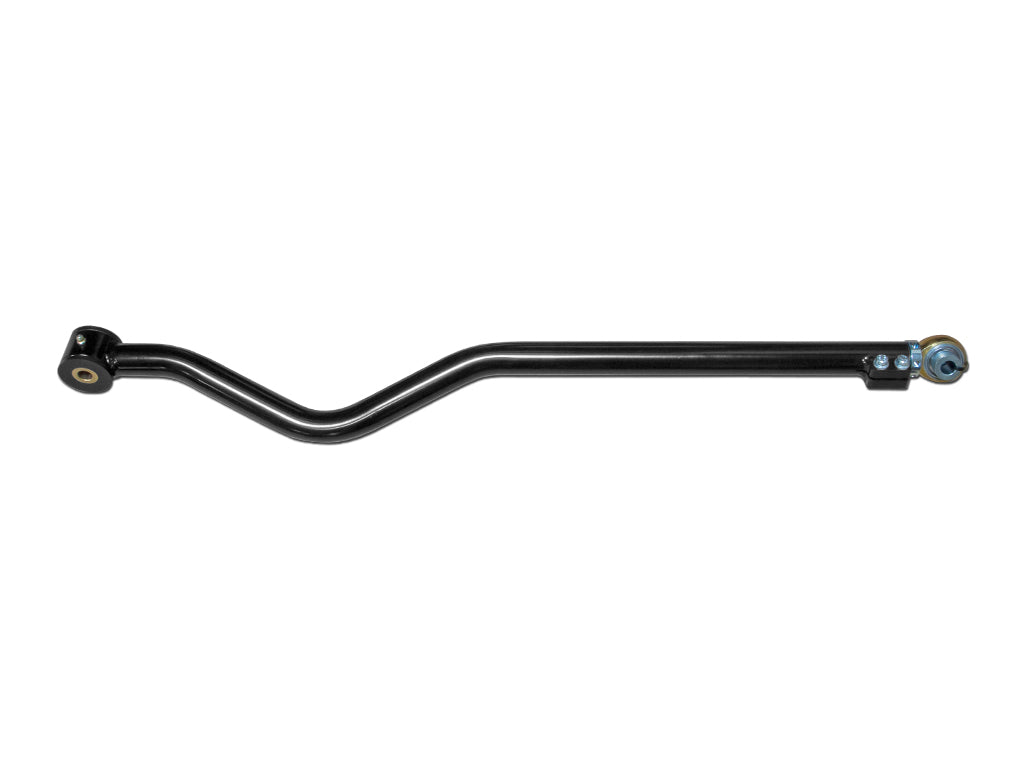

- On vehicle adjustable track bar for precise track alignment using ICON’s Double Adjuster
- Maintenance free, multi-durometer bushing and JM12T rod end minimize track bar deflection while maximizing responsiveness
- Track bar constructed with CNC machined and bent 1 1/4" x .250 wall 1026 seamless DOM tubing
- Improves steering feel and vehicle control

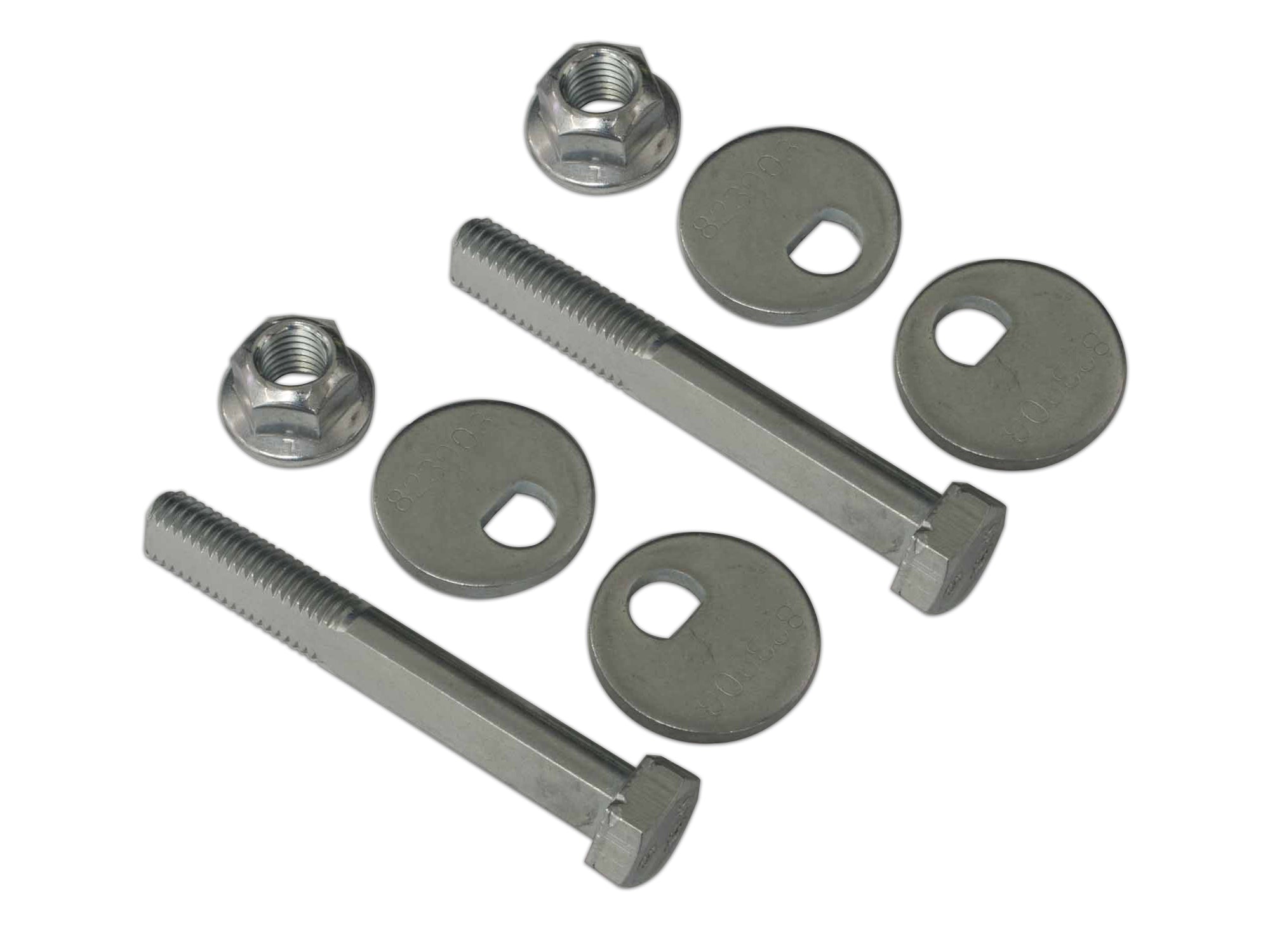

- Alignment cams add caster adjustment to ensure accurate front end alignment
- +/- 1.5 Degree caster angle adjustability
- Cam bolts are made of heavy-duty alloy steel.
- CNC machined, high-strength components
- Heat-treated, high-strength billet bodies with chromoly stems
- Heat-treated, precision-ground stainless-steel ball
- Sealed, greaseable design and PTFE coated wear points ensure long service life
- Snap ring prevents unwanted movement in axle housing
- On-vehicle rebuildable ball joint design
- Increased steering damping over stock unit
Specifications
| Adjustable Ball Joints | No |
| Adjustable | Yes |
| Adjustable Damping | Yes |
| Title | ICON 2007-2018 Jeep Wrangler JK, Ultimate Front End Kit, Stage 5 |
| Mount Type | Press In |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. |
| Cotter Pin Hole | Yes |
| Dust Boot Included | Yes |
| Grease Fitting Included | Yes |
| Greaseable | Yes |
| Grade Type | Heavy Duty |
| Grade Type | Performance |
| Add-On Part | 22044 - 18-23 JL/20-23 JT/07-18 JK 1" FRONT BUMP STOP SPACER KIT |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part | 614525 - UNIVERSAL TUBE CLAMP KIT 1.625 |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
