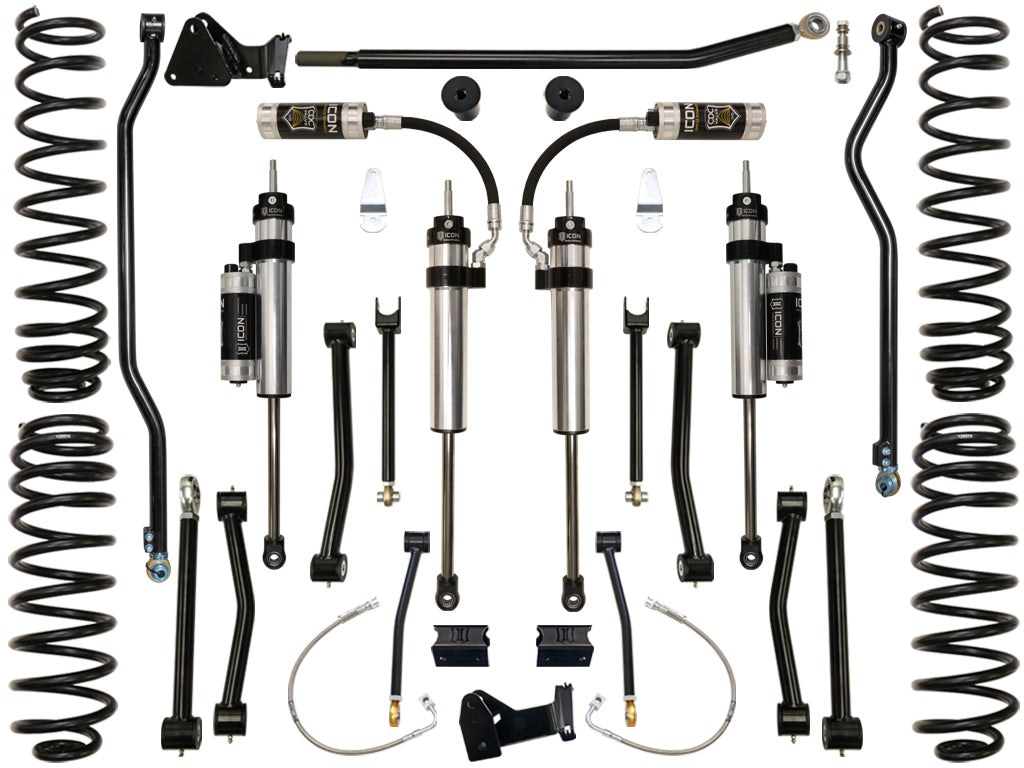

ICON Vehicle Dynamics K24004 - 07-18 JEEP JK 4.5" STAGE 4 SUSPENSION SYSTEM
Couldn't load pickup availability
2007-2018 JEEP JK 4.5" LIFT STAGE 4 SUSPENSION SYSTEM
ICON’s 4.5” Jeep JK Performance Suspension Systems aims to strike a perfect balance between wheel travel, articulation, ground clearance, and precise on and off-road handling characteristics. With these goals met, ICON-equipped JK’s can take on rolling desert whoops, crawl over obstacle-riddled trails, and drive back home in comfort all in the same day. One of the major benefits of the ICON 4.5” JK system (or any ICON system) is that they are comprehensive suspension solutions, not just “lift kits”. As a complete manufacturer ICON is able to engineer & create shock absorbers, coil springs, link arms, track bars, and all associated parts to work in conjunction with each other and extract maximum performance out of the Jeep JK.
Features & Benefits
- Dual-rate coil springs front and rear guaranteed never to sag
- High-steer flip kit for proper steering geometry without a drop pitman arm and increased ground clearance over stock
- Stainless steel high-steer taper adapter eliminates drilling the factory knuckle
- All links and track bars utilize dual-rate bushings or PTFE-lined rod ends for tuned vibration isolation, controlled deflection, with maximum articulation and responsiveness
- Track bars are on vehicle adjustable designed for optimizing axle postion
- Includes high-performance rebuildable and revalvable reservoir 2.5 Aluminum Series shocks w/ CDCV
- Easy to operate compression adjuster for user shock tune-ability front and rear
- Increased wheel travel and articulation over stock
- 100% returnable to stock
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Bushings Included | Yes |
| Title | 07-18 JEEP JK 4.5" STAGE 4 SUSPENSION SYSTEM |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger 37" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended) |
| Maximum Lift | 4.5 IN |
| Spring Color | Black |
| Grade Type | Performance |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| Dual Rate Coil Springs | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5 w/ 4.5" Backspace / -6mm Offset |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part | 22013 - 07-18 JK CASTER CAM KIT |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9 w/ 4.5" Backspace / -12mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9 w/ 4.5" Backspace / -12mm Offset |
| Add-On Part | 22016 - 07-11 JK FRONT DRIVESHAFT W/YOKE ADAPTER 2.5-6" LIFT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 22014 - 12-18 JK FRONT DRIVESHAFT W/YOKE ADAPTER 2.5-6" LIFT |
| Add-On Part | 22020 - 07-18 JK 2.0 CENTERLINE STABILIZER KIT ADJUSTABLE |
| Add-On Part | 22039 - 07-18 JK 2.0 CENTERLINE STABILIZER KIT |
Installation Guide: Download PDF
