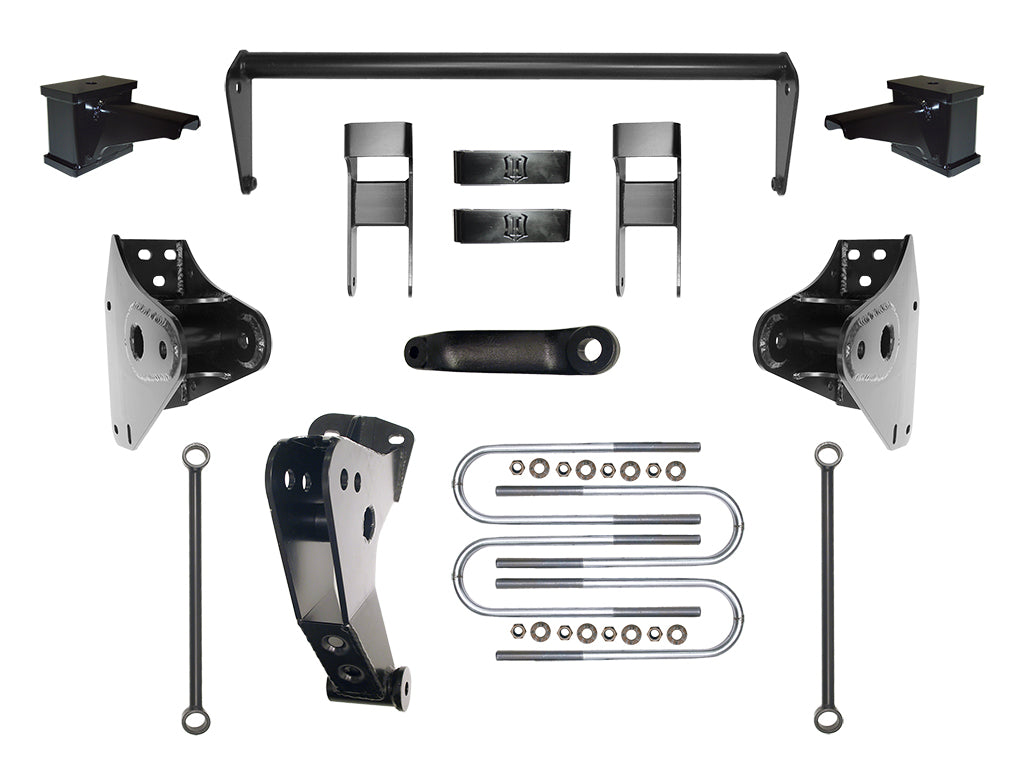

ICON Vehicle Dynamics K34000-99 - 00-04 FORD F250/F350 4.5" SUSPENSION SYSTEM
Product Availability Request
Fill the form and our team will contact you.
2000-2004 FORD F250/F350 4.5" LIFT SUSPENSION SYSTEM
This 4.5" system is designed to lift your Ford Super Duty 4.5" in front to provide room for 35” tires. This system drops your stock springs 4.5", which allows for 4.5" of lift while maintaining the stock spring rate. This system comes with a 1.75" bump stop spacer (not pictured) to prevent spring fatigue during the suspension cycle. Also included in this kit is 5” rear block kit, with 17” U-bolts for a leveled stance. This system is the ideal for all Super Duties.
Features
- Increased wheel travel
- Durable powder coat finish
- Less body-roll than stock truck
- Isolates Stock springs for Factory Like Ride Quality
- No change in towing capacity
- No drive shaft modifications needed
- 100% Bolt-on system - no drilling, cutting or welding necessary for install
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Bushings Included | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| California Prop 65 Warning | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Leaf Spring Bracket Mount Hole Quantity | 1 |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Maximum Lift | 4.5 IN |
| Leaf Spring Bracket Color | Black |
| Shocks Included | NO |
| Grade Type | Performance |
| Leaf Spring Bracket Material | Steel |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset |
Note: OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Tires: 35:" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #3: NO FRONT DRIVESHAFT MODIFICATION NEEDED. STOCK DRIVESHAFT IS FULLY FUNCTIONAL. APPLICATION NOTE #5: 2001-2004 3” And 4.5” Hanger Kits Come Complete With A New Replacement Front Cross-Member. This Crossmember Replaces The Factory Crossmember APPLICATION NOTE #17: THESE ARE STAND-ALONE KITS AND ARE NOT TO BE USED IN CONJUNCTION WITH ANY OTHER AFTERMARKET KITS
Short Description: FSD 4.5" SUSP SYS
Invoice Description: 00-04 F250/F350 4.5" SUSPENSION SYS
Definition: Suspension Lift Kit
Installation Guide: Download PDF
Warranty: Lifetime
