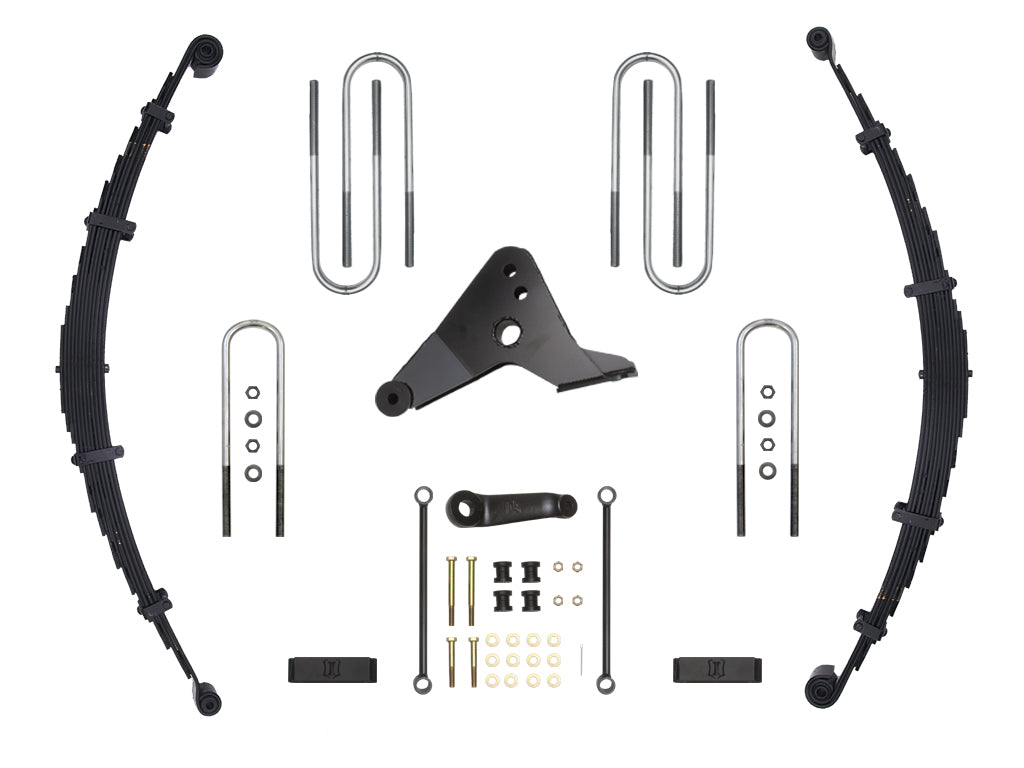

2000-2004 FORD F250/F350 4" LIFT SUSPENSION SYSTEM
This 4" system is designed to lift your Ford Super Duty. 4" front leaf springs provide room for 35” tires. This system uses a custom progressive pack for ultimate ride quality, while providing 4" of lift. This system comes with a 1.75" bump stop spacer (not pictured) to prevent spring fatigue during the suspension cycle. Also included in this kit is 4” rear block kit, with 15” U-bolts for a leveled stance. This system is the ideal for all Super Duties.
Features
- Increased wheel travel
- Durable powder coat finish
- Less body-roll than stock truck
- Isolates Stock springs for Factory Like Ride Quality
- No change in towing capacity
- No drive shaft modifications needed
- 100% Bolt-on system - no drilling, cutting or welding necessary for install
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Bushings Included | Yes |
| Leaf Spring Leaf Quantity | 12 |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Maximum Lift | 4 IN |
| Spring Color | Black |
| Shocks Included | NO |
| Grade Type | Performance |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| California Prop 65 Warning | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset |
Note: OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #17: THESE ARE STAND-ALONE KITS AND ARE NOT TO BE USED IN CONJUNCTION WITH ANY OTHER AFTERMARKET KITS Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Tires: 35:" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #1: FRONT U-BOLT NOTE: ALL FRONT SPRINGS COME COMPLETE WITH FRONT U-BOLTS, WASHERS, AND NUTS. WHEN ORDERING ANY FRONT SPRING SYSTEM FROM ICON VEHICLE DYNAMICS PLEASE SPECIFY MANUFACTURE YEAR. APPLICATION NOTE #3: NO FRONT DRIVESHAFT MODIFICATION NEEDED. STOCK DRIVESHAFT IS FULLY FUNCTIONAL. APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY APPLICATION NOTE #8: THIS SYSTEM MAY REQUIRE A CARRIER BEARING DROP BRACKET KIT (33700)
Short Description: FSD 4" SPRING SYS
Invoice Description: 00-04 FORD F250/F350 4" SUSP SYSTEM
Definition: Suspension Lift Kit
Installation Guide: Download PDF
Warranty: Lifetime
