ICON suspension systems lift your 4Runner or FJ Cruiser while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

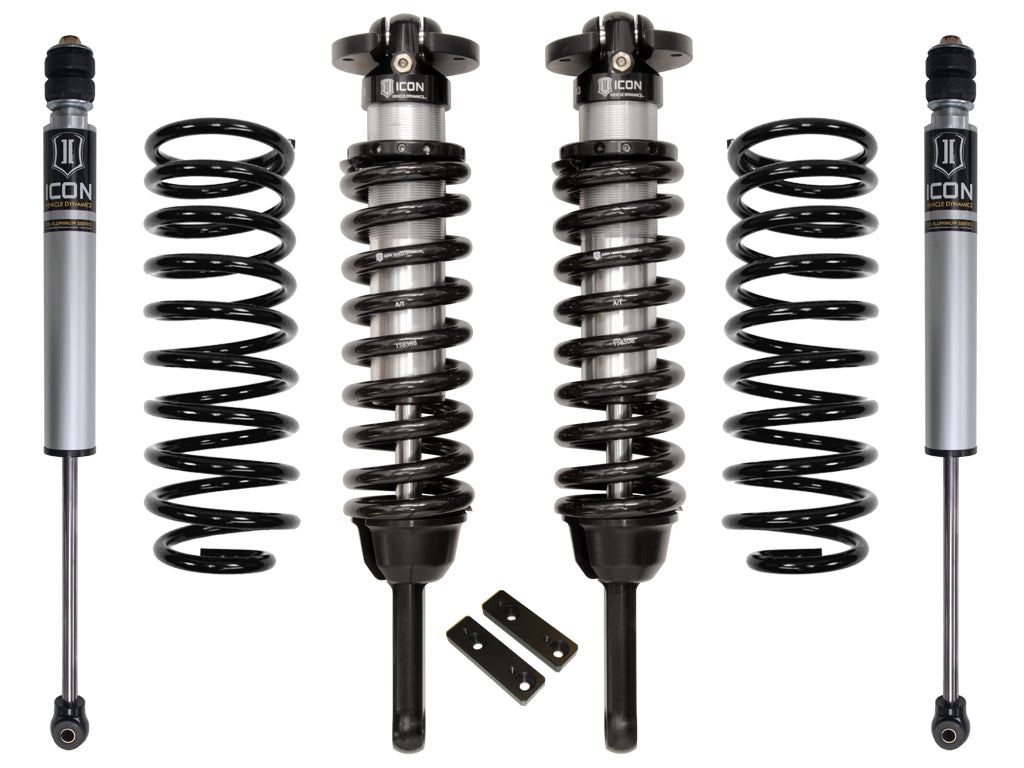

This is our entry level suspension system for the 2010-2024 Toyota 4Runner and 2010-2014 FJ Cruiser. The Stage 1 system works well in most on and off-road scenarios by significantly improving factory body roll and overall driving ability. ICON 2.5 Series front coilover shocks feature a vehicle-specific tune to give your Toyota 4Runner great ride quality on or off-road, and they are adjustable from 0 to 3.5" of lift. Our rear 2.0 Aluminum Series shocks in this system are tuned to match the front 2.5 Series coilovers in every aspect, providing smooth and consistent damping performance front to rear. This system is finished off with a pair of 2" lift rear coil springs that have been engineered to further improve ride quality and handling.
Features
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers provide 0-3.5" of lift height
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series rear IFP shock with 5/8" shaft
- Bolt-on system means no cutting or welding necessary for install
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 51045 - TOYOTA .25” BUMP STOP SPACER KIT |
| Adjustable Damping | No |
| Bushings Included | Yes |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Quantity Front | 2 |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Front Spring Rate Type | Linear |
| Grade Type | Performance |
| Maximum Lift | 3.5 IN |
| Maximum Lift Front | 3.5 IN |
| Maximum Lift Rear | 2 IN |
| Minimum Lift Front | 0 IN |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Rear Spring Rate Type | Linear |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate | 650 PPI |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 54200 - 07-14 FJ/03-24 4RNR/03-23 GX REAR ADJ TRACK BAR KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 51052 - 03-24 4RUNNER/07-14 FJ REAR SWAY BAR LINK KIT |
| Add-On Part | 51051 - 05-23 TACOMA/03-24 T4R/07-14 FJ FRONT SWAY BAR LINK KIT |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
Note: OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation. Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #30: An adjustable track bar is recommended to realign the axle but not required. APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE APPLICATION NOTE #102: KDSS EQUIPPED REQUIRE REAR TRACK BAR 54200
Short Description: SUSPENSION SYSTEM
Invoice Description: K53061
Definition: Suspension Lift Kit
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 1 year-Shocks, Limited Lifetime-Coil Springs
