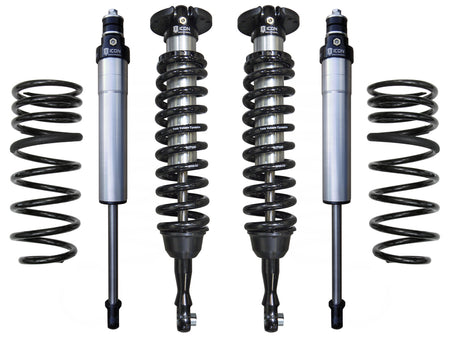

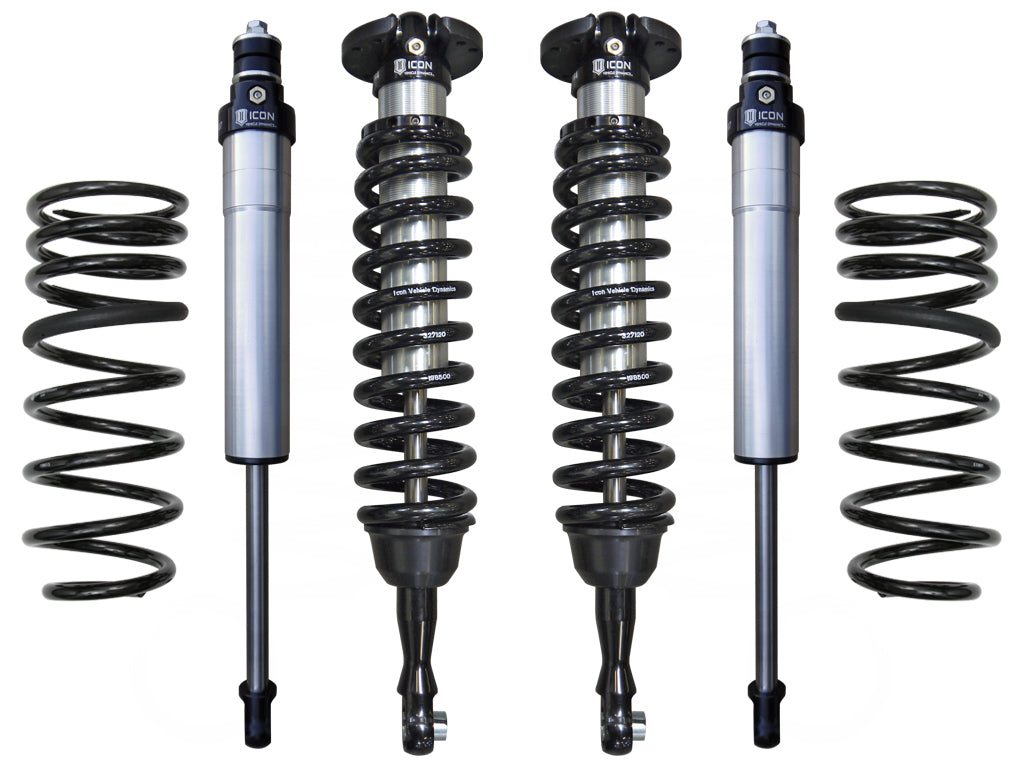

ICON Vehicle Dynamics K53071 - 08-UP LAND CRUISER 200 SERIES 1.5-3.5" STAGE 1 SUSPENSION SYSTEM
Couldn't load pickup availability
2008-UP TOYOTA LAND CRUISER 200 SERIES 1.5-3.5" LIFT STAGE 1 SUSPENSION SYSTEM
The 200 Series Toyota Land Cruiser is a luxurious vehicle packed with “all the bells and whistles”, but underneath all of the sophistication it is still a very capable vehicle that sees heavy use both on and off-road worldwide. While the 200 Series has exceptional ride characteristics in stock form, it is clear that the suspension is in need of a serious upgrade if the vehicle is to serve any measurable amount of time in the dirt. ICON Vehicle Dynamics has addressed this need for a comprehensive suspension solution and is proud to re-introduce several suspension systems that drastically increase the overall ability of the 2008-UP Toyota Land Cruiser.
Features & Benefits
- Bolt-on design means no cutting or welding necessary for install
- Increased wheel travel and ride quality over stock
- Improved vehicle dynamics and decreased body roll
- Height adjustable coilovers provide 1.5-3.5" of lift height
- ICON engineered dual rate rear coil springs
- Vehicle-specific tuned front and rear shocks provide superior damping and control
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Shocks are fully rebuildable and revalveable
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Bushings Included | Yes |
| Title | 08-UP LAND CRUISER 200 SERIES 1.5-3.5" STAGE 1 SUSPENSION SYSTEM |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Maximum Lift | 3.5 IN |
| Recommended Aftermarket Tires | 34" x 10.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Spring Color | Black |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset |
| Grade Type | Performance |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| Dual Rate Coil Springs | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset |
| Add-On Part | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR) |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
Installation Guide: Download PDF
