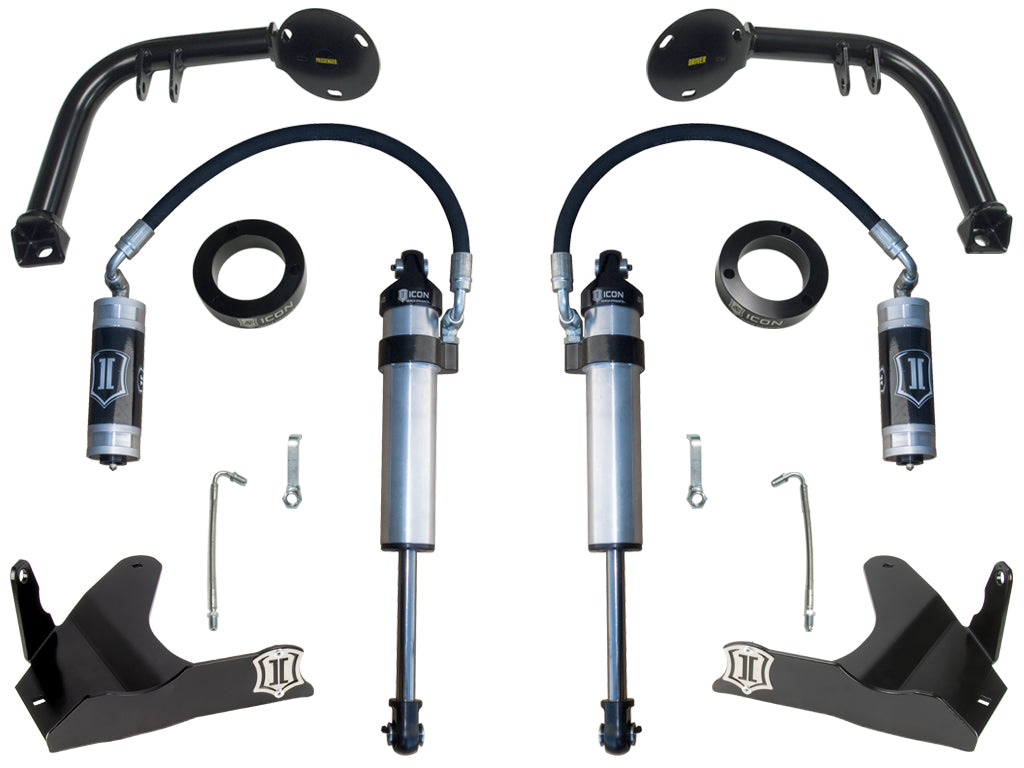

ICON Vehicle Dynamics K53111 - 05-15 TACOMA/03-09 4RUNNER/07-09 FJ S2 STAGE 1 UPGRADE SYSTEM
Couldn't load pickup availability
2005-2015 TACOMA/20003-2009 4RUNNER/2007-2009 FJ S2 STAGE 1 UPGRADE SYSTEM
The ICON Vehicle Dynamics S2 Secondary Shock System redefines the off-road capability of the 2005-2015 Toyota Tacoma, 2003-2009 Toyota 4Runner, or 2007-2009 Toyota FJ Cruiser by allowing for the installation of a secondary shock to an existing ICON coilover setup. The addition of a secondary 2.5 Aluminum Series or Omega Bypass shock means rougher terrain and larger off-road obstacles can be overcome with confidence as the damping ability of the vehicle’s suspension is effectively doubled. As opposed to overly complicated and expensive long travel kits, the ICON S2 System is an affordable upgrade that drastically increases off-road performance, is easy to install, and has a modular design that allows Toyota owners to upgrade in steps or all at once.
Features & Benefits
- Drastically improves vehicle damping ability off-road
- Increased vehicle stability on-road
- Utilizes factory lower control arms
- Maintains OE track width
- Vehicle-specific tuned secondary shocks provide increased damping and oil volume
- Shocks are fully rebuildable and revalveable
- Mostly bolt-on design makes for straightforward install
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Adjustable | No |
| Bushings Included | NO |
| Shaft Diameter | 0.875 IN |
| Title | 05-15 TACOMA/03-09 4RUNNER/07-09 FJ S2 STAGE 1 UPGRADE SYSTEM |
| Cylinder Diameter | 2.5 IN |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Cylinder Material | Aluminum |
| Lower Mount Type | Eyelet |
| Upper Mount Type | Eyelet |
| Damping Type | Oil |
| Grade Type | Performance |
| Cylinder Color | Silver |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Gas Charged | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Shock Mounts Included | Yes |
| Shocks Included | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Shaft Material | Chrome |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR) |
Installation Guide: Download PDF
