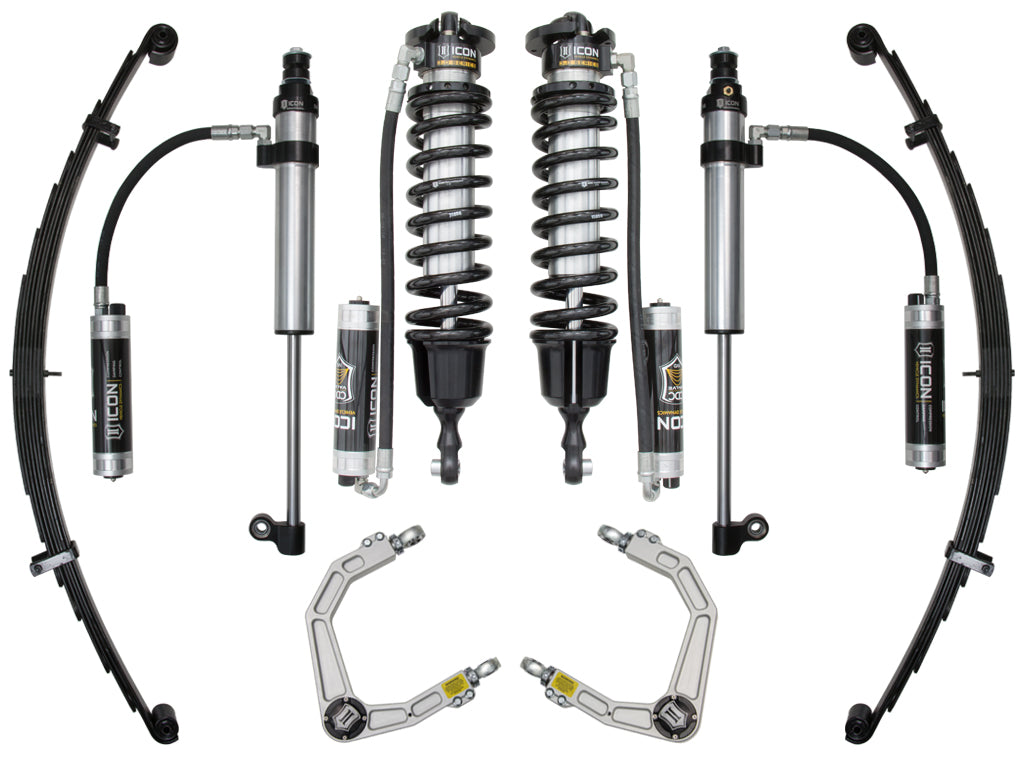

ICON Vehicle Dynamics K53165 - 07-21 TUNDRA 1.63-3" STAGE 1 3.0 SUSPENSION SYSTEM
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.
2007-2021 TUNDRA 1.63-3" LIFT STAGE 1 3.0 SUSPENSION SYSTEM
07-21 TUNDRA 1.63-3" STAGE 1 3.0 SUSPENSION SYSTEM
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Bushings Included | Yes |

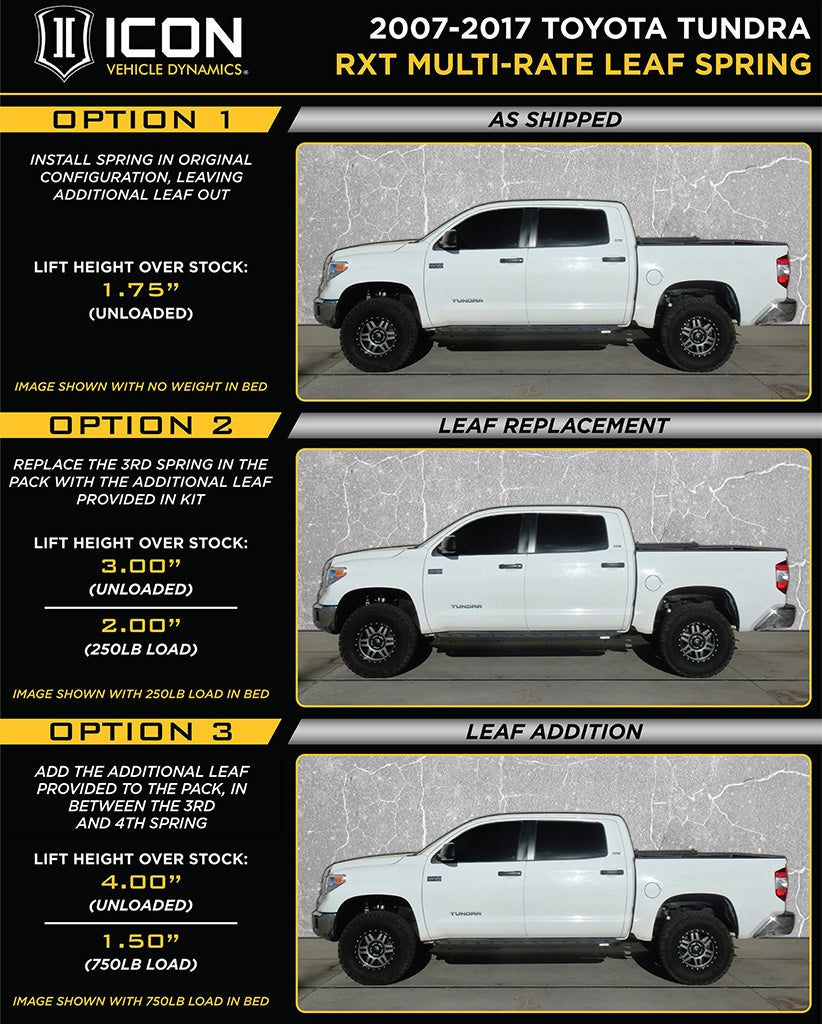

| Leaf Spring Leaf Quantity | 2 |
| Coils Quantity Front | 2 |
| Maximum Lift | 3.5 IN |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Spring Color | Black |
| Grade Type | Performance |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| California Prop 65 Warning | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset |
| Add-On Part | 191010 - ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset |
Note: OEM Wheels & Tires Fitment: Yes TECH NOTE: Not compatible with TRD rear sway bar kit Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #17: THESE ARE STAND-ALONE KITS AND ARE NOT TO BE USED IN CONJUNCTION WITH ANY OTHER AFTERMARKET KITS APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE APPLICATION NOTE #110: Trimming required for recommended tire size APPLICATION NOTE #111: Bump Stop Spacer Kit Available That Can Be Installed To Increase Threads Showing Beyond Max Recommendation.
Short Description: SUSPENSION SYSTEM
Invoice Description: 07-21 TUNDRA STAGE 1 3.0 SUSPENSION SYS
Definition: Suspension Lift Kit
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: No Warranty
