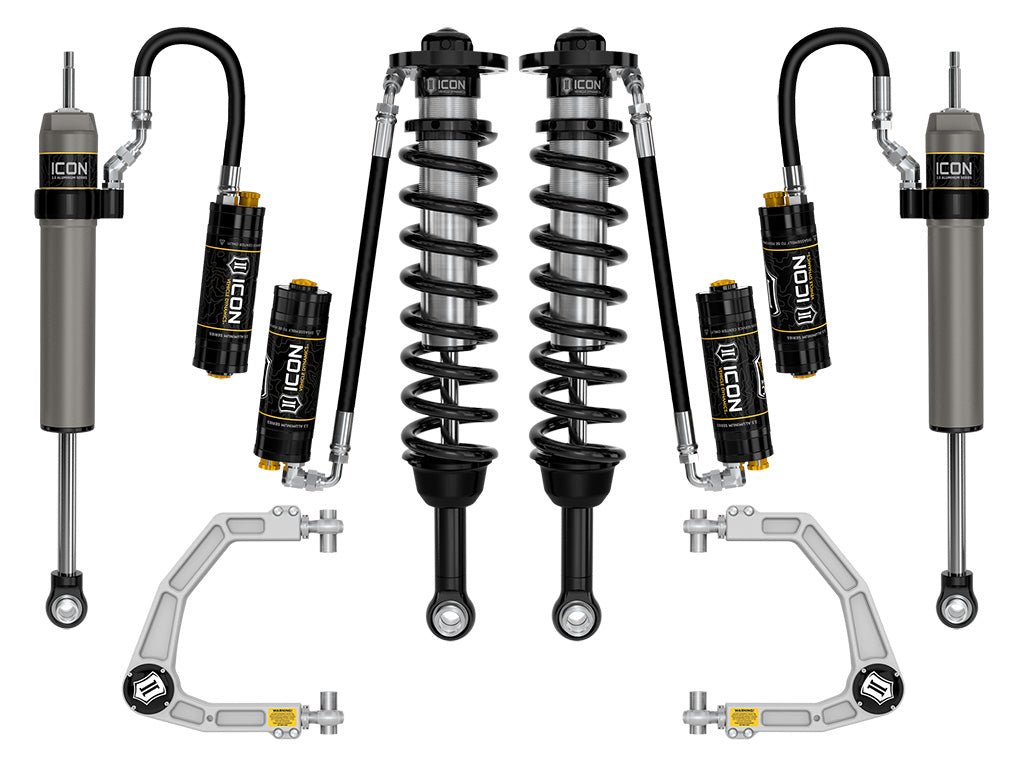

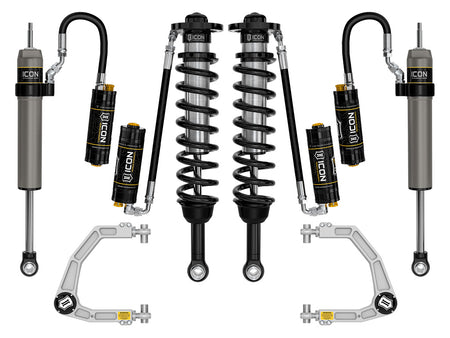

ICON Vehicle Dynamics K53263 - 22-23 LAND CRUISER 300 SERIES 1-3" STAGE 3 SUSPENSION SYSTEM BILLET
Couldn't load pickup availability
ICON suspension systems lift your Land Cruiser 300 while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
The 300 Series Toyota Land Cruiser is a luxurious vehicle packed with “all the bells and whistles”, but underneath all the sophistication it is still a very capable vehicle that sees use both on and off-road worldwide. While the 300 Series has exceptional ride characteristics in stock form, the suspension needs a serious upgrade if the vehicle is to serve any measurable amount of time in the dirt. ICON Vehicle Dynamics has addressed this need for a comprehensive suspension solution and developed several suspension systems that drastically increase the overall ability of the 2022-2023 Toyota Land Cruiser 300 Series.
Features & Benefits
- Bolt-on design means no cutting or welding necessary for install

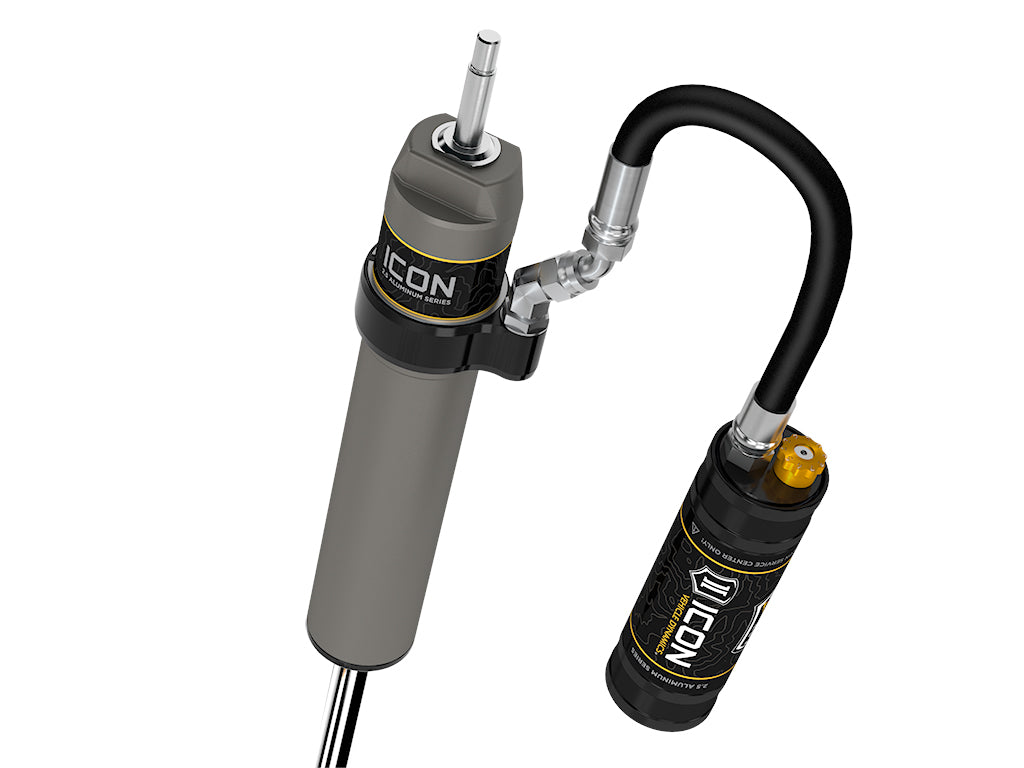

- 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Remote reservoirs improve heat dissipation to reduce shock fade during prolonged use
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- Shocks are fully rebuildable and revalveable
- Increased wheel travel and ride quality over stock
- Improved vehicle dynamics and decreased body roll

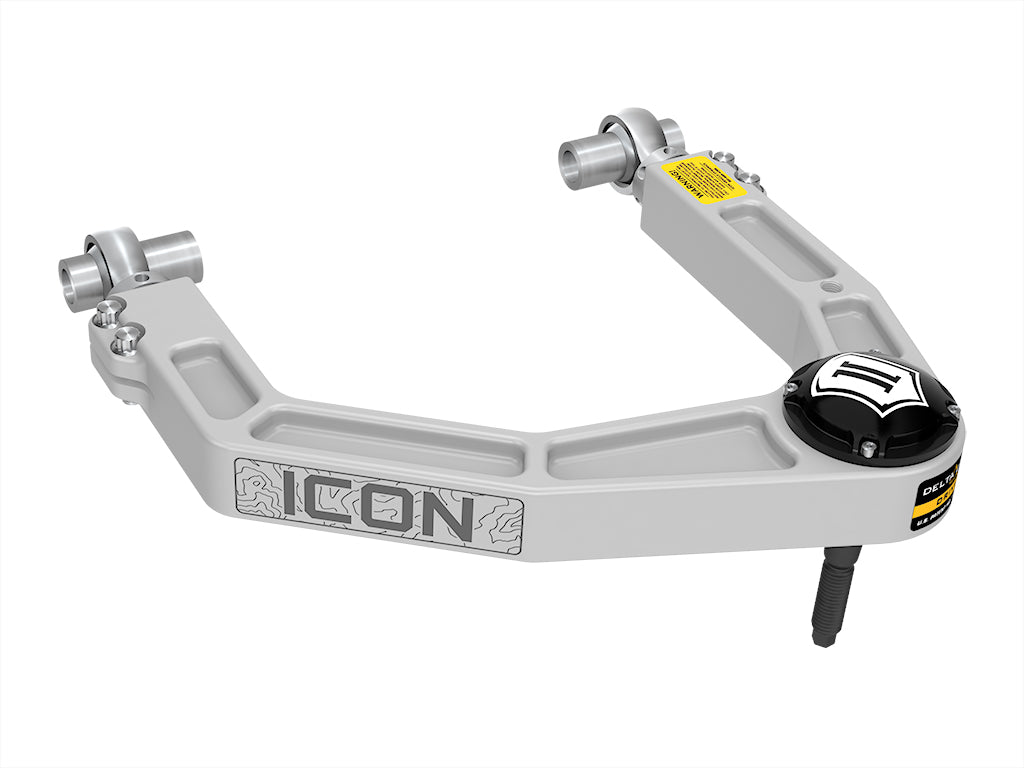

- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation

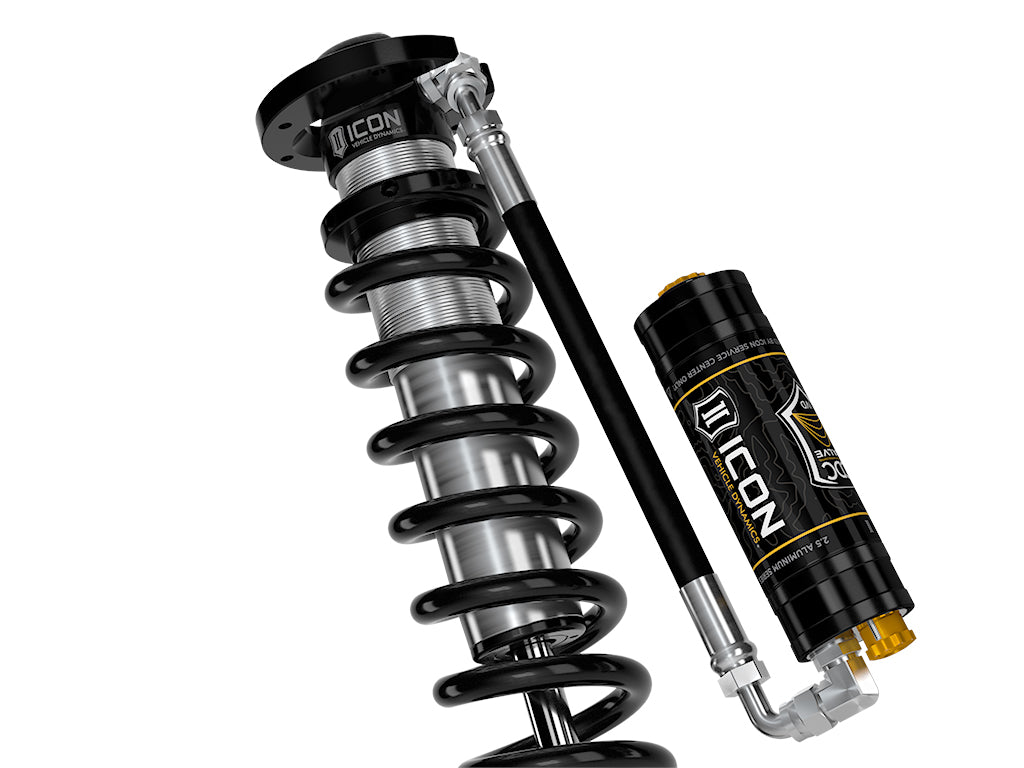

- Height adjustable coilovers provide 1-3" of front lift height
- ICON engineered front coilover springs
- Vehicle-specific tuned front and rear shocks provide superior damping and control
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Bushings Included | Yes |
| Minimum Lift Front | 1 IN |
| Coils Quantity Front | 2 |
| Maximum Lift Front | 3 IN |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Spring Color | Black |
| Title | ICON 2022-2023 Toyota Land Cruiser 300 Series, 1-3" Lift, Stage 3 Suspension System, Billet |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset |
| Grade Type | Performance |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| Dual Rate Coil Springs | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Add-On Part | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Front Spring Rate Type | Linear |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part | 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR) |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
