ICON Vehicle Dynamics K53279 - 22-24 TOYOTA TUNDRA 6" STAGE 9 SUSPENSION SYSTEM BILLET UCA

22-26 TOYOTA TUNDRA 6" STAGE 9 SUSPENSION SYSTEM BILLET UCA

Features

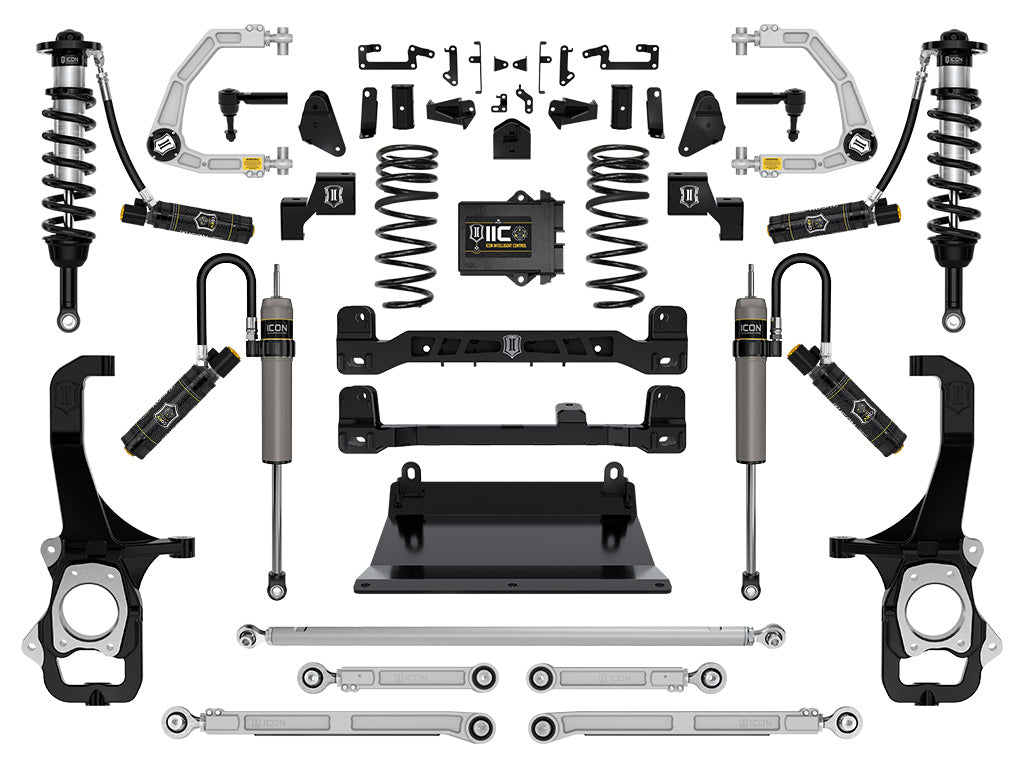

• 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
• Single piece high-strength ductile iron steering knuckles with built-in 4" drop
• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets
• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
• ICON engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving
• Billet rear upper and high clearance lower links improve rear end articulation and allow on-vehicle adjustment for different ride heights and pinion angles using ICON's double adjuster system
• Billet rear lower links have replaceable nylon rock sliders to protect the links from trail damage
• On-vehicle adjustable billet rear track bar properly centers rear axle while also improve rear suspension performance
• ICON's Compression Damping Electronic Valve (CDEV) technology allows for in vehicle adjustment of compression damping settings and active adjustment via IIC
• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

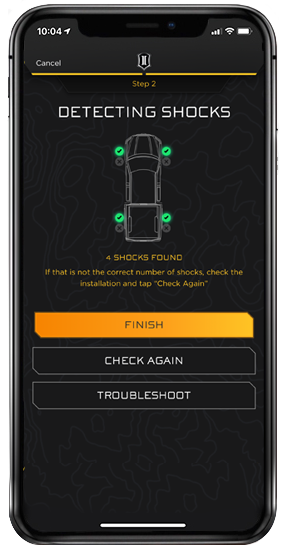

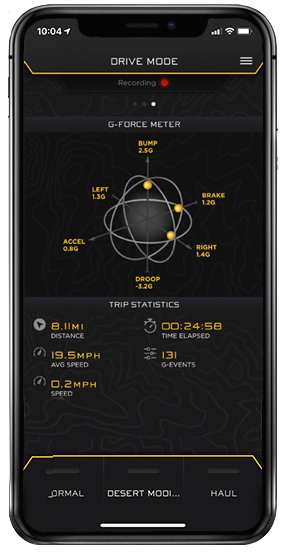

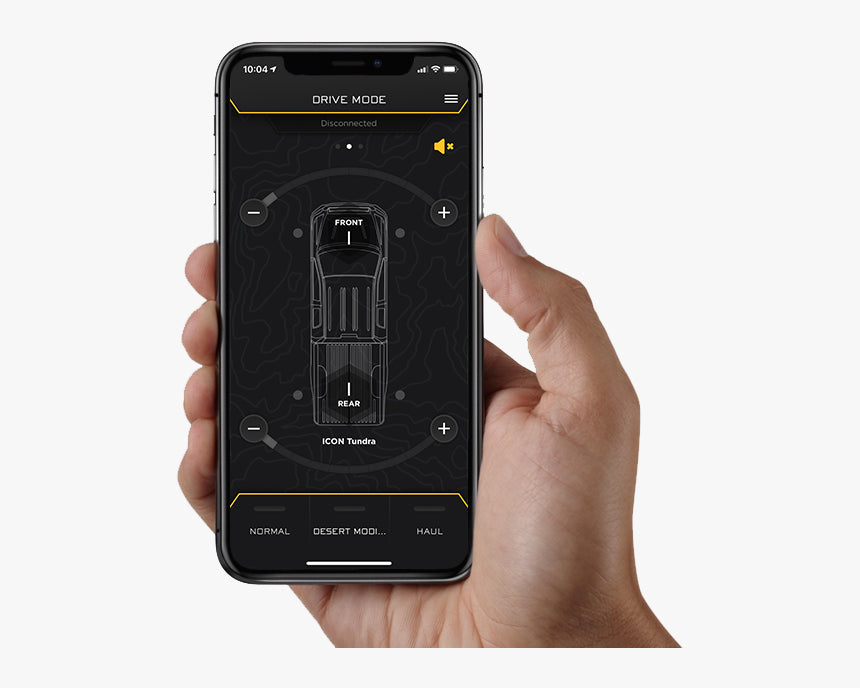

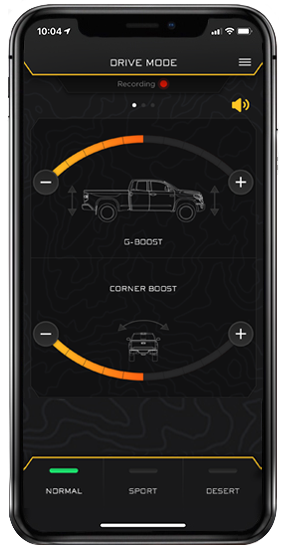

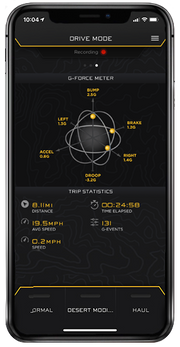

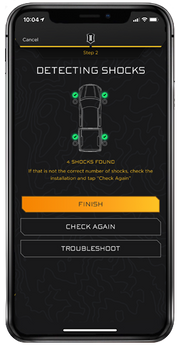

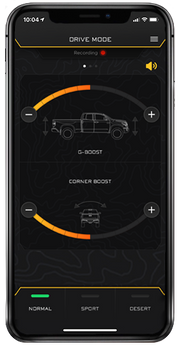

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make on-the-fly, near instantaneous compression damping adjustments on CDEV-equipped shocks
• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
• Maintains factory track width
• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
• Billet aluminum UCAs with Delta Joint Pro for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability

Specifications

Note: OEM Wheels & Tires Fitment: No APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app APPLICATION NOTE #381: Requires minimum of 20" diameter wheels APPLICATION NOTE #405: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock. APPLICATION NOTE #406: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 4.5-5.5" over stock. APPLICATION NOTE #407: Tundra SR5 with TRD Sport package will have front lift height range of 6-7" over stock. APPLICATION NOTE #408: Tundra TRD Pro will have front lift height range of 3.25-4.25" over stock. APPLICATION NOTE #450: Provides 3" of rear lift on a Tundra equipped with TRD Off-Road, TRD Sport, or TRD Rally suspension packages and TRD Pro. Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle. APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range. APPLICATION NOTE #141: Tundra/Sequoia equipped with automatic leveling headlights or Load-Leveling Rear Height Control Air Suspension, part # 55153 is also required APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension. APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

Short Description: SUSPENSION SYSTEM

Invoice Description: K53279

Definition: Suspension Lift Kit

Installation Guide: Download PDF

Installation / Product Video: Watch on YouTube

Warranty: 1 Year-Shock Absorbers, Delta Joint Pros, IIC Module, Limited Lifetime-Knuckles, Upper Control Arms, Rear Links, Track bar, Fabricated Components, Coil Springs
