ICON Vehicle Dynamics K6202 - 05-22 FORD F250/F350 STAGE 2 ULTIMATE FRONT END KIT
Couldn't load pickup availability
The ICON Vehicle Dynamics Ultimate Front End Kits are designed to improve the steering feel, vehicle control, and overall drivability of your vehicle by replacing and upgrading critical worn OE components.
The ICON Vehicle Dynamics Ultimate Front End Kits are designed to improve the steering feel, vehicle control, and overall drivability of your vehicle by replacing and upgrading critical worn OE components. Partnering with our friends at Dynatrac, ICON is happy to pair our suspension components with Dynatrac HD BallJoints to provide a complete front-end suspension solution to solve common steering problems that can lead to loose steering feel, decreased stability, erratic tracking down the road, uneven tire wear, and even death-wobble.
Features & Benefits

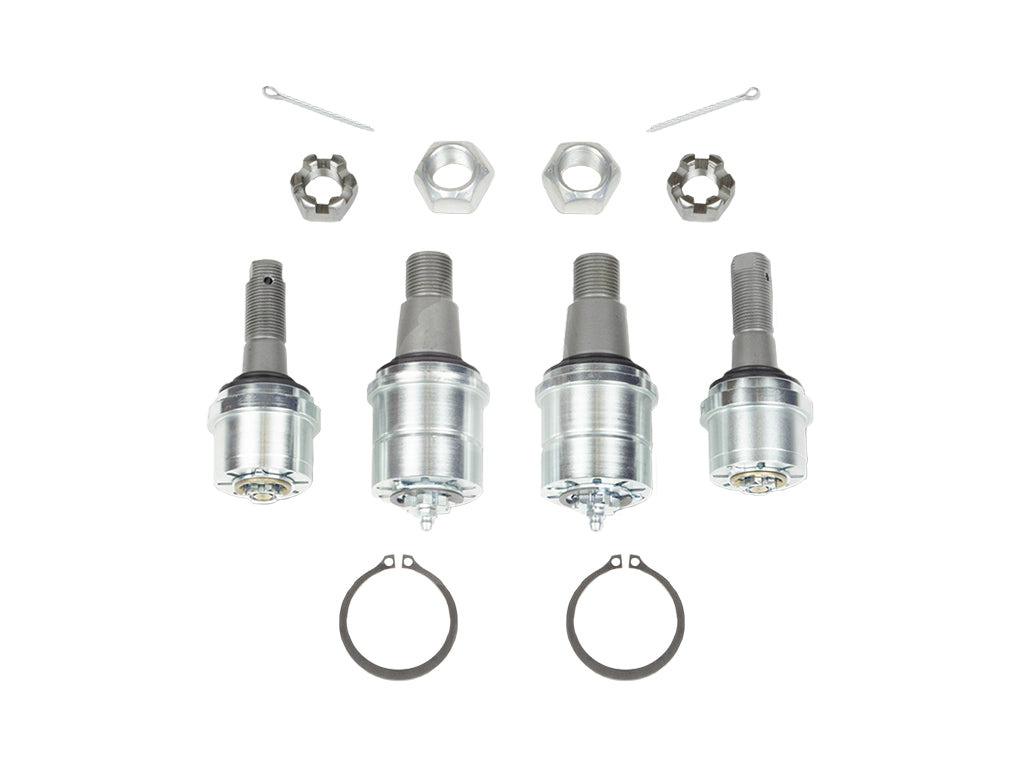

- Full set of genuine Dynatrac front upper and lower ball joints
- Provides symmetrical steering feel throughout input range

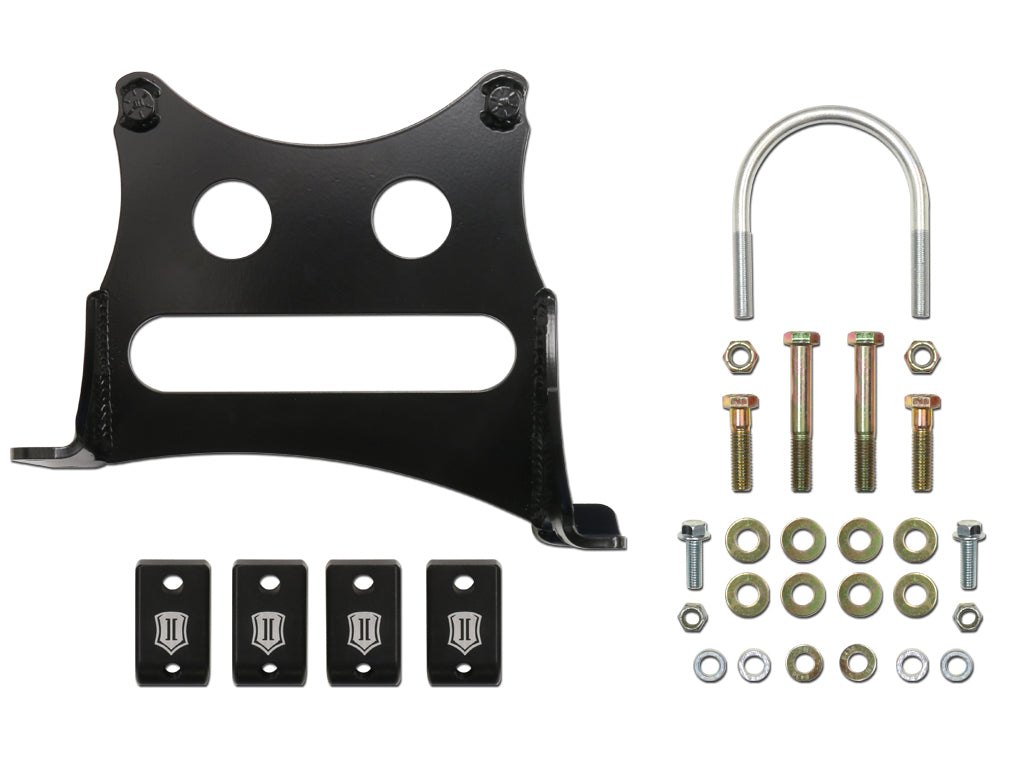

- CNC laser cut steel stabilizer bracket
- 6061 billet aluminum tie rod clamps, anodized for corrosion resistance

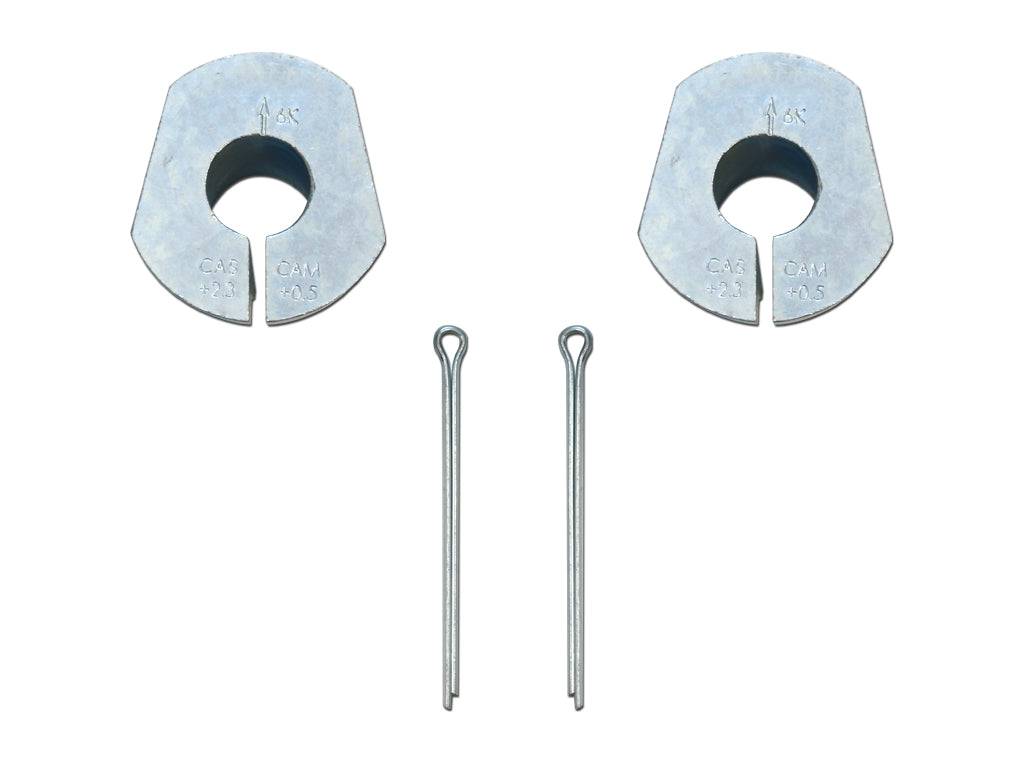

- Alignment cams add 2.3° of caster and .5° of camber over stock
- Ensures proper front-end alignment when installed in conjunction with compatible suspension lifts
- Zinc plated cams for corrosion resistance
- Includes new ball joint cotter pins
- Improves steering feel and vehicle control
- CNC machined, high-strength components
- Heat-treated, high-strength billet bodies with chromoly stems
- Heat-treated, precision-ground stainless-steel ball
- Sealed, greaseable design and PTFE coated wear points ensure long service life
- On-vehicle rebuildable design
- Dual opposing stabilizer design eliminates the push/pull sensation associated with traditional stabilizers

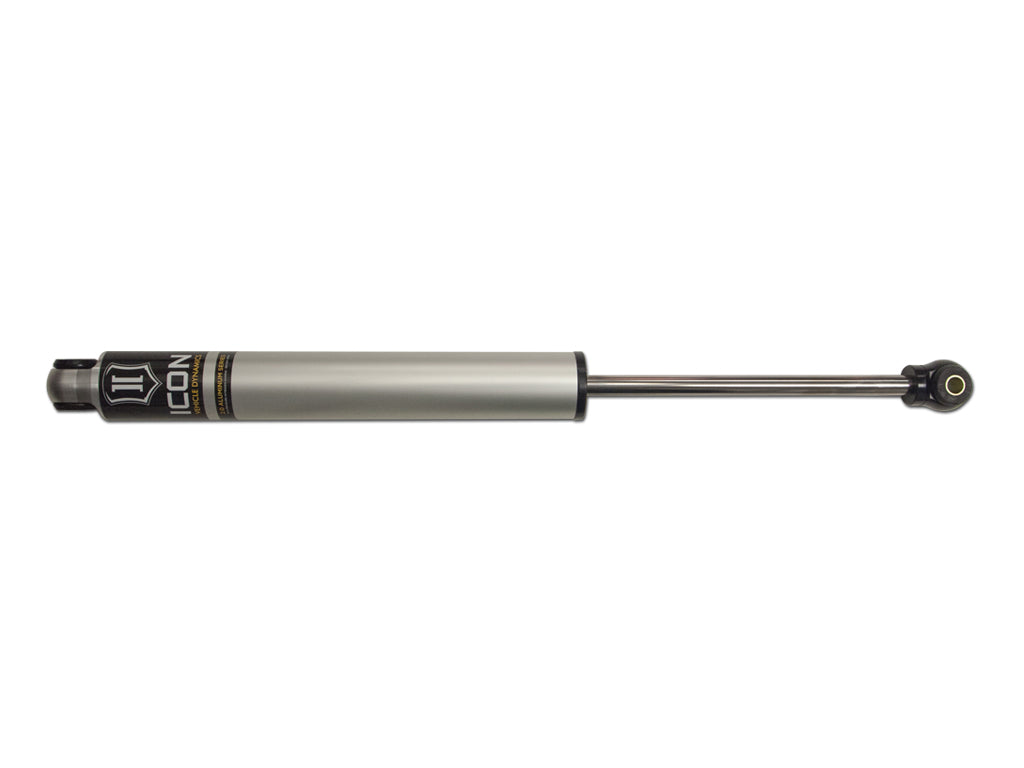

- Dual 2.0 Aluminum Series shocks offer increased steering damping over stock unit
Specifications
| Adjustable | No |
| Adjustable Damping | No |
| Grade Type | Heavy Duty |
| Title | ICON 2005-2022 Ford F-250/F-350 Super Duty 4WD, Ultimate Front End Kit, Stage 2 |
| Mount Type | Press In |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. |
| Cotter Pin Hole | Yes |
| Dust Boot Included | Yes |
| Grease Fitting Included | Yes |
| Greaseable | Yes |
| Add-On Part | 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT |
| Add-On Part | 64037 - 05-25 FSD 2" BUMP STOP SPACER KIT |
Installation Guide: Download PDF
