ICON Vehicle Dynamics K62501 - 05-16 FORD F250/F350 2.5" STAGE 2 SUSPENSION SYSTEM

ICON 2.5” suspension systems lift your Ford Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

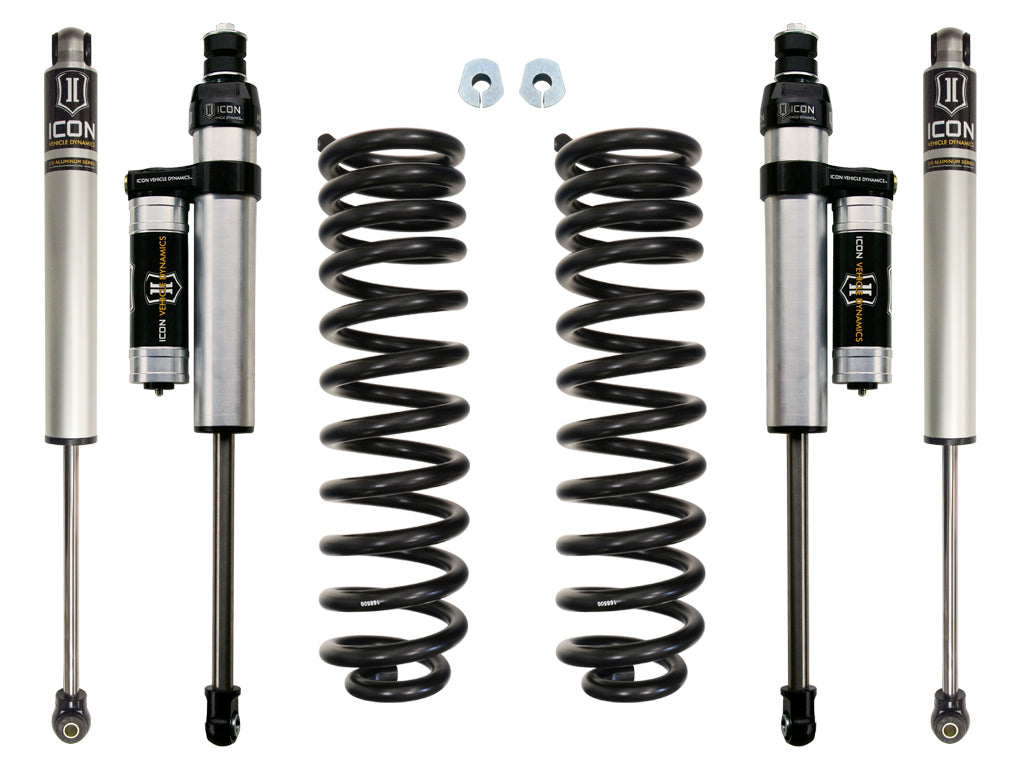

The ICON 2.5” suspension system is a great way to level your 4WD 2005-2016 Ford F250/350 Super Duty while improving ride quality and performance. This Stage 2 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON's Stage 2 System is comprised of dual rate coil springs, alignment cams for adding caster, and ICON 2.5 Aluminum Series piggyback reservoir shocks up front and 2.0 Aluminum Series internal reservoir shocks in the rear. ICON 2.5" reservoir shocks up front ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market. For F-250 applications, a 4" block can be used in place of your factory 2" block, in turn leveling the truck from front to rear, allowing use of ICON Rear Shocks.

Features

• ICON engineered dual rate coil springs with match tuned performance shocks
• Application Specific Alignment Cams ensure proper Caster alignment
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Less body-roll than stock
• Lifetime guarantee that coil springs won’t sag
• No drive shaft modifications required
• 100% Bolt-on system - no drilling, cutting or welding necessary for install

Specifications

Note: OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended. TECH NOTE: 2005-2016 F-250s require 4” rear blocks with 15” U-bolt kit to sit level with 2.5” lifted front. ICON block kit part # 194275 and U-bolt kit part # 37003 (2005-2010 models) or part # 67003 (2011-2016 models) are recommended. TECH NOTE: Not compatible with F-350 Cab & Chassis models TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry on 2008-2016 models TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY APPLICATION NOTE #30: AN ADJUSTABLE TRACK BAR MAY BE NEEDED TO REALIGN THE AXLE FROM LEFT TO RIGHT, OR TO ADD ADDITIONAL STRENGTH APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE TECH NOTE: Compatible with 4WD models only

Short Description: SUSPENSION SYSTEM

Invoice Description: K62501

Definition: Suspension Lift Kit

Installation Guide: Download PDF

Warranty: No Warranty
