ICON Vehicle Dynamics K63171 - 23-25 FORD F250/F350 4-5.5" STAGE 1 COILOVER CONVERSION SYSTEM
Regular price
$4,881.21 USD
Need help confirming fitment?
Ships in 2 - 5 business days
Easy return process
Couldn't load pickup availability
ICON 4.5” suspension systems lift your Ford Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

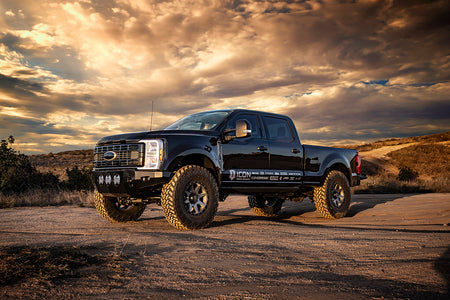

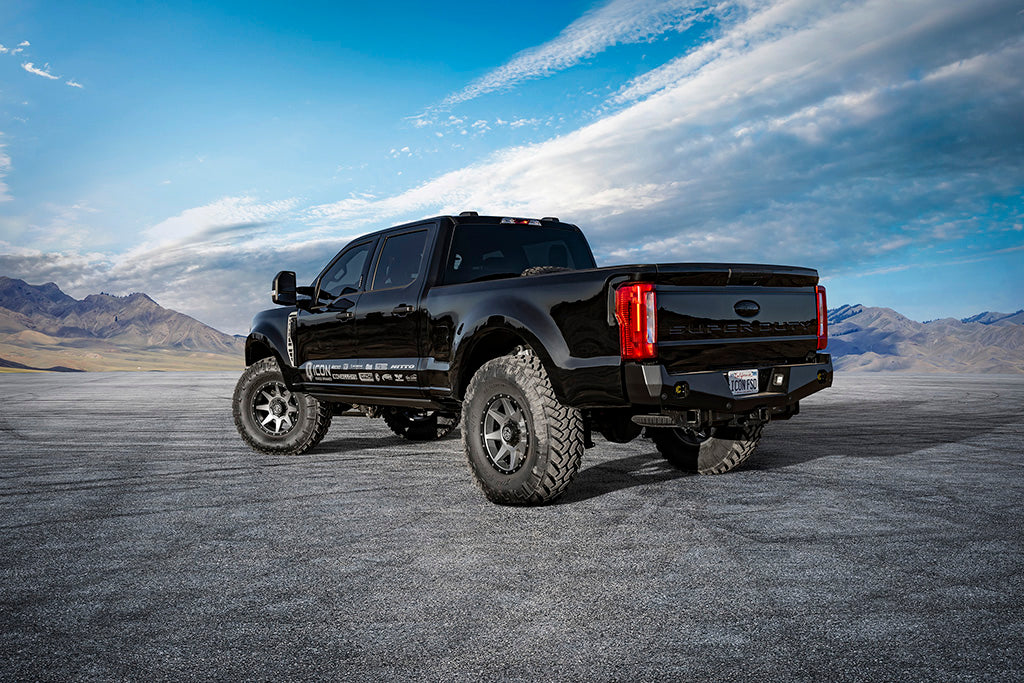

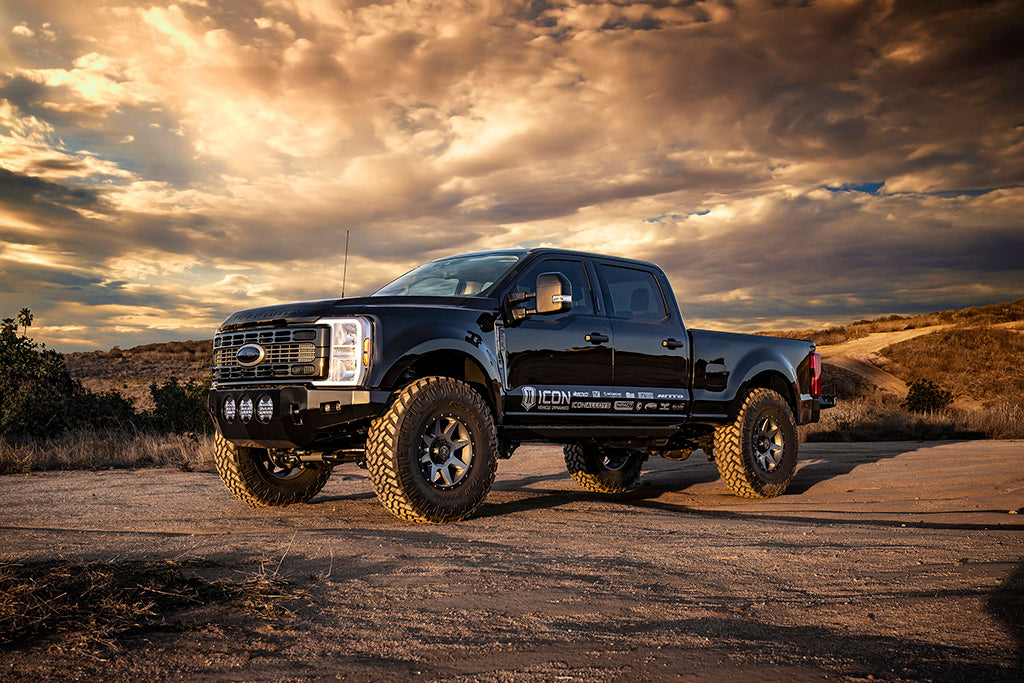

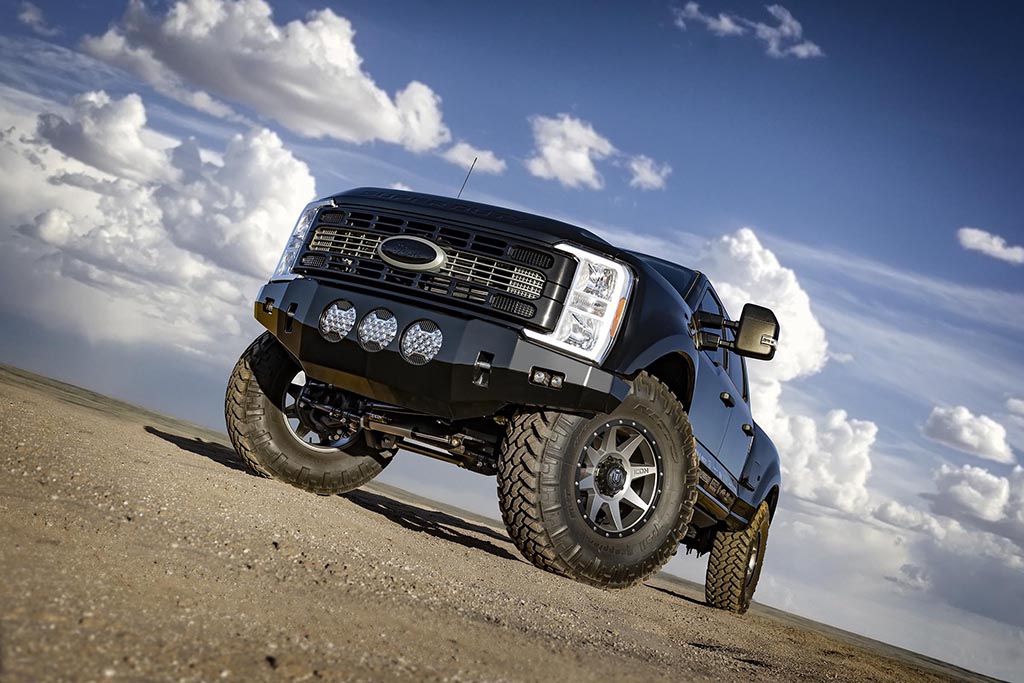

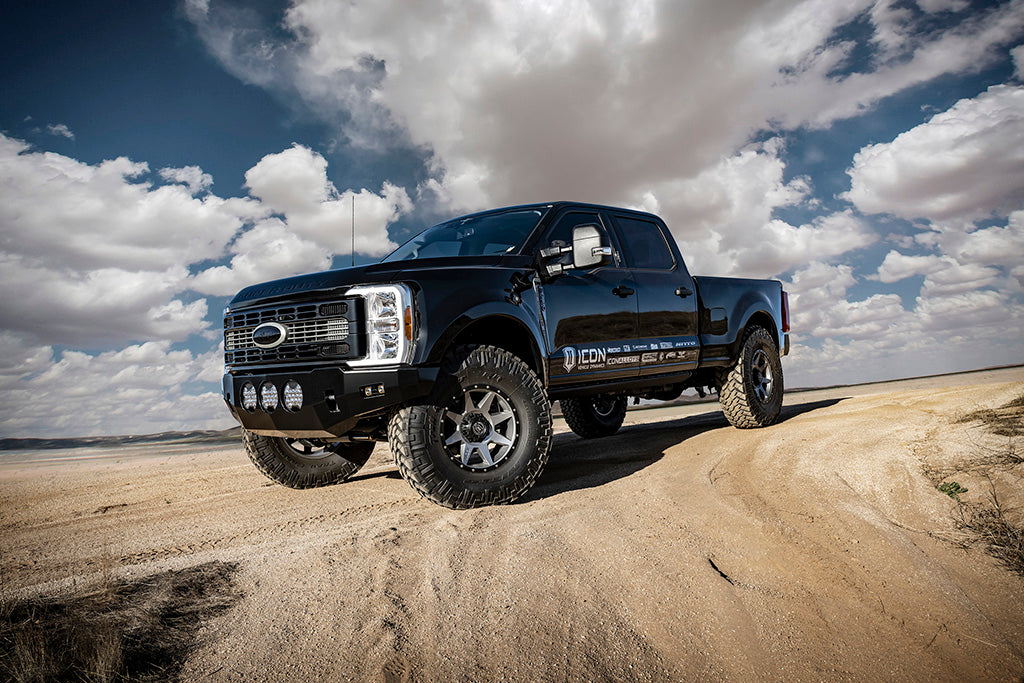

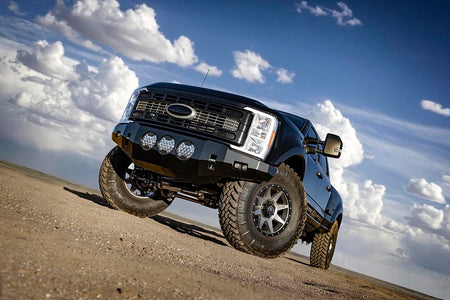

This ICON Vehicle Dynamics 4-5.5” coilover conversion system is a great way to lift your 4WD 2023-2025 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger, more aggressive wheel and tire combinations. This entry level system is perfect for on-road and towing use, as well as mild off-road use like job site duty and washboard gravel roads.

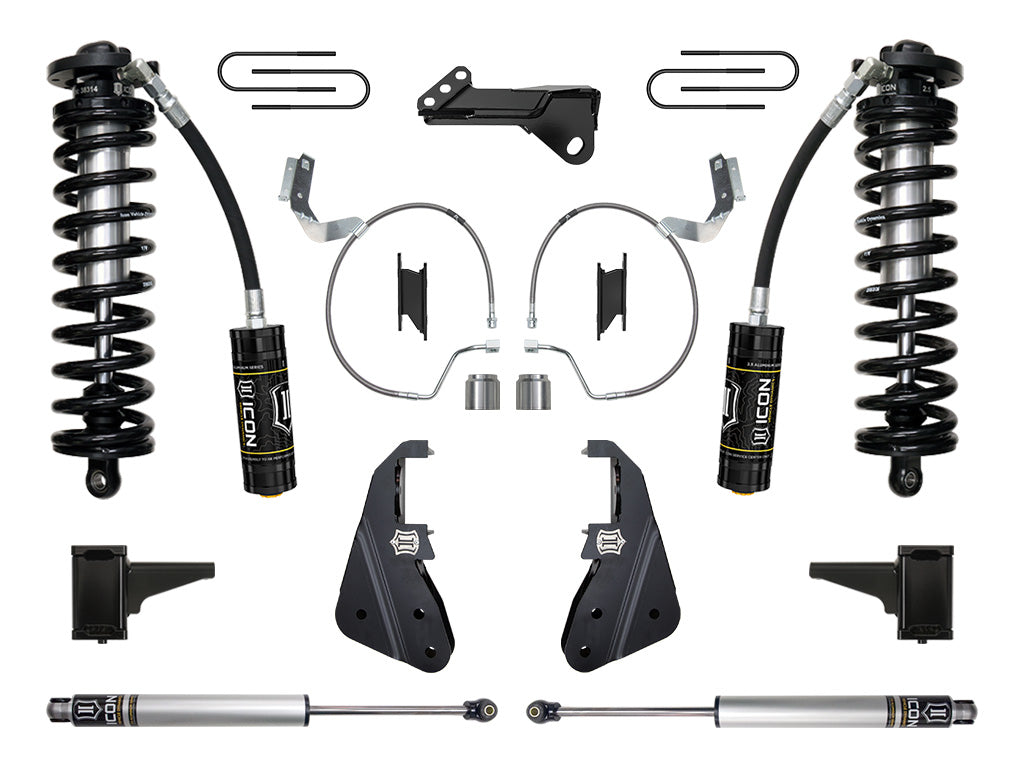

Features & Benefits
- Fits 2023-2025 F-250 / F-350 4WD applications
- Heavy-duty fabricated rear lift blocks
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- Corrosion resistant anodized rear shock bodies with 5/8" shafts
- Shocks are fully rebuildable and re-tunable
- Lifetime guarantee against coil spring breakage or sagging
- Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
- Bolt-in system fits in OE coil bucket location
- Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5" of front lift
- Vehicle-specific shock valving provides unparalleled ride quality and control
- ICON 2.0 Aluminum Series internal reservoir rear shocks
- Increased wheel travel and ride quality over stock
- Radius arm drop brackets correct geometry and caster for optimal alignment specs
- Track bar drop bracket reduces track bar angle and corrects bump steer geometry
- Stainless steel braided front brake lines
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-On Part | 66518 - 23-25 FSD 4WD 4.5" FRONT 2.0 VS IR |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Bushings Included | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Quantity Front | 2 |
| Coil Spring Color | Black |
| Coil Spring End 1 Type | Square |
| Coils Quantity Front | 2 |
| Front Reservoir Style | Remote |
| Front Shock Body Diameter | 2.5 IN |
| Front Spring Rate Type | Linear |
| Grade Type | Performance |
| Leaf Spring Bracket Color | Black |
| Leaf Spring Bracket Material | Steel |
| Maximum Lift | 6 IN |
| Maximum Lift Front | 6 IN |
| Maximum Lift Height Front | 6 IN |
| Maximum Lift Height Rear | 2 IN |
| Maximum Lift Rear | 2 IN |
| Minimum Lift Front | 3 IN |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Rear Reservoir Style | Internal |
| Rear Shock Body Diameter | 2 IN |
| Recommended Aftermarket Tires | 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
| Title | ICON 2023-2025 Ford F-250/F-350 Super Duty 4WD, 4-5.5" Lift, Stage 1 Coilover Conversion System |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 67811P - 23-25 FSD 4.5" FRONT 2.5 VS RR PAIR |
| Add-On Part | 611003 - 2.5 RESI DOUBLER MOUNT 7.5" KIT |
| Add-On Part | 65002 - 23-25 FSD DUAL STABILIZER KIT |
| Add-On Part | 67811CP - 23-25 FSD 4.5" FRONT 2.5 VS RR CDCV PAIR |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 65053 - 23-25 FSD 2.5 PB CENTERLINE STABILIZER KIT |
| Add-On Part | 64038 - 17-25 FSD ADJ TRACK BAR KIT |
| Add-On Part | 36511 - 99-25 FSD 4WD STABILIZER (DUAL OPPOSING) 2.0 VS IR |
| Add-On Part | 66518R - 23-25 FSD 4WD 4.5" FRONT 2.0 VS RR |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
