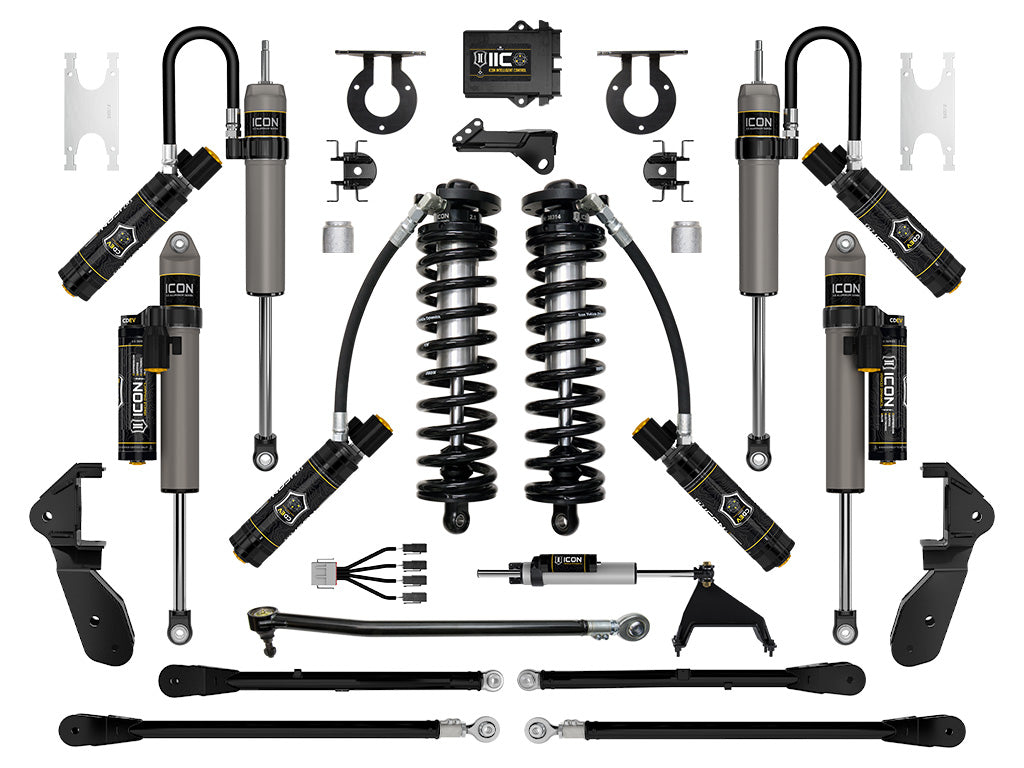

ICON Vehicle Dynamics K63207 Suspension Lift Kit

ICON coilover conversion systems lift your Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

This ICON Vehicle Dynamics 2.5-3” coilover system is a great way to lift your 4WD 2023-2025 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 6 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off ICON’s 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. ICON's Stage 6 System is comprised of ICON 2.5 Series CDEV remote reservoir coilovers with adjustable ride height, 2.5 Aluminum Series CDEV front secondary shocks, ICON 2.5 Centerline Steering Stabilizer, fabricated radiusarms, on-vehicle adjustable front track bar, and ICON CDEV 2.5 Aluminum Series piggyback reservoir rear shocks. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. This stage sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty 4-Link kit further improving performance by eliminating suspension bind commonly experienced with factory radius arms during articulation and allows on-vehicle caster angle adjustment. This “freeing up” of the front end and the ability of the 4-Link Kit to maintain positive caster through the range of travel equates to an unparalleled ride quality in all conditions. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Features

• Bolt-in system fits in OE coil bucket location
• Track bar drop bracket reduces track bar angle and corrects bump steer geometry
• Adjustable track bar ensures proper axle placement and improves handling
• ICON 4-Link system eliminates binding during articulation and maintains positive caster through the entire range of travel
• ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
• ICON engineered coil springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection
• Ride height adjustable coilovers provide 2.5-3" of lift
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• 2.5 Aluminum Series remote reservoir secondary shocks with CDEV multiplies front shock damping ability
• Shocks are fully rebuildable and revalveable
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts

Specifications

Note: OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control App TECH NOTE: Diesel models without Tremor package will have front lift height range of 2.5-3" over stock TECH NOTE: Diesel models equipped with Tremor package will have front lift height range of 1.5-2" over stock TECH NOTE: Gas models without Tremor package will have front lift height range of 3-3.5" over stock TECH NOTE: Gas models equipped with Tremor package will have front lift height range of 2-2.5" over stock TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install) TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock TECH NOTE: Due to tight clearances and varying placement of vehicle’s wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service. Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #1: Only fits 4WD models APPLICATION NOTE #3: Not compatible with F-350 Cab & Chassis models APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle. APPLICATION NOTE #88: Removal of the coil centering cup in factory coil bucket required for installation.

Short Description: SUSPENSION SYSTEM

Invoice Description: K63207

Definition: Suspension Lift Kit

Installation Guide: Download PDF

Installation / Product Video: Watch on YouTube

Warranty: 1 Year-Shock Absorbers, IIC Module, Limited Lifetime-Coil Springs, Steering Stabilizer Bracket, Track Bar, Track Bar Bracket, 4-Link System
