ICON Vehicle Dynamics K65919R Suspension Lift Kit

ICON 2.5” suspension systems lift your Ford Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

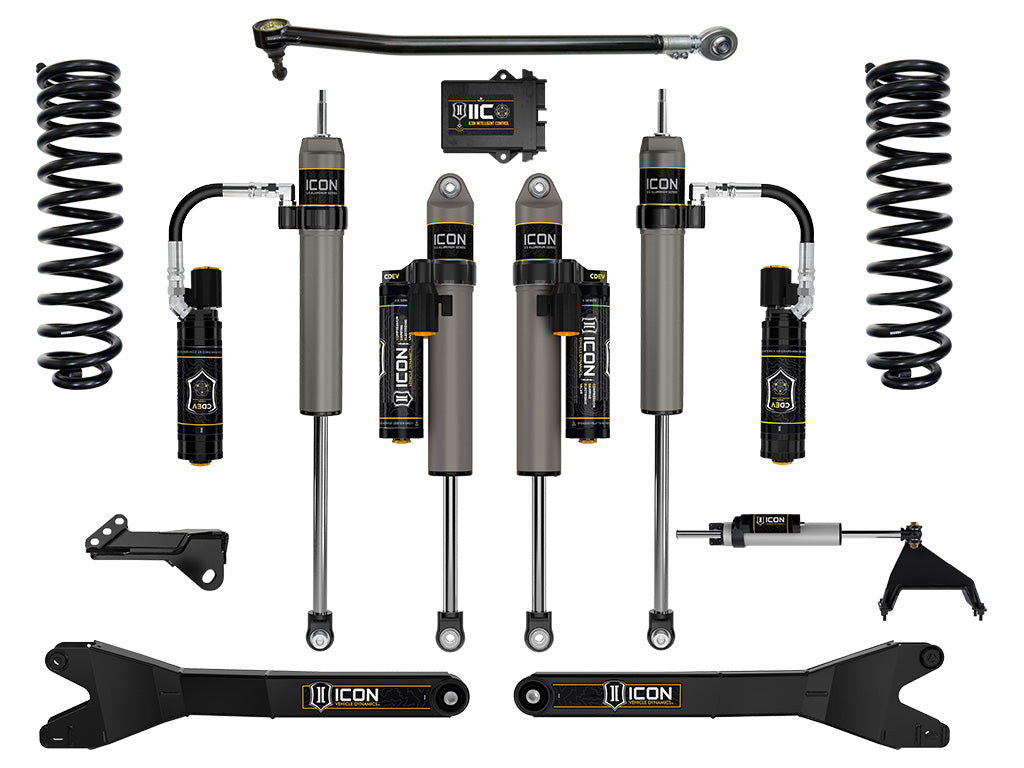

This ICON Vehicle Dynamics 2.5” suspension system is a great way to lift your 4WD 2023-2025 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 6 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure. ICON's Stage 6 System is comprised of dual rate coil springs optimized for trucks equipped with gasoline engines, ICON 2.5 Ceterline Series stabilizer, on-vehicle adjustable front track bar, bumpsteer correcting track bar drop bracket, fabricated radius arms, and ICON 2.5 Aluminum Series CDEV remote reservoir front and CDEV piggyback reservoir rear shocks. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. This stage sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Features

• Fits 2023-2025 F-250 / F-350 4WD gas applications
• Hard anodized, corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8" shafts
• FK Rod End bearings provide extended longevity and minimal deflection
• Lifetime guarantee against coil spring breakage or sag
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• Approximately 25% increased front wheel travel over stock
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
• Shocks are fully rebuildable and revalvable

Specifications

Note: OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #156: Springs are rated for gasoline engines APPLICATION NOTE #157: Lift heights based on 4WD Crew Cab gas APPLICATION NOTE #161: If equipped with OnBoard Scales also requires sensor bracket part number 66203 APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control App TECH NOTE: Trucks equipped with Tremor package with have front lift height of 1.5" over stock TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install) TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #1: Only fits 4WD models APPLICATION NOTE #3: Not compatible with F-350 Cab & Chassis models APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle. APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

Short Description: SUSPENSION SYSTEM

Invoice Description: K65919R

Definition: Suspension Lift Kit

Installation Guide: Download PDF

Installation / Product Video: Watch on YouTube

Warranty: 1 Year-Shock Absorbers, IIC Module, Limited Lifetime-Coil Springs, Track Bar, Track Bar Bracket, Steering Stabilizer Bracket, Radius Arms
