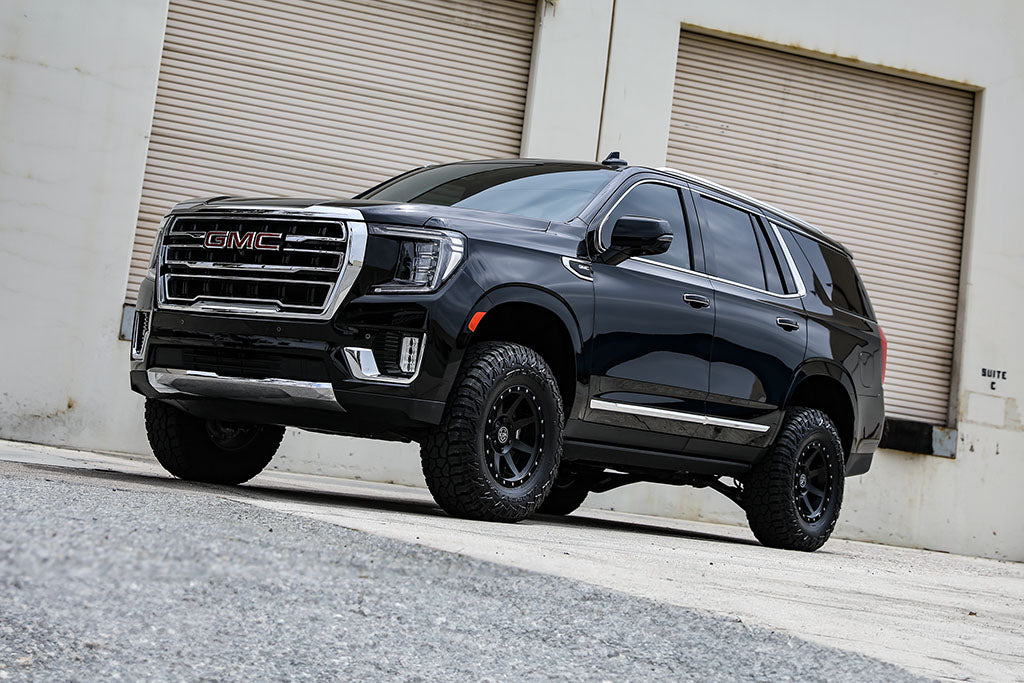

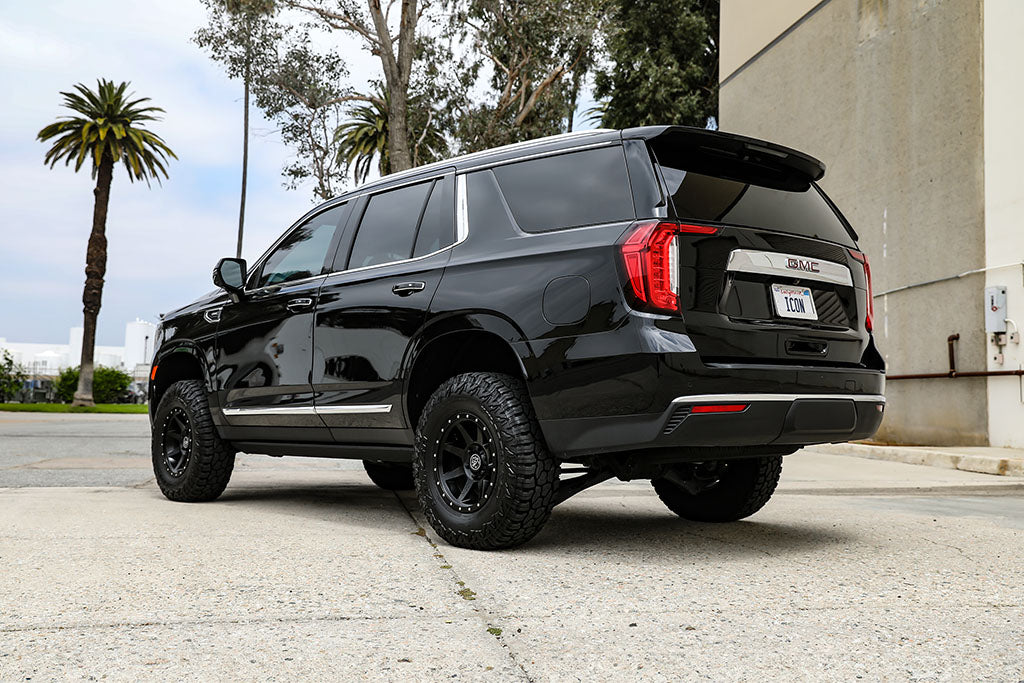

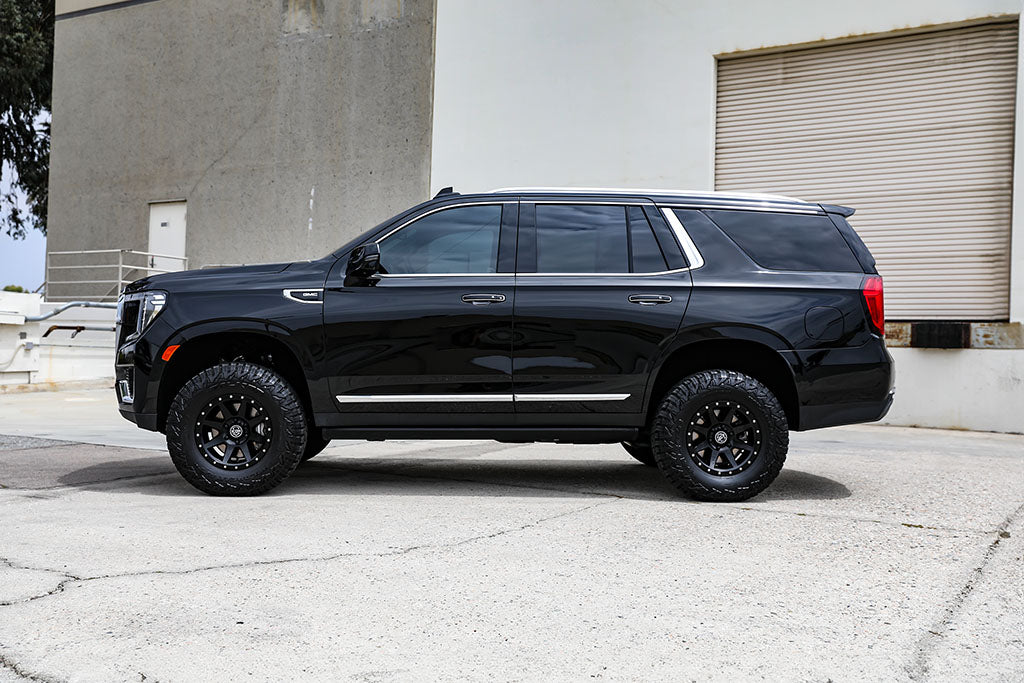

ICON Vehicle Dynamics K73104T - 21-23 GM SUV 2.5-3.25" STAGE 4 SUSPENSION SYSTEM TUBULAR
Couldn't load pickup availability
ICON 21-23 GM SUV suspension systems are designed to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.
ICON Vehicle Dynamics 2021-2023 Chevrolet Tahoe/Suburban and 2021-2023 GMC Yukon/Yukon XL suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the vehicle platform’s suspension and addressed any areas where performance could be extracted. This Stage 4 system includes vehicle-specific tuned front and rear 2.5 Series coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 2.5-3.25” of front lift and 3-4” of rear lift over stock for an aggressive stance and allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Series coilover shocks feature a vehicle-specific valving that balances the performance of the truck from front to rear. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.
Features & Benefits
- Adjustable front coilovers provide 2.5-3.25” of front lift height
- Fabricated rear toe links allow for proper rear end alignment with taller ride height
- FK Rod End bearings provide extended longevity and minimal deflection
- Shocks are fully rebuildable and re-tunable
- Adjustable rear coilovers provide 3-4” of rear lift height
- Increased lift height allows for fitment of larger and more aggressive tires
- Up to 20% increase in front wheel travel over stock
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- 2.5 Series coilovers feature corrosion resistant CAD plated shock bodies with 7/8" shafts
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- All shocks are ICON CDCV equipped for 10 settings of external compression damping adjustment
- Tubular Upper Control Arms with Delta Joint ball joints for added strength, durability, and alignment spec range
Specifications
| Bushings Included | Yes |
| Active or Passive Suspension | Passive |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Minimum Lift Front | 2 IN |
| Minimum Lift Rear | 2.5 IN |
| Maximum Lift | 3.25 IN |
| Maximum Lift Front | 3.25 IN |
| Recommended Aftermarket Tires | 33"x12.50" (Larger tires may fit but fender trimming and modifications may be required) |
| Maximum Lift Rear | 4 IN |
| Spring Color | Black |
| Title | ICON 2021-2023 Chevrolet Tahoe & Suburban/2021-2023 GMC Yukon & Yukon XL, 2.5-3.25" Lift, Stage 4 Suspension System, Tubular UCA |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Damping Adjustment Type | Manual |
| Grade Type | Performance |
| Reservoir Style | Remote |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Front Spring Rate Type | Linear |
| Rear Spring Rate Type | Linear |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Add-On Part | 71022 - 21-23 GM RIDE HEIGHT SIMULATOR |
| Add-On Part | 71021 - 19-23 GM ELECTRONIC SHOCK SIMULATOR |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Add-On Part | 191011 - TUBULAR UCA BILLET CAP SET |
