ICON Vehicle Dynamics K93131 - 21-25 FORD F150 4WD 2.75-3.5" STAGE 1 SUSPENSION SYSTEM W BILLET UCA
Couldn't load pickup availability
ICON suspension systems lift your Ford F-150 4WD while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

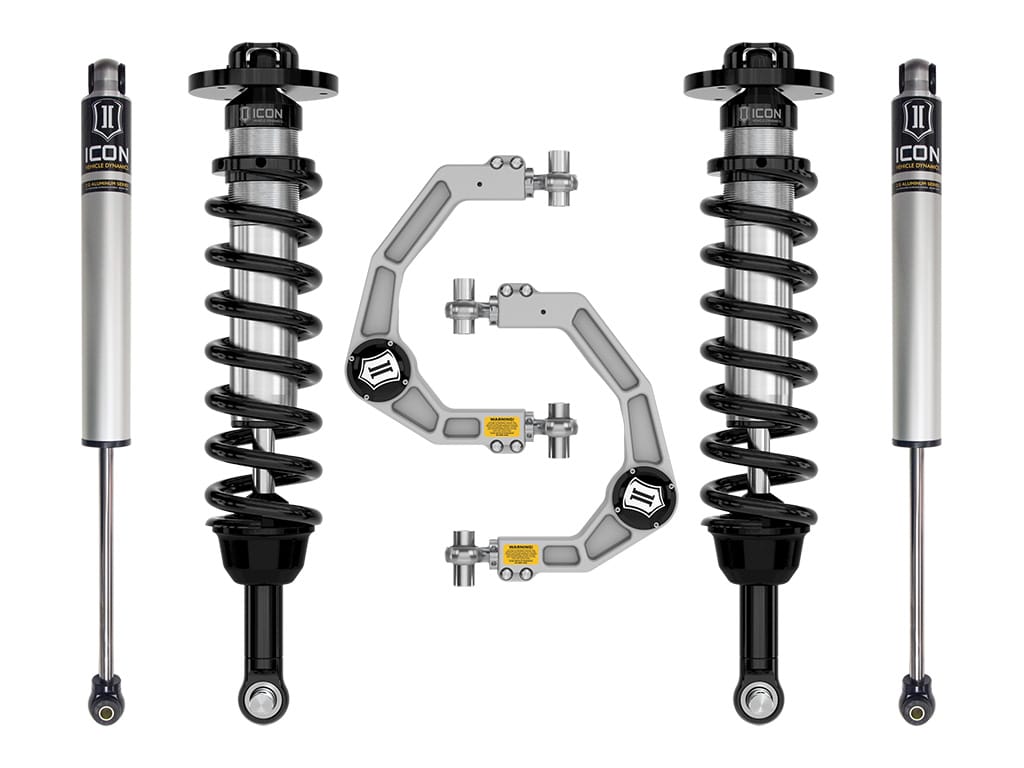

ICON Vehicle Dynamics 2021-2025 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable for 2.75-3.5” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Billet aluminum Delta Joint PRO upper control arms on the F-150 not only add strength and durability, but help retain factory alignment spec range, offer caster/camber adjustment, and allow for the extra lift height this system provides. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2021-2025 F-150 4WD Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Features & Benefits
- Adjustable coilovers offer 2.75-3.5" of front lift height over stock
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Billet Upper Control Arms with Delta Joint Pro ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- FK rod end bearings for extended longevity and minimal deflection
- High strength alloy CNC machined lower bar pin
- 2.0 aluminum body rear IFP shocks with 5/8" hardened chromed steel shafts
- 6061 Aircraft grade aluminum CNC machined components
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Adjustable Compression | No |
| Adjustable Control Arm | Yes |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Bushings Included | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Quantity Front | 2 |
| Coils Quantity Front | 2 |
| Front Shock Body Diameter | 2.5 IN |
| Grade Type | Performance |
| Maximum Lift | 3.5 IN |
| Maximum Lift Front | 3.5 IN |
| Minimum Lift Front | 2.75 IN |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended. |
| Rear Shock Body Diameter | 2 IN |
| Recommended Aftermarket Tires | 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Reservoir Style | Internal |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
| Active or Passive Suspension | Passive |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 611071 - 21-24 F150 DYNAMIC HEADLAMP KIT |
| Add-On Part | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Front Spring Rate Type | Linear |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Title | ICON 2021-2025 Ford F-150 4WD, 2.75-3.5" Lift, Stage 1 Suspension System, Billet |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
