ICON Vehicle Dynamics K93171 Suspension Lift Kit

Transform your Gen3 F-150 Raptor’s stance with the ICON Vehicle Dynamics Stage 1 suspension system. Designed for seamless compatibility, maintaining electronic shock functionality while enhancing your truck's capability and ride quality.

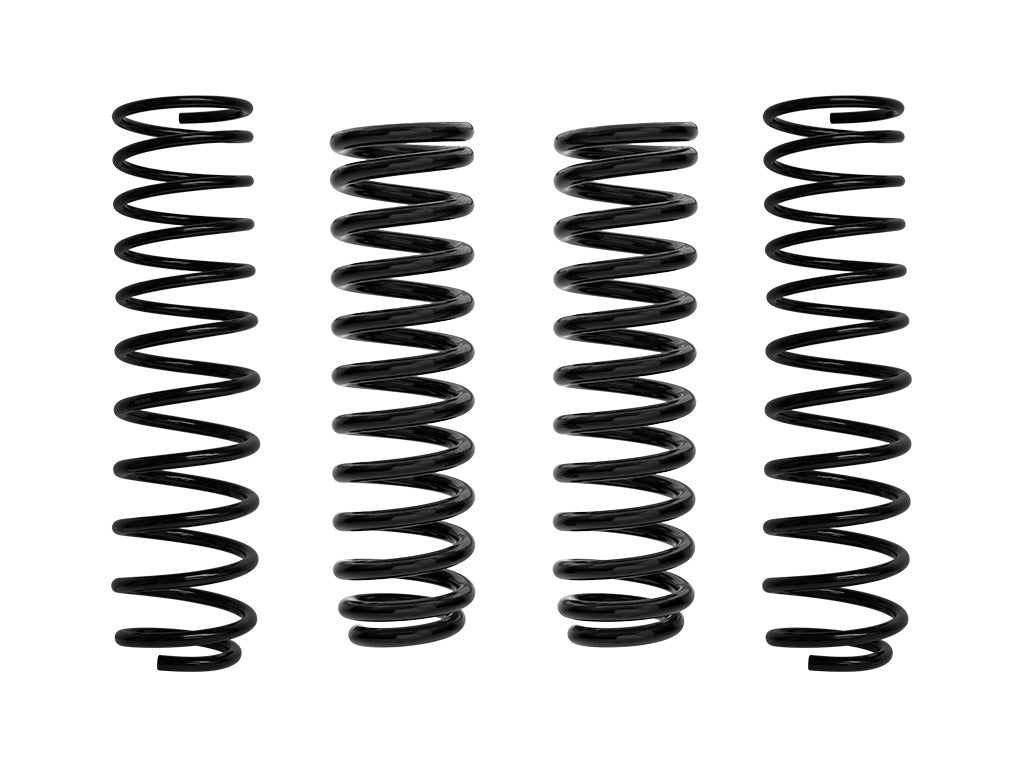

Transform your Gen3 F-150 Raptor’s performance and stance with the ICON Vehicle Dynamics Stage 1 suspension system, engineered specifically for vehicles equipped with OE shock absorbers. The front coil springs utilize a linear spring rate for consistent performance and precise handling while delivering 2.25" of front lift for standard Raptors and 2" for Raptor R models, ensuring an aggressive look and increased ground clearance. Designed for seamless compatibility, they maintain full electronic shock functionality while enhancing your truck's capability and ride quality. The triple-rate rear coil springs are tailored to deliver a 1" lift on Raptors without additional rear weight. ICON-engineered droop, ride, and overload rates ensure optimal suspension performance across a variety of driving conditions. The performance ride rate balances comfort and compliance, while the overload rate enhances load handling and bottom-out resistance. For maximum articulation and efficiency, the rear coils feature a tapered wire design, providing exceptional droop travel and off-road capability. Built for both durability and ease of installation, these springs feature a dual-stage powder coating that protects against corrosion in any environment. Their bolt-on design eliminates the need for cutting or modifications, allowing for a straightforward install. Backed by a lifetime guarantee against sagging or breakage, these coil springs redefine your Raptor’s on- and off-road performance, delivering unmatched reliability and confidence wherever the journey takes you.

Features

• Vehicle specific design for the Gen3 F-150 Raptor equipped with OE shock absorbers
• Significantly improves on- and off-road ride quality and performance over stock
• Bolt-on installation with no cutting required
• Dual stage powder coating for maximum corrosion resistance
• Lifetime guarantee against sagging/breakage
• Front coils yield 2.25" front lift height over stock on Raptor or 2" of front lift on Raptor R
• Compatible with all versions of available OE shock absorbers
• Maintains electronic shock functionality
• Linear rate front coil springs
• 1" rear lift height over stock on Raptors without additional weight in the rear
• Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
• Performance ride rate for compliance and comfort, overload rate for load and bottom out resistance, extra soft initial rate for maximum droop travel
• Tapered wire rear coil design achieves maximum travel and efficiency

Specifications

Note: OEM Wheels & Tires Fitment: Yes TECH NOTE: Provides 2" of front lift over stock on F-150 Raptor R Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset Recommended Aftermarket Tires (w/o 37 Package): 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) Recommended Aftermarket Tires (w/ 37 Package): 37" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range. APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #180: Do not combine with coil spacers or damage may occur APPLICATION NOTE #187: Only fits OE coilovers. Will not fit ICON or other aftermarket coilovers. TECH NOTE: Provides 2.25" of front lift over stock on F-150 Raptor

Short Description: SUSPENSION SYSTEM

Invoice Description: K93171

Definition: Suspension Lift Kit

Installation Guide: Download PDF

Warranty: Lifetime
