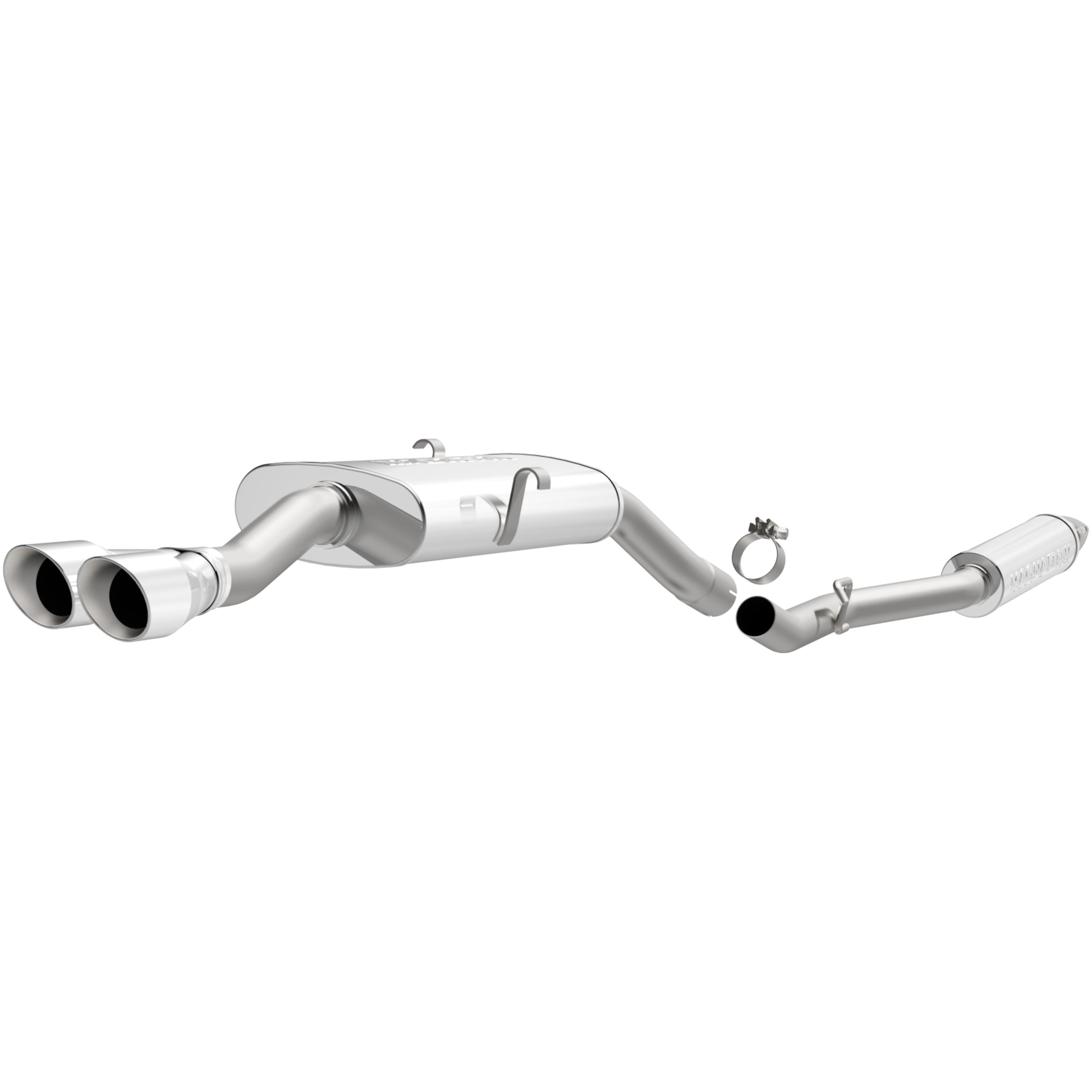

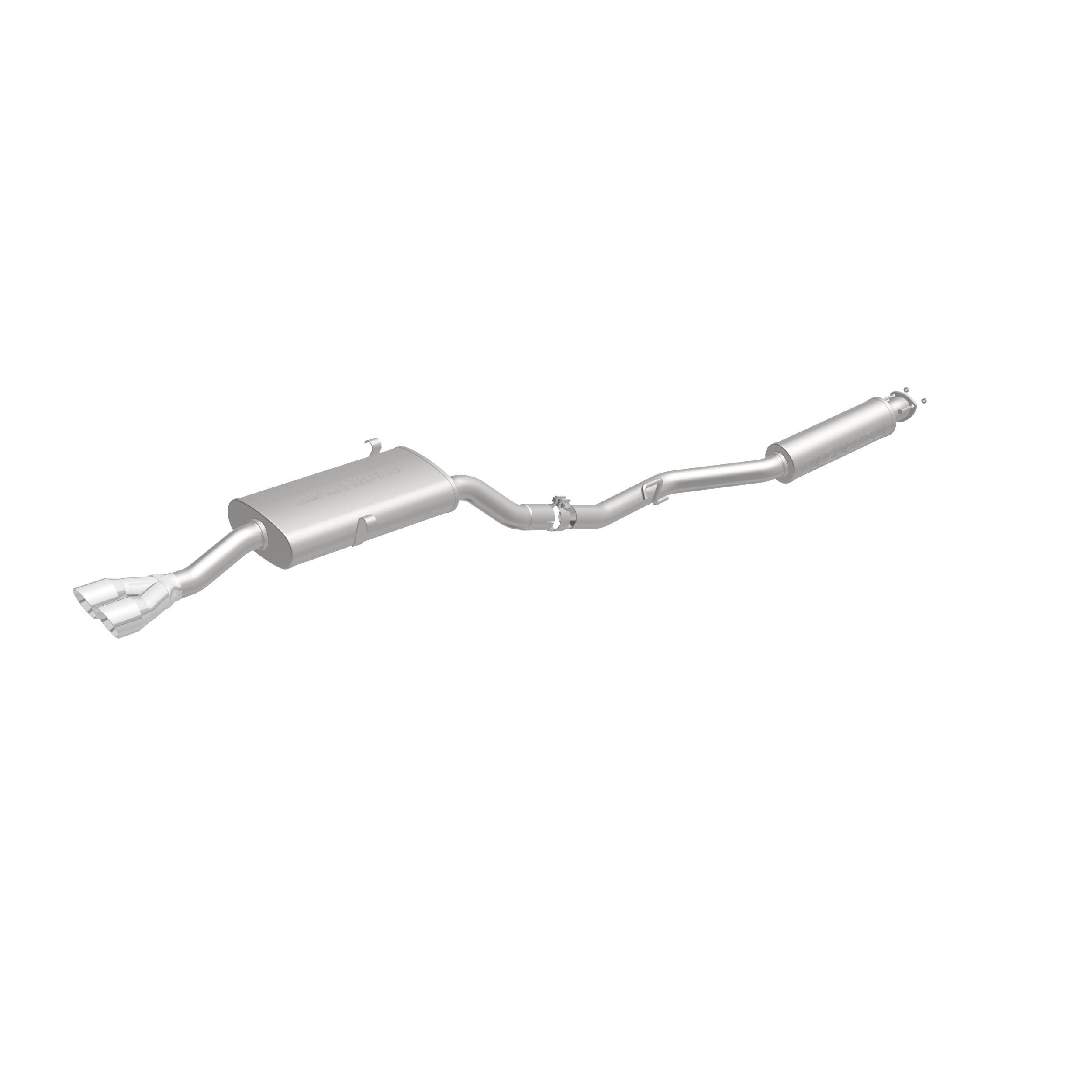

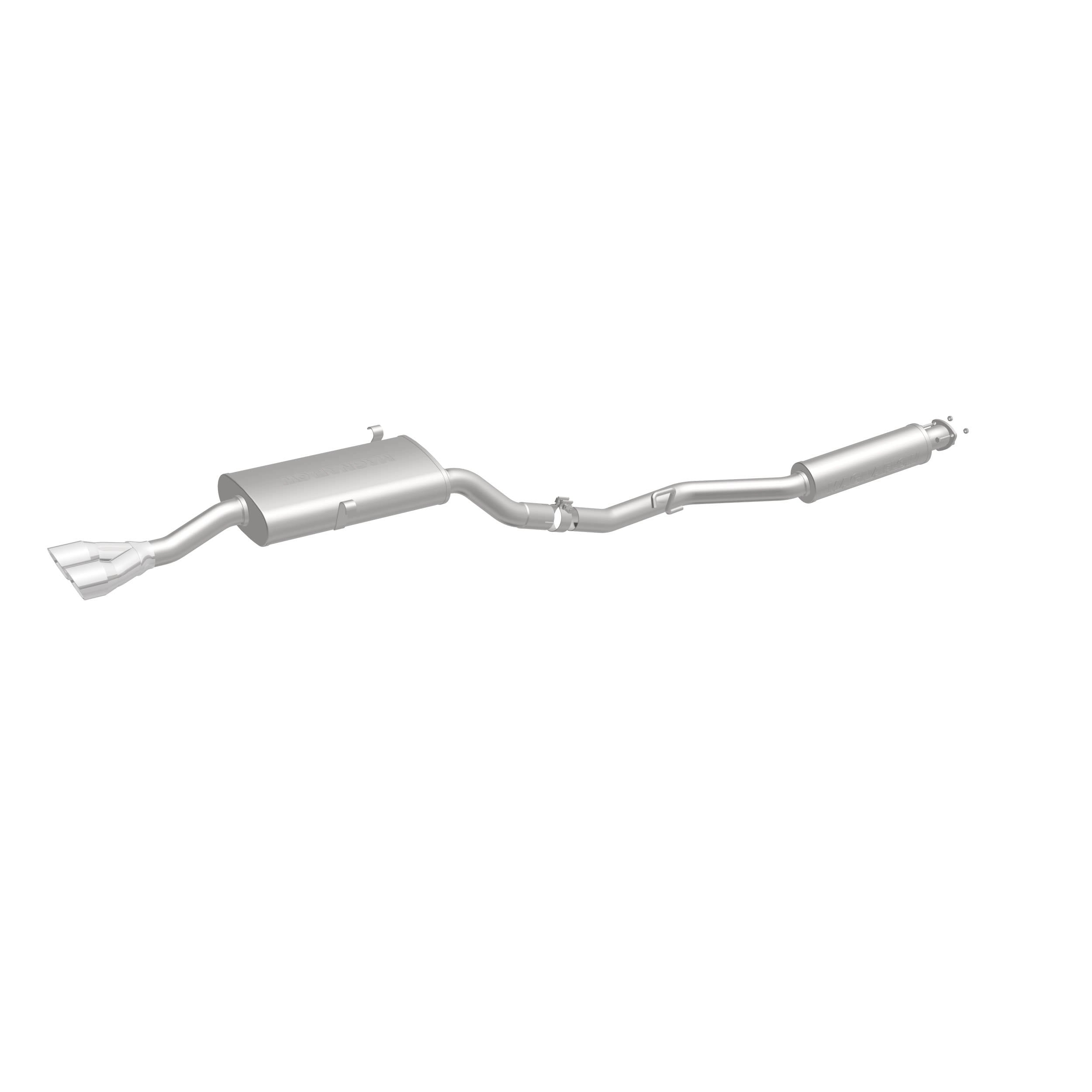

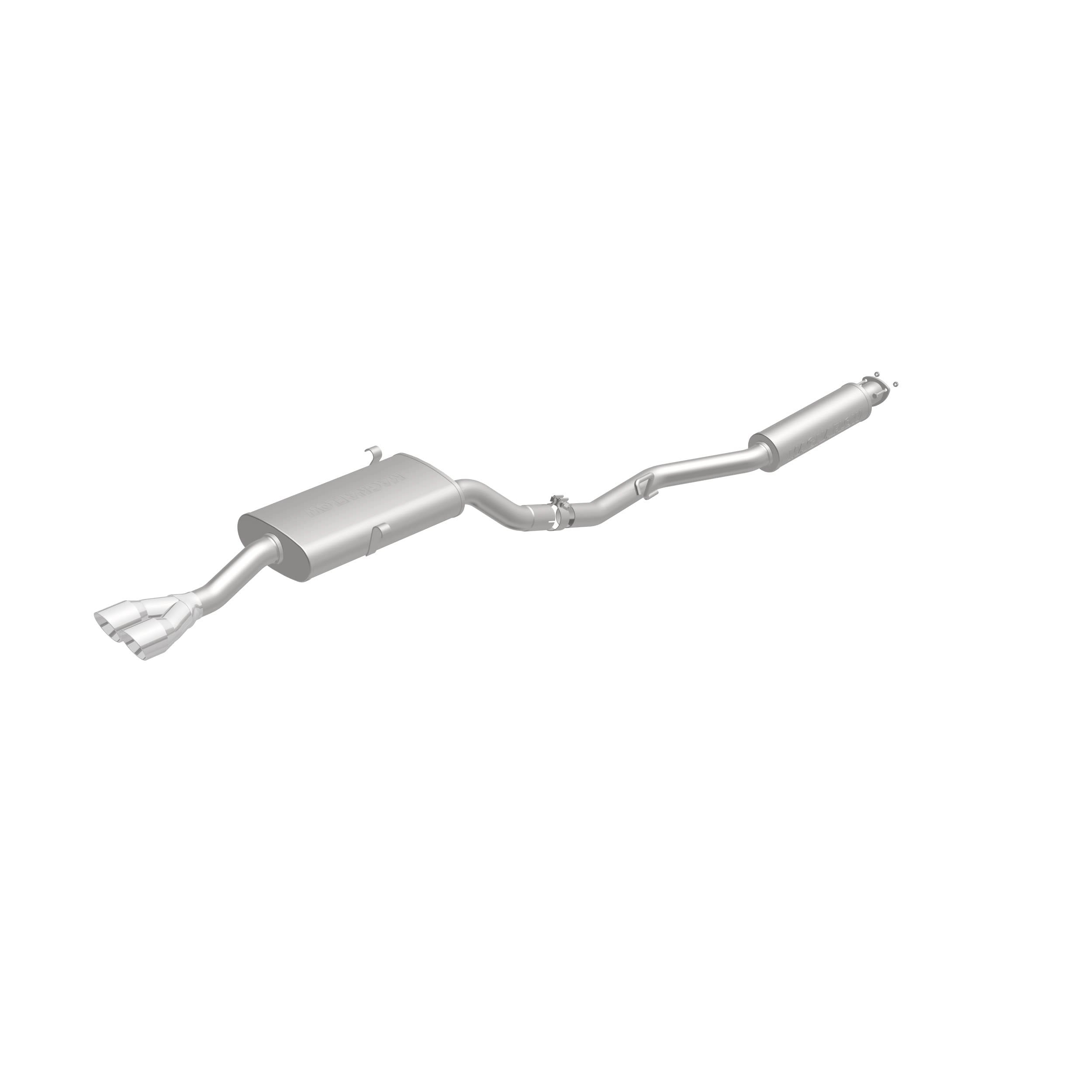

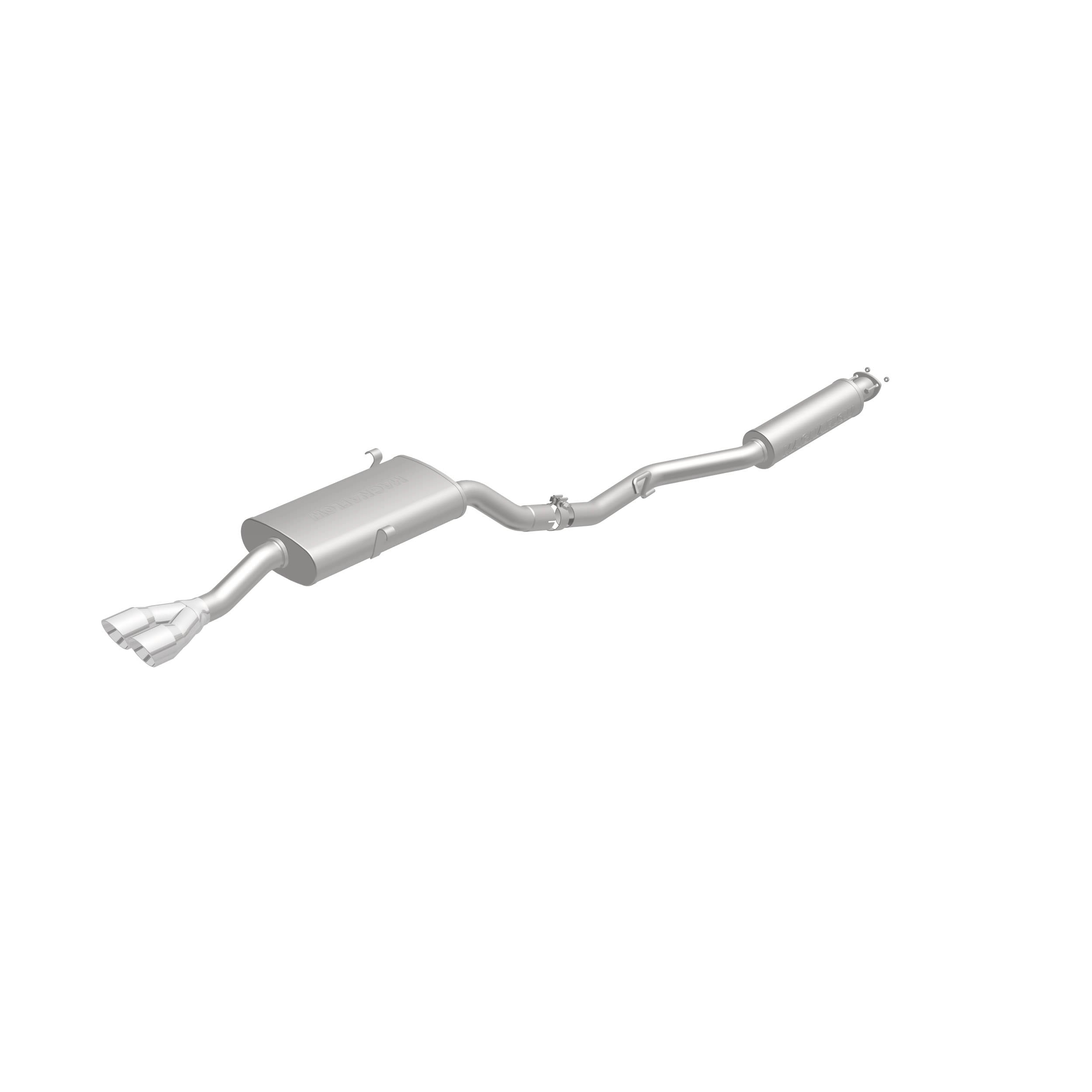

Magnaflow Touring Series Stainless Cat-Back System
The MagnaFlow Touring Series Cat-Back Performance Exhaust System 16536 is the perfect partner for your 2.7L 1984-1987 BMW to take on a grand tour or a weekend cruise thanks to the powerful, resonant exhaust note and dyno-proven performance it brings to the table. This durable, corrosion resistant stainless steel exhaust kit is engineered to conquer the miles with ease while enhancing your driving experience with Moderate exterior and Mild interior sound levels generated through its fast-flowing, mandrel bent 2.25in. main piping and 2 Straight-Through muffler that terminate in a Dual Straight Driver Side Rear exit with 3in. Polished Welded-On Double Wall Angle Cut Folded Edge tips. 16536 features a cat-back layout design to replace your import's stock exhaust components from the catalytic converter on back. This BMW exhaust system is compatible with 1984-1987 engines. The use of extensive 3D scans made during the development process has resulted in an easy-to-install, direct-fit design that fits your BMW like a glove. 16536 is produced using CNC precision robotic manufacturing techniques and is backed by MagnaFlow's limited lifetime construction warranty.
Features & Benefits
- 409 Stainless Steel Construction
- Increased Horsepower and Torque
- Mandrel bent tubing
Specifications
| Clamps Included | Yes |
| Exhaust Tip Connection | Welded-On |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Diameter | 3 IN |
| Exhaust Tip Edge | Folded Edge |
| Exhaust Tip Finish | Polished |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 8 IN |
| Exhaust Tip Material | Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Straight Driver Side Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Bolt-On |
| Main Piping Diameter | 2.25 IN |
| Mounting Bracket Included | Yes |
| Muffler (Front) Body Height | 4 IN |
| Muffler (Front) Body Length | 14 IN |
| Muffler (Front) Body Width | 4 IN |
| Muffler (Rear) Body Height | 4 IN |
| Muffler (Rear) Body Length | 18 IN |
| Muffler (Rear) Body Width | 9 IN |
| Muffler Body Height Position Front | 4 IN |
| Muffler Body Height Position Rear | 4 IN |
| Muffler Body Length Position Front | 14 IN |
| Muffler Body Length Position Rear | 18 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width Position Front | 4 IN |
| Muffler Body Width Position Rear | 9 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 2 |
| Muffler Type | Straight-Through |
| Pipe Material | Stainless Steel |
| Series | Touring |
| Type | Cat-Back |
| Valve Included | No |
| Catalytic Converter Included | No |
| Title | MagnaFlow 1984-1987 BMW 325e 2.7L | 1986-1987 BMW 325es 2.7L Touring Series Cat-Back Performance Exhaust System 16536 |
| Clamping Type | Round Band |
Installation Guide: Download PDF
Specifications
MagnaFlow 16536 β Exhaust System Kit, fits 1984-1987 BMW 325e & 325es. Key specs: 2.25 in. main piping diameter, touring series.
Warranty: Limited Lifetime Warranty from MagnaFlow
Also known as: UPC 841380065995
