MagnaFlow Exhaust Products 16830 Exhaust System Kit
Product Availability Request
Fill the form and our team will contact you.

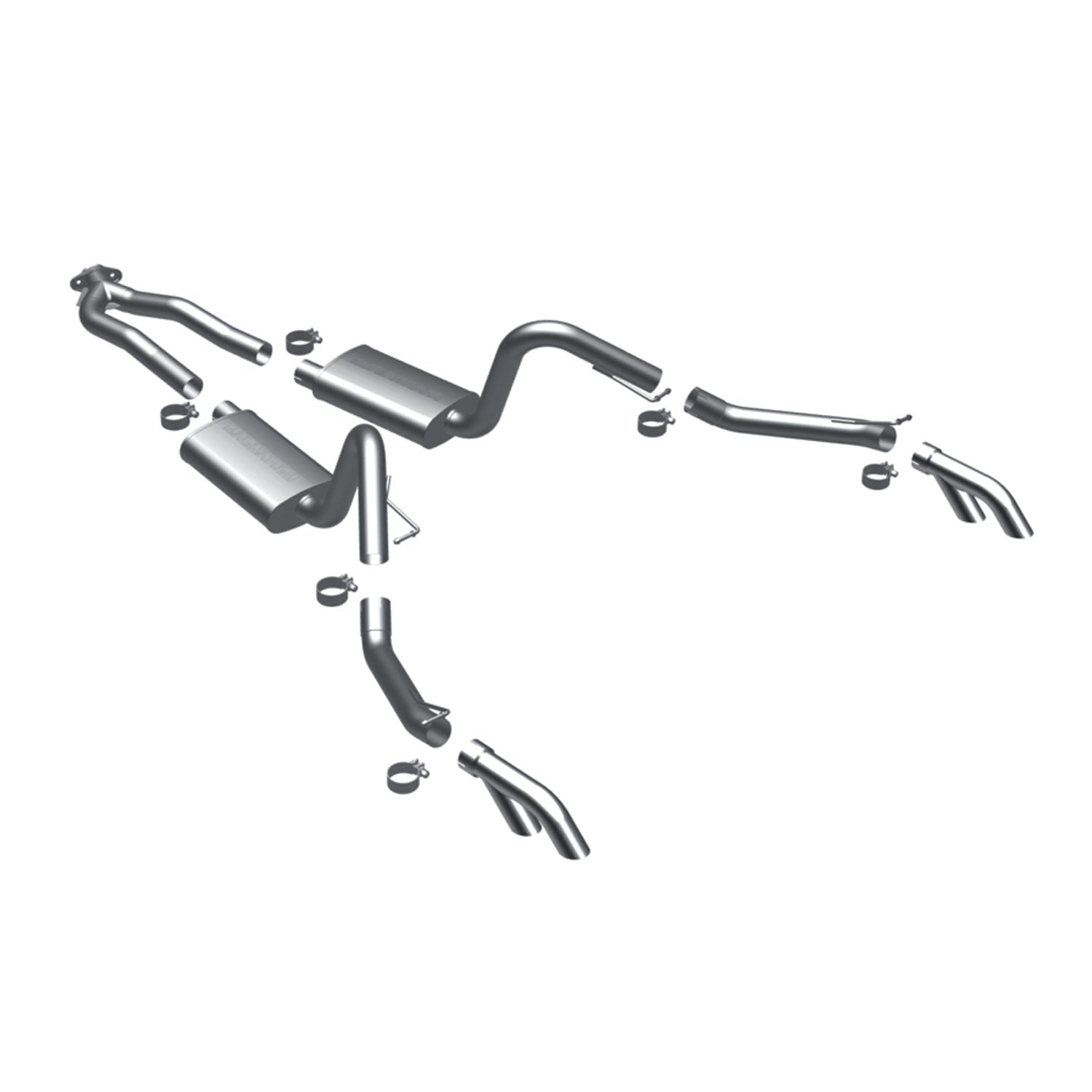

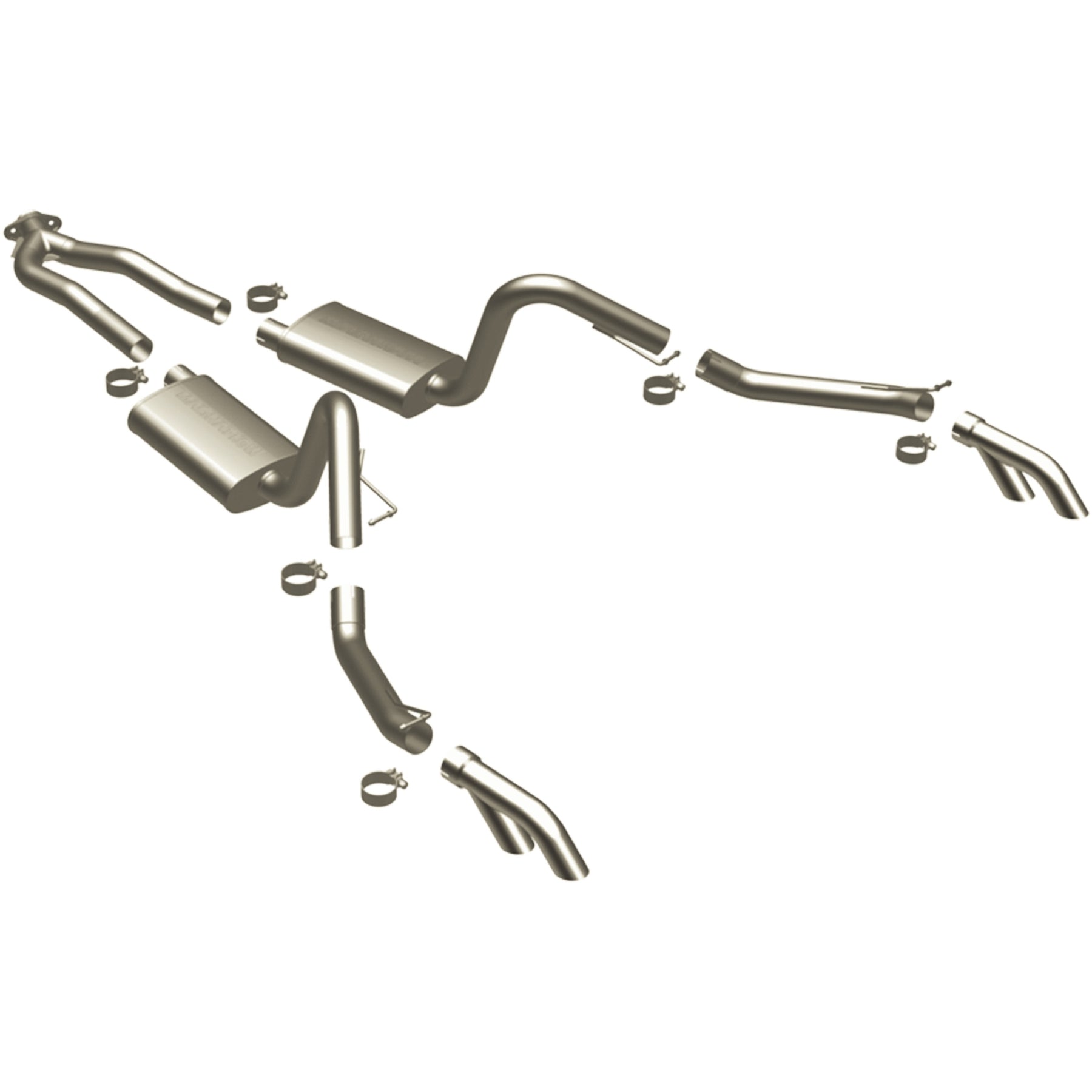

Magnaflow Street Series Stainless Cat-Back System

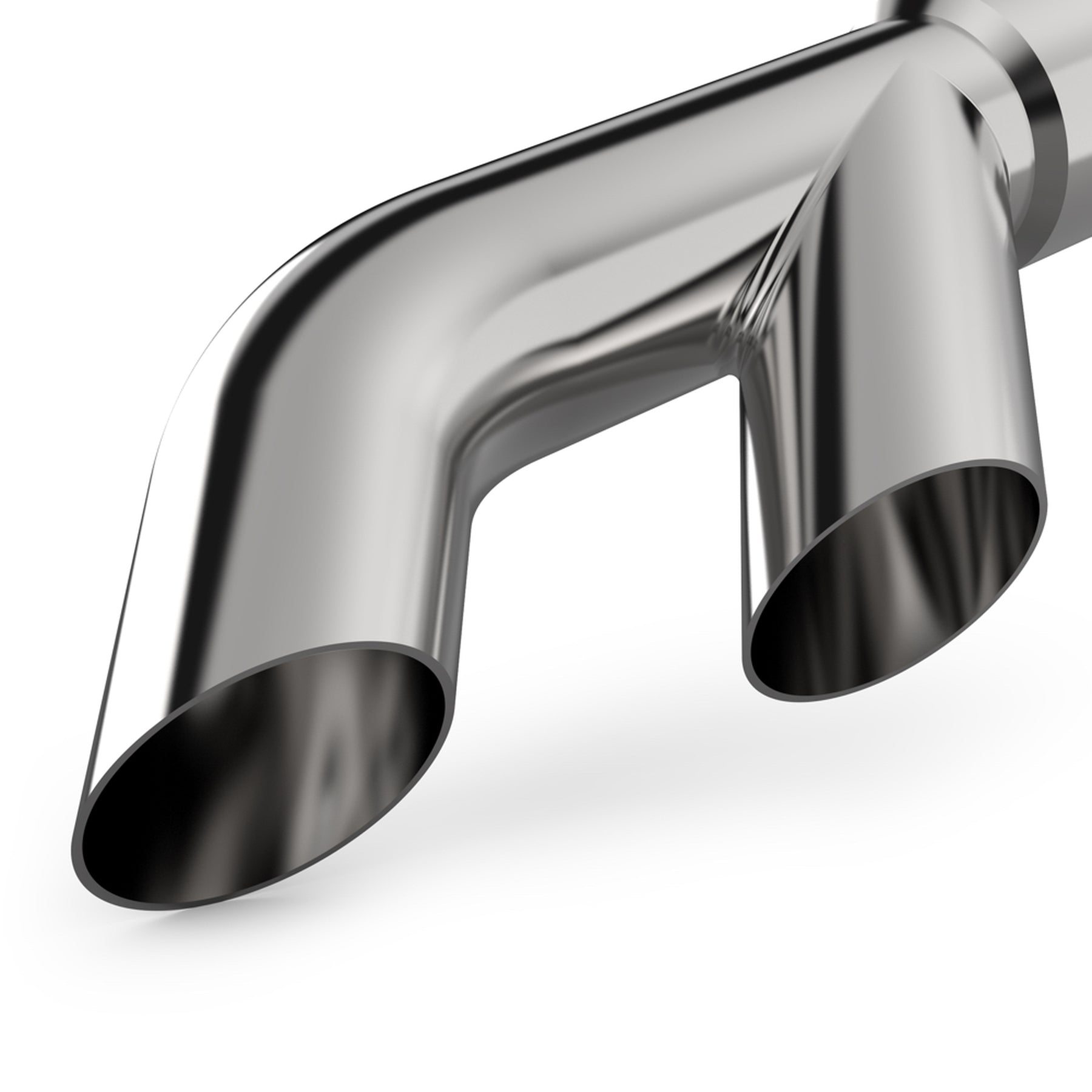

The MagnaFlow Pontiac Firebird Street Series Cat-Back Performance Exhaust System brings out the personality of your 4.9L, 5.0L, 5.7L, 6.6L Pontiac Firebird with our signature resonant, powerful engine tone and dyno-proven performance. Thanks to its fast-flowing, mandrel bent 2.5in. main piping and 2 Straight-Through mufflers ending in a Dual Split Rear exit with 2.25in. Polished Clamp-On Single Wall Turndown Cut Edge tips, this Pontiac Firebird exhaust kit has the performance chops to match its sporty sound and appearance. Upgrade your ride to the next level with an exhaust that has the pipes to put other Pontiac Firebird's to shame. With this system your vehicle will be producing Moderate exterior and Mild interior sound levels while leaving other cars and trucks feeling envious at every stoplight. Exhaust kit 16830 features a cat-back layout that replaces your ride's stock exhaust components from near the catalytic converter on back. Extensive 3D scanning during development has resulted in a direct-fit design that you can easily install yourself. 16830 is produced using CNC precision robotic manufacturing techniques and is backed by MagnaFlow's 1-year limited finish warranty and limited lifetime construction warranty.
Features
- Dyno-proven performance
- CNC precision robotic manufacturing techniques
- Durable corrosion-resistant stainless steel construction
Specifications
| Clamps Included | Yes |
| Exhaust Tip Connection | Clamp-On |
| Exhaust Tip Cut | Turndown |
| Exhaust Tip Diameter | 2.25 IN |
| Exhaust Tip Edge | Cut Edge |
| Exhaust Tip Finish | Polished |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 12.75 IN |
| Exhaust Tip Material | Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Hangers Included | Yes |
| Inlet Type | Bolt-On |
| Main Piping Diameter | 2.5 IN |
| Mounting Bracket Included | Yes |
| Muffler Body Height | 4 IN |
| Muffler Body Length | 14 IN |
| Gasket Or Seal Included | No |
| Exit Style | Dual Split Rear |
| Exhaust Tip Wall | Single Wall |
| Exhaust Tip Shape | Round |
| Exhaust Tip Resonated | No |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width | 9 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 2 |
| Muffler Type | Straight-Through |
| Pipe Material | Stainless Steel |
| Prop 65 Y/N | No |
| Series | Street |
| Type | Cat-Back |
| Valve Included | No |
| Catalytic Converter Included | No |
| Clamping Type | Round Band |
Note: Need further assistance? Call 1-800-990-0905.
Short Description: Cat-Back
Invoice Description: Exhaust System
Definition: Exhaust System Kit
Installation Guide: Download PDF
Specifications
MagnaFlow 16830 β Exhaust System Kit, fits 1975-1981 Pontiac Firebird. Key specs: 2.5 in. main piping diameter, street series.
Warranty: Limited Lifetime Warranty from MagnaFlow
Also known as: UPC 841380032119
| Year | Make | Model | Engine |
|---|---|---|---|
| 1977 | Pontiac | Firebird | 4.9L V8 |
| 1979-1981 | Pontiac | Firebird | 4.9L V8 |
| 1977-1981 | Pontiac | Firebird | 5.0L V8 |
| 1975-1979 | Pontiac | Firebird | 5.7L V8 |
| 1975-1979 | Pontiac | Firebird | 6.6L V8 |
5 applications listed.
