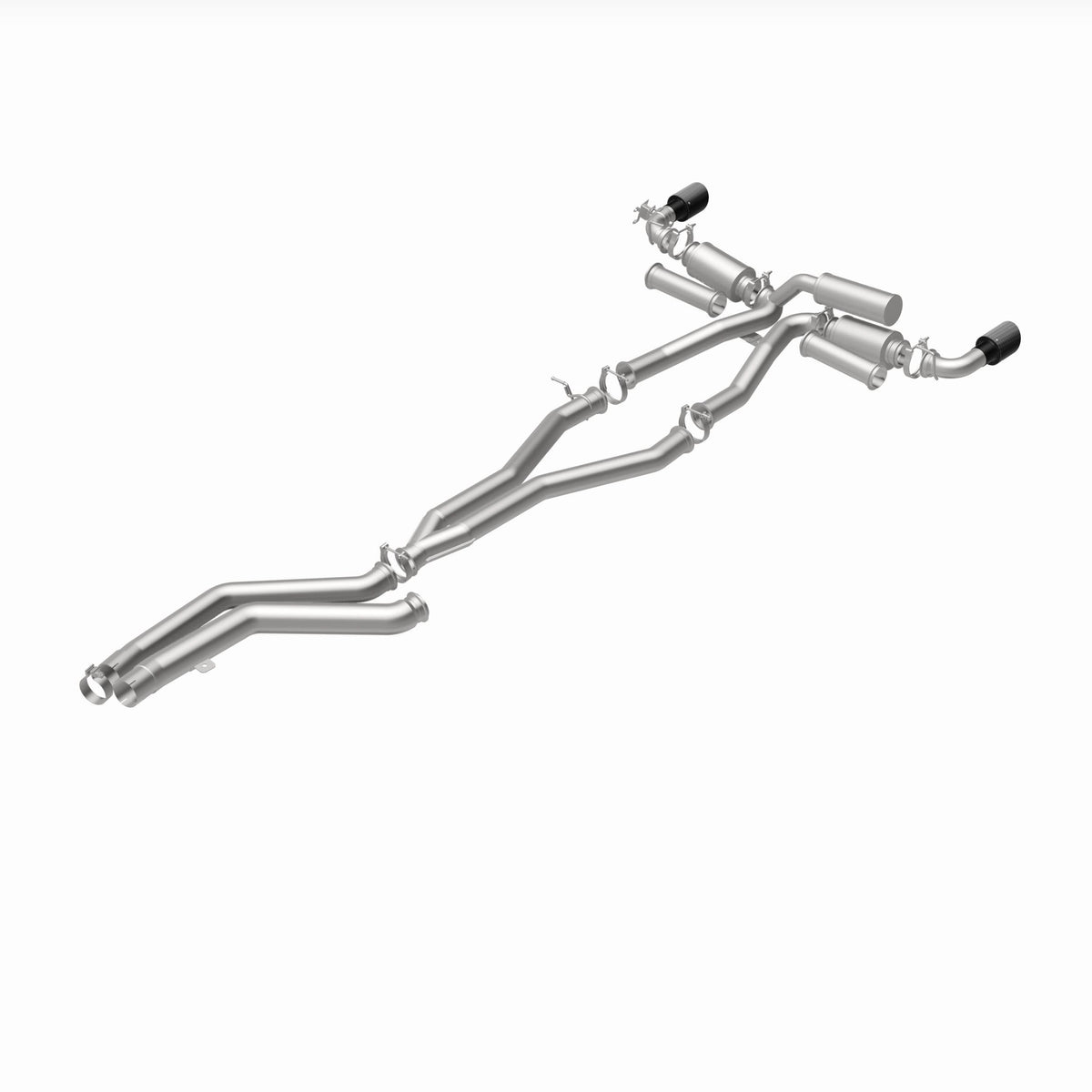

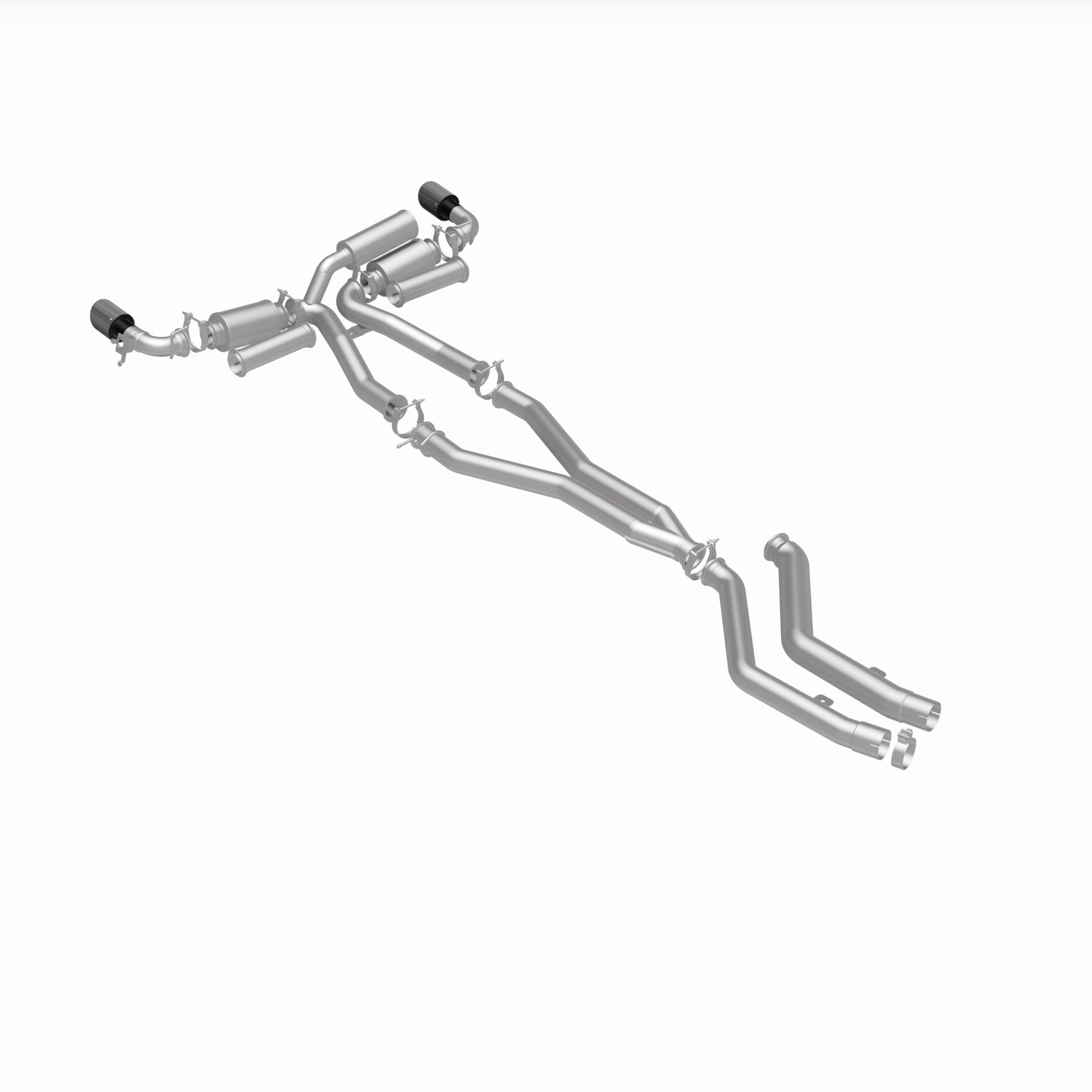

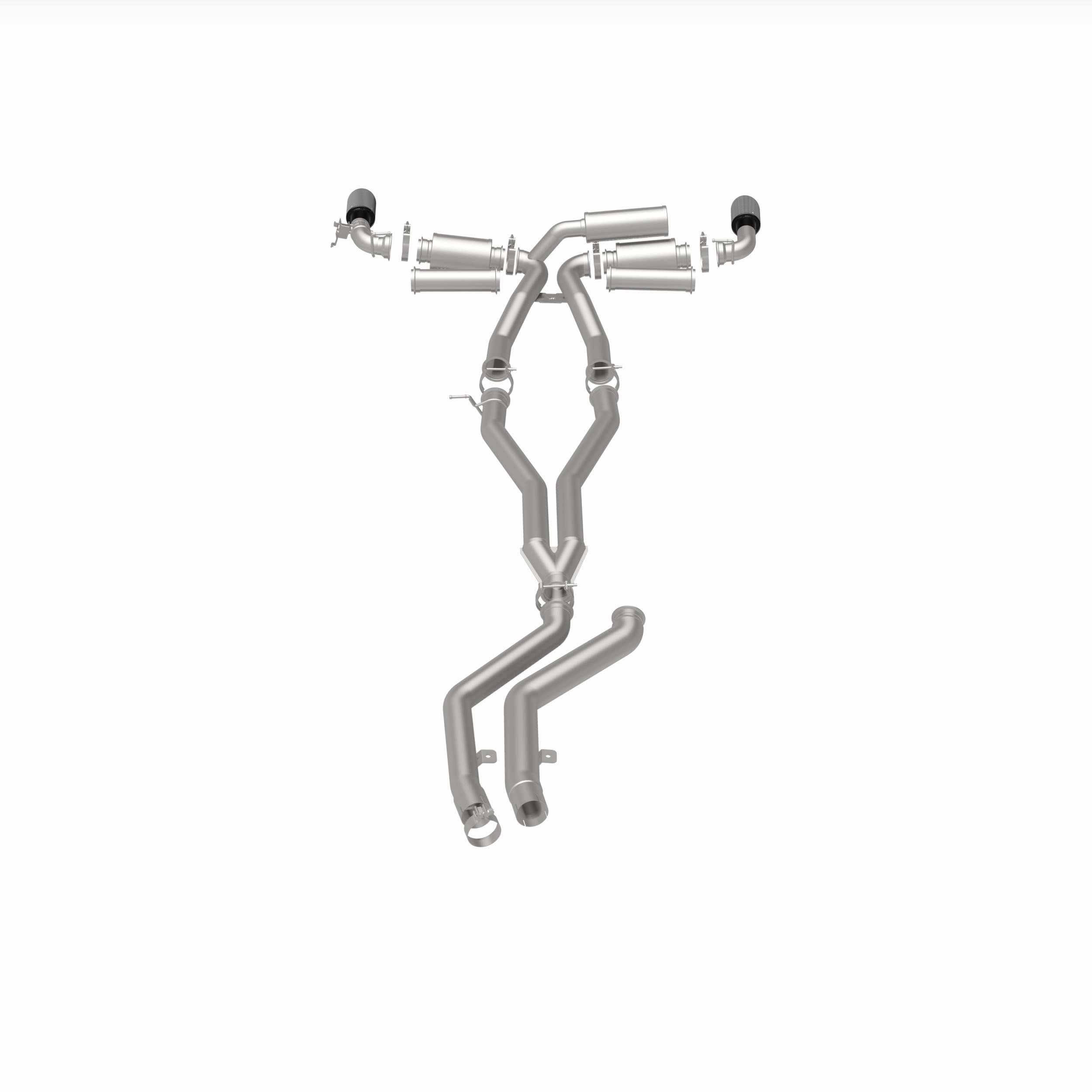

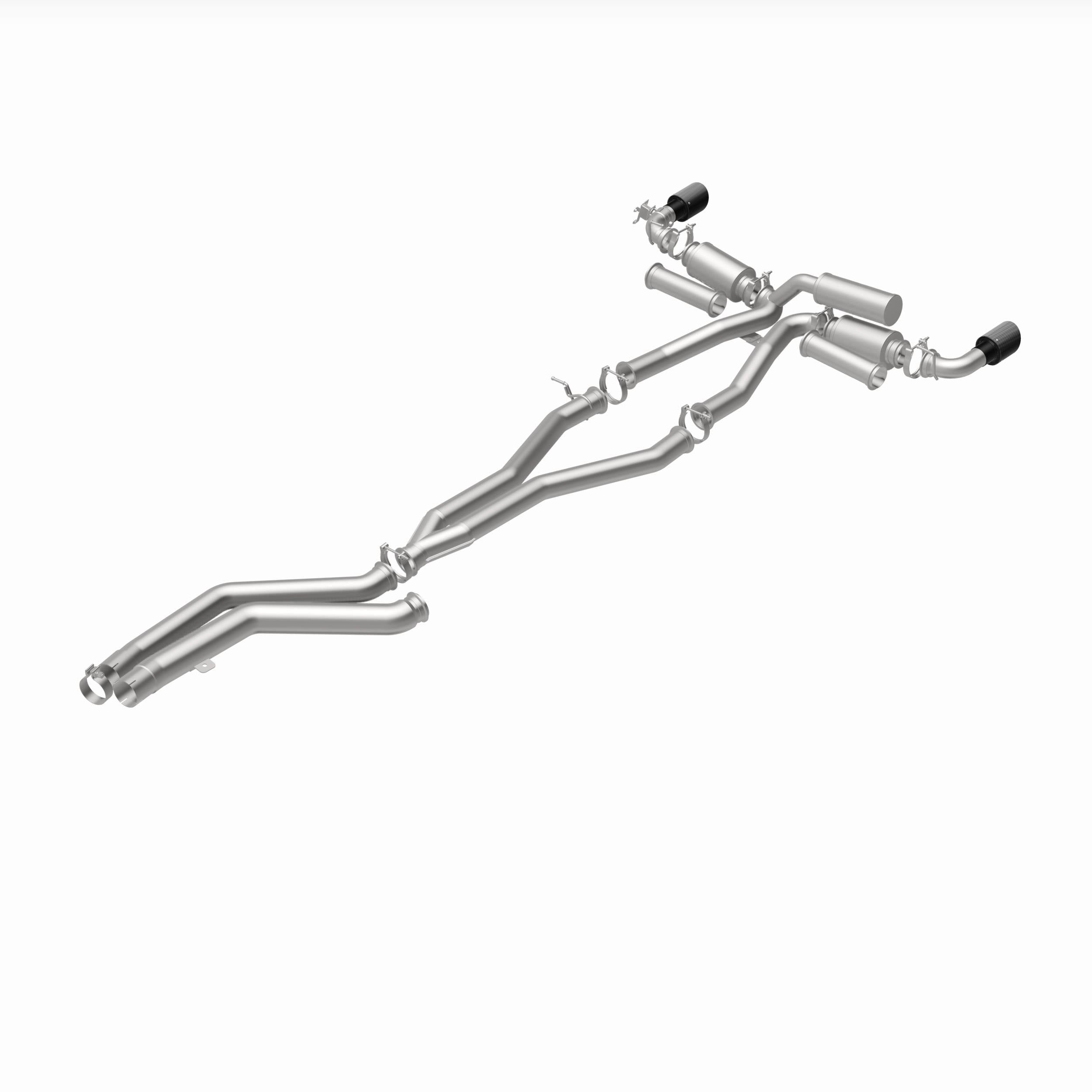

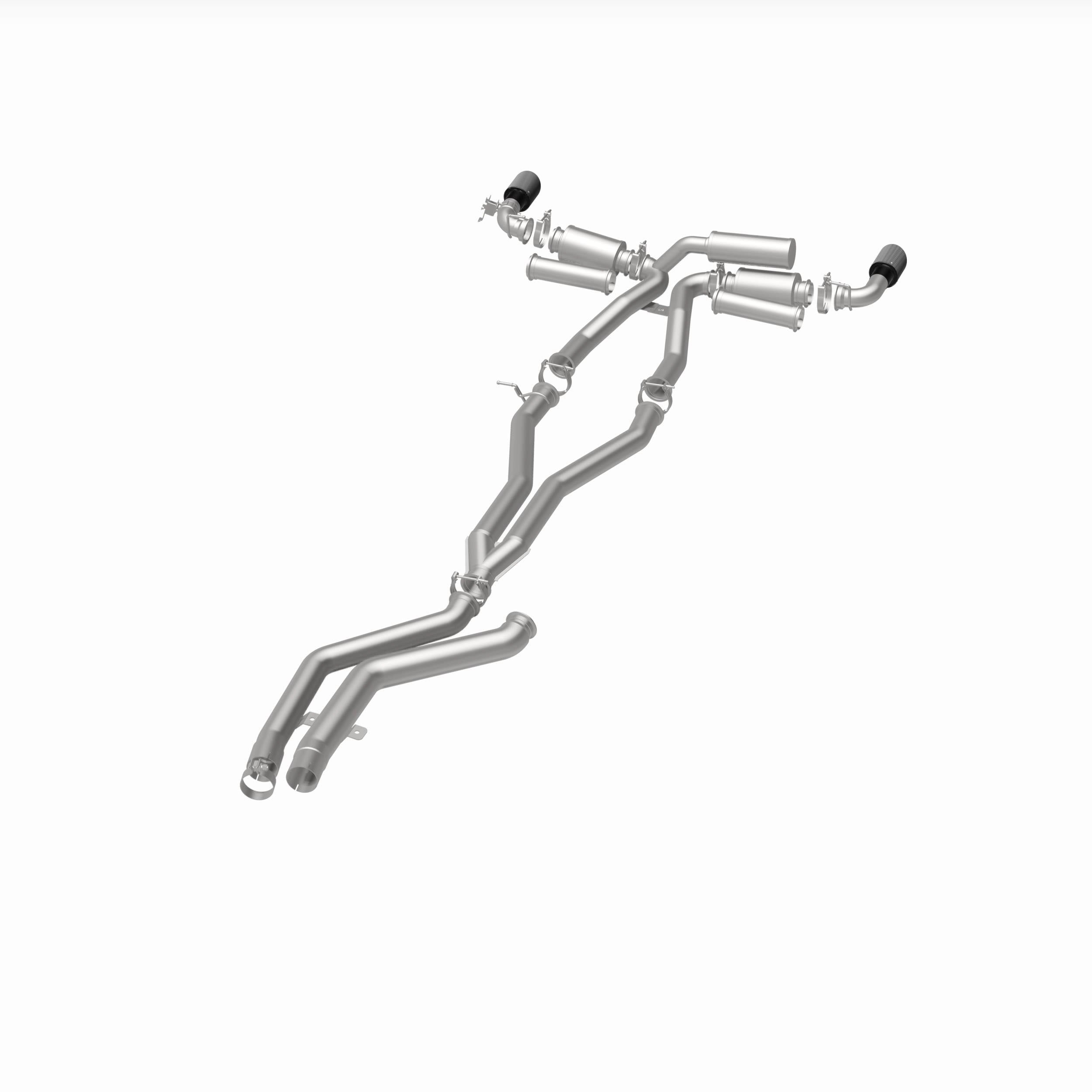

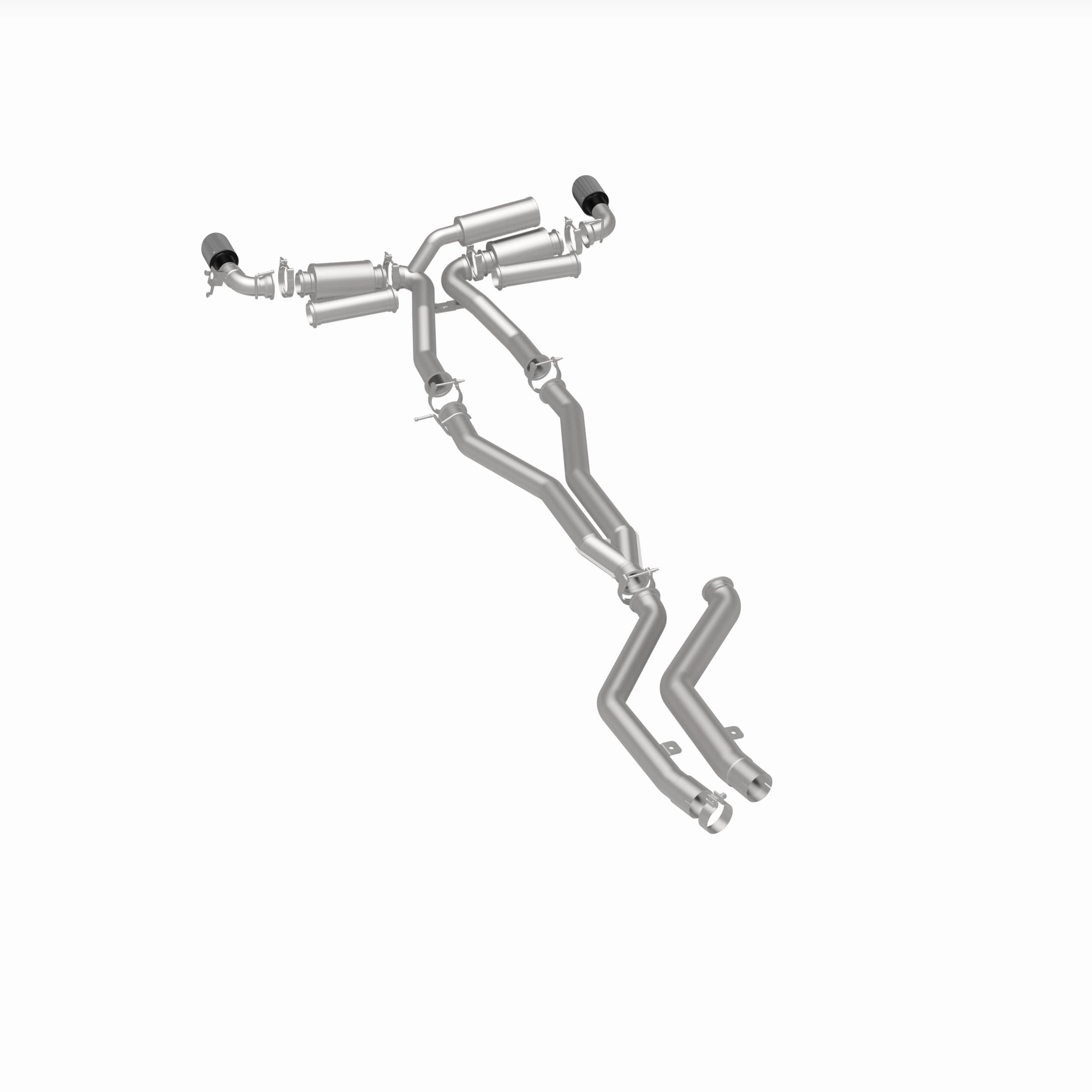

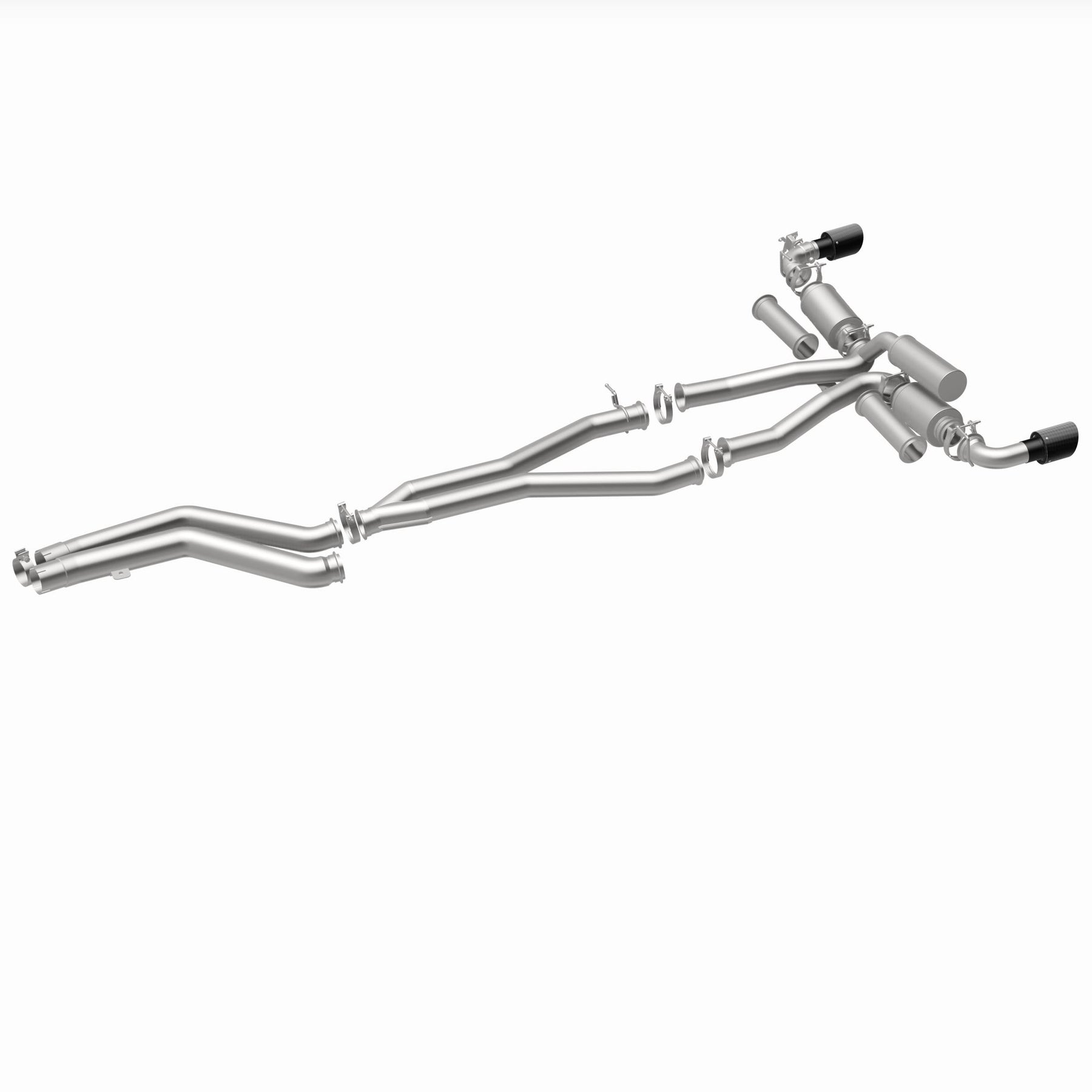

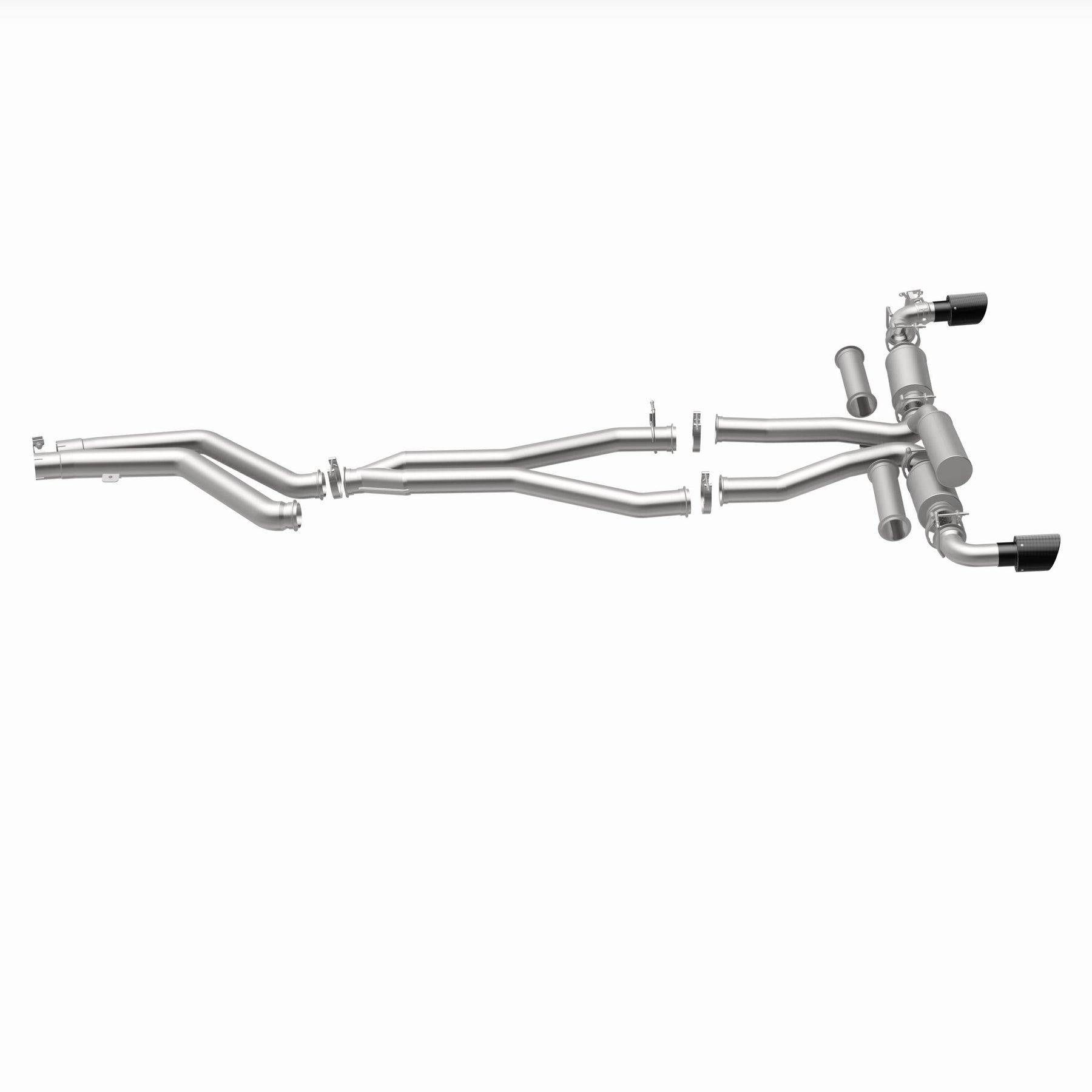

MagnaFlow Exhaust Products 19495 - xMOD Series Carbon Fiber Tips Cat-Back System
Couldn't load pickup availability
Magnaflow xMOD Series Carbon Fiber Tips Cat-Back System
MagnaFlow's revolutionary xMOD Series #19495 offers a completely modular exhaust system that takes modifying your vehicle’s exhaust to the next level of personalization. The configurable sound level provided by Supra xMOD Muffler Modules and MagnaFlow's proven straight-through 5" round 8" long 3" core mufflers now feature race bred quick release v-band clamps for quick installation and removal for when you want that race car sound instead of the deep, aggressive signature MagnaFlow exhaust note. Supra xMOD xTreme Deletes are equipped with the same v-band clamps, allowing for the removal of the muffler modules for that xMOD xTreme near-straight pipe sound experience. Please note, while the xMOD systems are 100% emissions legal, the use of the xTreme deletes is recommended for track use only. Check local sound laws for street legality. Expandable flow capacity for big power mods with Supra xMOD Opti-Flow Modules feature fast-flowing 3" mandrel bent stainless steel design correcting the flow restrictions of the ovalized factory pipe, trading better ground clearance for total flow. The xMOD Opti-Flow Modules are optimized for stock power plus minor modifications. Supra xMOD xTreme Flow Modules: feature increased flow capacity with a 3.5" mandrel bent big bore designed for big power modification support. The xMOD xTreme Flow Modules increase airflow up to 36%. #19495 retains the Sport mode exhaust valve functionality and provides a modest power gain over stock. The kit features 100% durable stainless-steel construction and is backed by MagnaFlow’s limited lifetime warranty.
Features & Benefits
- xTreme Delete Modules for a straight-pipe setup
- Configurable sound from mild to wild
- No-Drone-Technology allows for a quiet cabin
Specifications
| Catalytic Converter Included | No |
| Muffler (Rear) Body Length | 11 IN |
| Muffler Body Length Position Rear | 11 IN |
| Exhaust Tip Quantity | 2 |
| Muffler Quantity | 3 |
| Main Piping Diameter | 3.5 IN |
| Muffler (Rear) Body Height | 4 IN |
| Muffler (Rear) Body Width | 4 IN |
| Muffler Body Height Position Rear | 4 IN |
| Muffler Body Width Position Rear | 4 IN |
| Exhaust Tip Diameter | 4.5 IN |
| Muffler (Center) Body Height | 5 IN |
| Muffler (Front) Body Width | 5 IN |
| Muffler Body Height Position Center | 5 IN |
| Muffler Body Width Position Front | 5 IN |
| Exhaust Tip Length | 6.75 IN |
| Muffler (Front) Body Length | 8 IN |
| Muffler Body Length Position Front | 8 IN |
| Valve Type | Actuated |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Finish | Carbon Fiber |
| Exhaust Tip Material | Carbon Fiber |
| Type | Cat-Back |
| Inlet Type | Clamp-On |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Split Rear |
| Title | MagnaFlow 2020-2025 Toyota GR Supra 3.0L xMOD Series Cat-Back Performance Exhaust System 19495 |
| Gasket Or Seal Included | No |
| Exhaust Tip Resonated | No |
| Exhaust Tip Intercooled | No |
| Muffler Finish | Polished |
| Exhaust Tip Edge | Rolled Edge |
| Exhaust Tip Shape | Round |
| Pipe Material | Stainless Steel |
| Muffler Body Material | Stainless Steel |
| Muffler (Front) Type | Straight-Through |
| Muffler Type Position Front | Straight-Through |
| Muffler Type | Straight-Through;Tuned Chamber |
| Muffler (Rear) Type | Tuned Chamber |
| Muffler Type Position Rear | Tuned Chamber |
| Exhaust Tip Connection | Welded-On |
| Series | xMod |
| Clamps Included | Yes |
| Hangers Included | Yes |
| Valve Included | Yes |
| Mounting Bracket Included | Yes |
| Clamping Type | Round Band |
| Clamping Type | V Band |
Installation Guide: Download PDF
