MagnaFlow Exhaust Products 19539 - Overland Series Cat-Back System
Couldn't load pickup availability

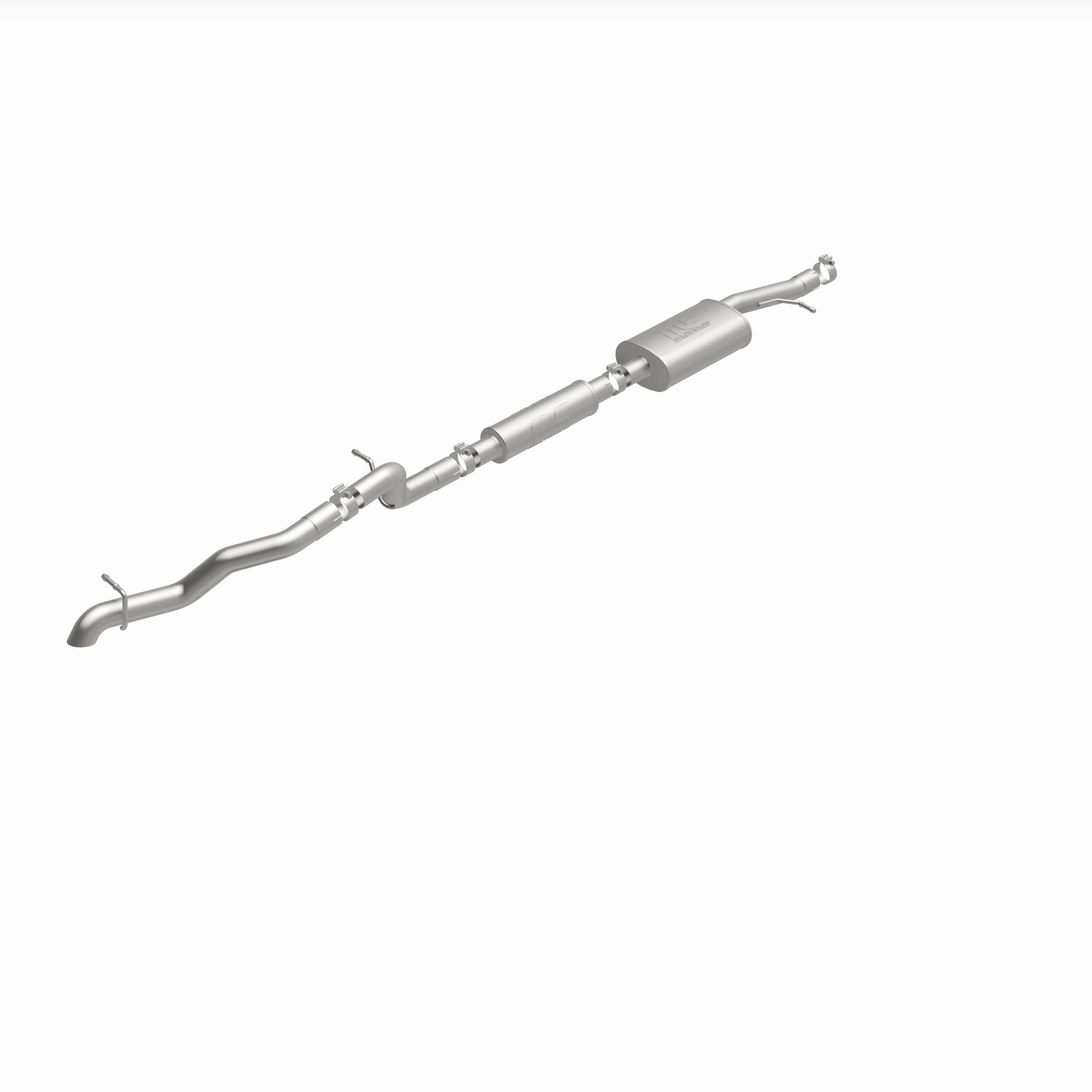

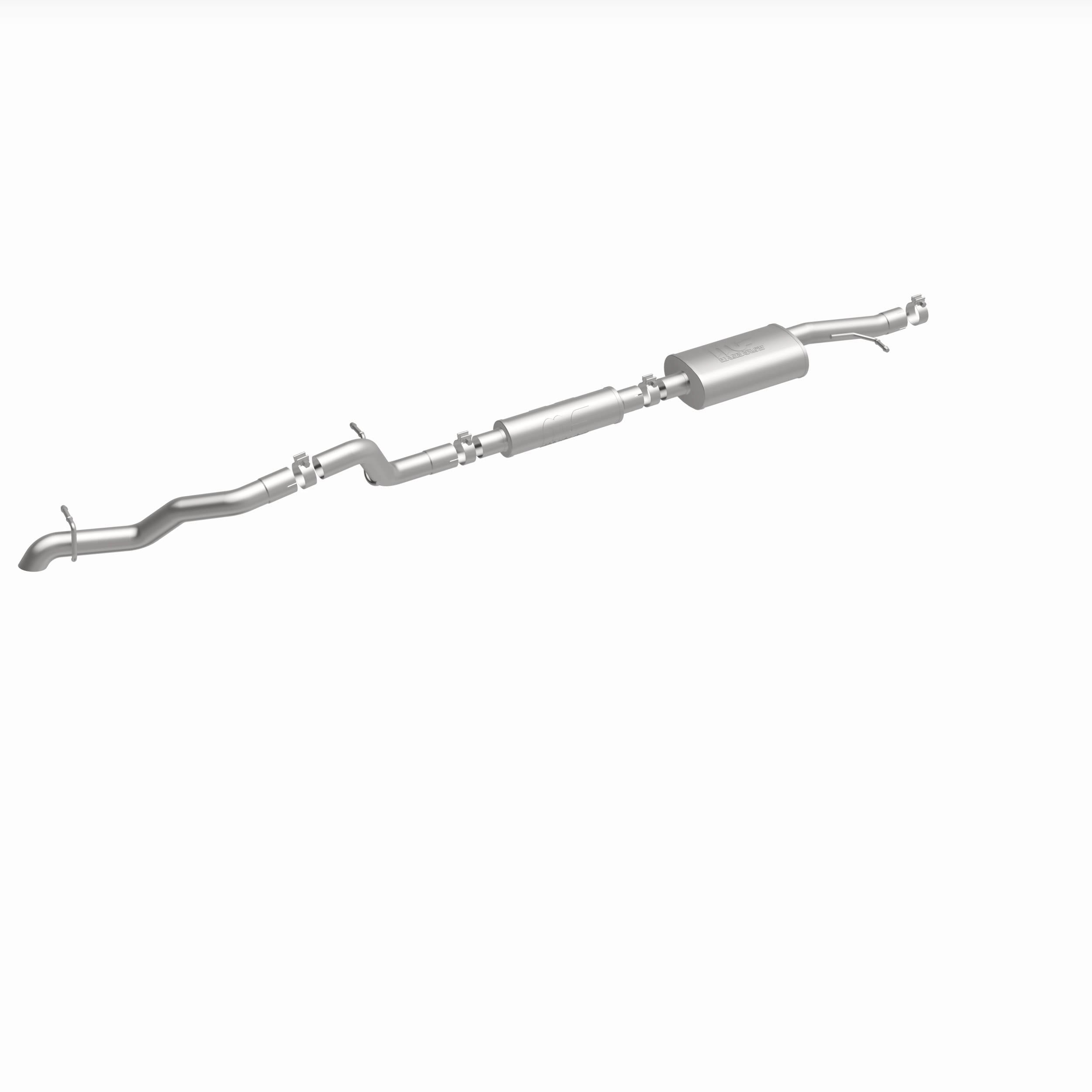

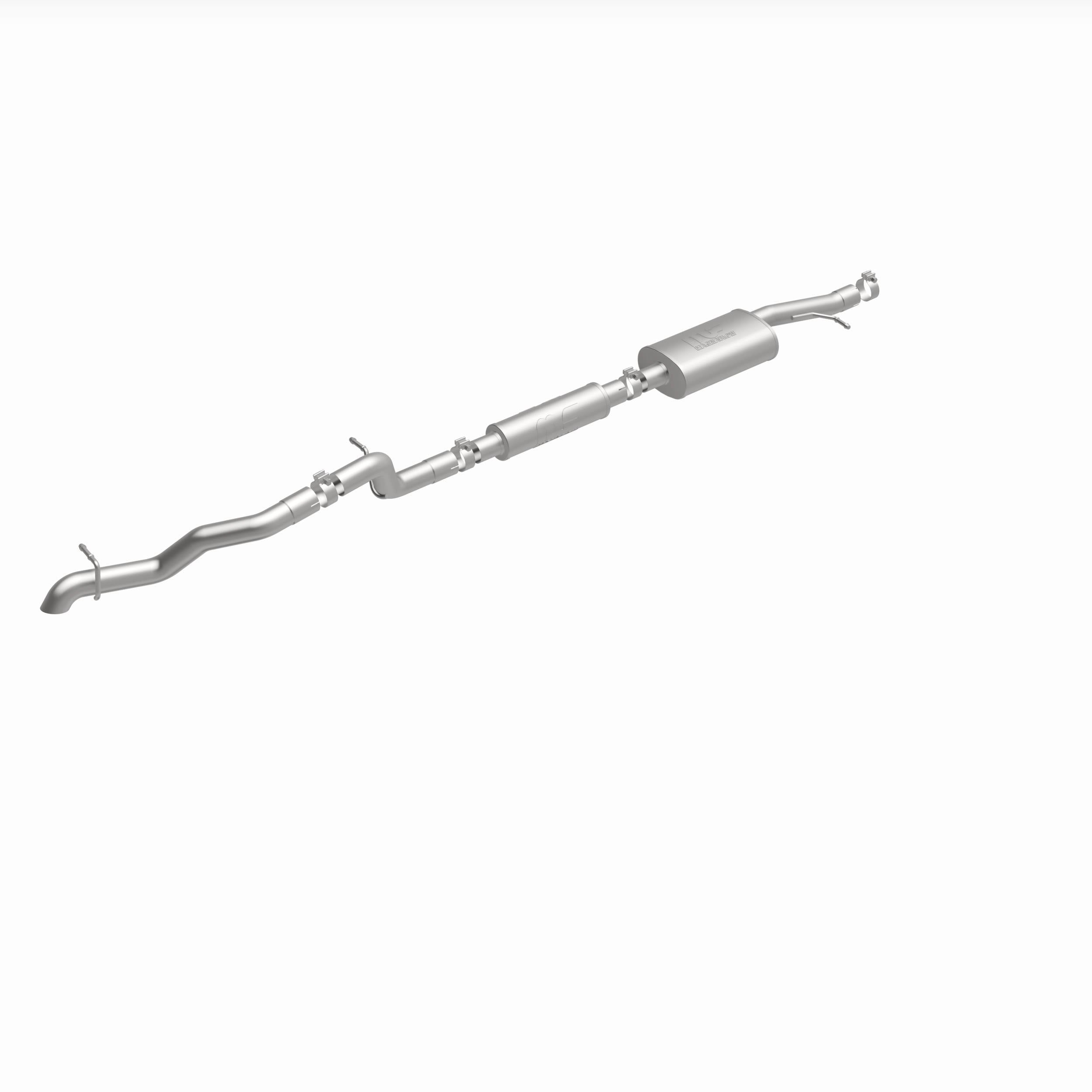

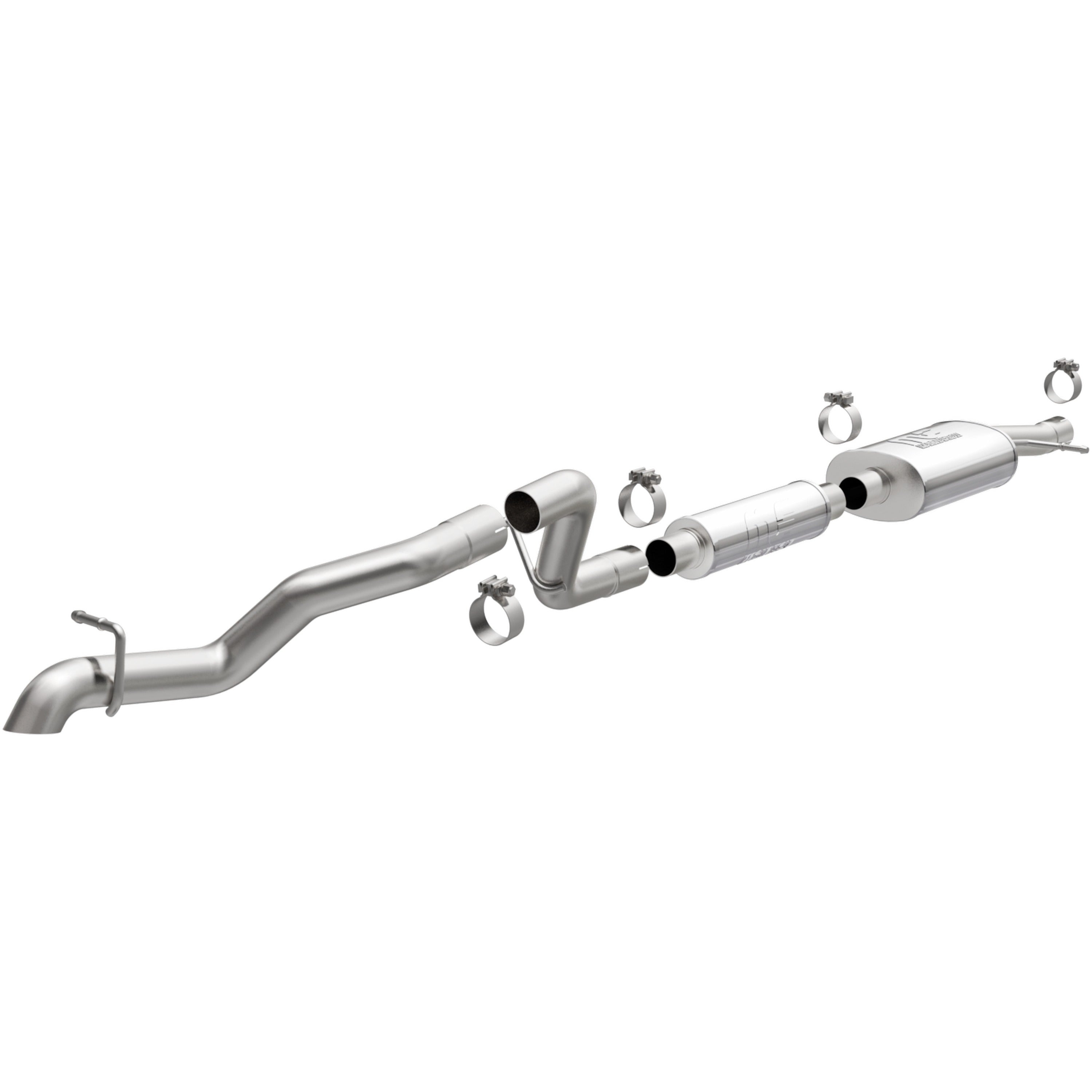

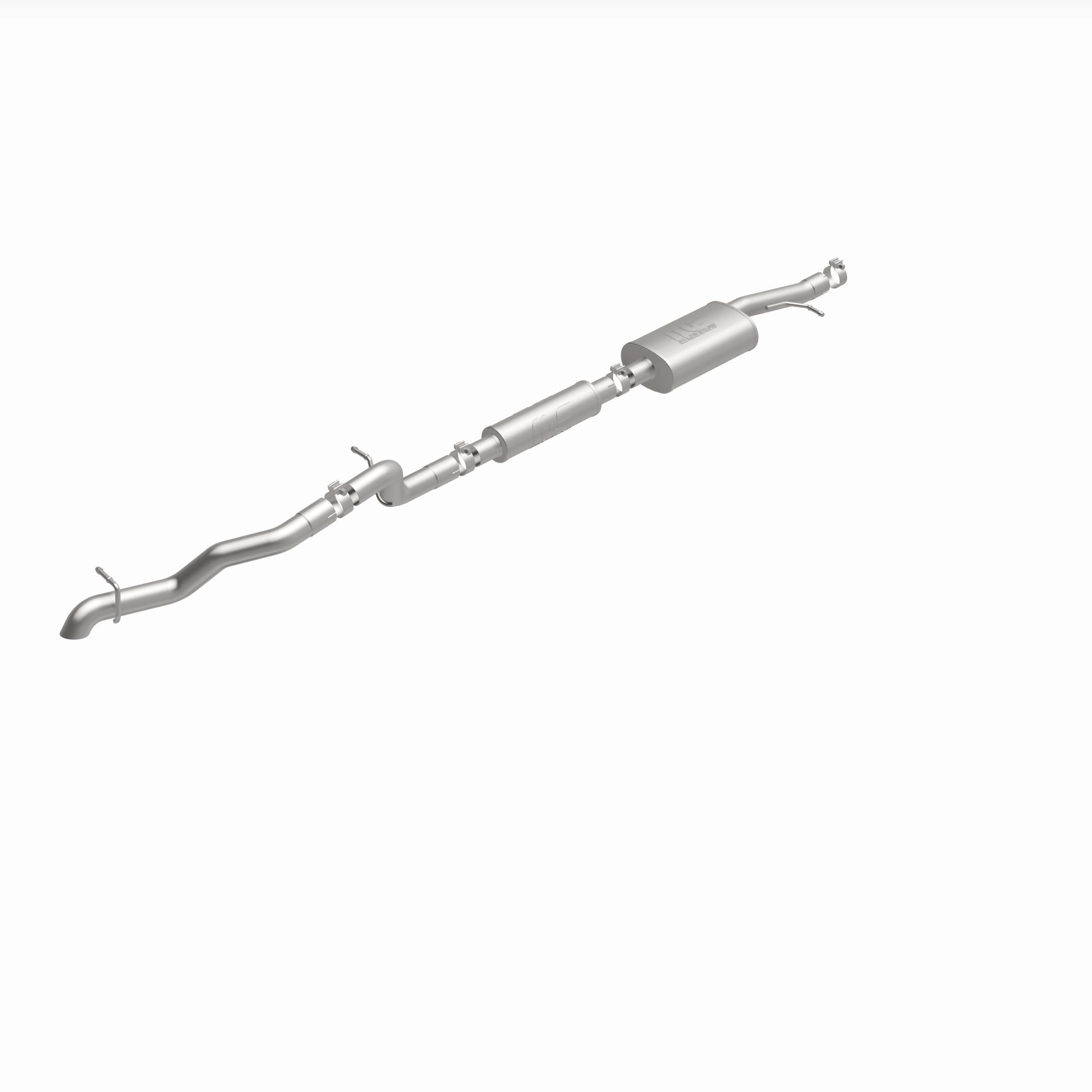

Magnaflow Overland Series Stainless Cat-Back System
The MagnaFlow® JK Jeep Wrangler Overland Series™ Cat-Back Performance Exhaust System #19539 will inject your Jeep Wrangler JK Unlimited (2012-2018) with MagnaFlow®’s deep signature sound and dyno-proven performance. MagnaFlow® exhaust kit #19539 is weight optimized for improved utility and features a single straight-through muffler with 2.5” mandrel bent main piping that fits closer to the undercarriage of the vehicle compared to the stock configuration. This combined with a no-tip, high clearance driver side rear exit greatly enhances your JK Jeep Wrangler’s ground clearance and departure angles. The exhaust system was designed to be compatible with the most popular bolt-on aftermarket modifications. Each system incorporates MagnaFlow®’s No Drone Technology, which mitigates interior noise by cancelling out the natural droning frequencies produced by your JK Jeep Wrangler at cruising speeds while retaining the character of your engine’s exhaust note. CNC precision robotic manufacturing techniques enable perfect fitment and allow for hassle-free bolt-on installation. MagnaFlow® #19539 is made entirely of durable stainless steel and backed by MagnaFlow®’s limited lifetime construction warranty.
Features & Benefits
- Dyno proven performance
- No-Drone-Technology allows for a quiet cabin
- High clearance exit
Specifications
| Clamps Included | Yes |
| Exhaust Tip Quantity | 0 |
| Exit Style | Single Straight Driver Side Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Clamp-On |
| Main Piping Diameter | 2.5 IN |
| Mounting Bracket Included | No |
| Muffler (Center) Body Height | 5 IN |
| Muffler (Front) Body Length | 14 IN |
| Muffler (Front) Body Width | 8 IN |
| Muffler (Rear) Body Height | 4 IN |
| Muffler (Rear) Body Length | 14 IN |
| Muffler (Rear) Body Width | 4 IN |
| Muffler Body Height Position Center | 5 IN |
| Muffler Body Height Position Rear | 4 IN |
| Muffler Body Length Position Front | 14 IN |
| Muffler Body Length Position Rear | 14 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width Position Front | 8 IN |
| Series | Overland |
| Type | Cat-Back |
| Valve Included | No |
| Pipe Material | Stainless Steel |
| Muffler Type | Straight-Through |
| Muffler Quantity | 2 |
| Muffler Finish | Brushed |
| Muffler Body Width Position Rear | 4 IN |
| Catalytic Converter Included | No |
| Clamping Type | Round Band |
| Title | MagnaFlow® 2018 Jeep Wrangler JK 3.6L | 2012-2017 Jeep Wrangler 3.6L Overland Series™ Cat-Back Performance Exhaust System 19539 |
Installation Guide: Download PDF
