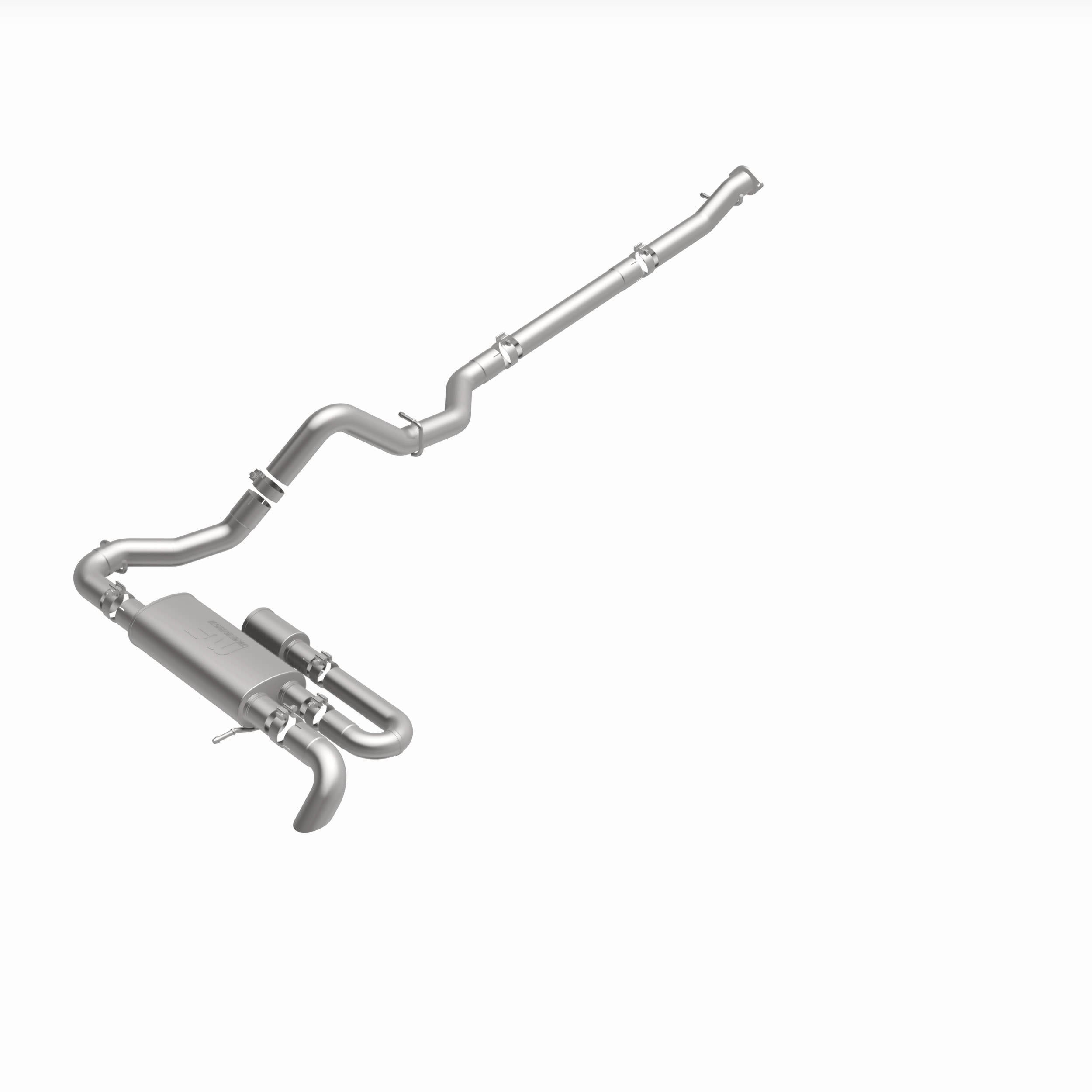

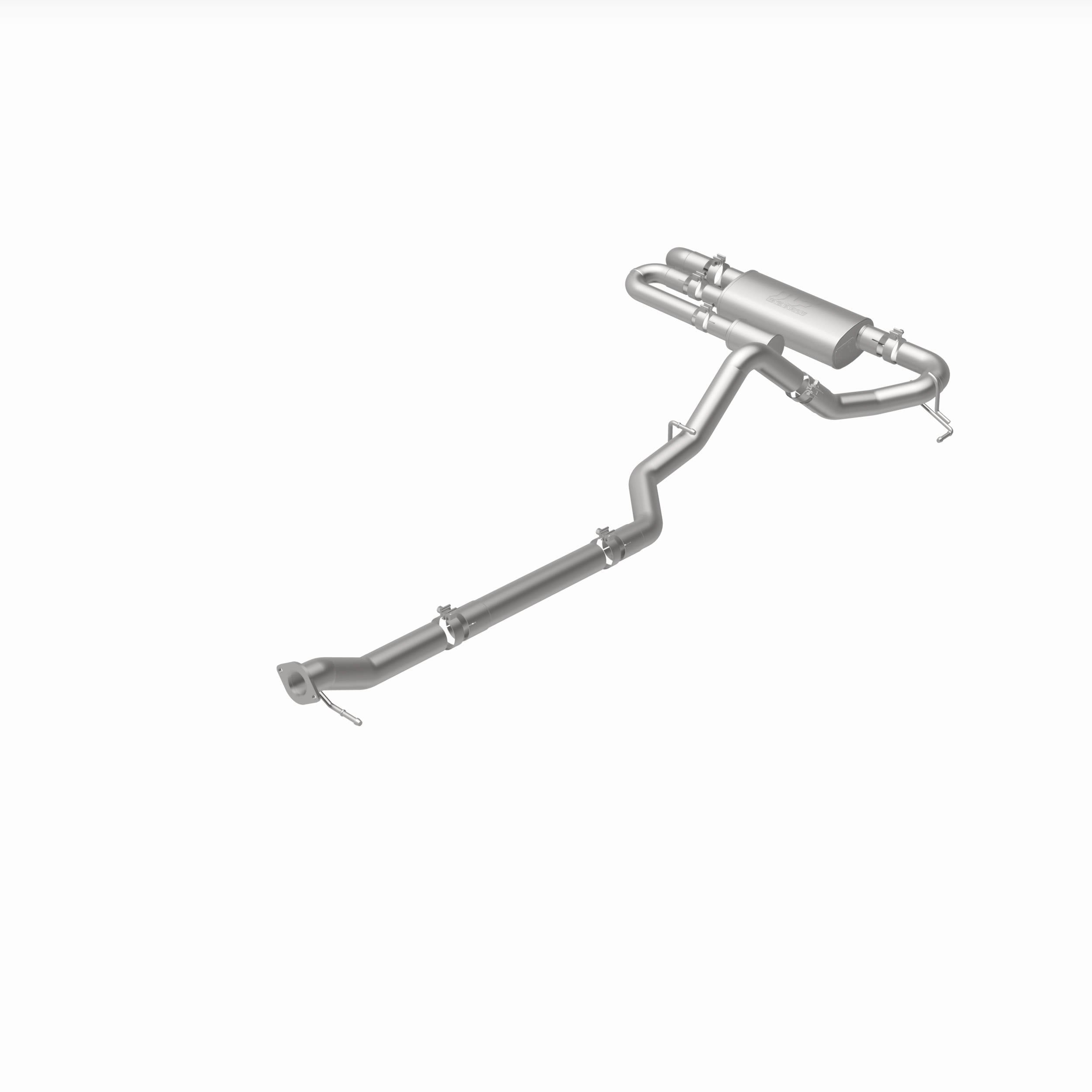

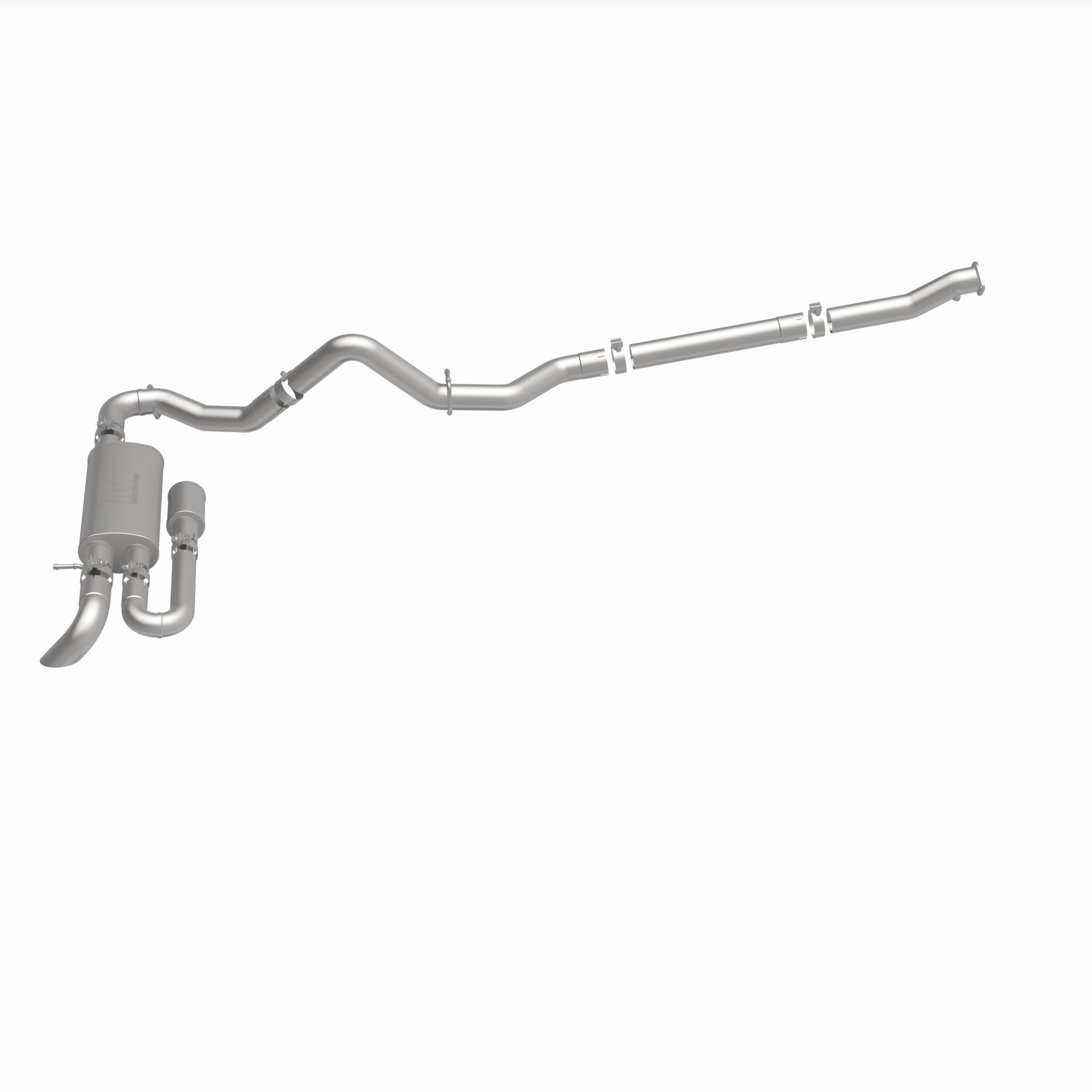

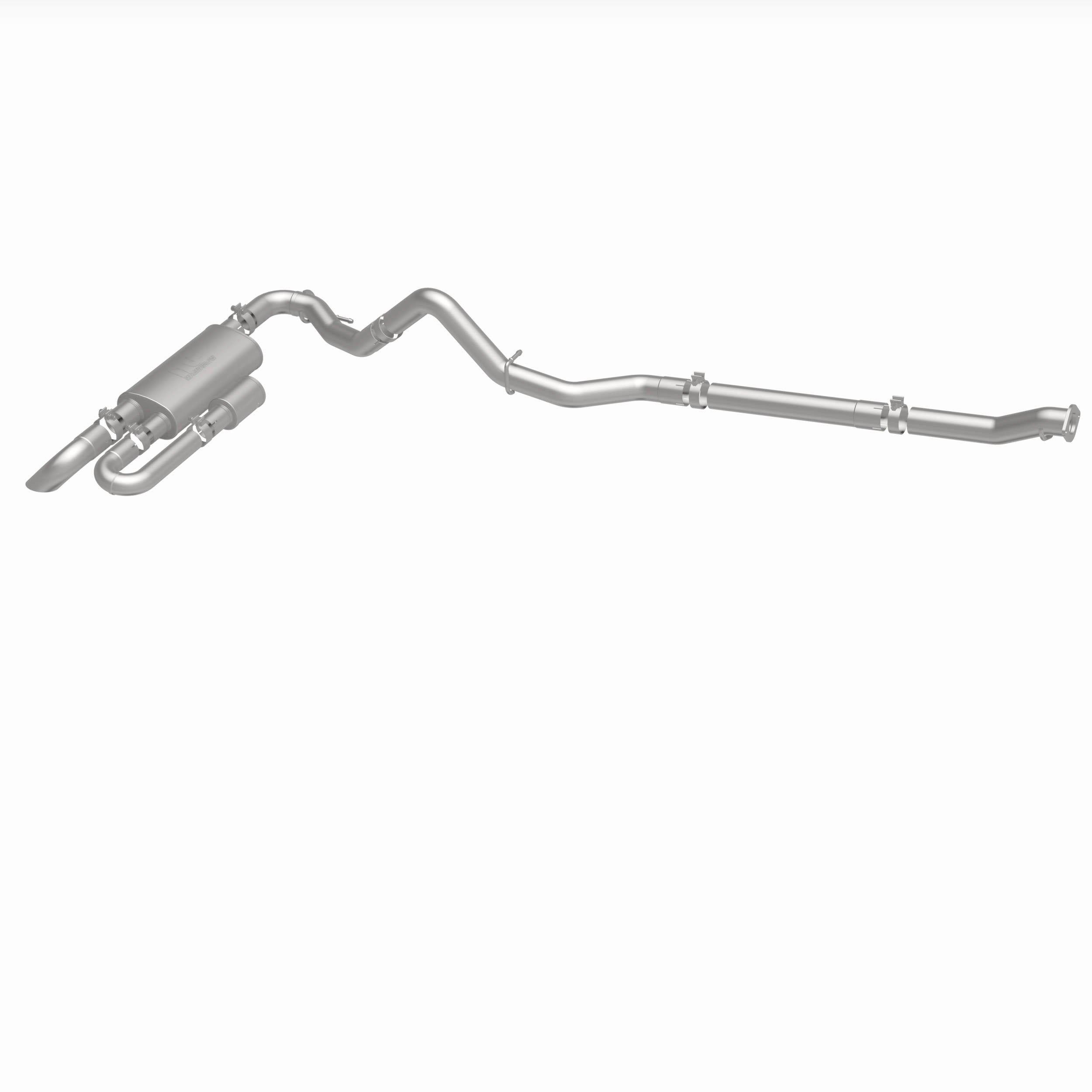

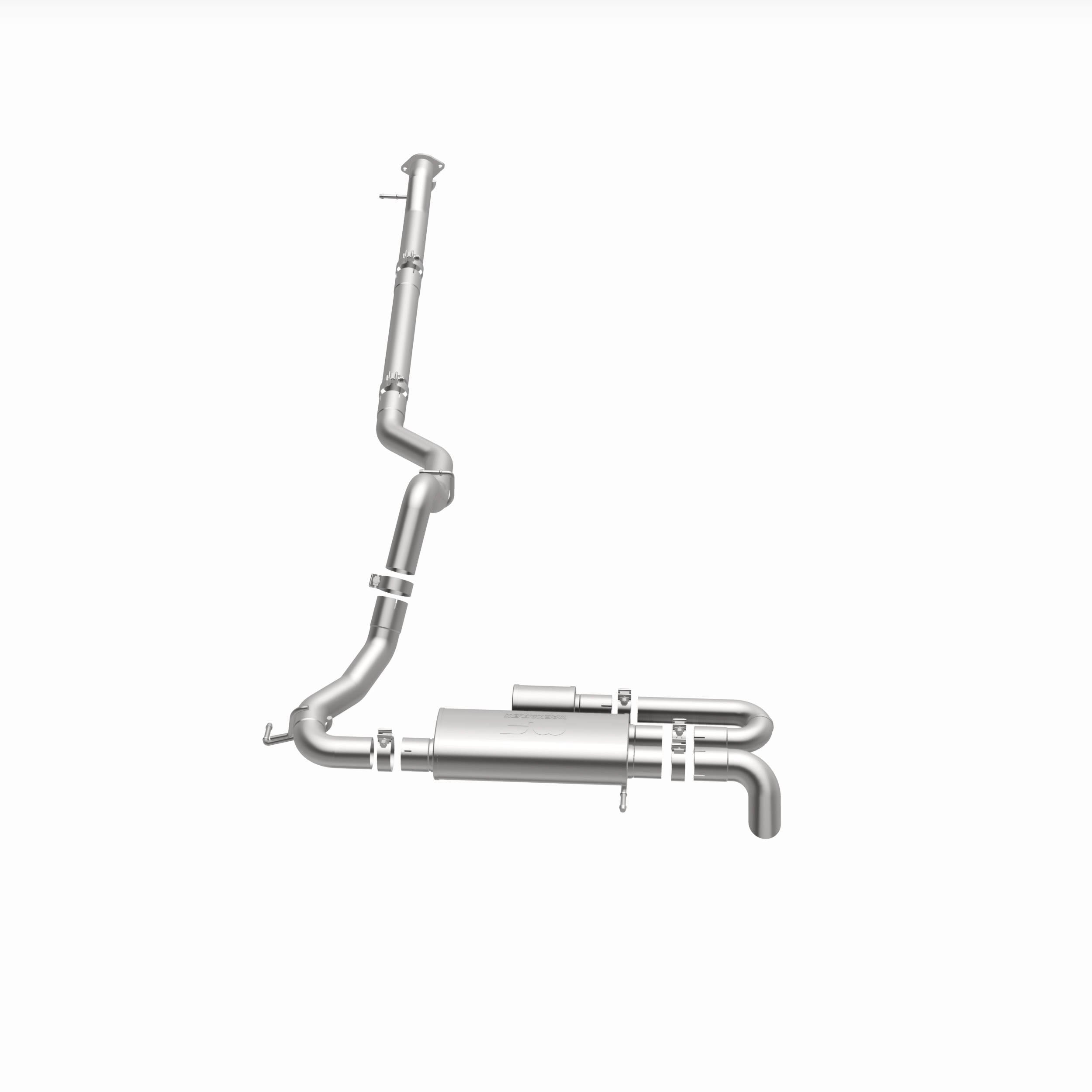

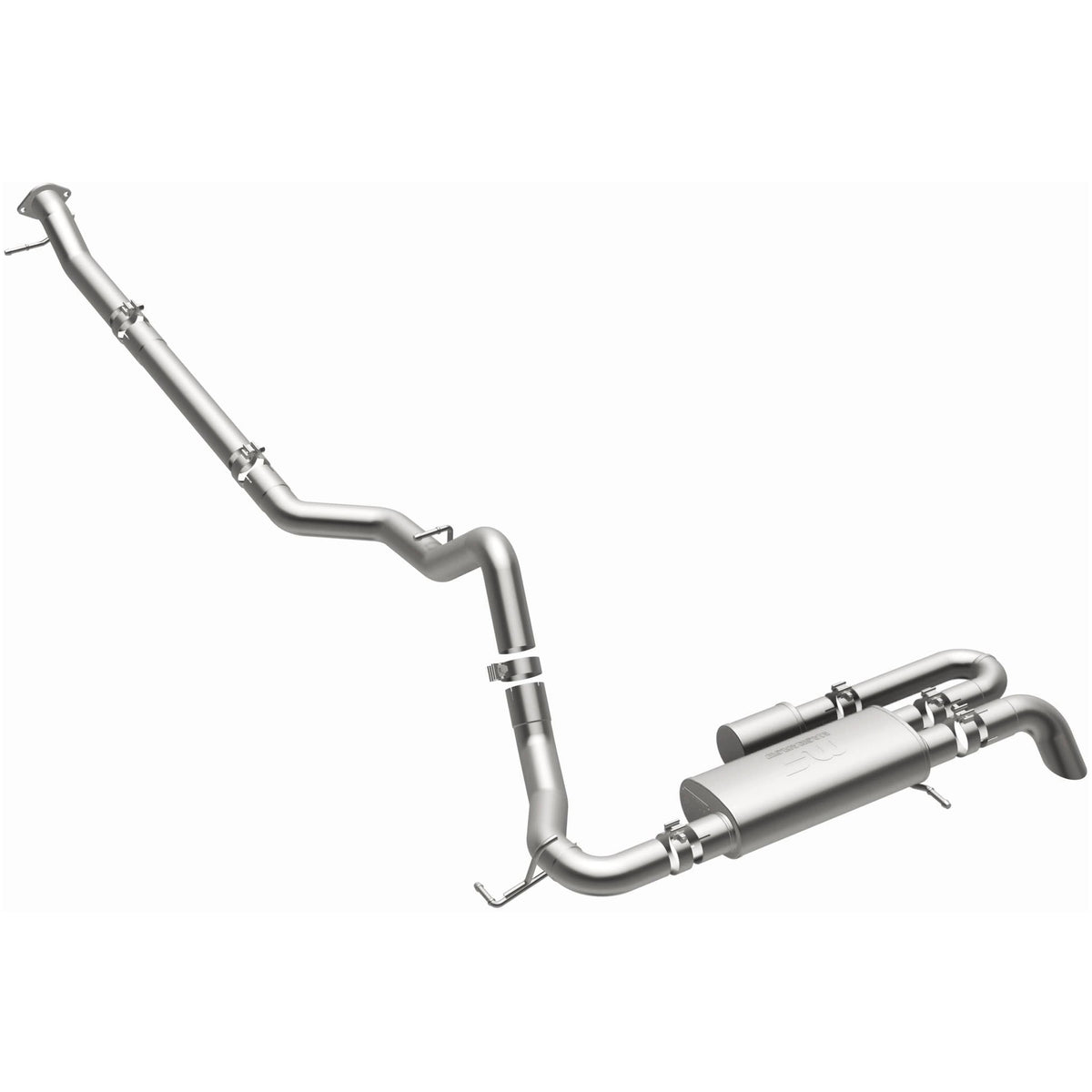

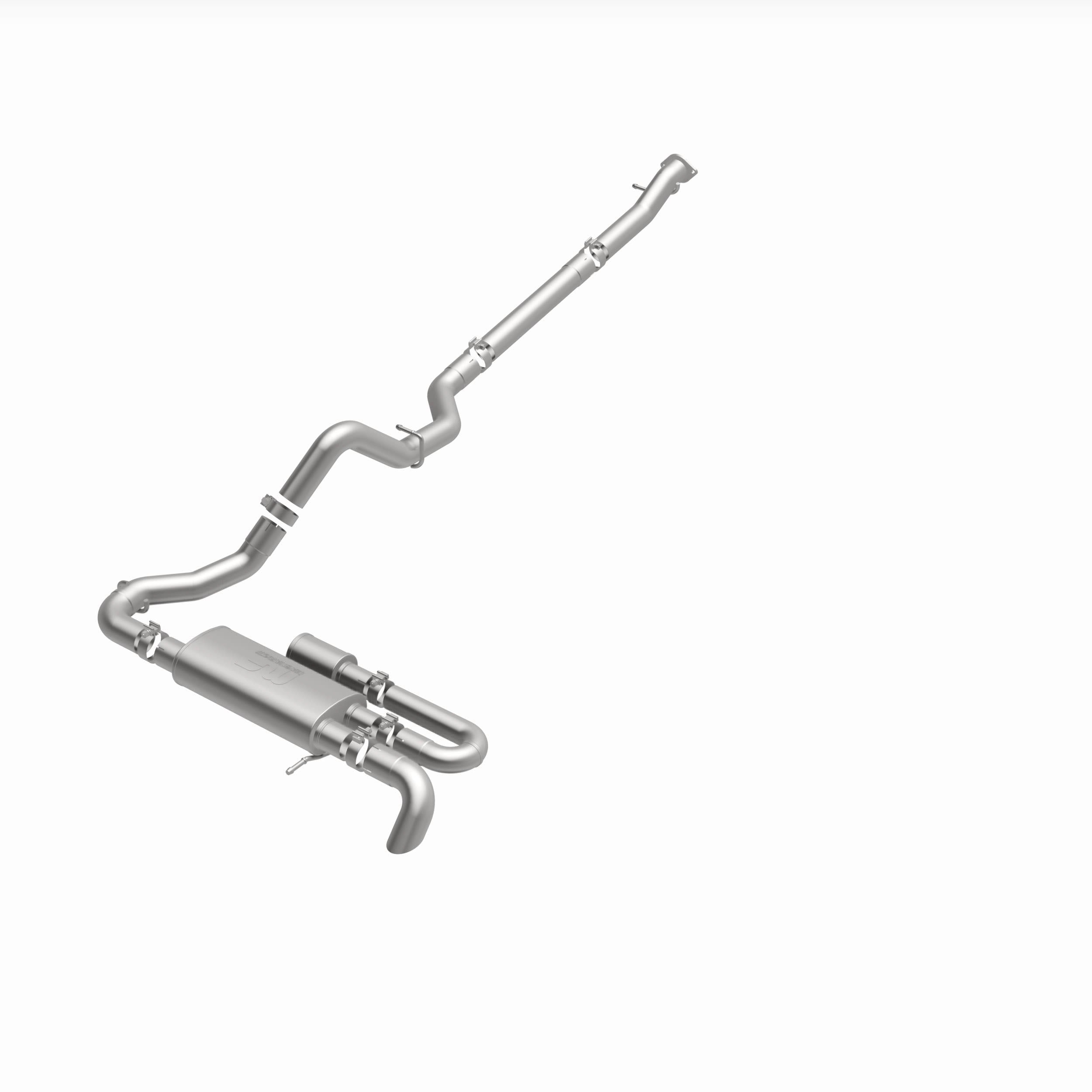

MagnaFlow Overland Series Cat-Back System

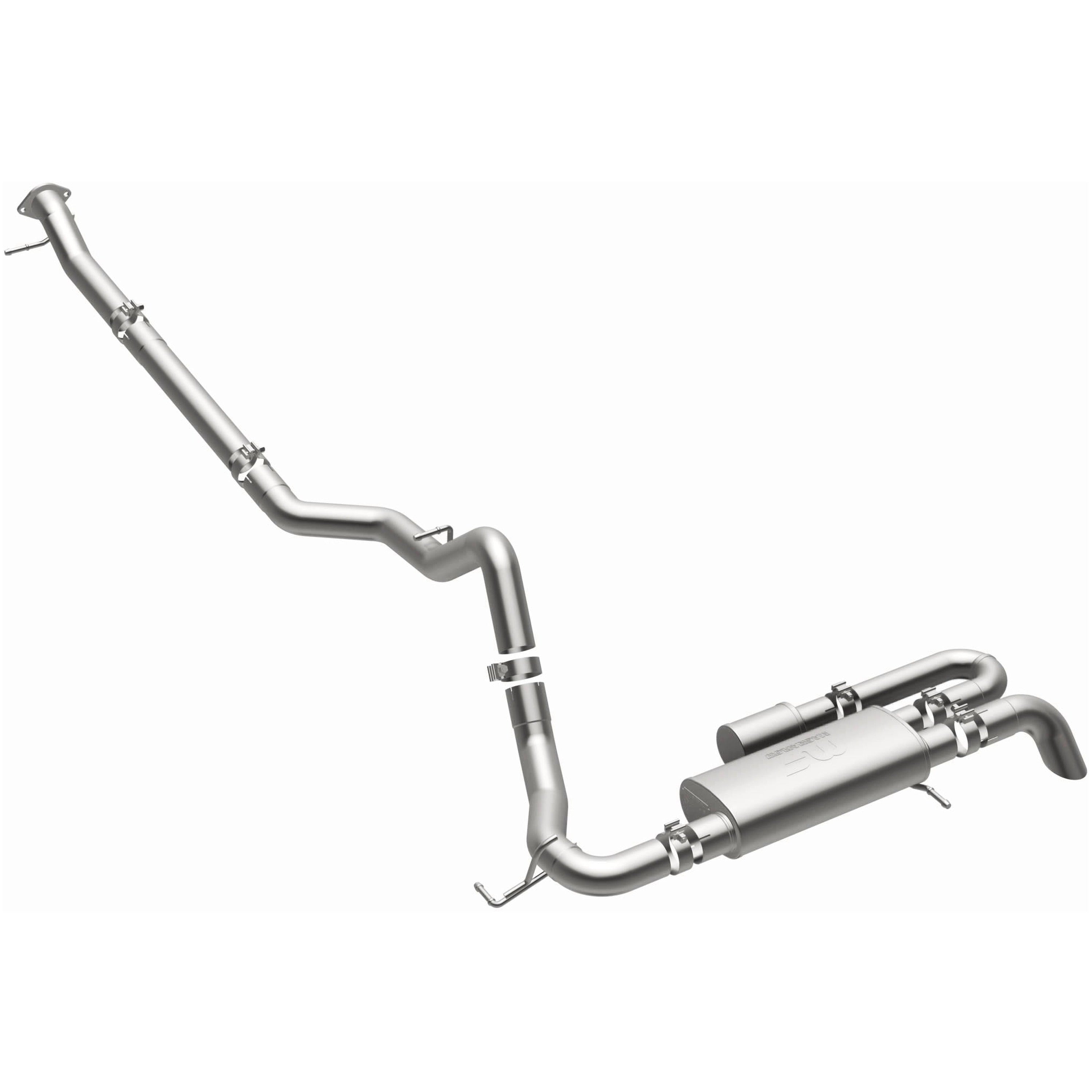

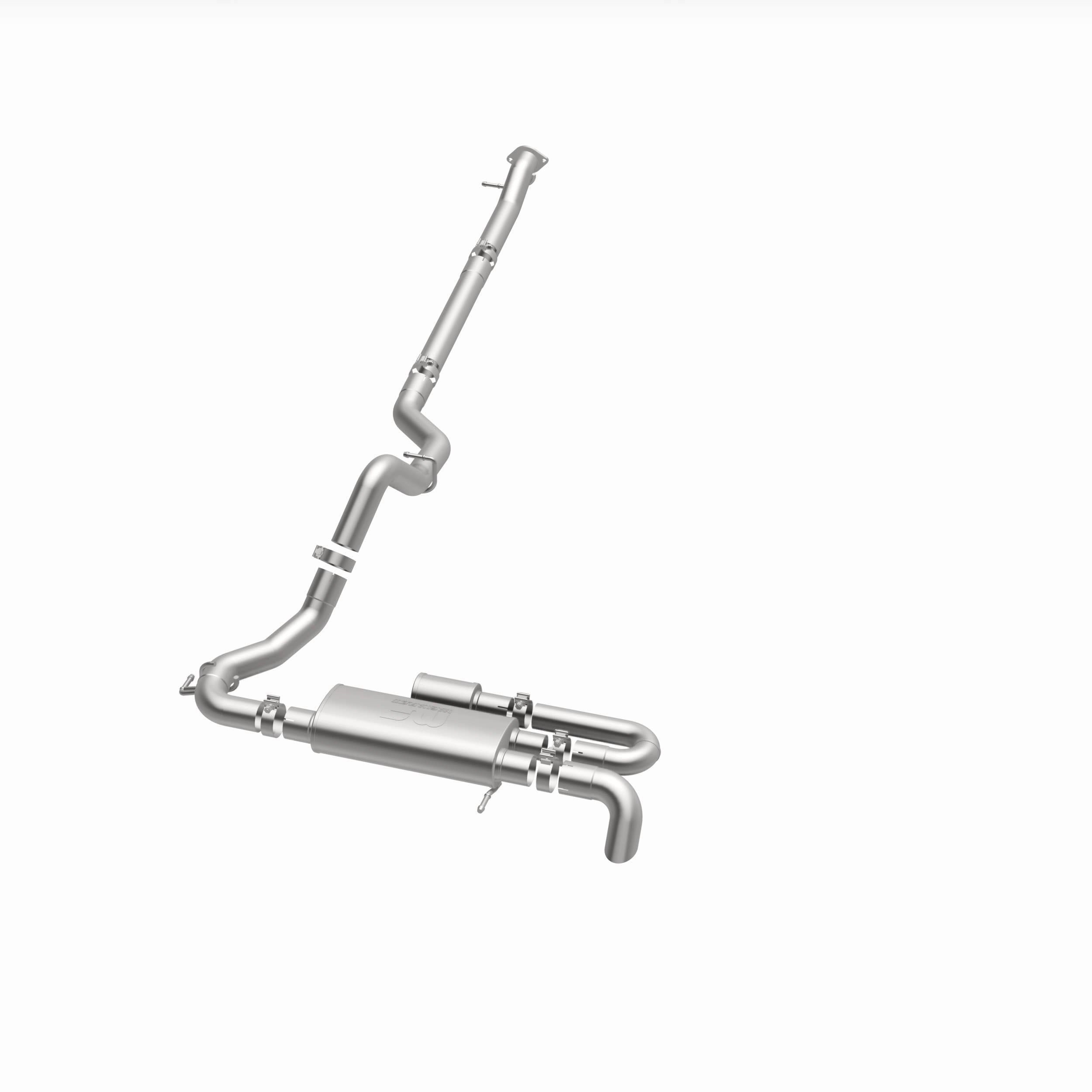

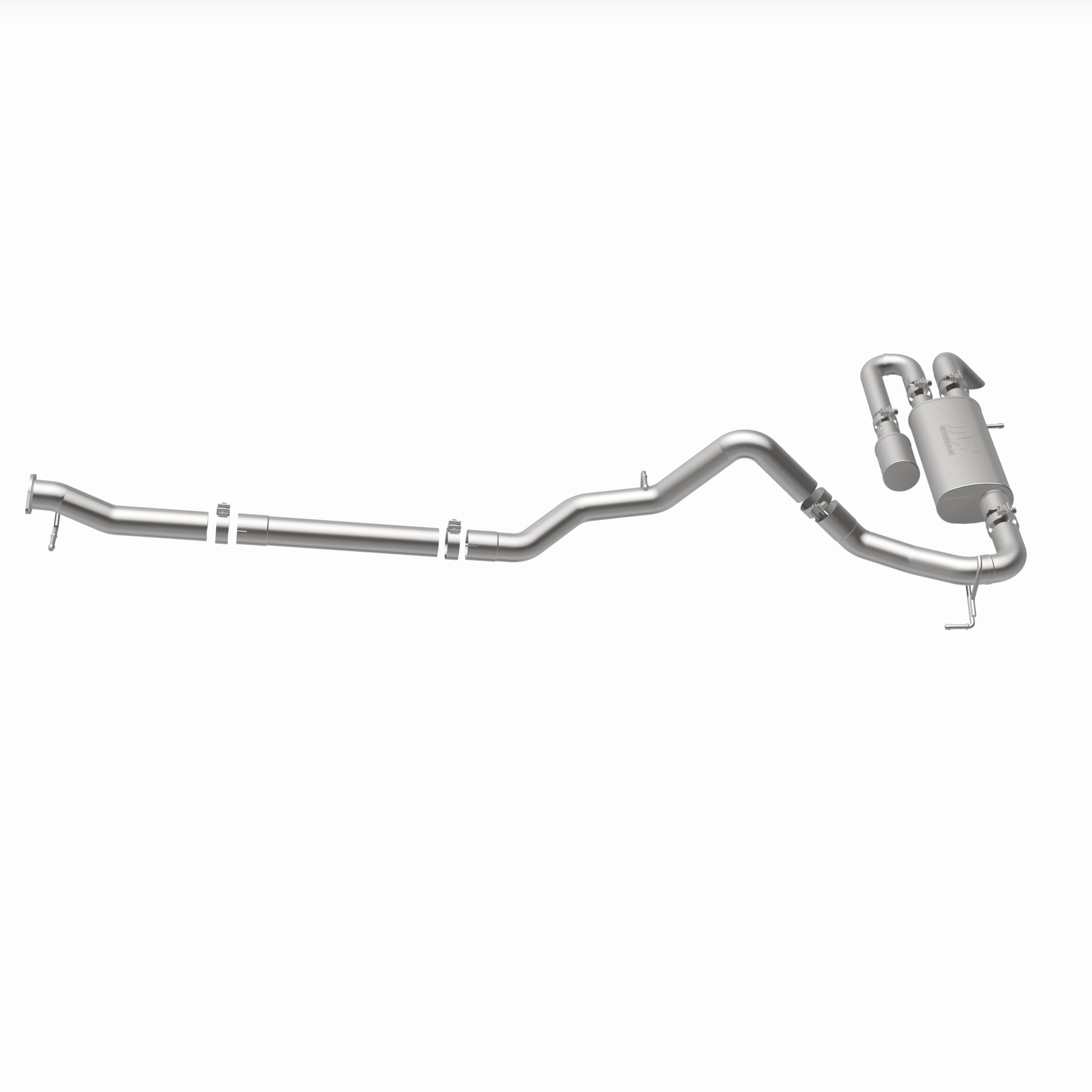

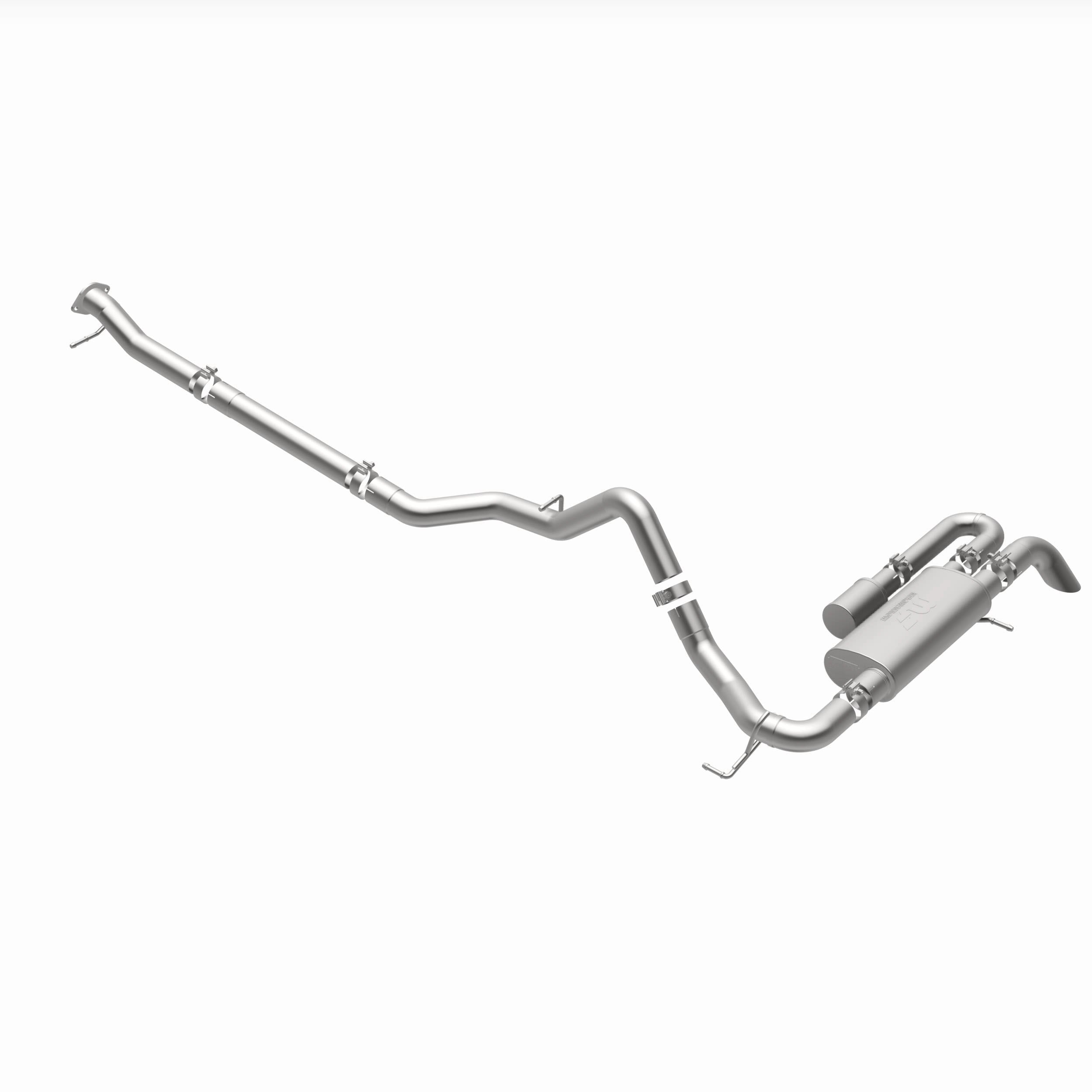

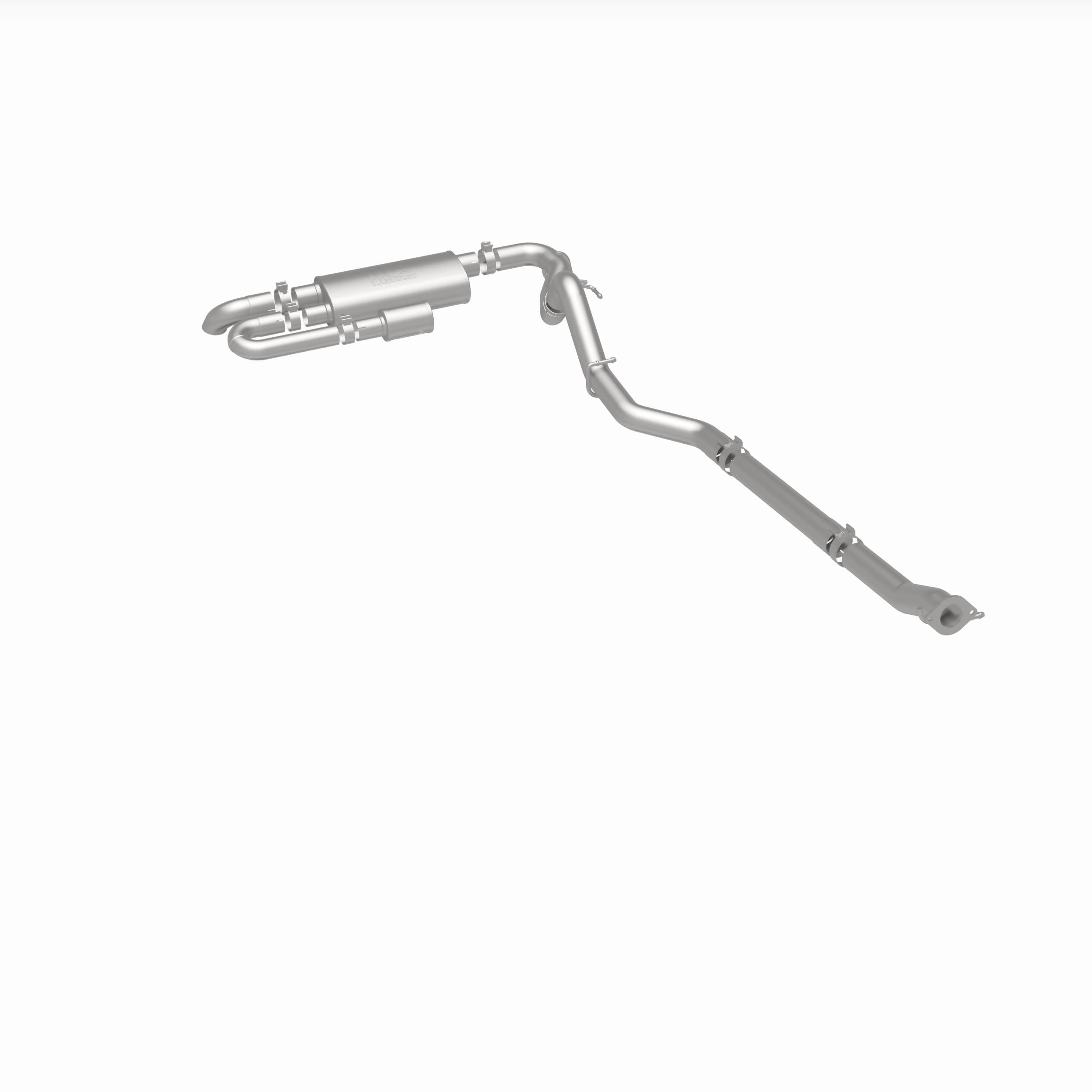

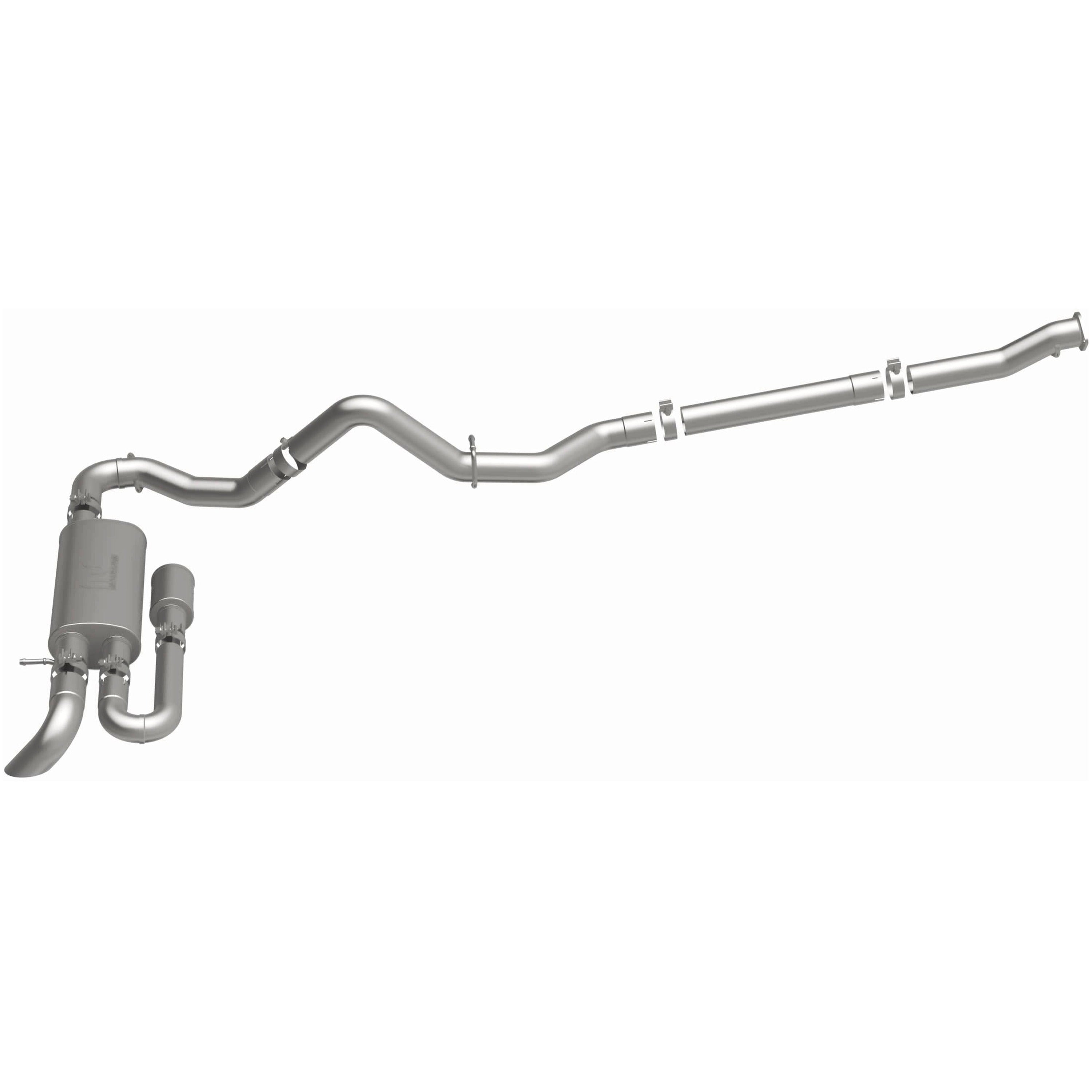

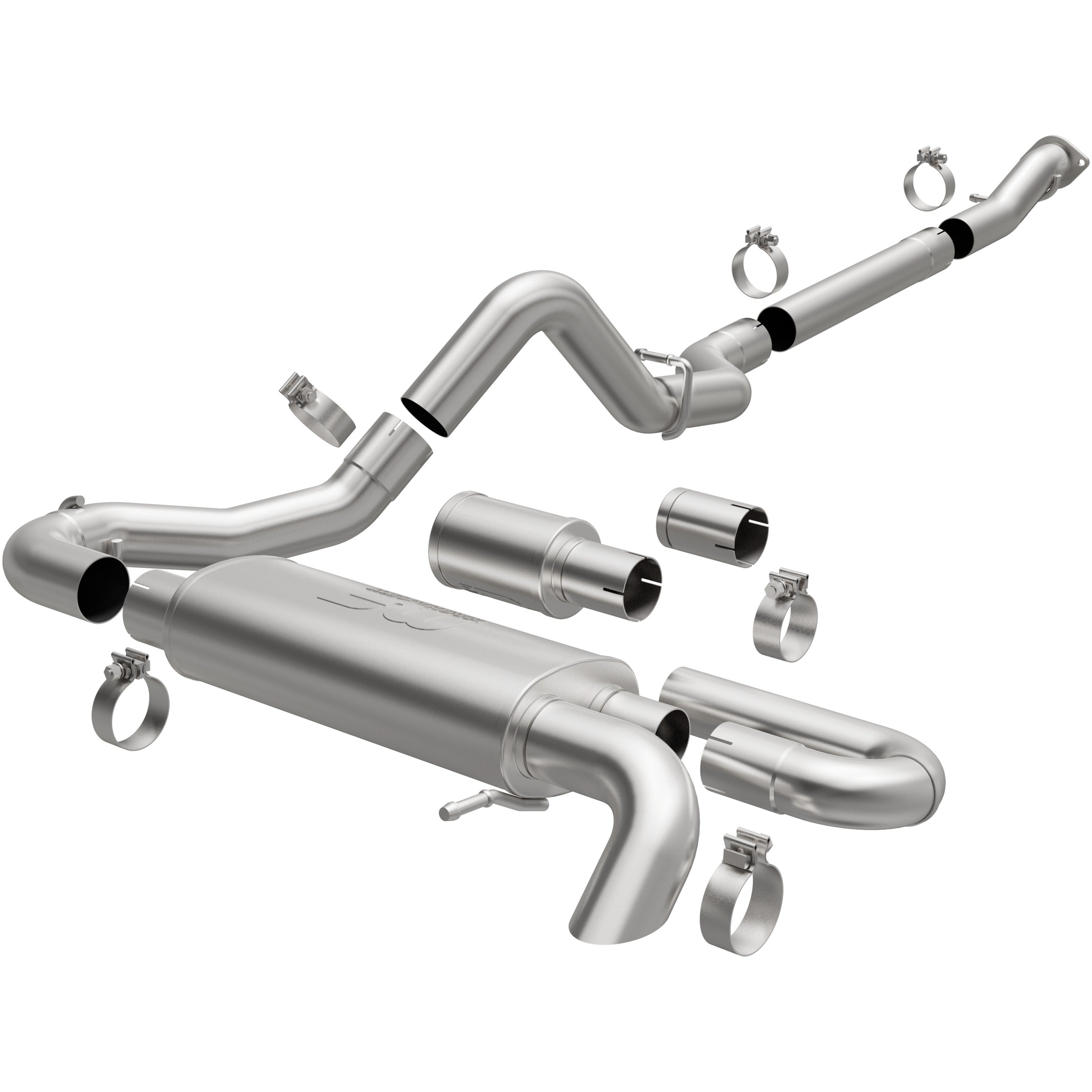

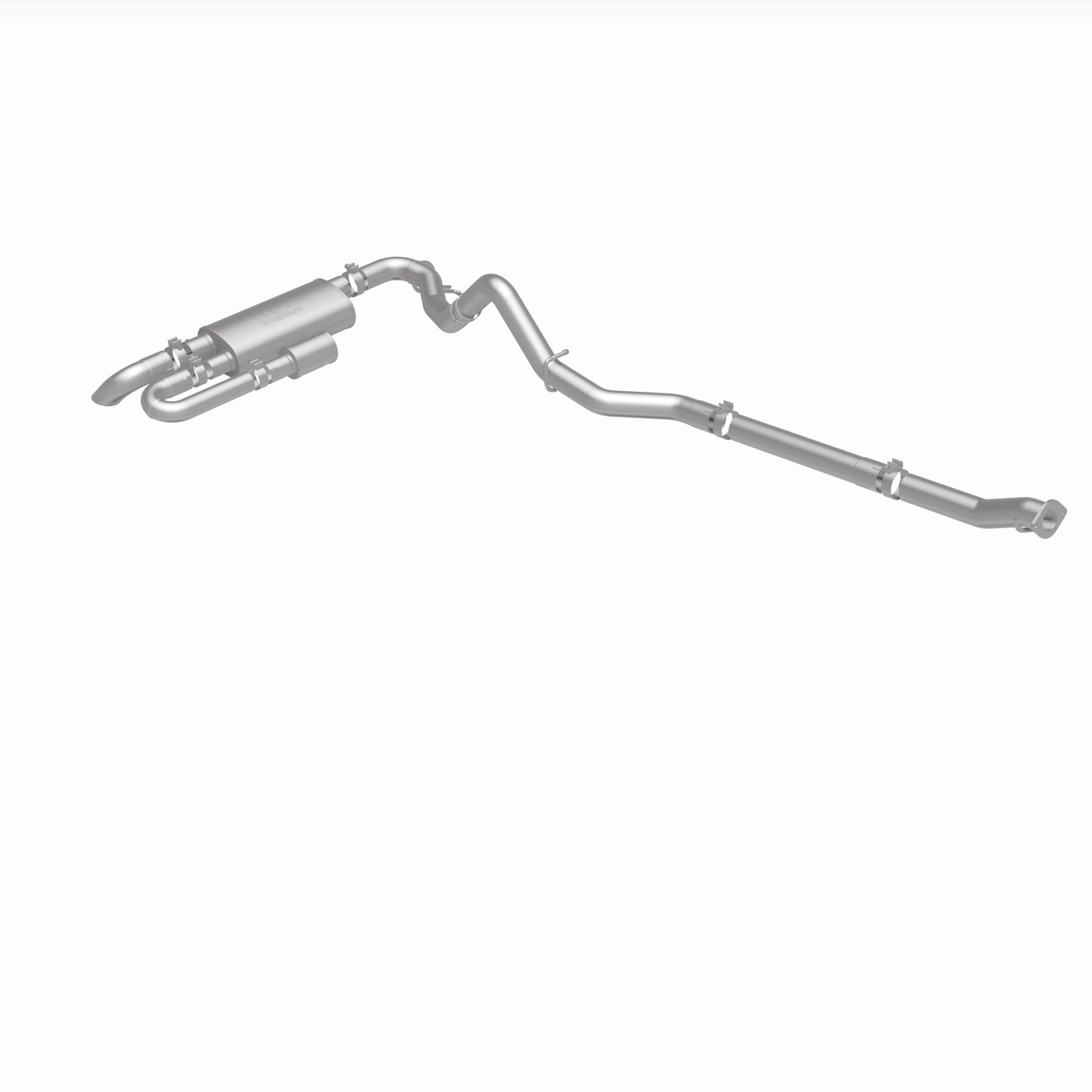

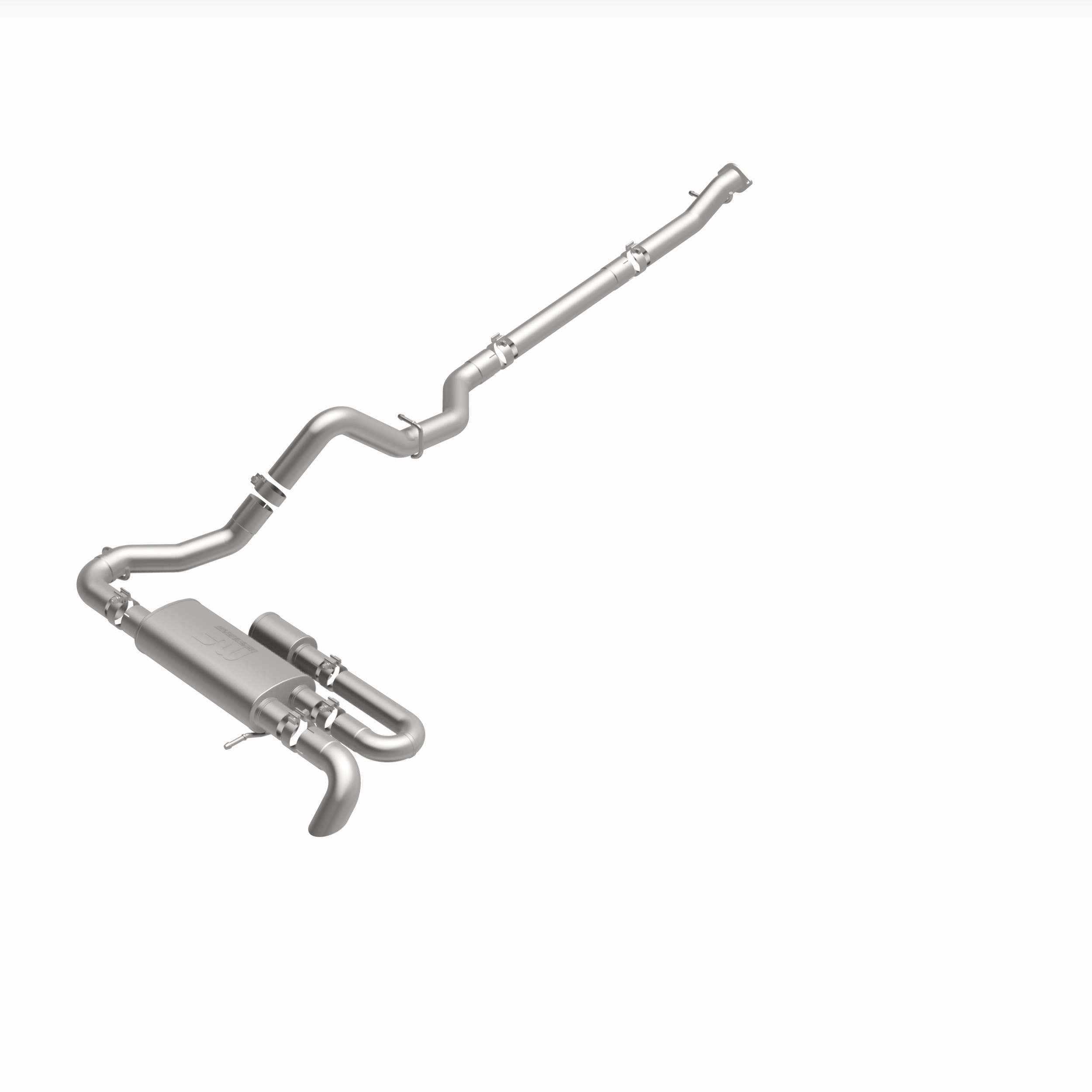

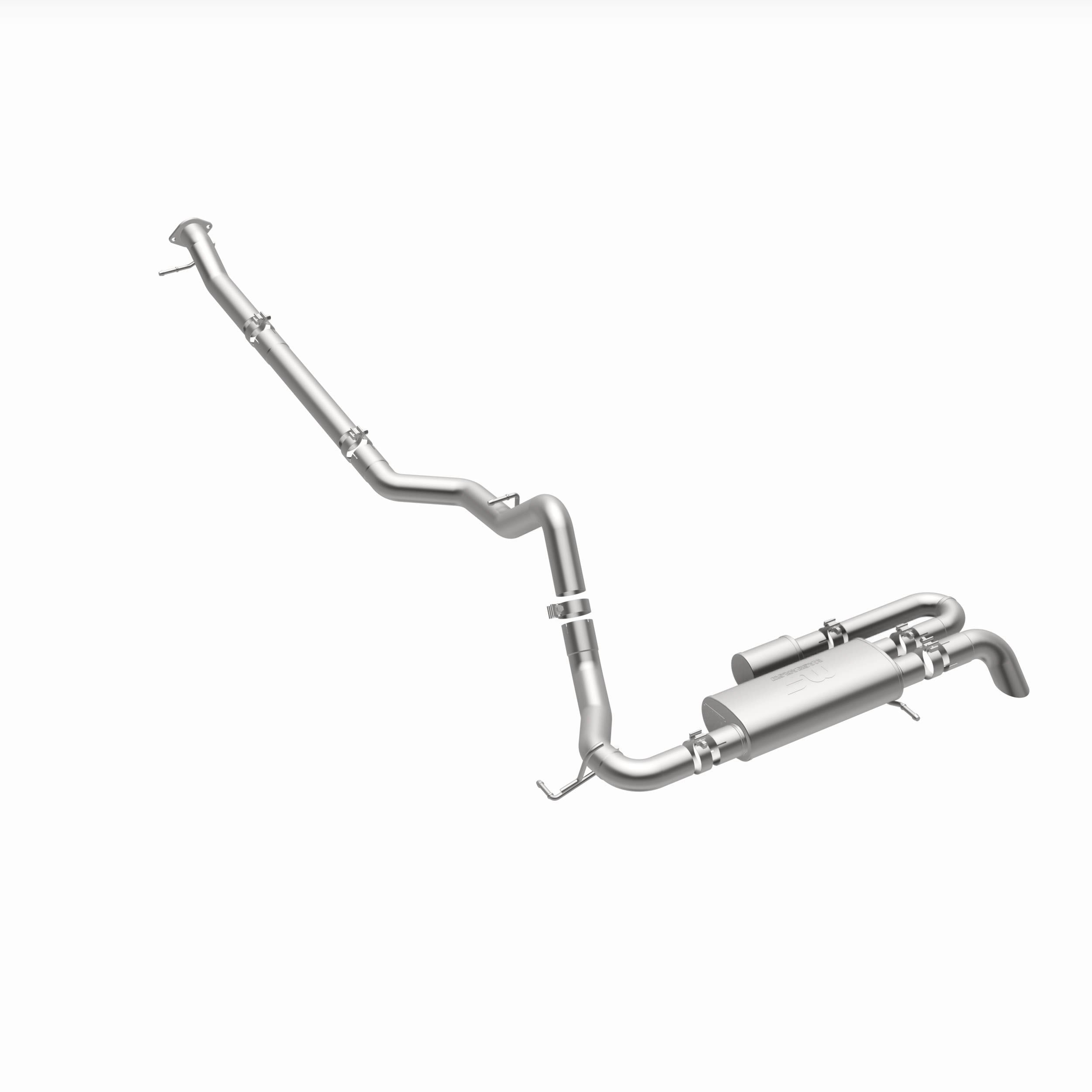

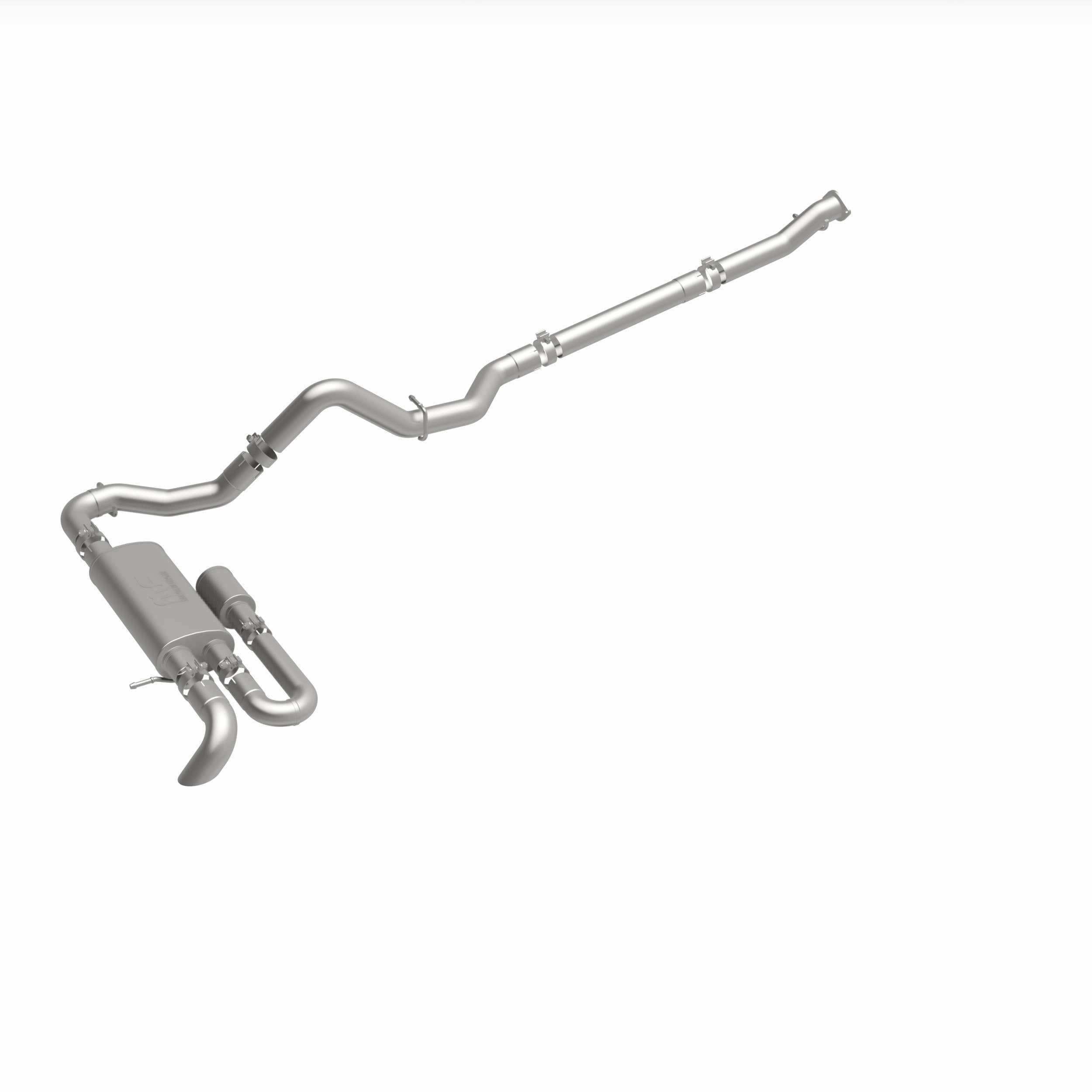

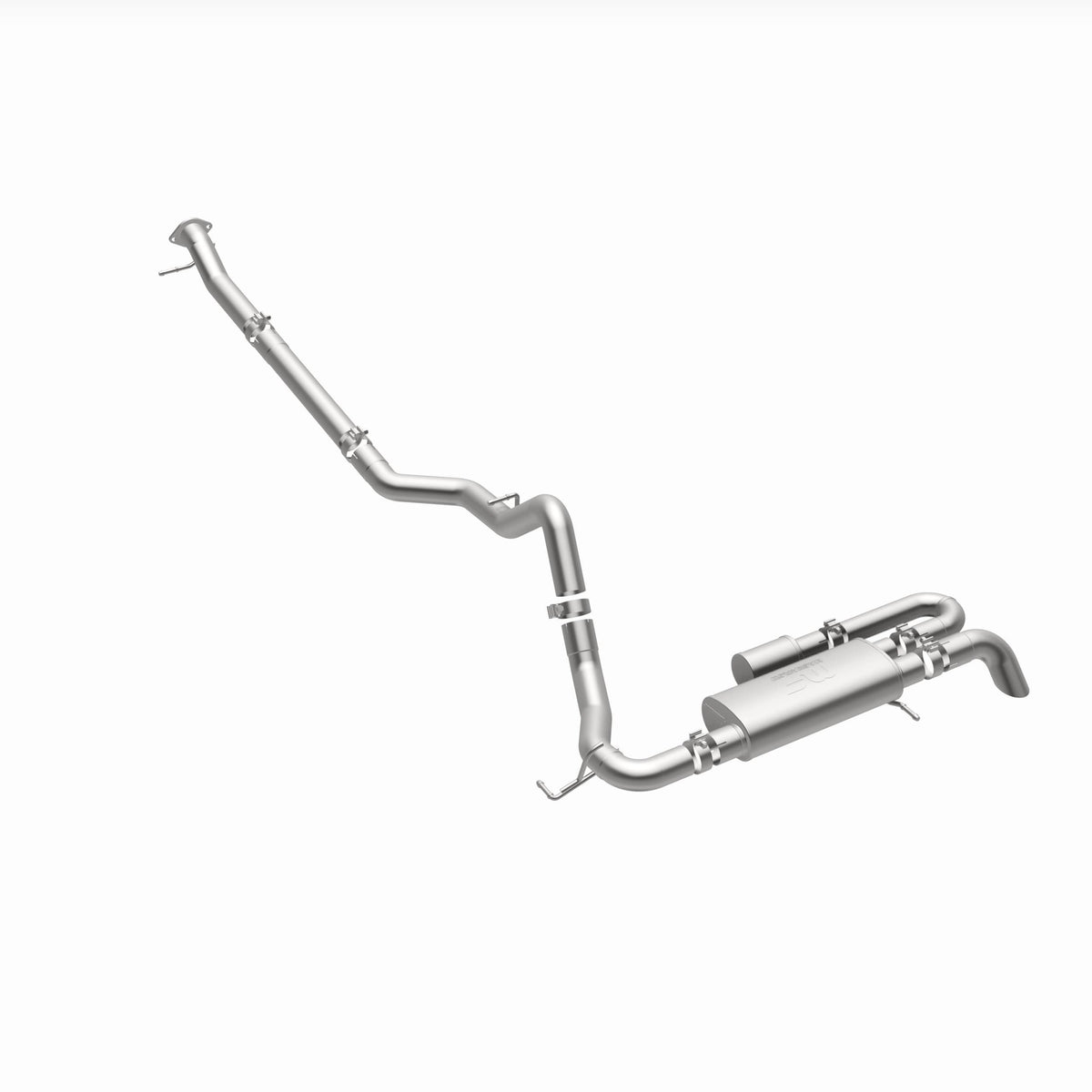

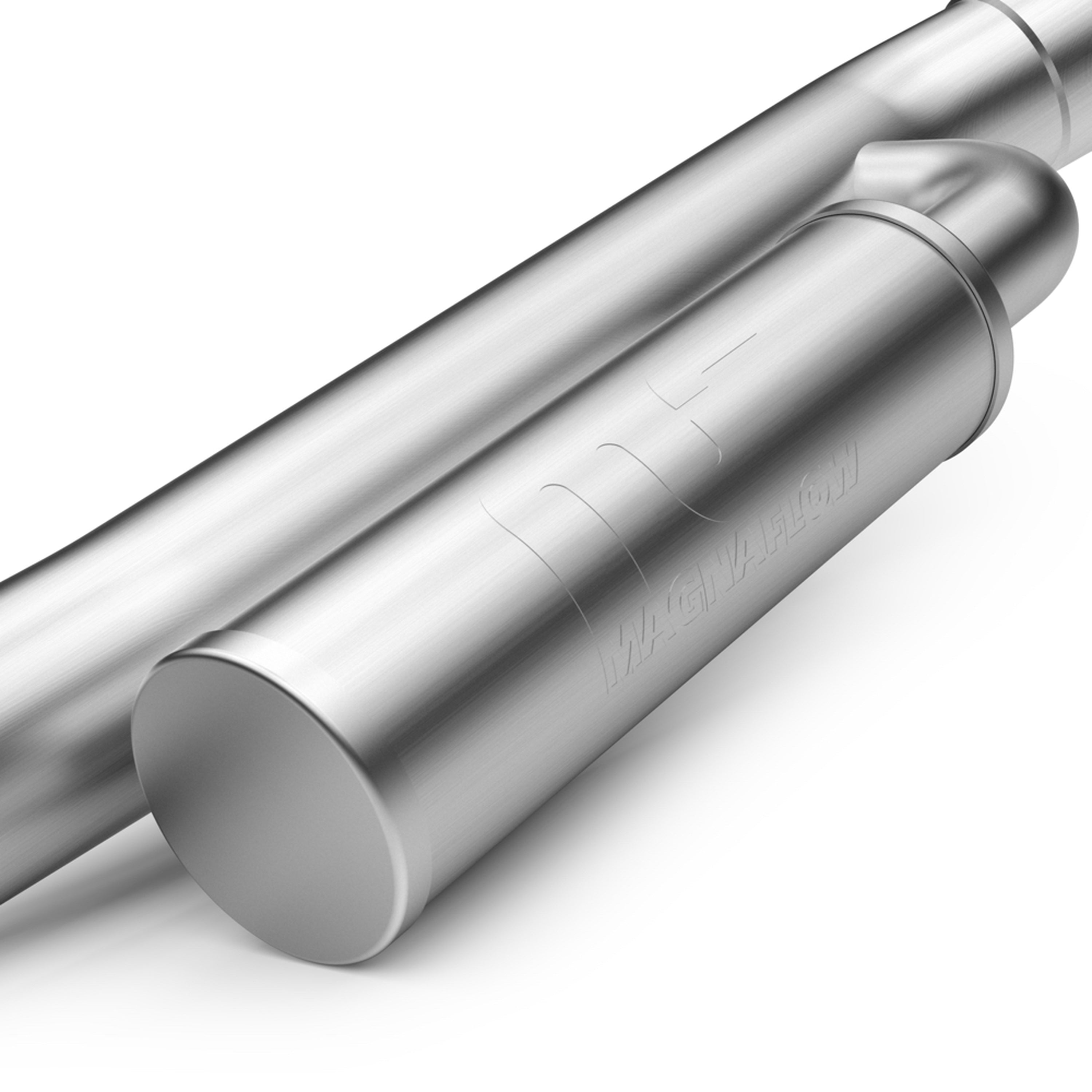

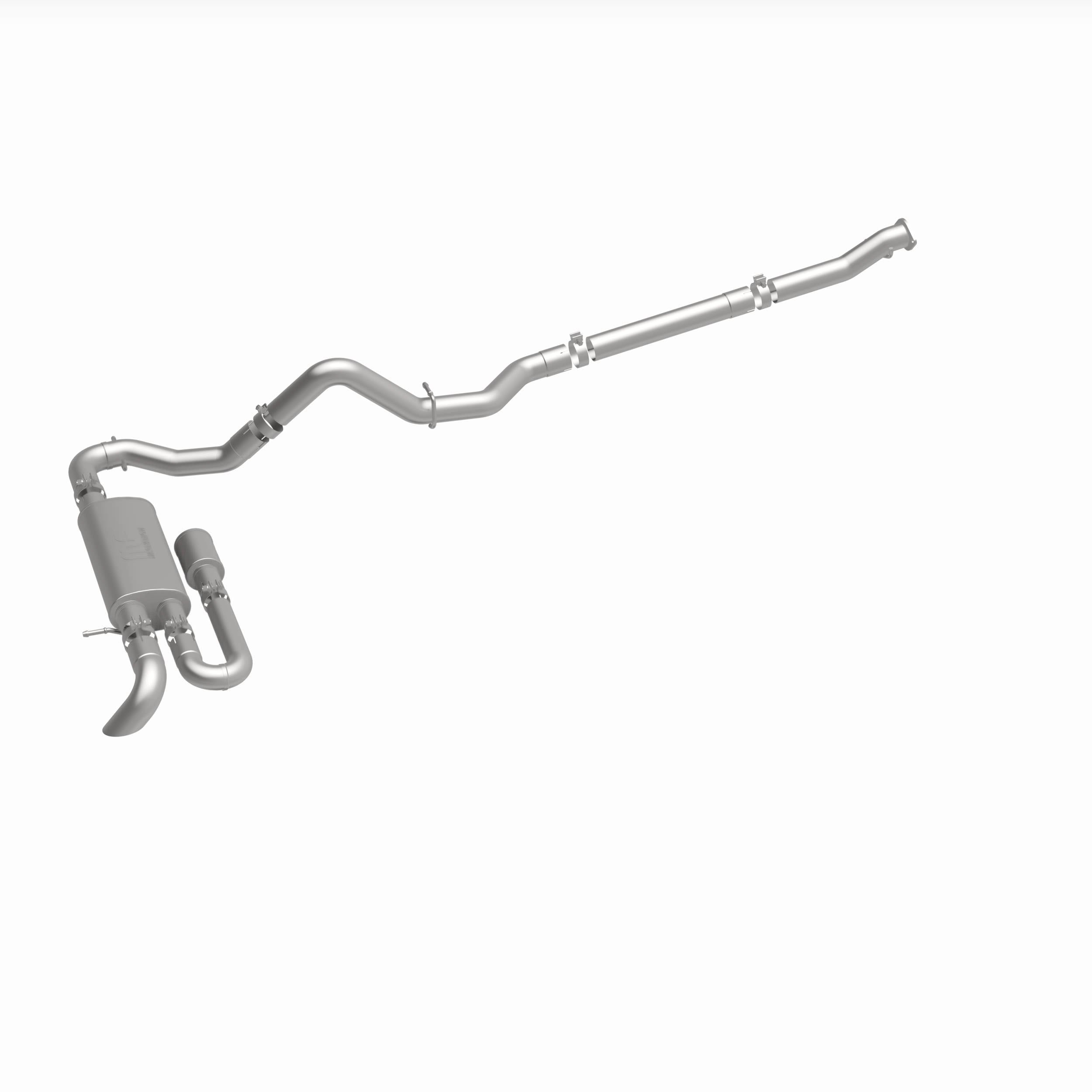

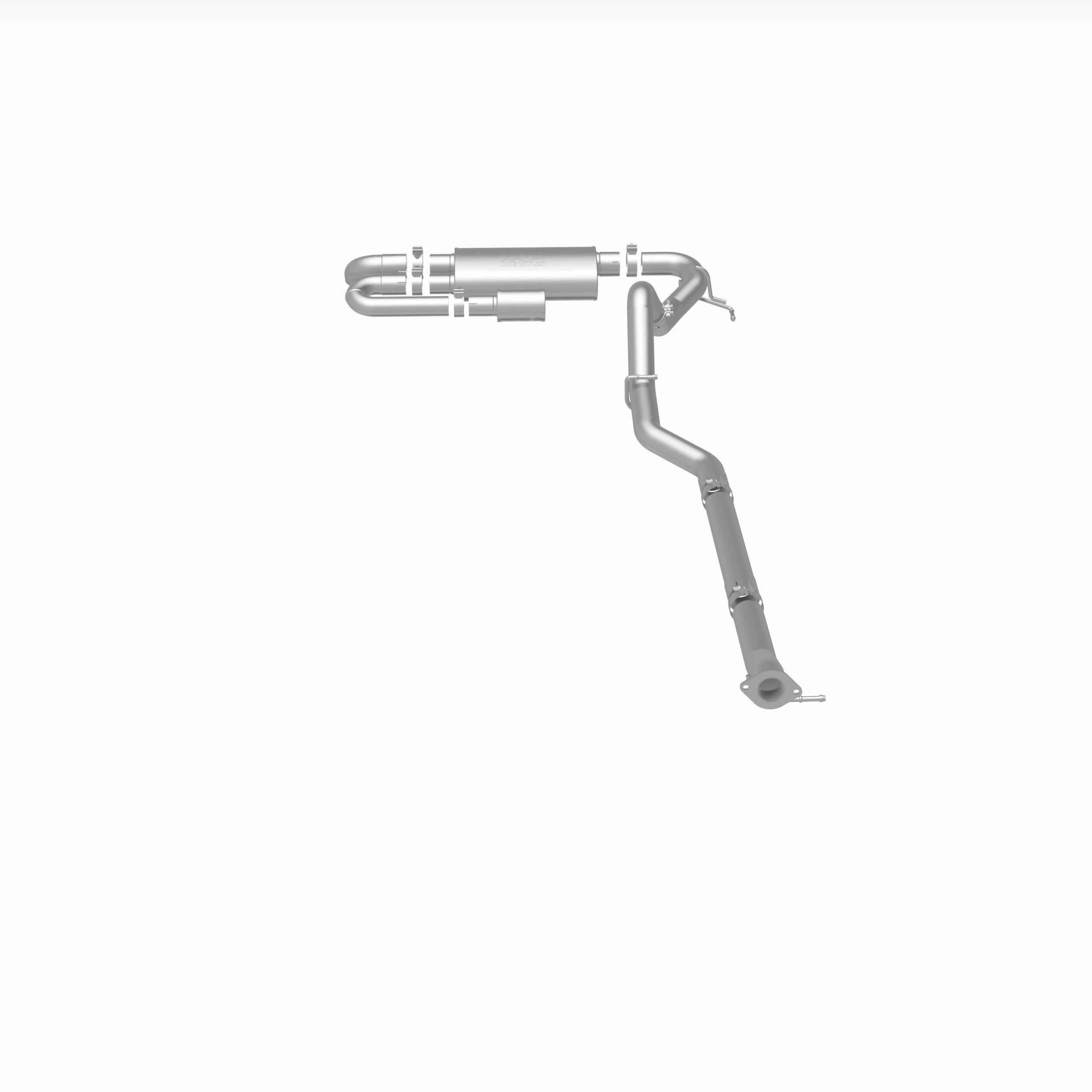

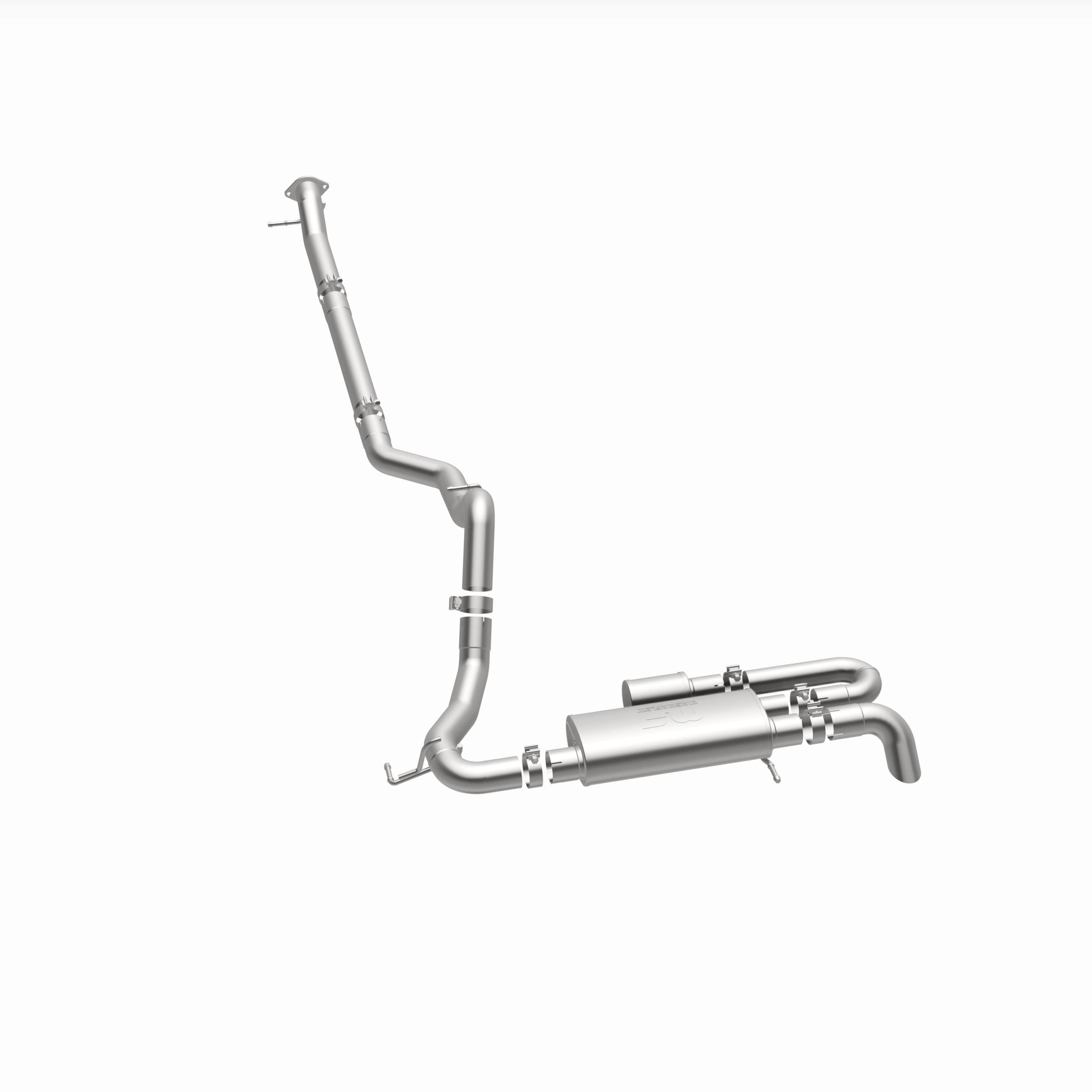

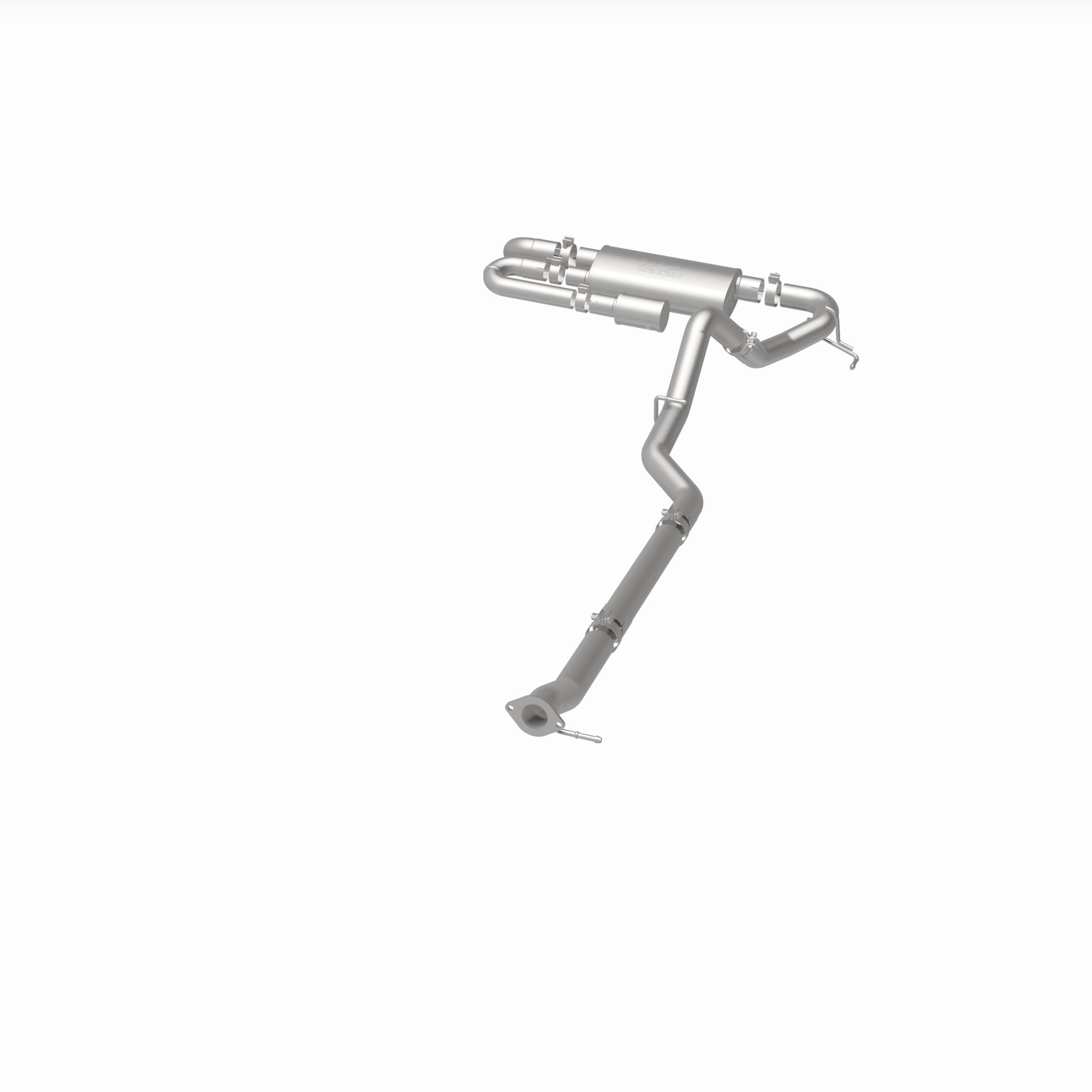

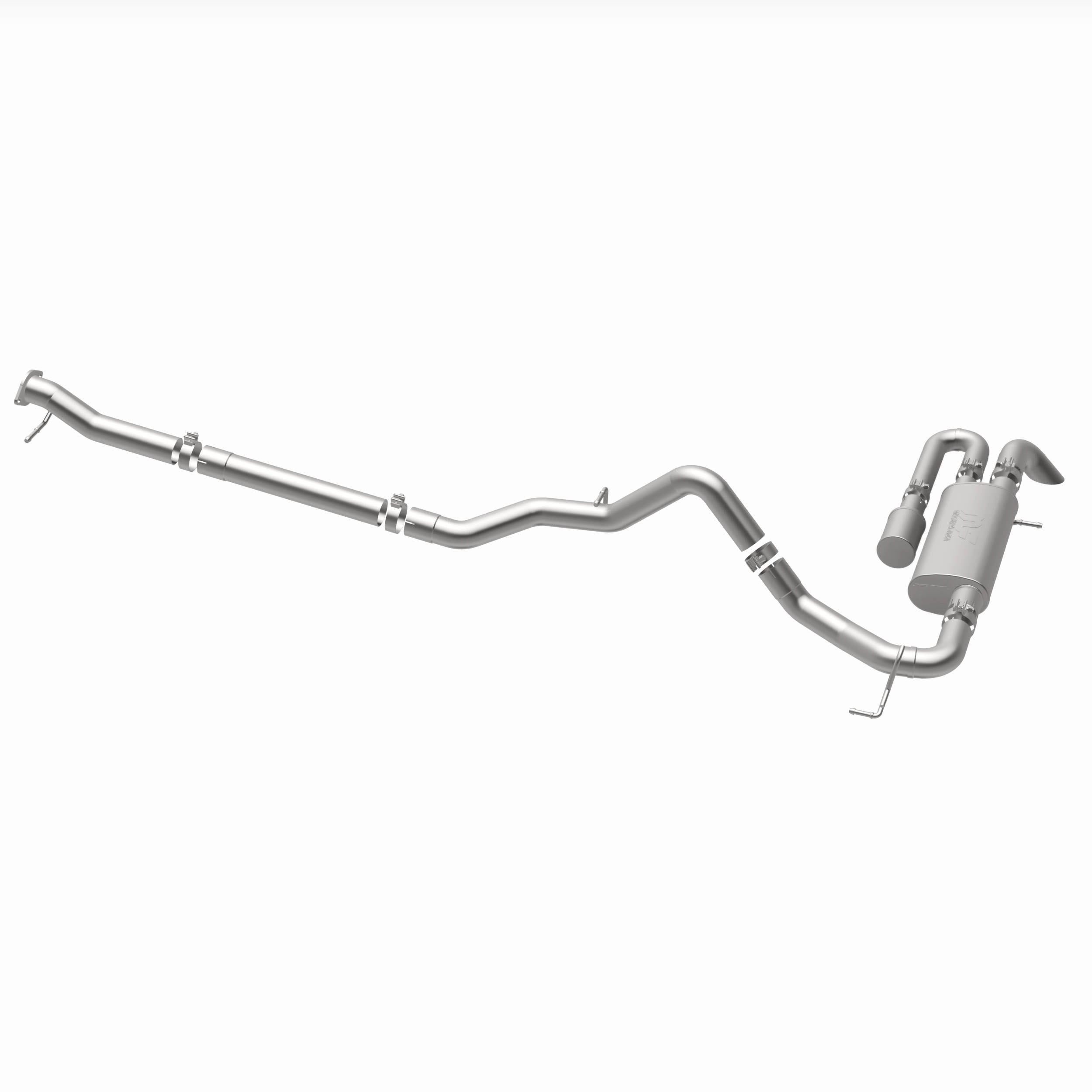

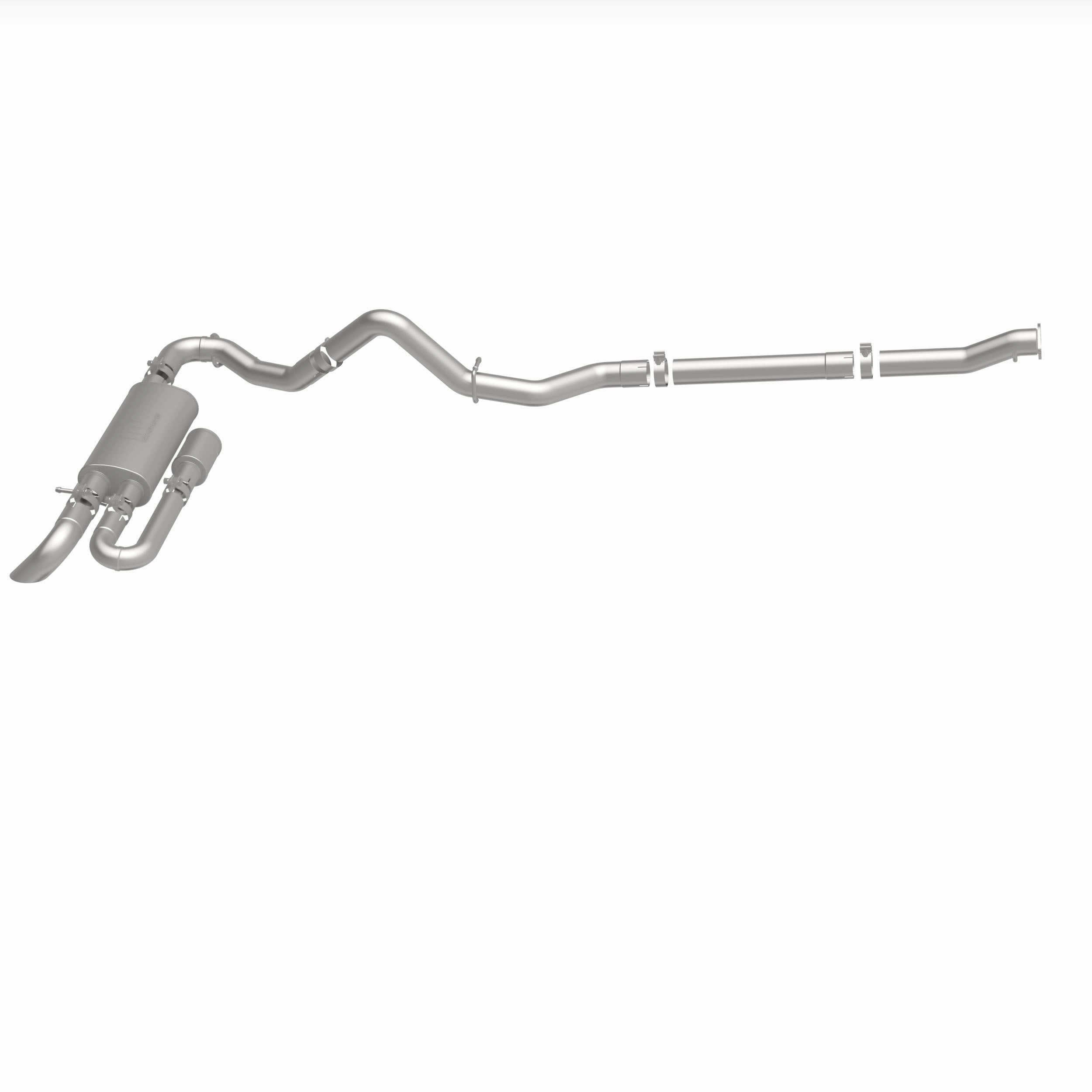

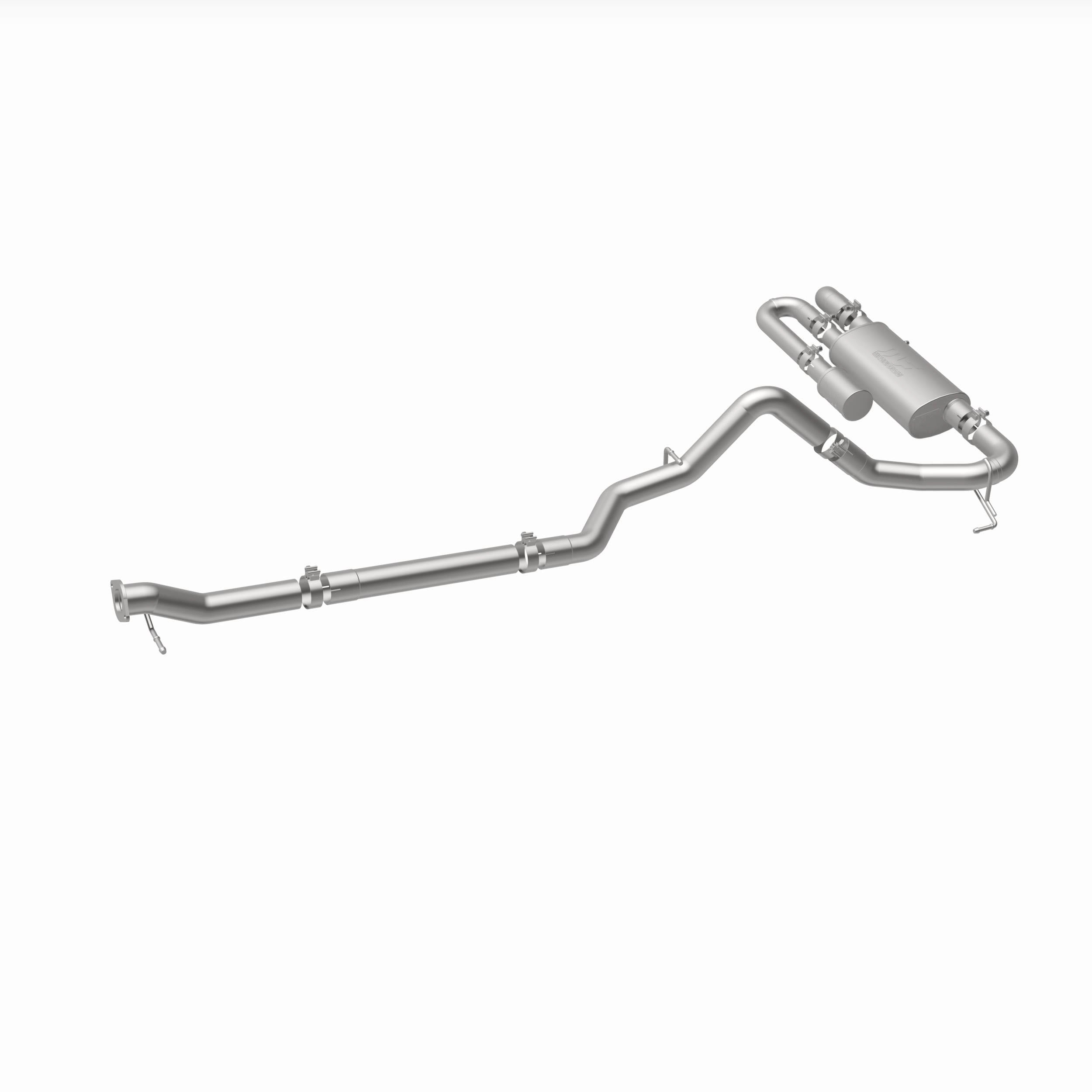

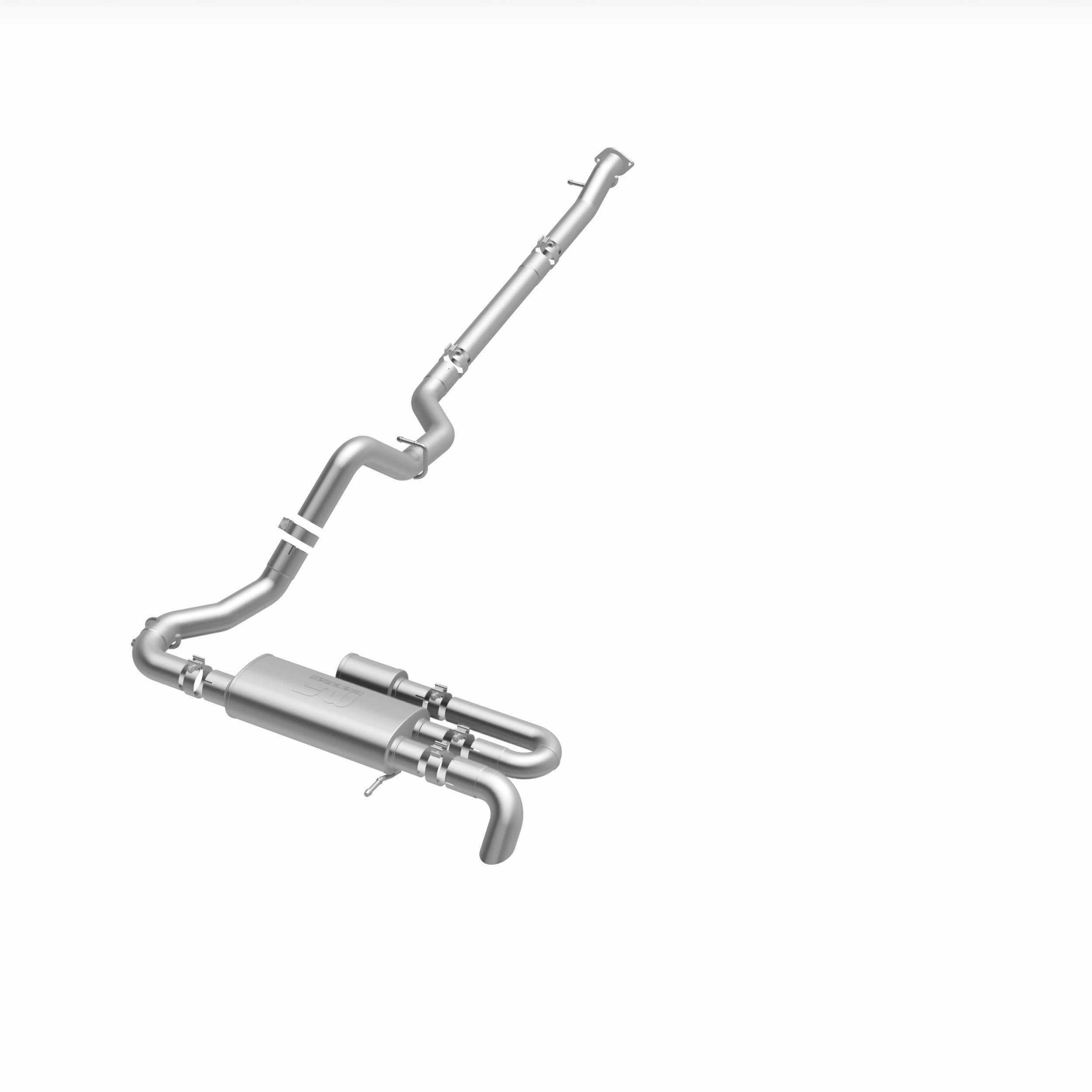

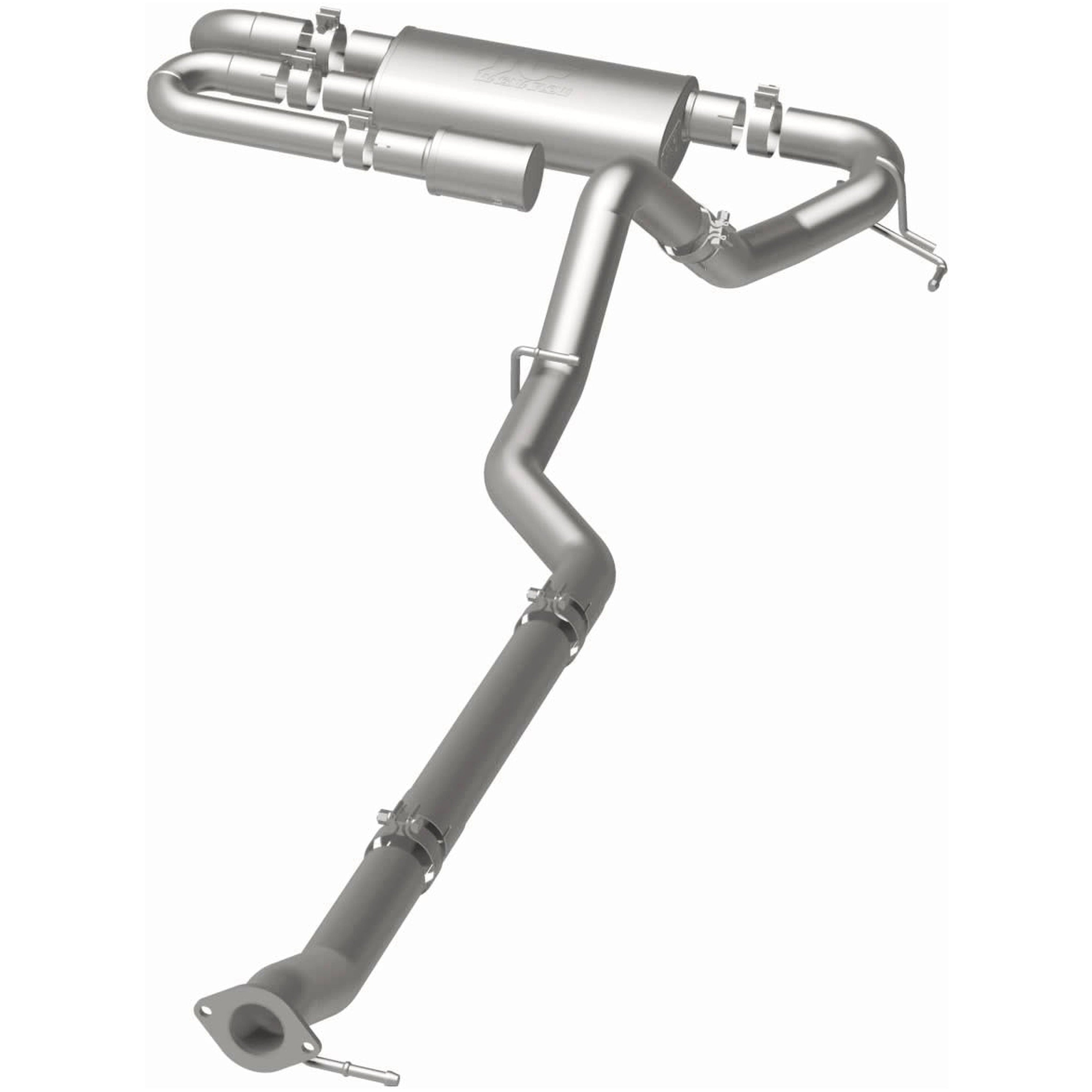

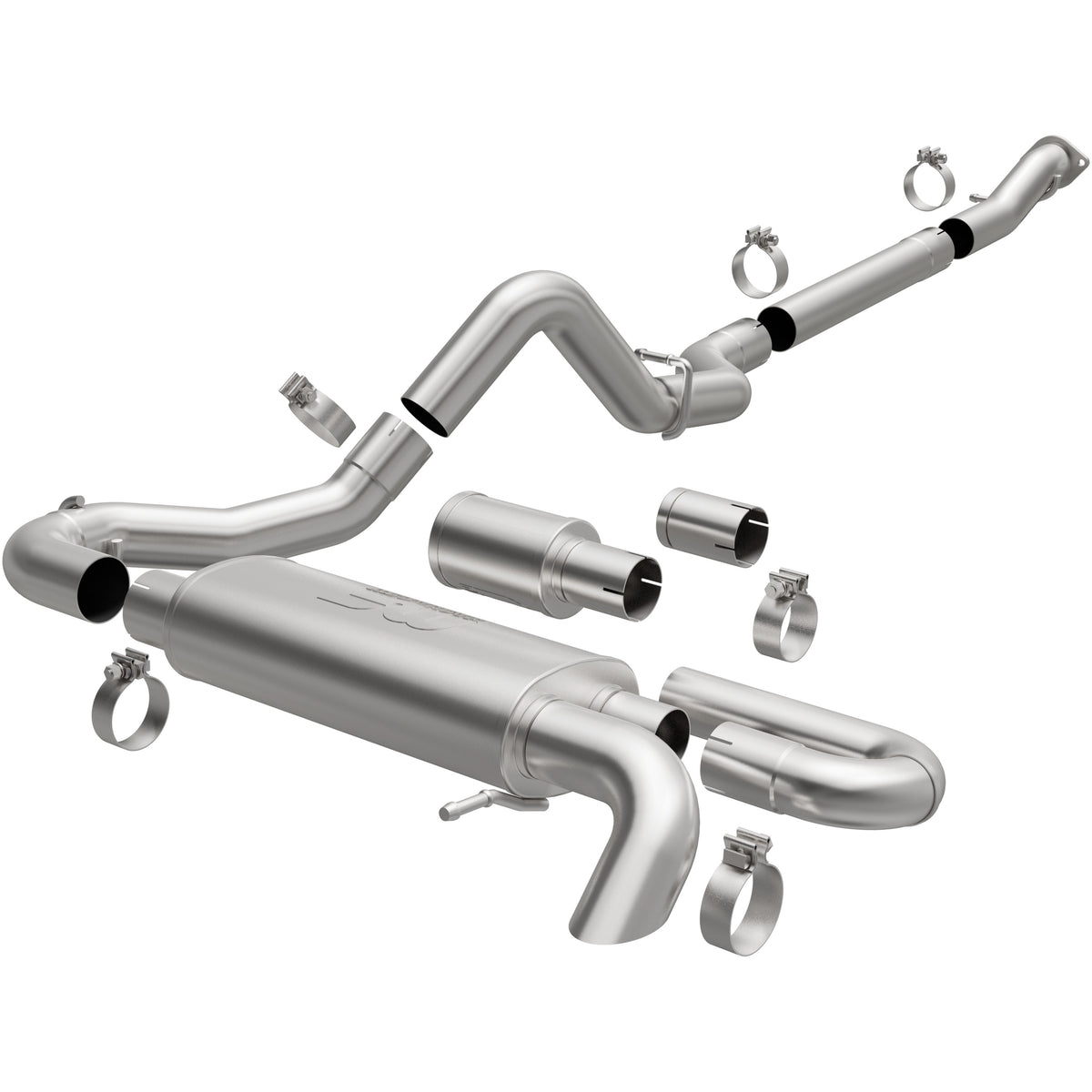

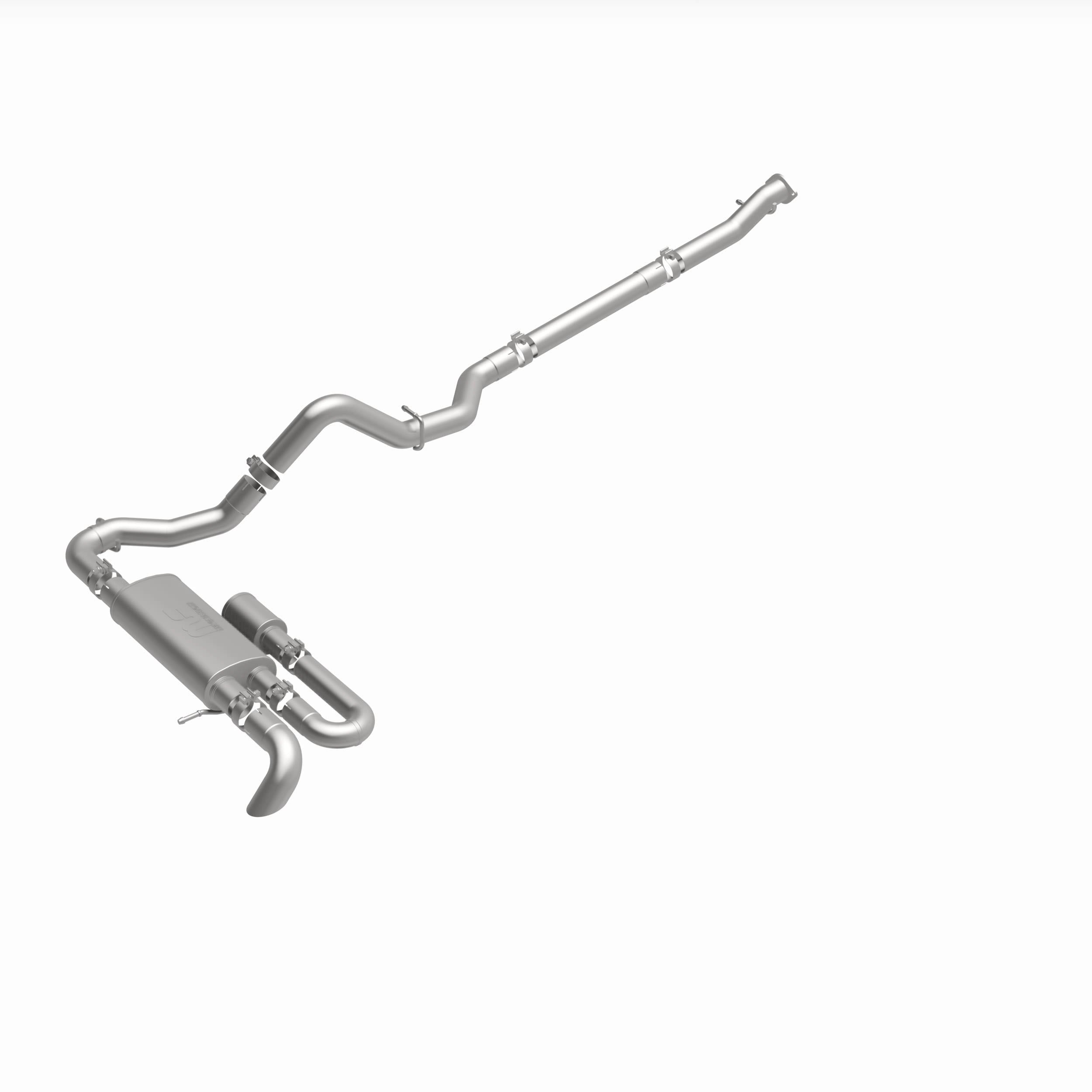

The MagnaFlow® Ford Bronco Overland Series™ Cat-Back Performance Exhaust system #19556 is the perfect solution to further improve the off-road utility of your already-capable 2021-2026 Ford Bronco equipped with the 2.3L turbo I-4. This cat-back, direct-fit exhaust kit is designed to install easily and fit perfectly thanks to the hard work of the engineers at MagnaFlow®’s Tech Center, who made detailed 3D scans of the entire vehicle in order to ensure perfect fitment. The advantage of such precise tolerances is that the entire performance exhaust system is mounted closer to the undercarriage of the vehicle than the stock system, resulting in significantly improved ground clearance. #19556 also features 3” main piping that leads to a straight-through muffler before terminating in a single 2.5” high-clearance side exit, which further improves the rear departure angle versus the standard tailpipe. The result of this upgrade is improved rock crawling capability and the ability to get out of tricky situations on the trail more easily. This Ford Bronco exhaust system utilizes a tunable NDT (No Drone Technology) quarter-wave resonator to eliminate unwanted noises at cruising speeds en route to your destination, with the added benefit of improving situational awareness when you’re out exploring or camping in the middle of nowhere. Exhaust kit #19556 is engineered to produce MagnaFlow®’s deep signature exhaust tone at mild interior and moderate exterior sound levels, ideal for enjoying the character of your engine without scaring Mother Nature away. This performance exhaust system is made of durable stainless steel backed by MagnaFlow®’s limited lifetime warranty.
Features & Benefits

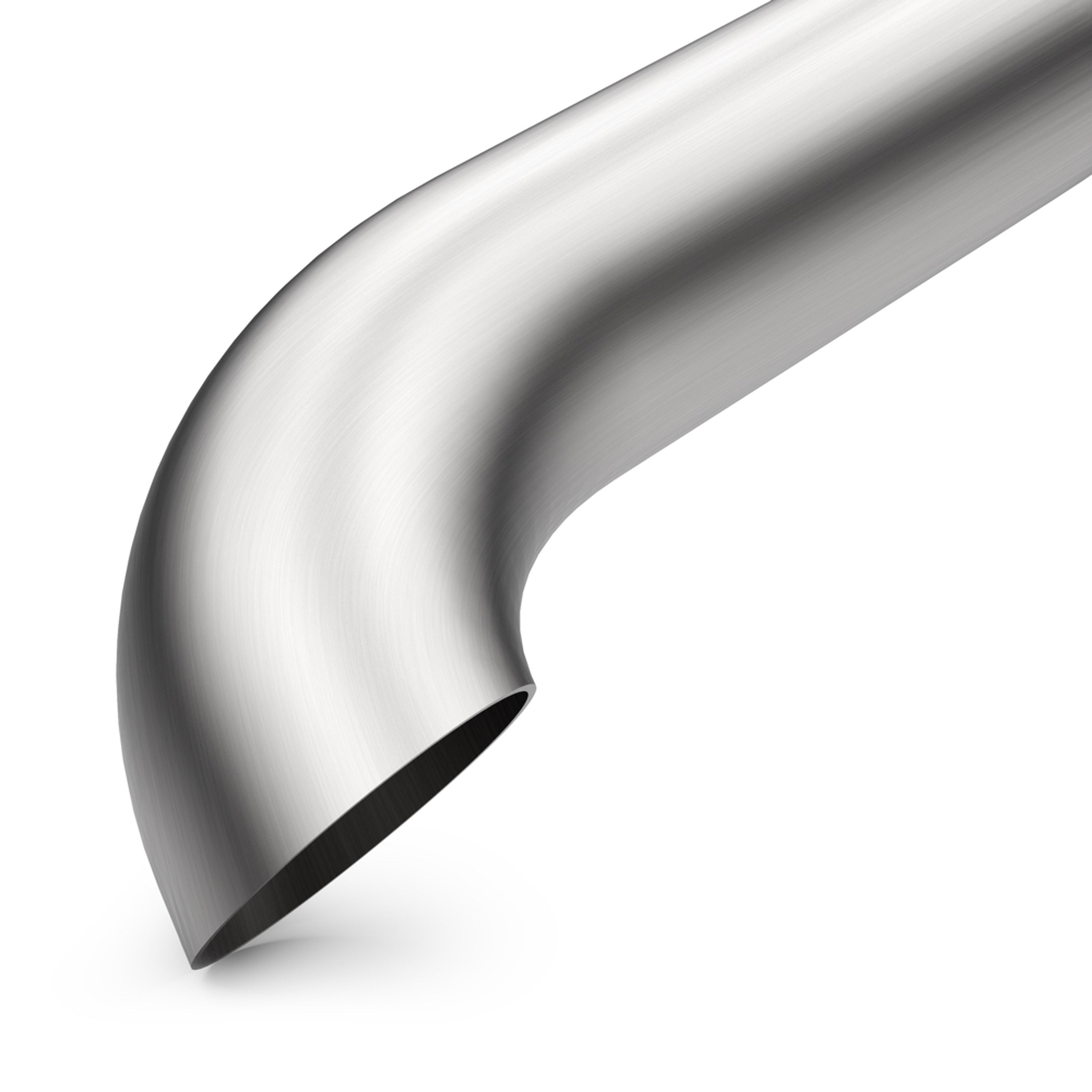

- High clearance exit
- No-Drone-Technology allows for a quiet cabin
- Dyno proven performance
Specifications
| Exhaust Tip Quantity | 0 |
| Muffler (Rear) Body Length | 18 IN |
| Main Piping Diameter | 3 IN |
| Muffler (Center) Body Height | 4 IN |
| Muffler (Front) Body Width | 4 IN |
| Muffler (Rear) Body Height | 5 IN |
| Muffler (Front) Body Length | 6 IN |
| Muffler (Rear) Body Width | 8 IN |
| Inlet Type | Bolt-On |
| Gasket Or Seal Included | No |
| Mounting Bracket Included | No |
| Exit Style | Single Straight Passenger Side Rear |
| Muffler (Rear) Type | Straight-Through |
| Muffler (Front) Type | Tuned Chamber |
| Clamps Included | Yes |
| Hangers Included | Yes |
| Muffler Body Height Position Center | 4 IN |
| Muffler Body Height Position Rear | 5 IN |
| Muffler Body Length Position Front | 6 IN |
| Muffler Body Length Position Rear | 18 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width Position Front | 4 IN |
| Muffler Body Width Position Rear | 8 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 2 |
| Muffler Type | Straight-Through;Tuned Chamber |
| Muffler Type Position Front | Tuned Chamber |
| Muffler Type Position Rear | Straight-Through |
| Pipe Material | Stainless Steel |
| Series | Overland |
| Type | Cat-Back |
| Valve Included | No |
| Catalytic Converter Included | No |
| Clamping Type | Round Band |
| Title | MagnaFlow® 2021-2026 Ford Bronco 2.3L Overland Series™ Cat-Back Performance Exhaust System 19556 |
Installation Guide: Download PDF
