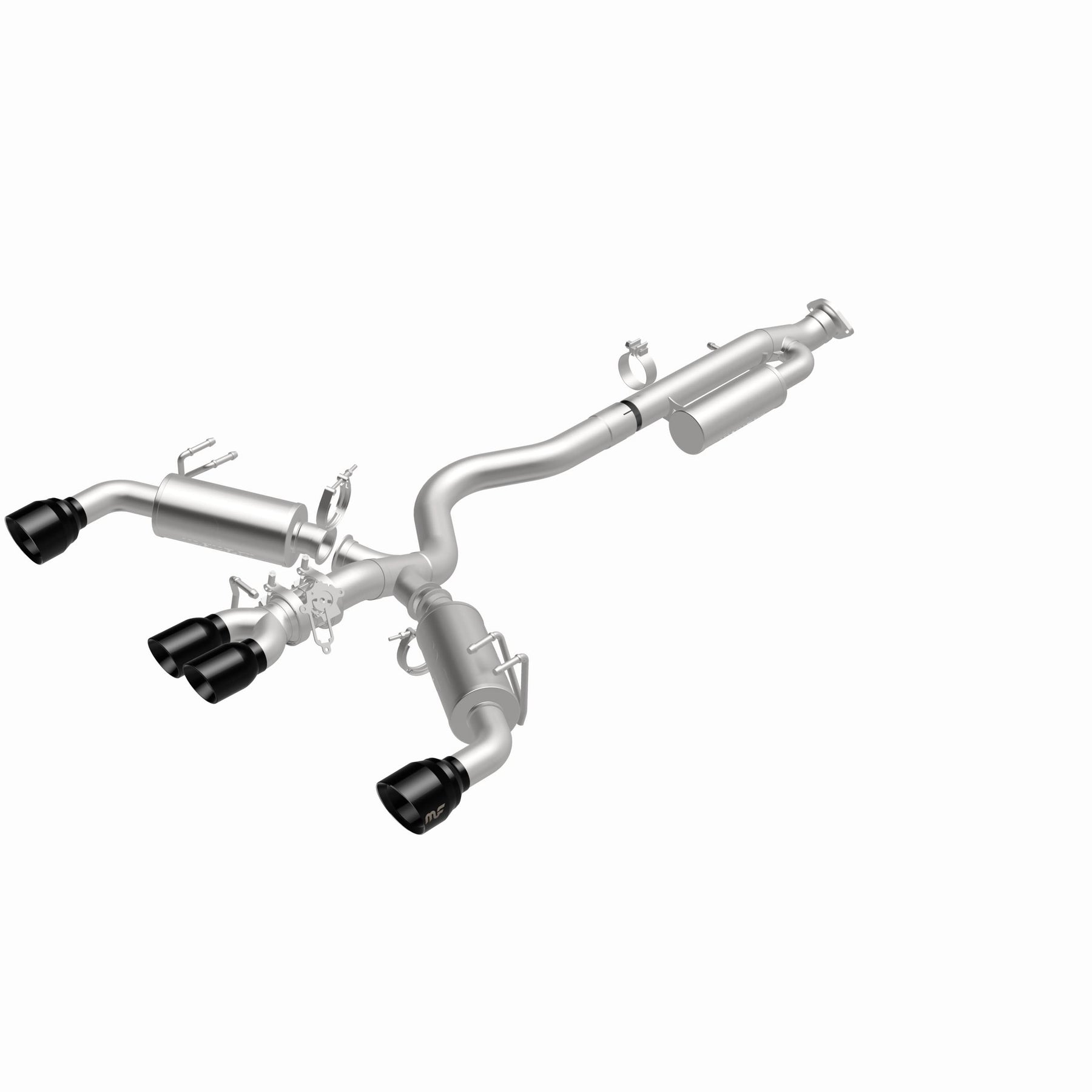

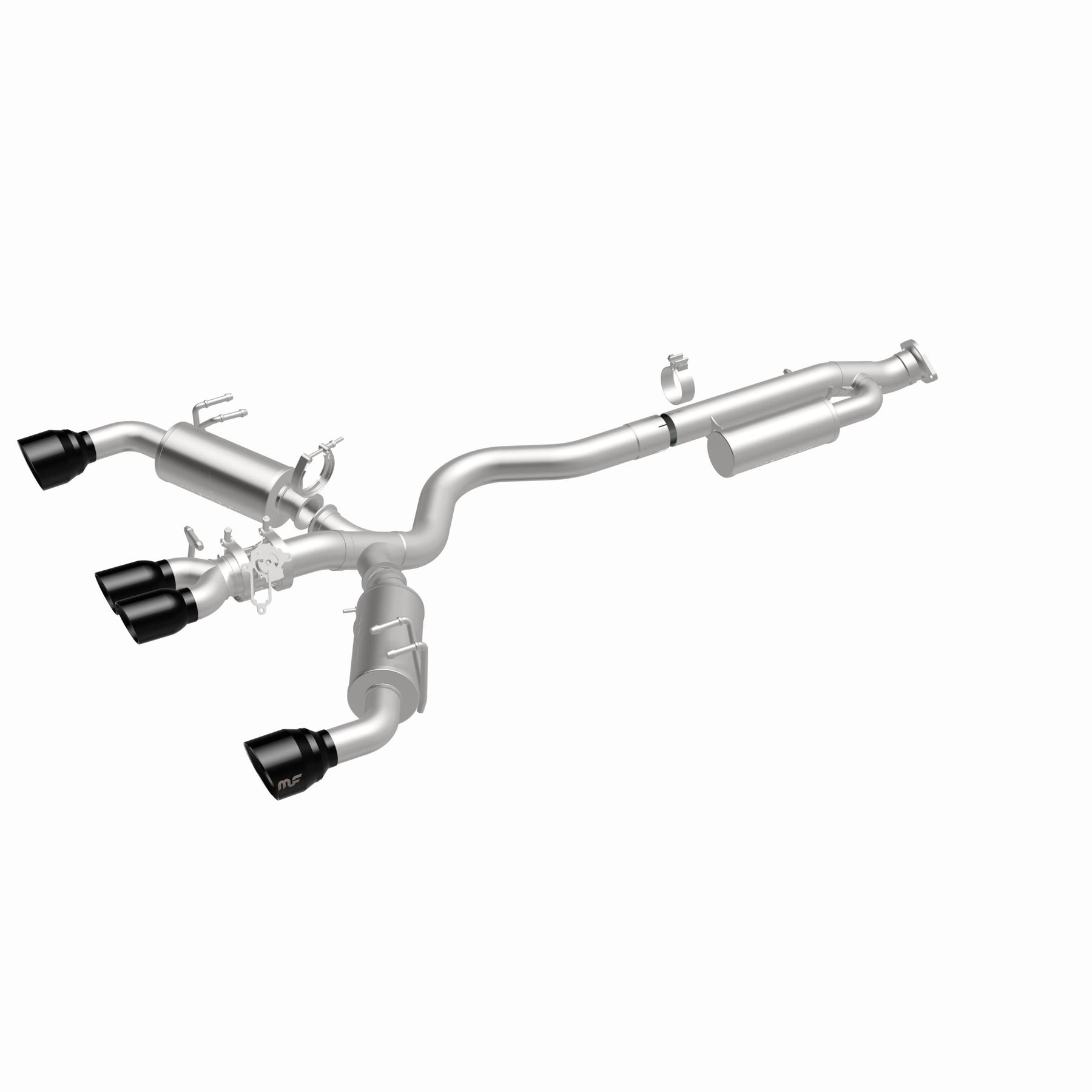

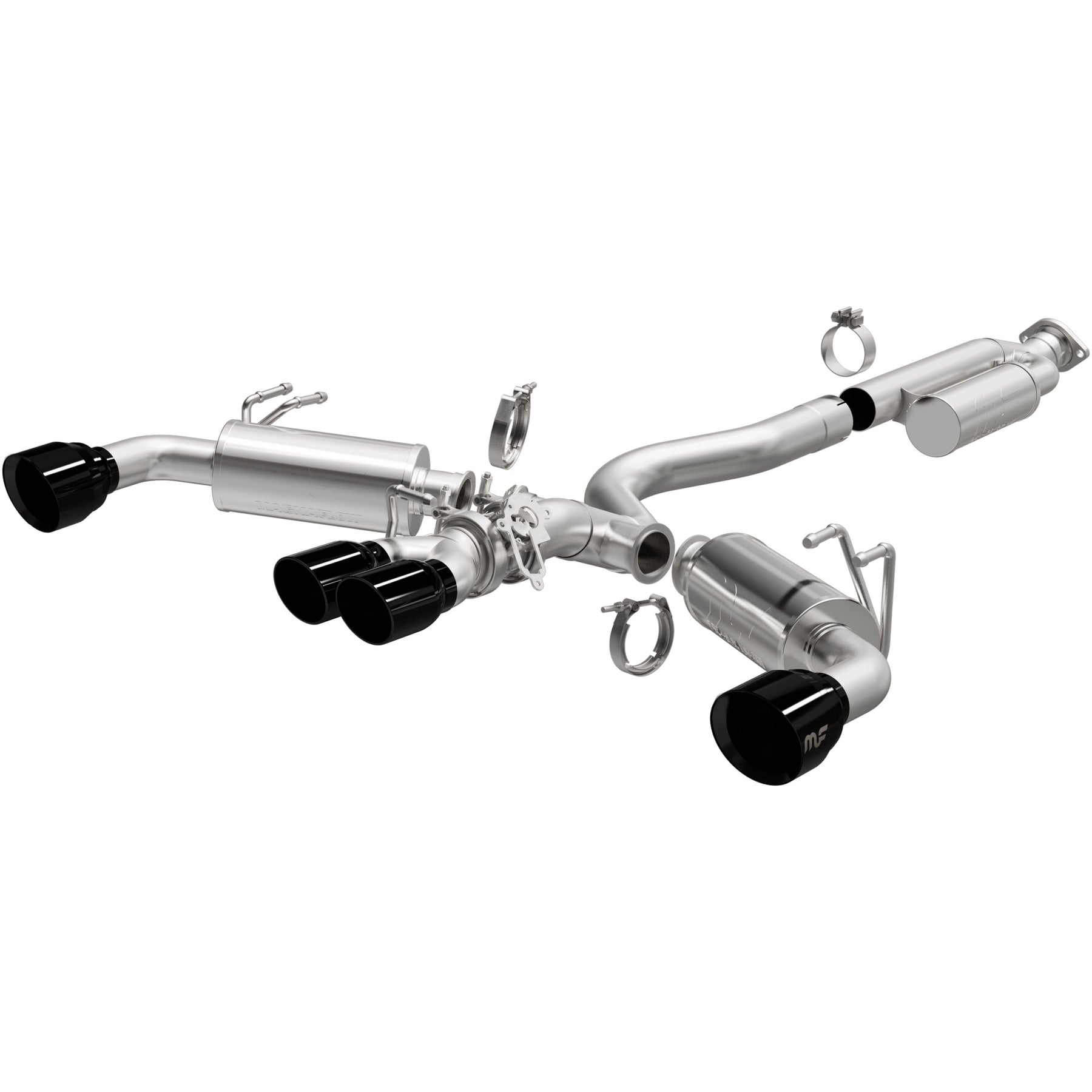

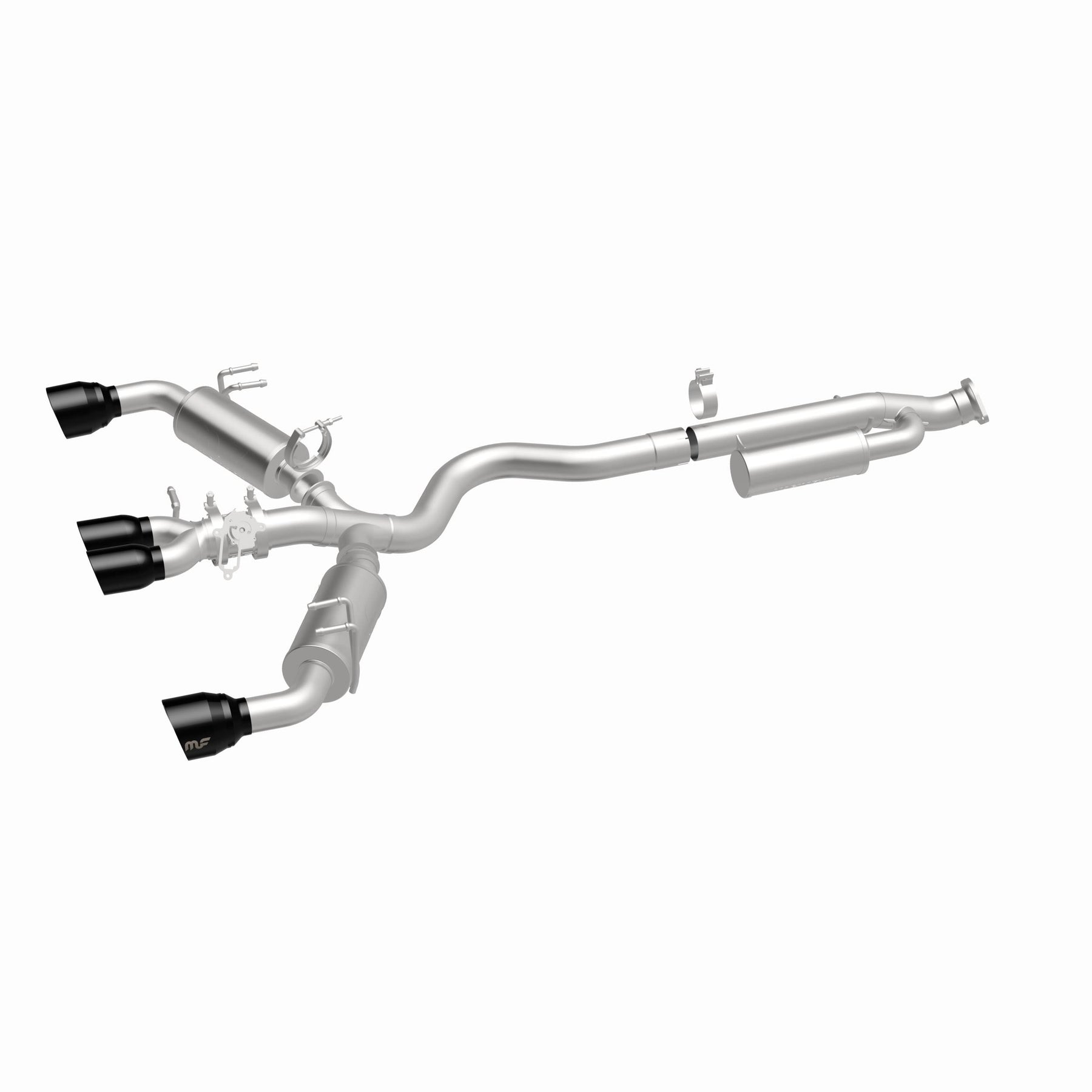

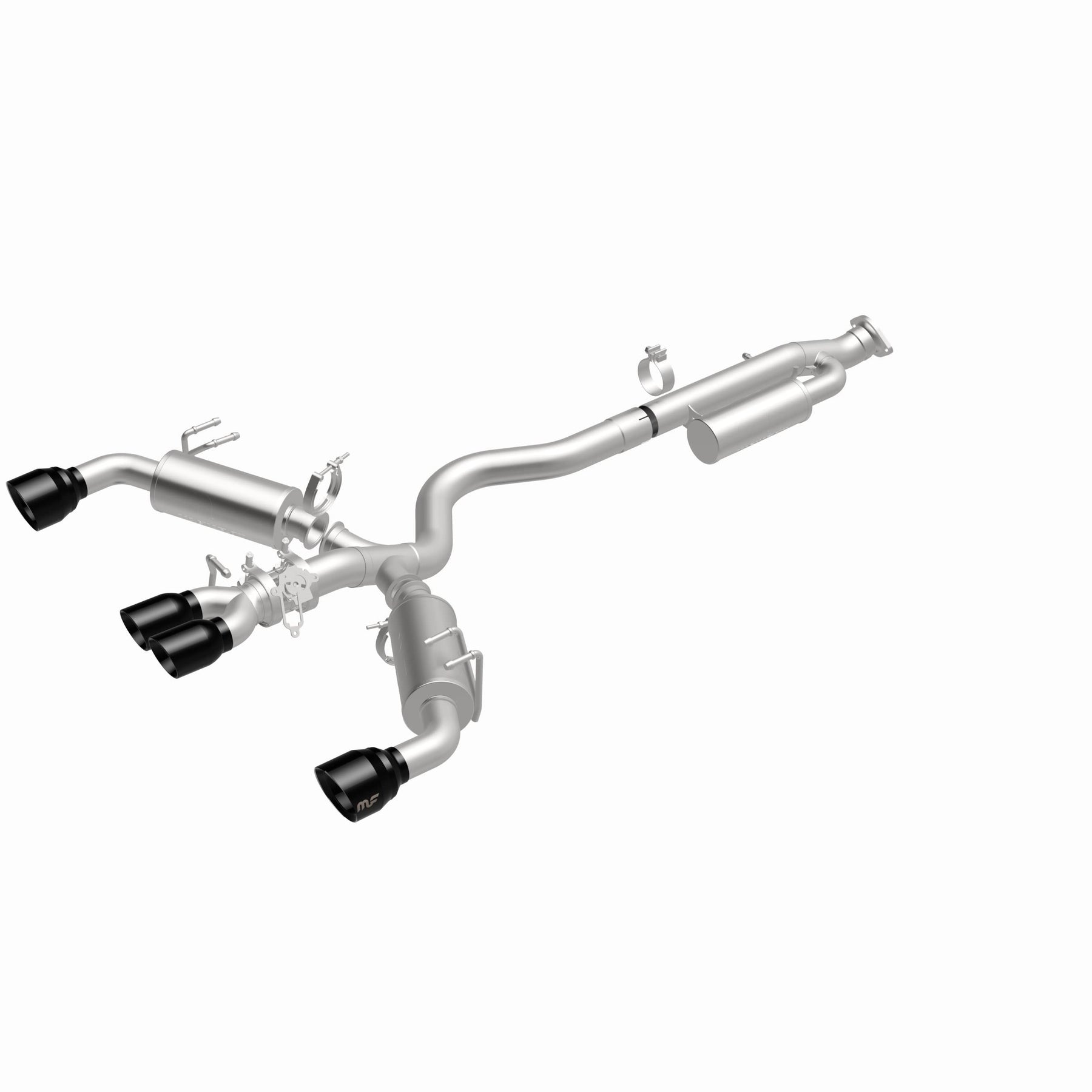

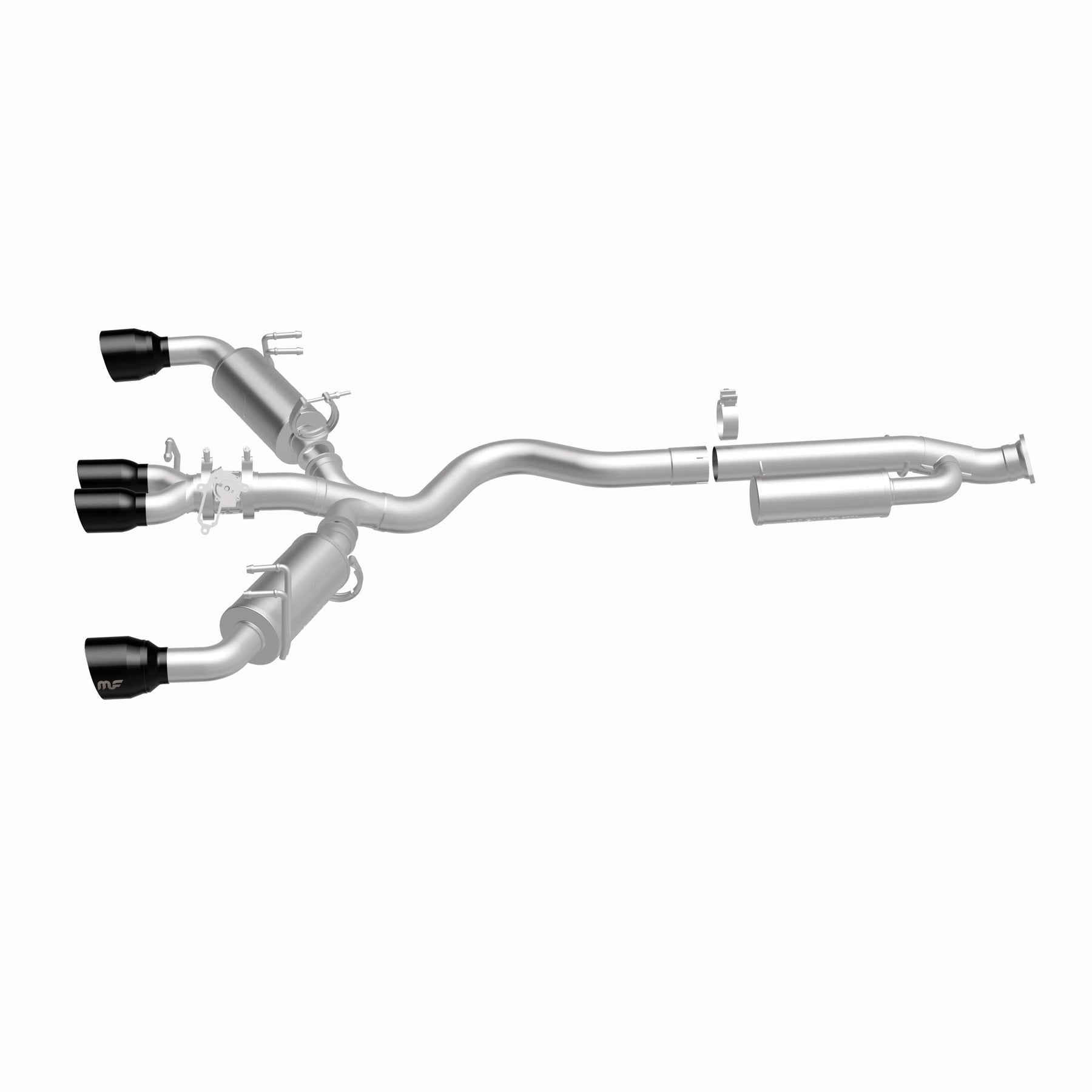

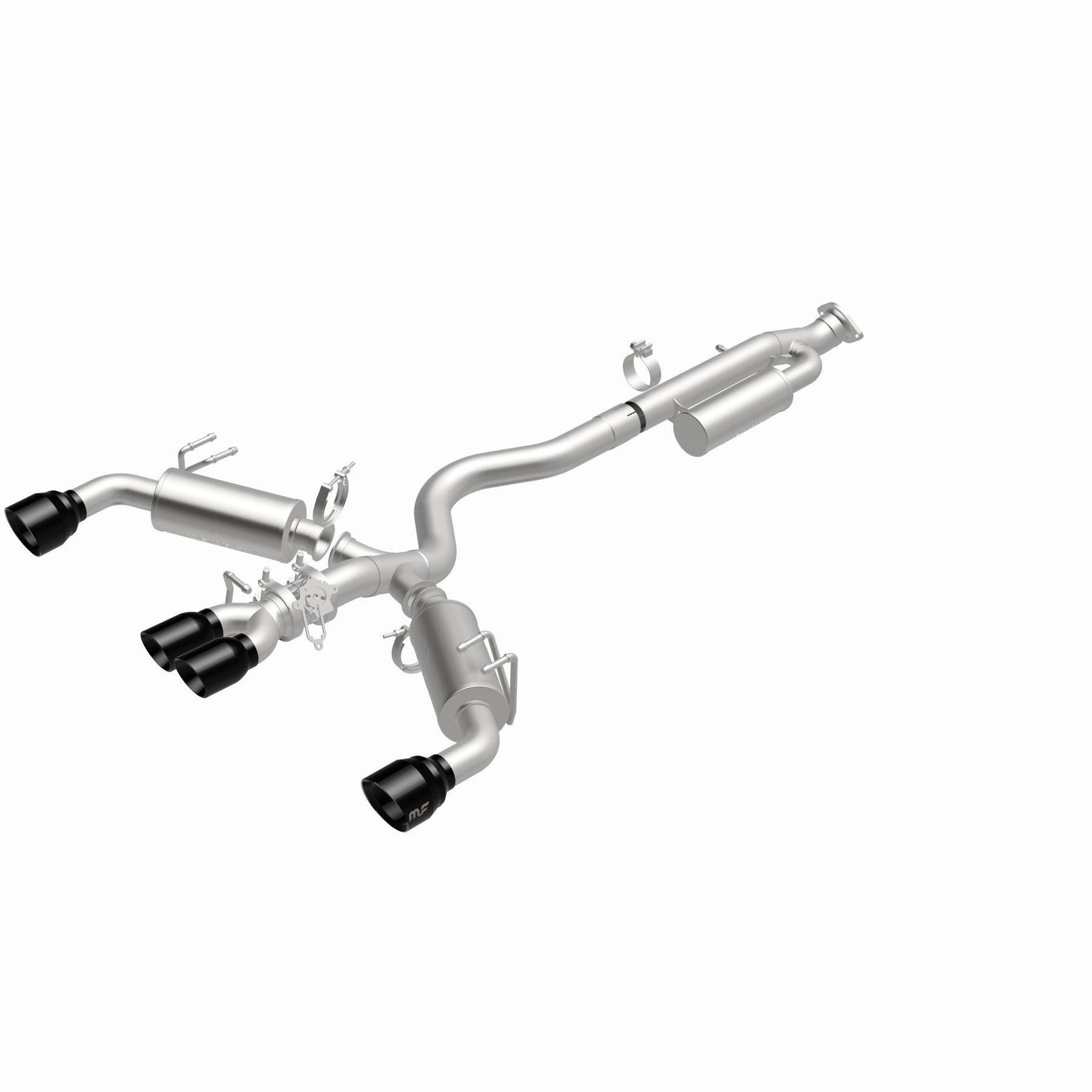

MagnaFlow Exhaust Products 19631 Exhaust System Kit
Magnaflow NEO Series Black Chrome Tips Cat-Back System
The MagnaFlow Toyota GR Corolla NEO Series Cat-Back Performance Exhaust System #19631 turns your ultimate sporty compact into a JDM-like beast that stays at the head of the pack thanks to its modern take on MagnaFlow’s signature sound and renowned dyno-proven power gains. This GR Corolla exhaust kit represents an all-around performance improvement for your GR’s 1.6L without compromises, even going so far as to retain your OEM vehicle’s factory controllable exhaust valve option using MagnaFlow’s own cast 304 stainless steel valves. Additionally, #19631 seamlessly integrates MagnaFlow’s No Drone Technology (NDT) to ensure optimal driver enjoyment, free of any unwanted droning noises that can otherwise occur at cruising speeds. Exhaust kit #19631 features 3” mandrel bent main piping that passes through an 11” NDT tuned chamber, smooth Y-pipe transition and two 11” straight-through performance mufflers before terminating in a quad center split rear exit with 4.5” outer and 3.375” inner tips featuring a double wall, angle-cut logo etched design with a black chrome finish. This performance exhaust features an easy-to-install, direct-fit design that is engineered to replace all OEM exhaust components from near the catalytic converter on back. #19631 is made of durable, corrosion resistant stainless steel and produced using advanced CNC precision robotic manufacturing techniques, all backed by MagnaFlow’s limited lifetime warranty.
Features
- 100% Stainless Steel
- Increased Horsepower and Torque
- No-Drone-Technology allows for a quiet cabin
Specifications
| Catalytic Converter Included | No |
| Muffler (Rear) Body Length | 11 IN |
| Main Piping Diameter | 3 IN |
| Exhaust Tip Diameter Position Inside | 3.5 IN |
| Muffler (Front) Body Height | 4 IN |
| Muffler (Front) Body Width | 4 IN |
| Muffler (Front) Body Length | 11 IN |
| Muffler (Rear) Body Height | 5 IN |
| Inlet Type | Bolt-On |
| Exhaust Tip Wall | Double Wall |
| Exhaust Tip Edge | Folded Edge |
| Gasket Or Seal Included | No |
| Mounting Bracket Included | No |
| Exhaust Tip Resonated | No |
| Exhaust Tip Intercooled | No |
| Exit Style | Quad Center Split Rear |
| Exhaust Tip Shape | Round |
| Exhaust Tip Material | Stainless Steel |
| Muffler (Rear) Type | Straight-Through |
| Muffler (Front) Type | Tuned Chamber |
| Exhaust Tip Connection | Welded-On |
| Clamps Included | Yes |
| Hangers Included | Yes |
| Muffler (Rear) Body Width | 5 IN |
| Exhaust Tip Length Position Inside | 5.5 IN |
| Exhaust Tip Length Position Outside | 5.75 IN |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Quantity | 4 |
| Exhaust Tip Diameter Position Outside | 4.5 IN |
| Exhaust Tip Finish | Black Chrome |
| Clamping Type | Round Band |
| Clamping Type | V Band |
| Muffler Body Material | Stainless Steel |
| Muffler Finish | Brushed |
| Muffler Quantity | 3 |
| Muffler Type | Straight-Through;Tuned Chamber |
| Pipe Material | Stainless Steel |
| Prop 65 Y/N | No |
| Series | NEO |
| Type | Cat-Back |
| Valve Included | Yes |
| Valve Type | Actuated |
Note: Need further assistance? Call 1-800-990-0905.
Short Description: Cat-Back
Invoice Description: Exhaust System
Definition: Exhaust System Kit
Installation Guide: Download PDF
