MagnaFlow Exhaust Products 19636 - Overland Series Cat-Back System
Couldn't load pickup availability
MagnaFlow Overland Series Cat-Back System

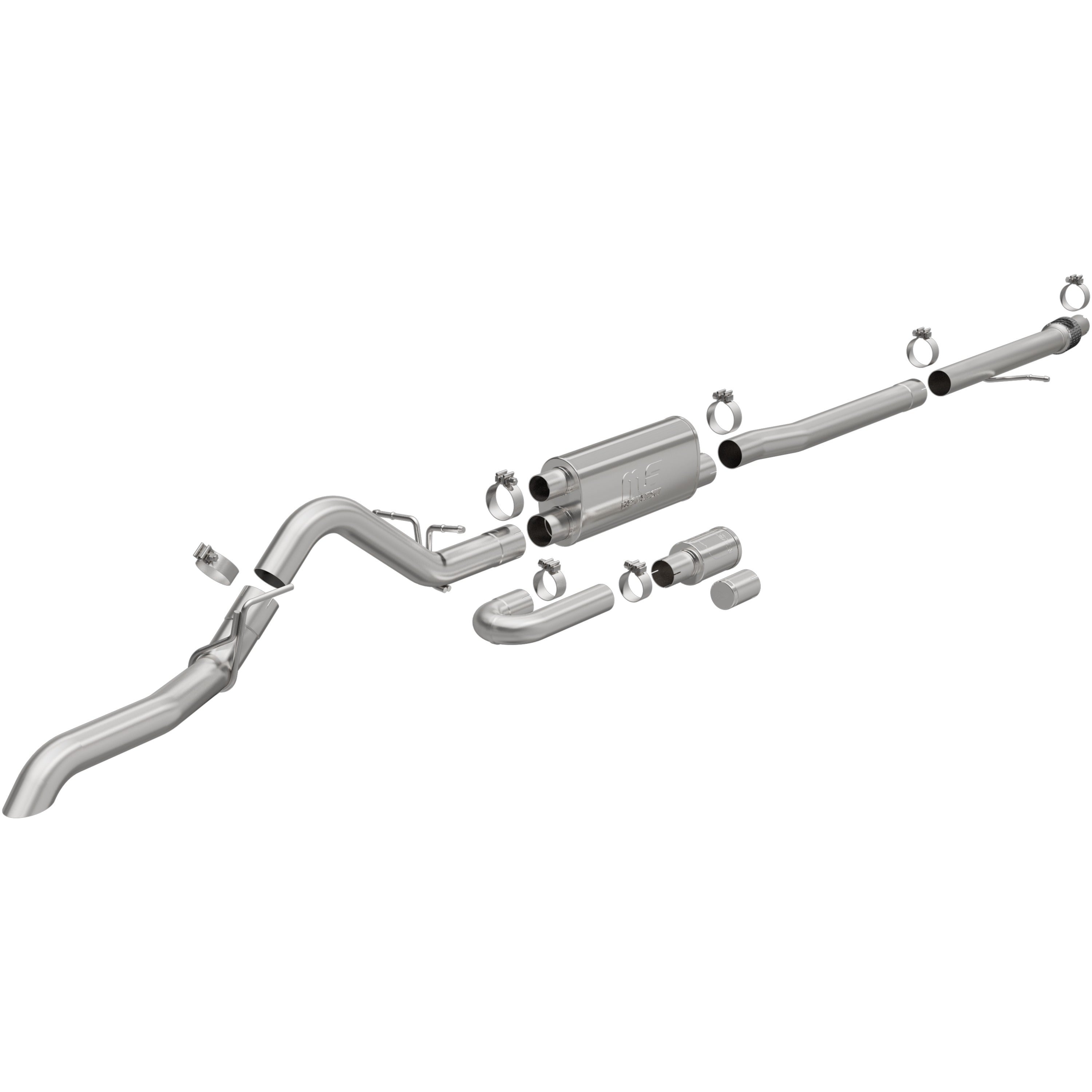

The MagnaFlow® Ford Ranger Overland Series™ Cat-Back Performance Exhaust System #19636 is engineered for off-road function and built to explore further. This Ford Ranger exhaust system is designed for the 2024-2026 Ford Ranger equipped with the I4-2.3L engine option. The high clearance exhaust design of this kit is designed to keep your truck clear of any challenging terrain or obstacles you may come across. #19636 3” diameter mandrel bent main piping passes through an 18” straight-through oval muffler and No Drone Technology (NDT) tuned chamber before exiting in a high-clearance single passenger side rear exit style. MagnaFlow® NDT utilizes passive quarter-wave noise cancellation to minimize the unwanted droning noises that can otherwise occur at highway cruising speeds. This truck exhaust kit can be tailored to your preferred exhaust tone by installing various exhaust modules that are integrated with the muffler’s accessory port. The included pipe cap, J-pipe and NDT modules can be combined in different configurations to mitigate a wide range of droning frequencies. Looking for a smoother, quieter ride on the trails? Simply connect the NDT module. Prefer a more aggressive signature sound? Install the pipe cap to cover the muffler accessory port. Exhaust kit #19636 utilizes a direct-fit, easy to install design that replaces your OEM exhaust system from the catalytic converter on back. This Ford Ranger cat-back performance exhaust system is made of durable, corrosion resistant stainless steel and produced using advanced CNC precision robotic manufacturing techniques, all backed by MagnaFlow®’s limited lifetime warranty.
Features & Benefits
- Dyno proven performance
- High clearance exit
- No-Drone-Technology allows for a quiet cabin
Specifications
| Exhaust Tip Quantity | 0 |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Clamp-On |
| Main Piping Diameter | 3 IN |
| Mounting Bracket Included | No |
| Muffler (Left) Body Height | 5 IN |
| Muffler (Left) Body Length | 18 IN |
| Muffler (Left) Body Width | 8 IN |
| Muffler (Left) Type | Straight-Through |
| Muffler (Right) Body Height | 4 IN |
| Muffler (Right) Body Length | 6 IN |
| Muffler (Right) Body Width | 4 IN |
| Muffler (Right)Type | Tuned Chamber |
| Muffler Body Material | Stainless Steel |
| Muffler Finish | Brushed |
| Muffler Quantity | 2 |
| Muffler Type | Straight-Through;Tuned Chamber |
| Pipe Material | Stainless Steel |
| Series | Overland |
| Type | Cat-Back |
| Valve Included | No |
| Catalytic Converter Included | No |
| Clamping Type | Round Band |
| Title | MagnaFlow® 2024-2026 Ford Ranger 2.3L Overland Series™ Cat-Back Performance Exhaust System 19636 |
| Exit Style | Turn Down In Front Of Rear Tire |
Installation Guide: Download PDF
