MagnaFlow Exhaust Products 19651 Exhaust System Kit
MagnaFlow xMOD Series Black Coated Tips Cat-Back System

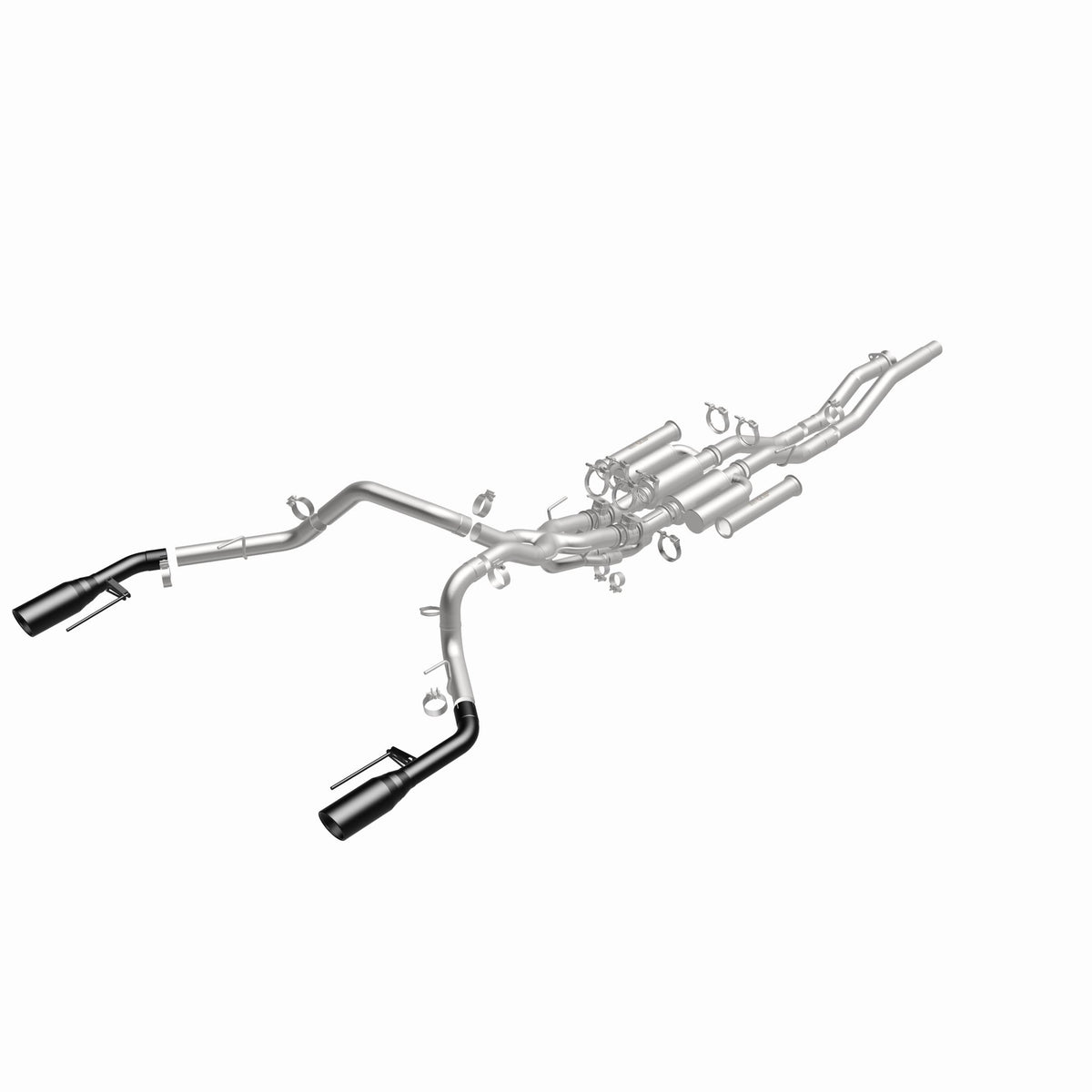

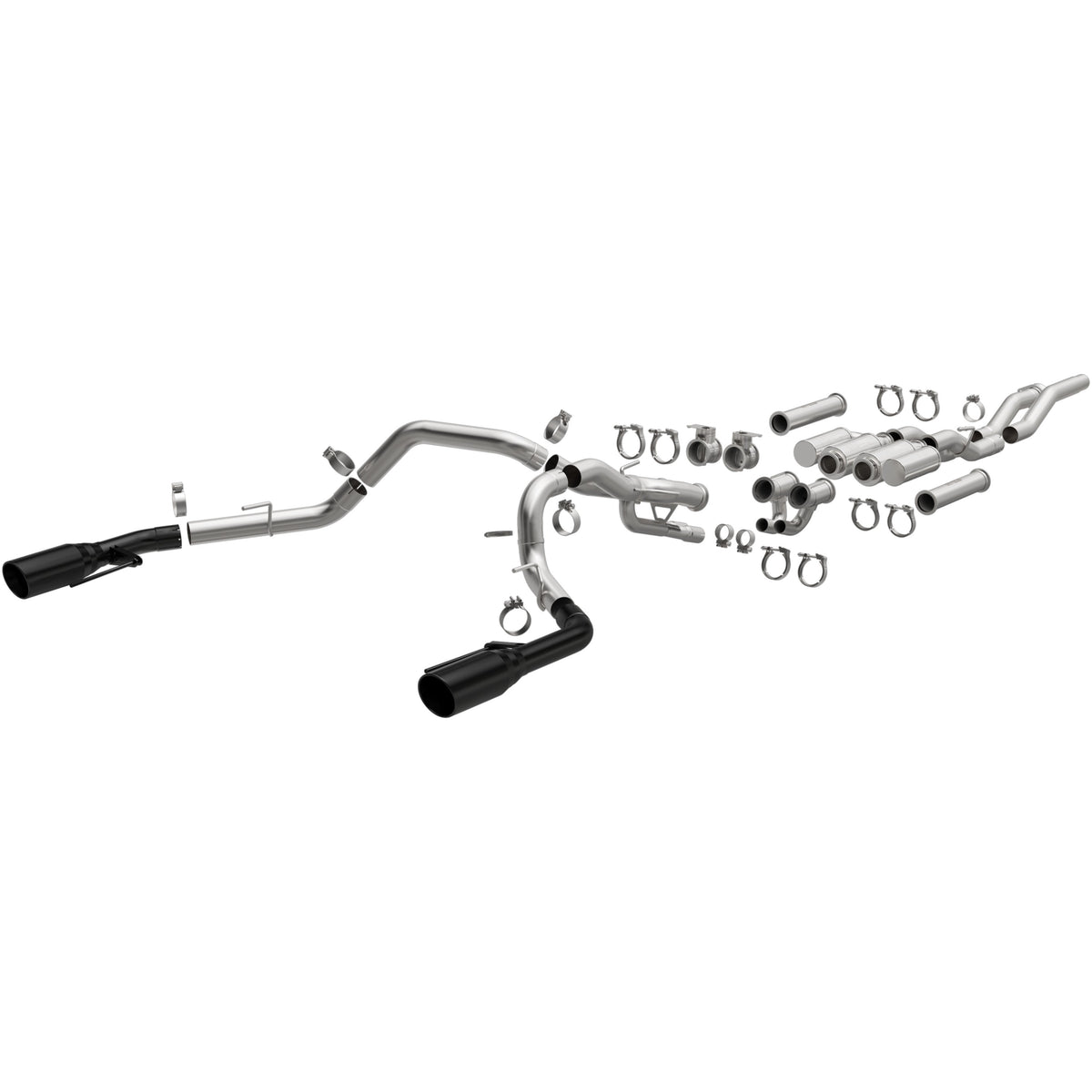

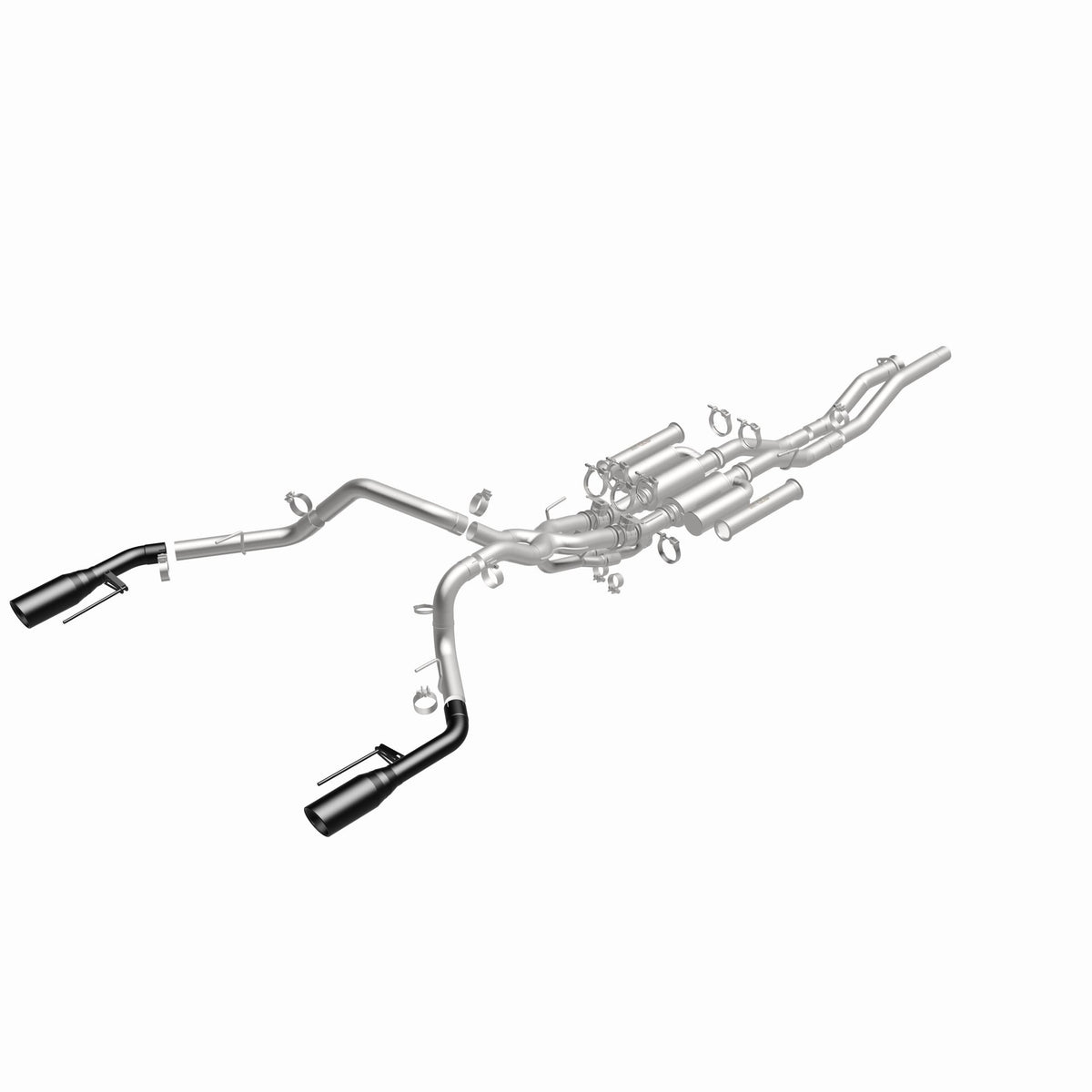

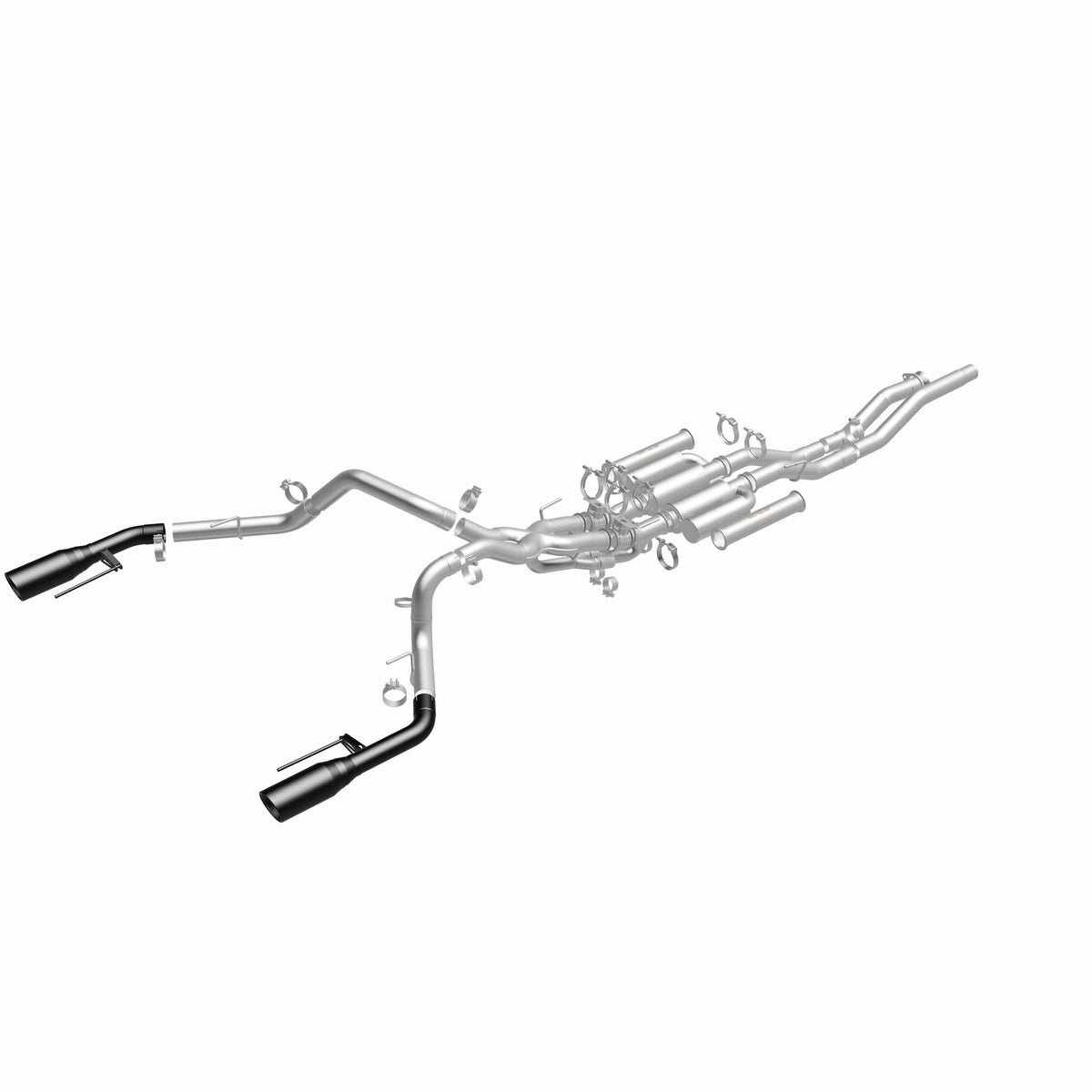

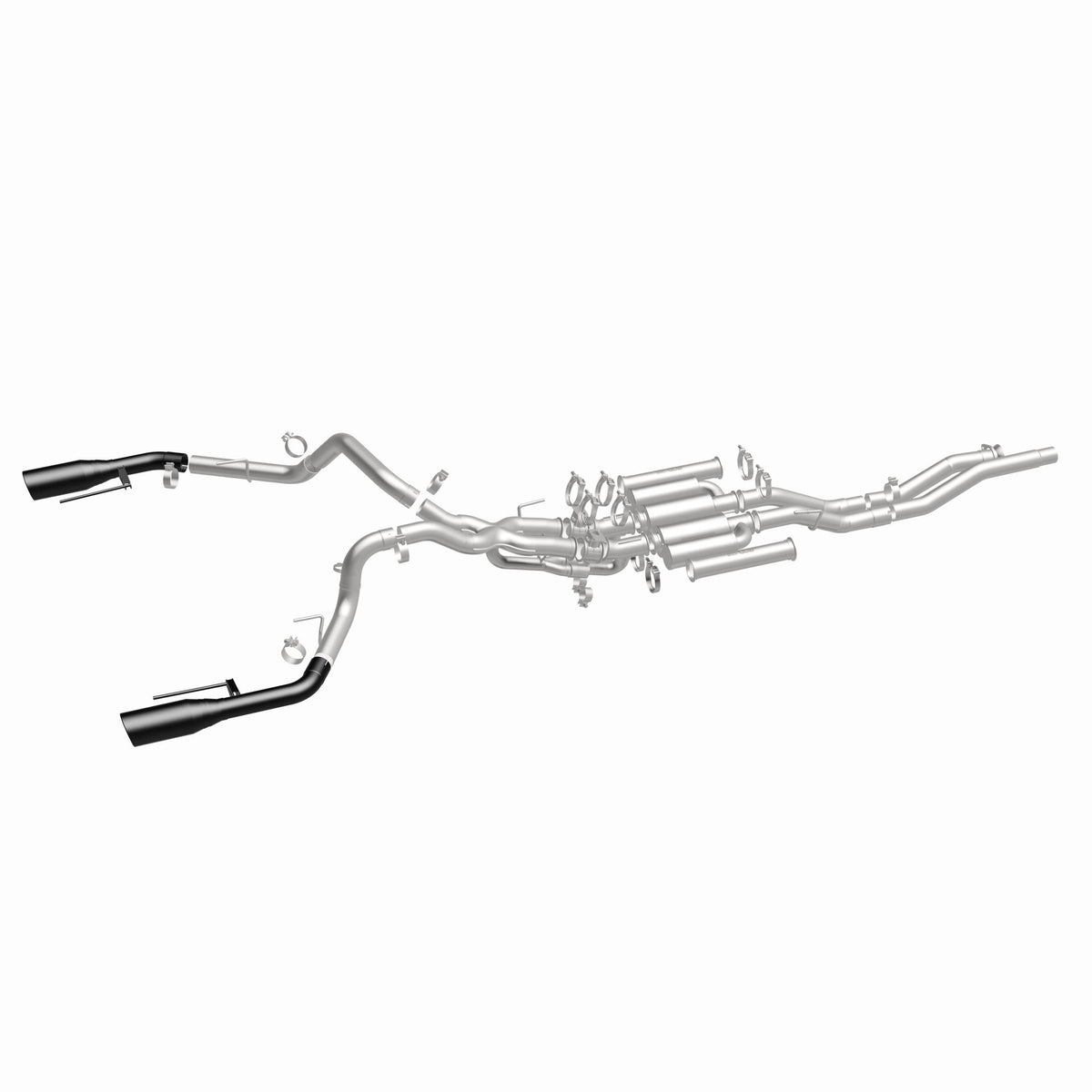

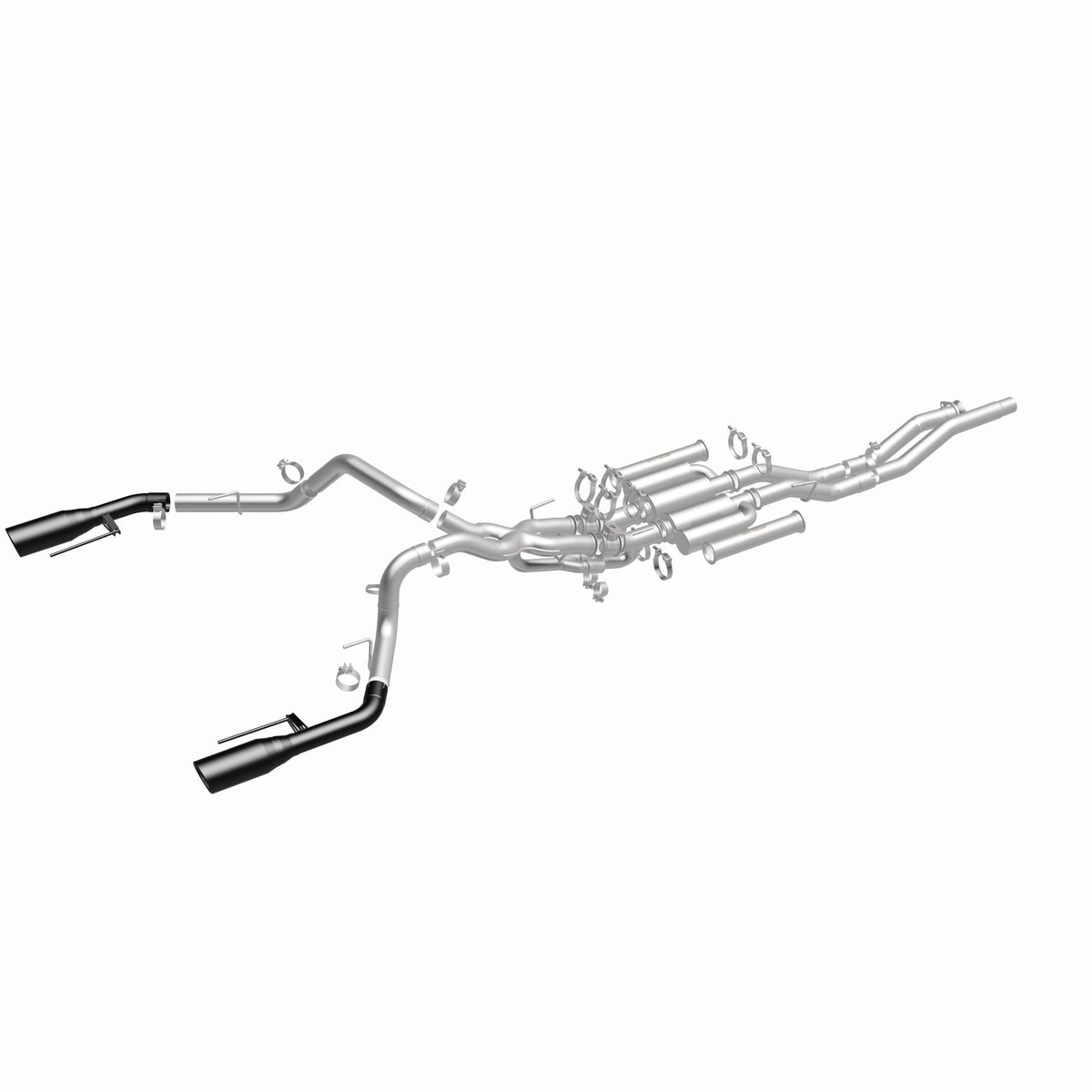

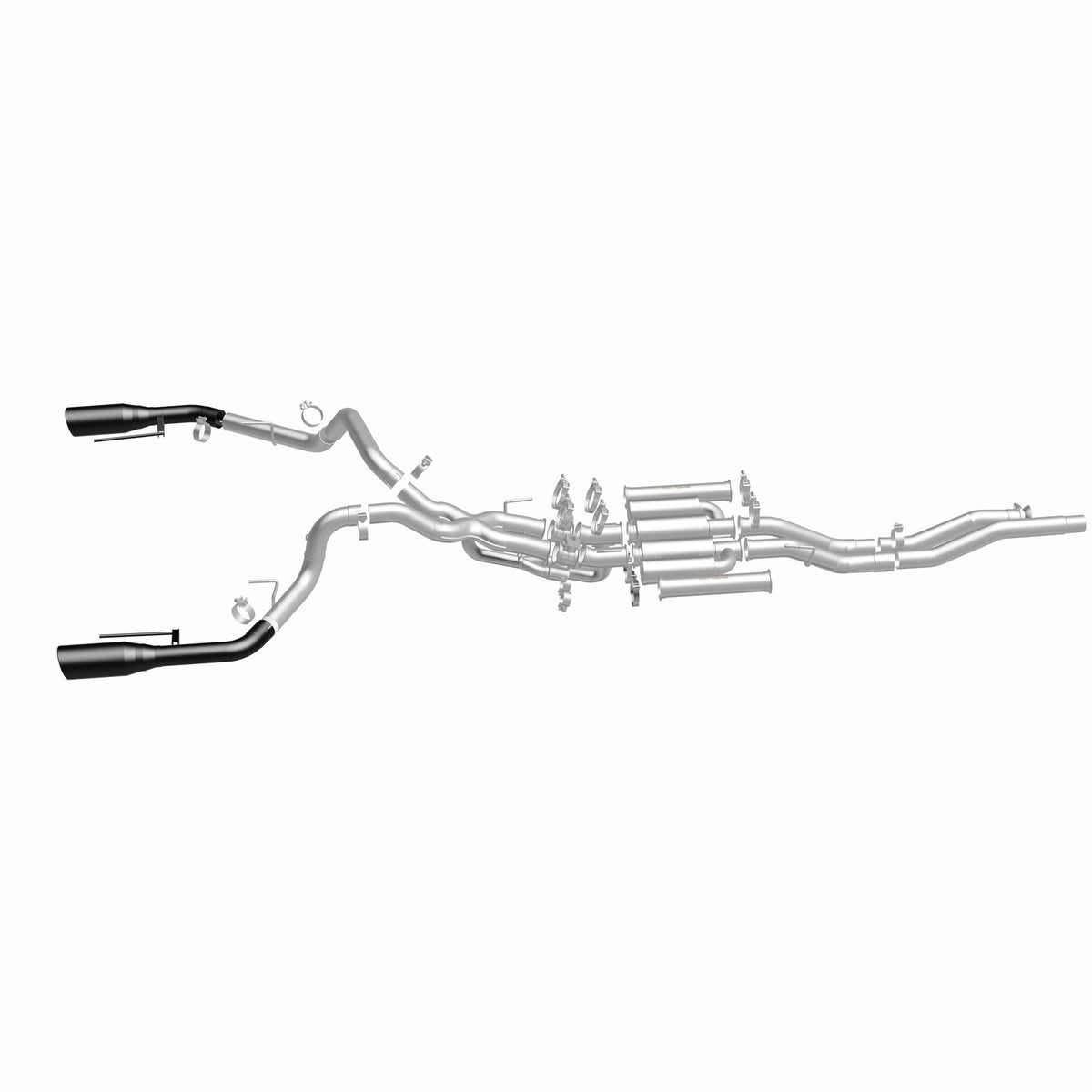

The MagnaFlow Ford F-150 Raptor R xMOD Series Cat-Back Performance Exhaust System is an ultimate exhaust upgrade that can be transformed to your liking to create the exact tone you’re looking for, all while empowering your Ford F-150 Raptor R with dyno-proven performance gains. This feat is accomplished while retaining the full functionality of your truck’s controllable exhaust valves. Exhaust kit #19651 features 3” mandrel bent main piping that replaces your OEM exhaust from near the catalytic converter on back. The piping passes through a set of either 11” NDT (No Drone Technology) muffler modules or 11” xTreme Delete straight pipe modules before passing through the controllable valves and an X-pipe with branch pipe mid-connection and terminating in a dual split rear exit with 5” double-wall angle cut rolled edge black coated tips. #19651 also includes front pipes that can be used to replace the factory front resonated pipes. The NDT muffler modules each include a round straight-through performance muffler connected to an 11” NDT reflection chamber that’s tuned to minimize the droning noises that can otherwise occur at cruising speeds. Meanwhile, the xTreme Delete modules turn your exhaust into a full-throated straight-pipe setup, perfect for track or off-road use. The xTreme Delete modules are the real deal though, so please check to ensure compliance with local noise regulations. This exhaust system is secured with racing-bred quick release V-band clamps, which facilitate easy installation and make swapping modules quick and hassle free. This performance exhaust system is made of durable stainless steel backed by MagnaFlow’s limited lifetime warranty.
Features
- Configurable sound from mild to wild
- No-Drone-Technology allows for a quiet cabin
- xTreme Delete Modules for a straight-pipe setup
Specifications
| Catalytic Converter Included | No |
| Muffler (Outside) Body Length | 11 IN |
| Exhaust Tip Length | 14.25 IN |
| Exhaust Tip Quantity | 2 |
| Main Piping Diameter | 3 IN |
| Muffler (Inside) Body Height | 4 IN |
| Muffler (Inside) Body Width | 4 IN |
| Muffler (Outside) Body Height | 5 IN |
| Muffler (Outside) Body Width | 5 IN |
| Exhaust Tip Diameter | 5 IN |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Finish | Black Coated |
| Inlet Type | Bolt-On;Clamp-On |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Split Rear |
| Gasket Or Seal Included | No |
| Mounting Bracket Included | No |
| Exhaust Tip Resonated | No |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Edge | Rolled Edge |
| Exhaust Tip Shape | Round |
| Exhaust Tip Material | Stainless Steel |
| Muffler (Inside) Type | Straight-Through |
| Muffler (Outside) Type | Tuned Chamber |
| Exhaust Tip Connection | Welded-On |
| Clamps Included | Yes |
| Hangers Included | Yes |
| Muffler (Inside) Body Length | 11 IN |
| Clamping Type | Round Band |
| Clamping Type | V Band |
| Muffler Body Material | Stainless Steel |
| Muffler Finish | Brushed |
| Muffler Quantity | 4 |
| Muffler Type | Straight-Through;Tuned Chamber |
| Pipe Material | Stainless Steel |
| Prop 65 Y/N | No |
| Series | xMod |
| Type | Cat-Back |
| Valve Included | Yes |
| Valve Type | Actuated |
Note: Need further assistance? Call 1-800-990-0905.
Short Description: Cat-Back
Invoice Description: Exhaust System
Definition: Exhaust System Kit
Installation Guide: Download PDF
