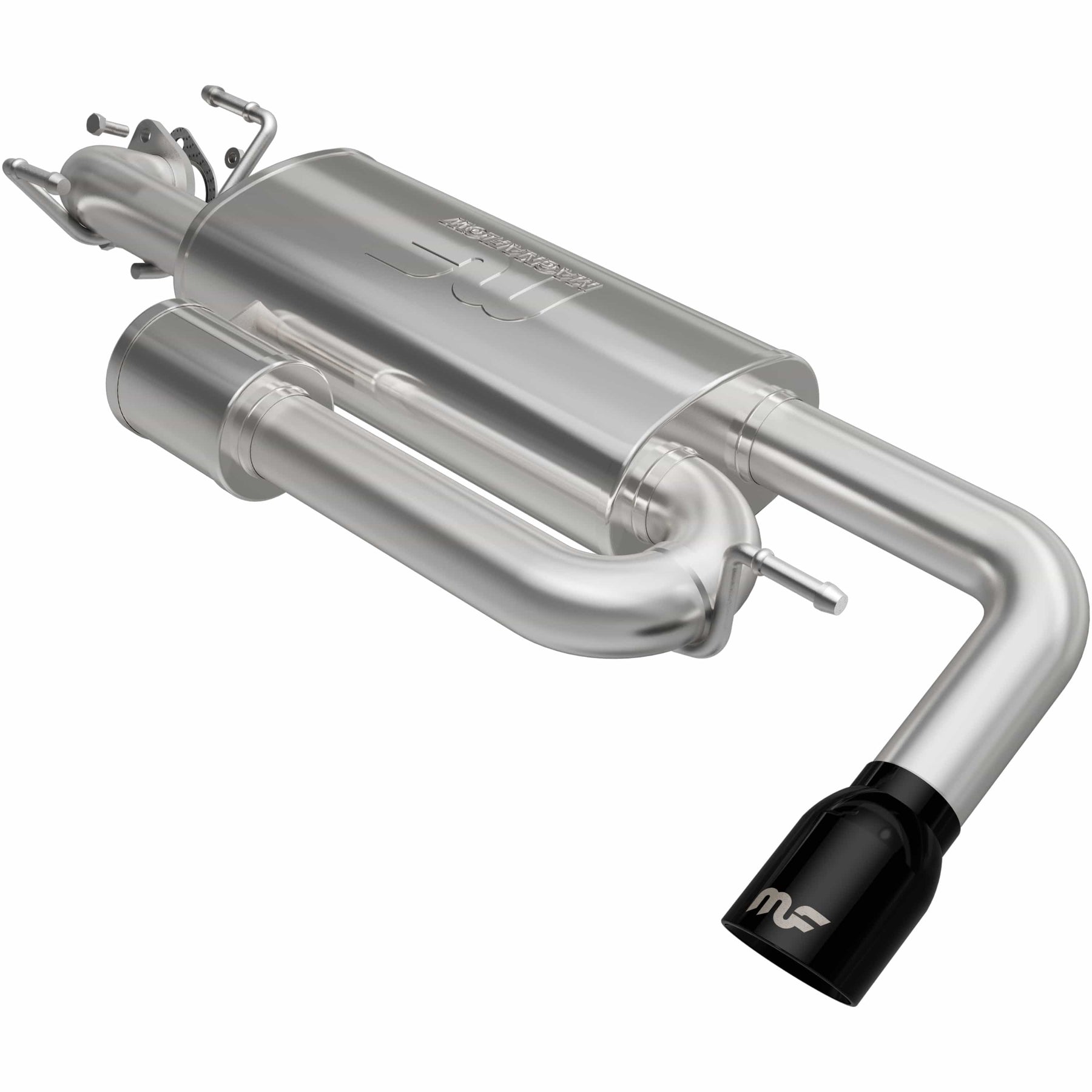

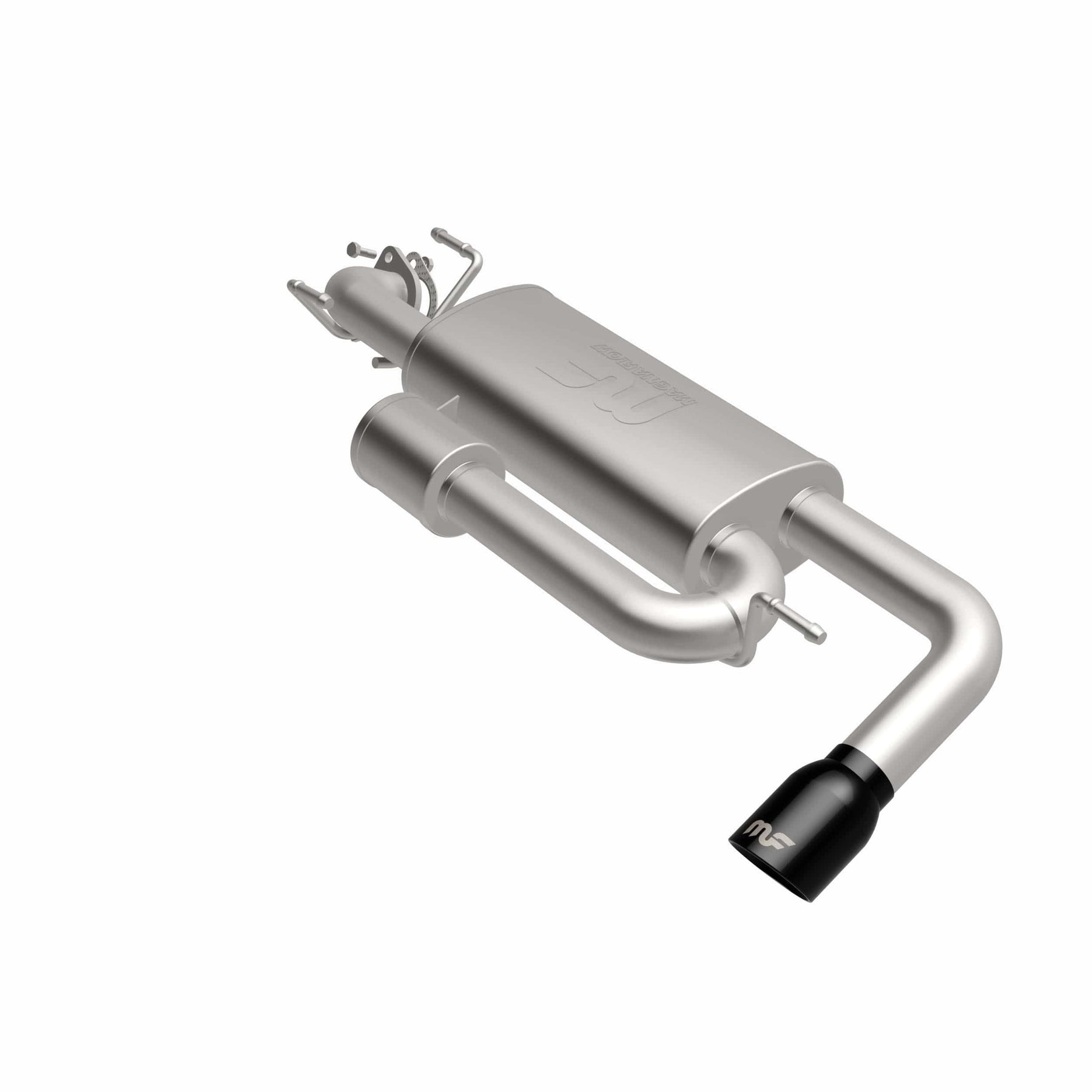

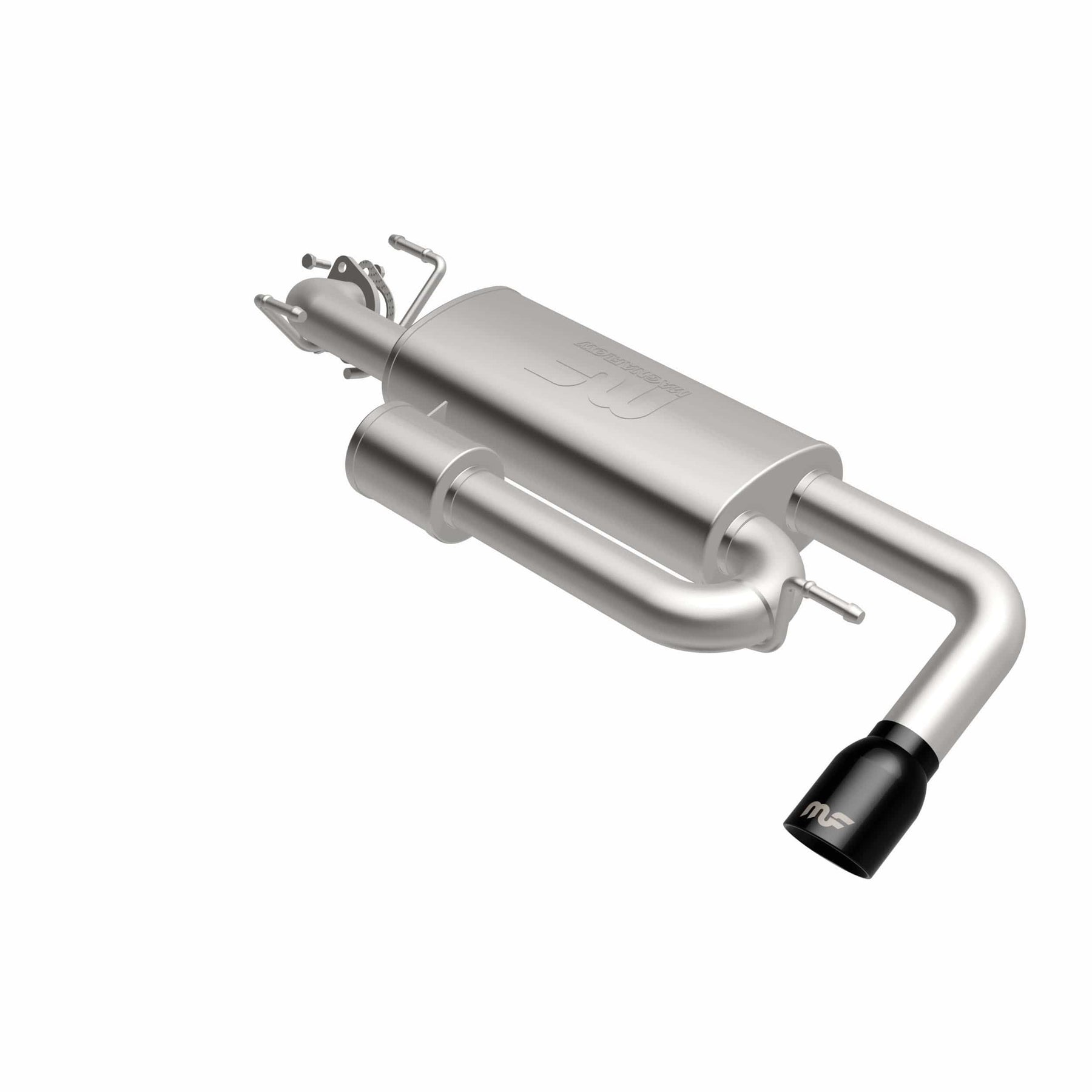

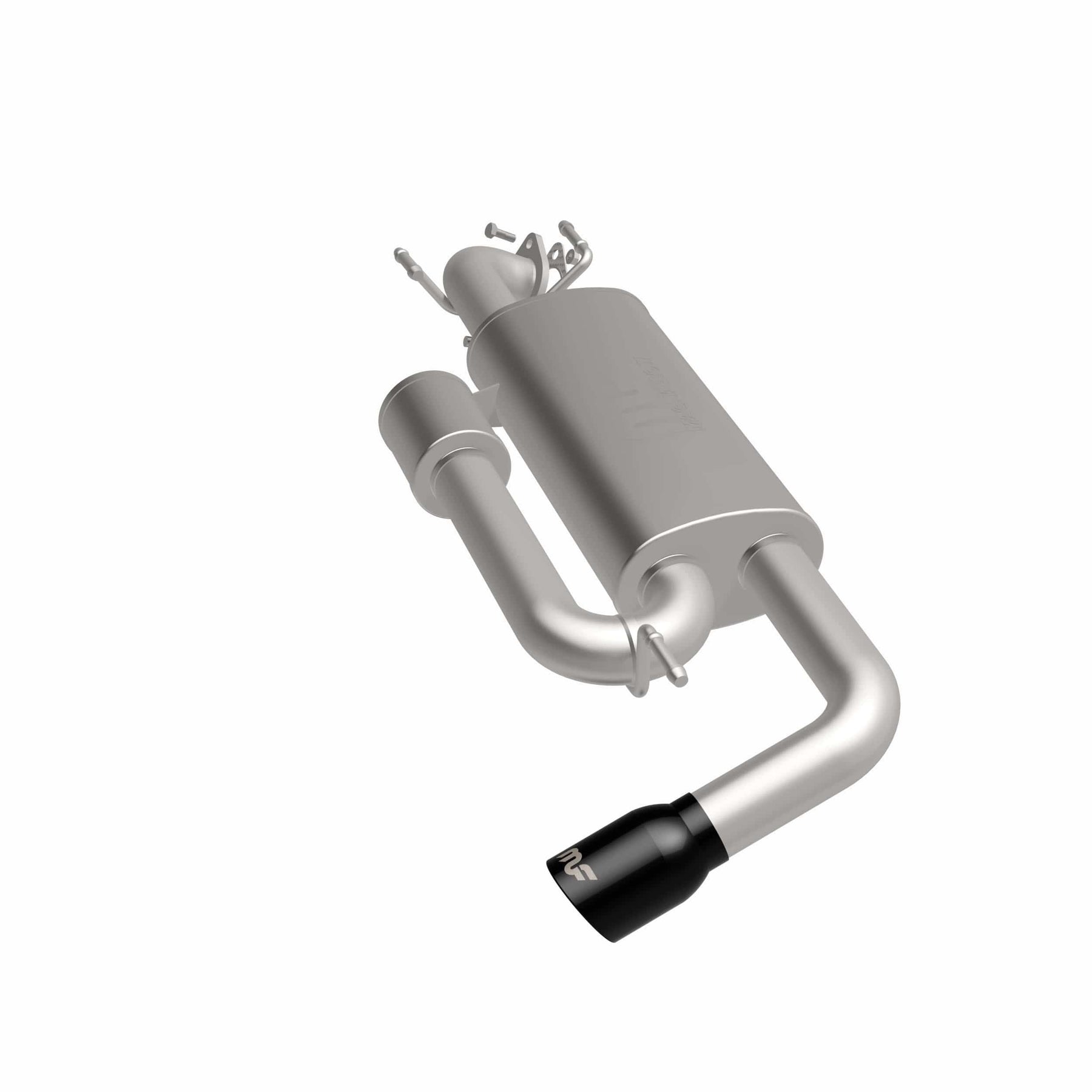

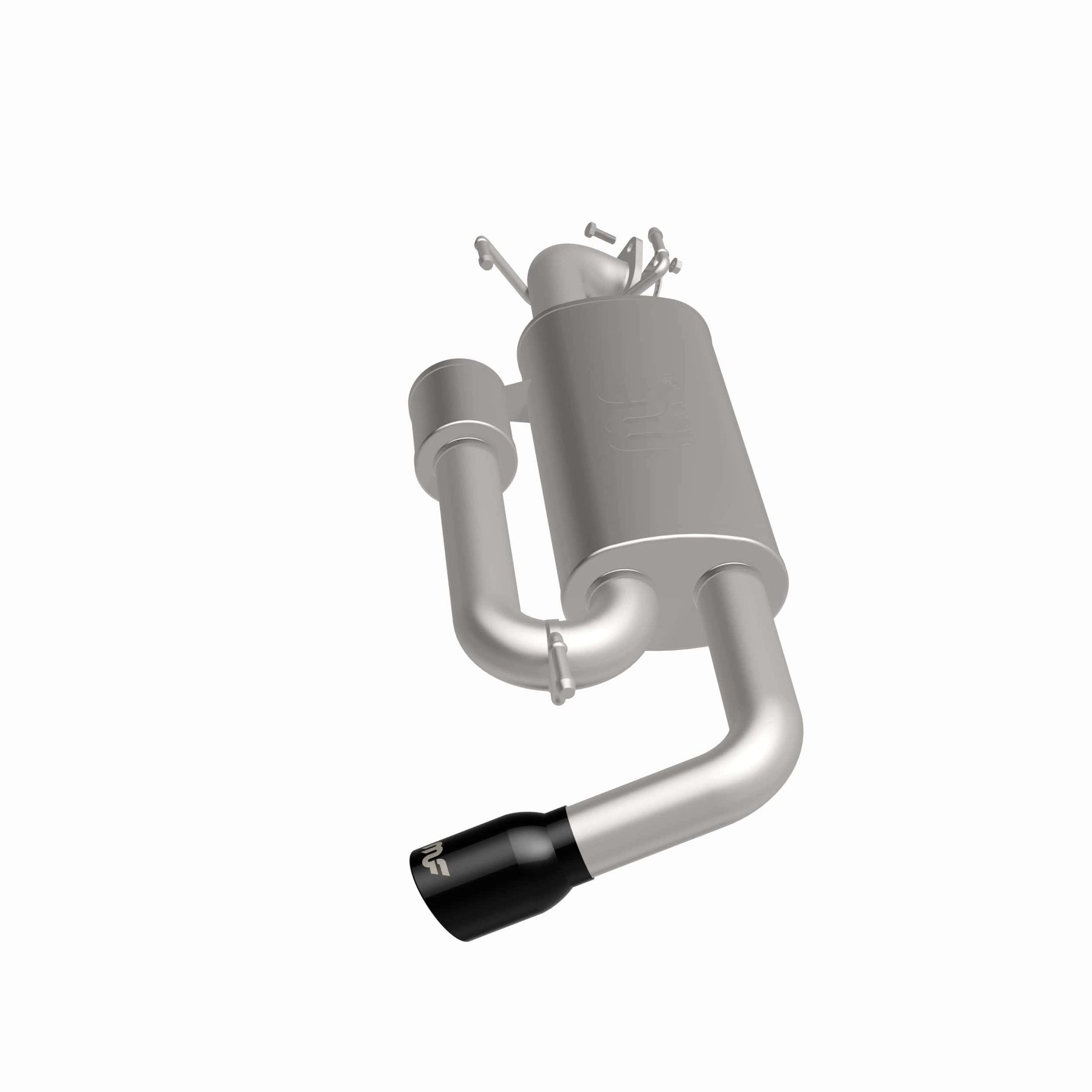

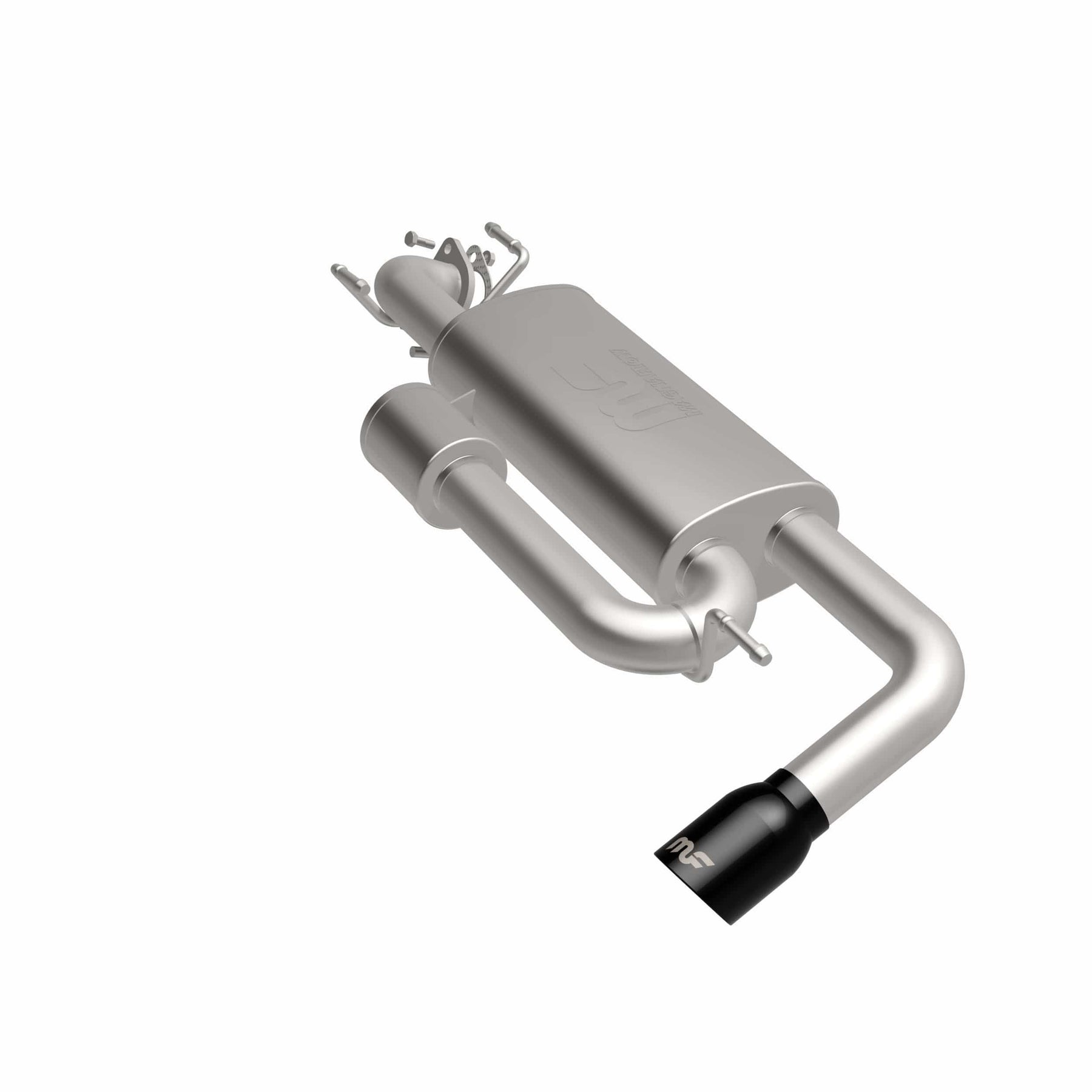

Magnaflow Overland Series Black Chrome Axle-Back System
The MagnaFlow® Subaru Crosstrek Overland Series™ Axle-Back Performance Exhaust System #19692 empowers your Subaru Crosstrek overland rig, equipped with the 2.0L/2.5L H4 engine, with MagnaFlow®’s deep signature exhaust note and dyno-proven performance. #19692 features 2.5” diameter mandrel bent main piping that passes through an 18” offset-offset oval muffler with uniquely-integrated No Drone Technology (NDT) tuned chamber before exiting in a high-clearance single passenger side rear exit with a 3.5” black chrome tip. MagnaFlow® NDT utilizes Helmholtz resonance noise cancellation to minimize unwanted droning noises at cruising speeds when you’re en route to your destination, creating mild interior and moderate exterior sound levels The high clearance black chrome tip, etched with the MagnaFlow® logo, is designed to keep your car clear of any challenging terrain or obstacles you may come across, so you can look and sound good when you’re out exploring. Exhaust kit # utilizes a direct-fit, easy to install design that replaces your OEM exhaust system from the axle on back. This Subaru Crosstrek cat-back performance exhaust system is made of durable, corrosion resistant stainless steel and produced using advanced CNC precision robotic manufacturing techniques, all backed by MagnaFlow®’s limited lifetime warranty.
Features
- High clearance exit
- Dyno proven performance
- No-Drone-Technology allows for a quiet cabin
Specifications
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Material | Stainless Steel |
| Exhaust Tip Quantity | 1 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Single Passenger Side Rear |
| Gasket Or Seal Included | Yes |
| Hangers Included | Yes |
| Inlet Type | Bolt-On |
| Main Piping Diameter | 2.5 IN |
| Mounting Bracket Included | No |
| Muffler (Front) Body Height | 5 IN |
| Muffler (Front) Body Length | 18 IN |
| Muffler (Front) Body Width | 8 IN |
| Muffler (Front) Type | Straight-Through |
| Muffler (Rear) Body Diameter | 4 IN |
| Muffler (Rear) Body Height | 4 IN |
| Muffler (Rear) Body Length | 5 IN |
| Muffler (Rear) Body Width | 4 IN |
| Exhaust Tip Diameter | 3.5 IN |
| Exhaust Tip Edge | Folded Edge |
| Exhaust Tip Finish | Black Chrome |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 5.5 IN |
| Clamps Included | No |
| Exhaust Tip Connection | Welded-On |
| Muffler Body Material | Stainless Steel |
| Muffler Finish | Brushed |
| Muffler Quantity | 2 |
| Pipe Material | Stainless Steel |
| Prop 65 Y/N | No |
| Series | Overland |
| Valve Included | No |
| Catalytic Converter Included | No |
| Type | Axle Back |
Note: Need further assistance? Call 1-800-990-0905.
Short Description: Cat-Back
Invoice Description: Exhaust System
Definition: Exhaust System Kit
Installation Guide: Download PDF
Specifications
MagnaFlow 19692 — Exhaust System Kit, fits 2018-2023 Subaru Crosstrek. Key specs: 2.5 in. main piping diameter, overland series.
Warranty: Limited Lifetime Warranty from MagnaFlow
Also known as: UPC 888563201337
| Year | Make | Model | Engine |
|---|---|---|---|
| 2018-2023 | Subaru | Crosstrek | 2.0L H4 |
| 2021-2023 | Subaru | Crosstrek | 2.5L H4 |
2 applications listed.
