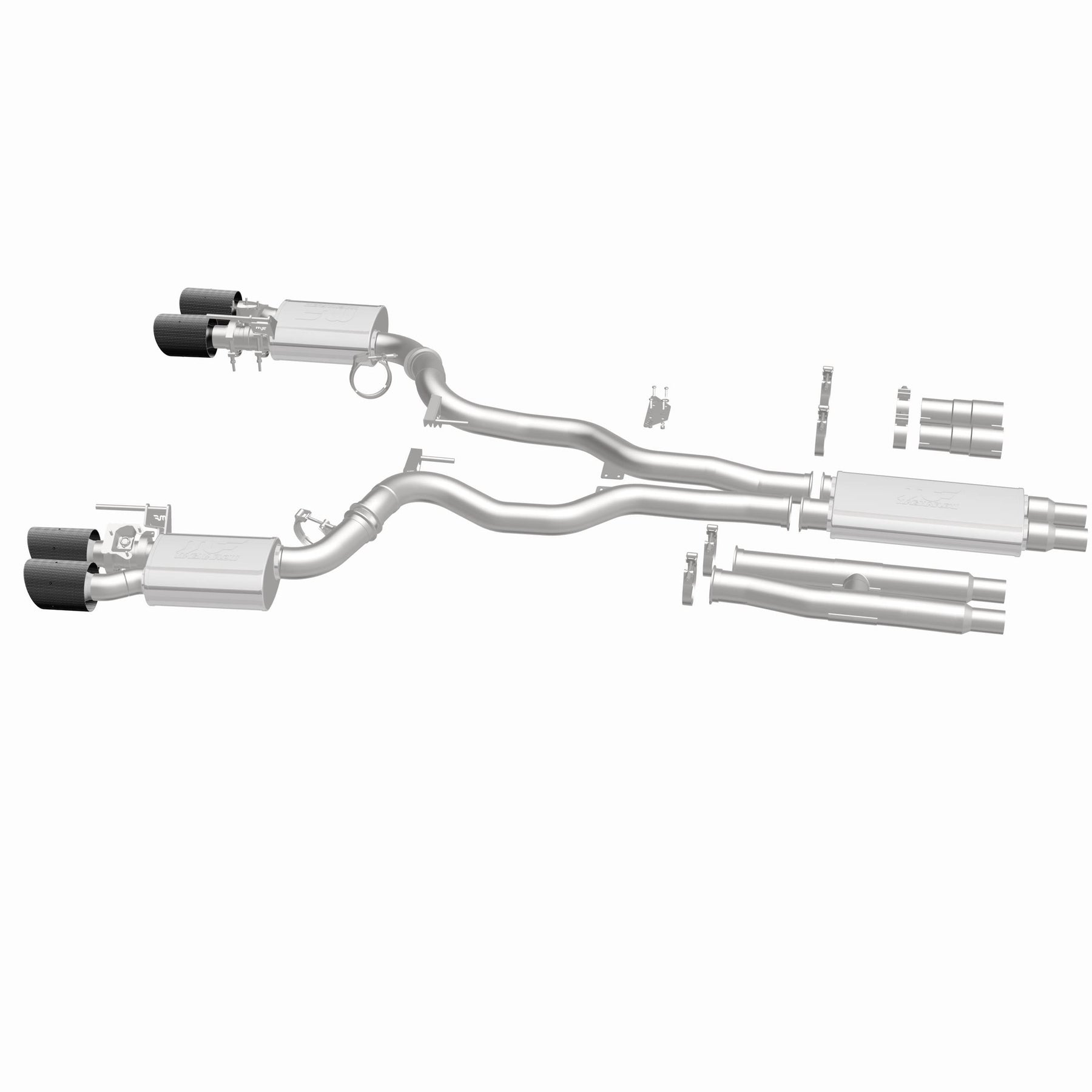

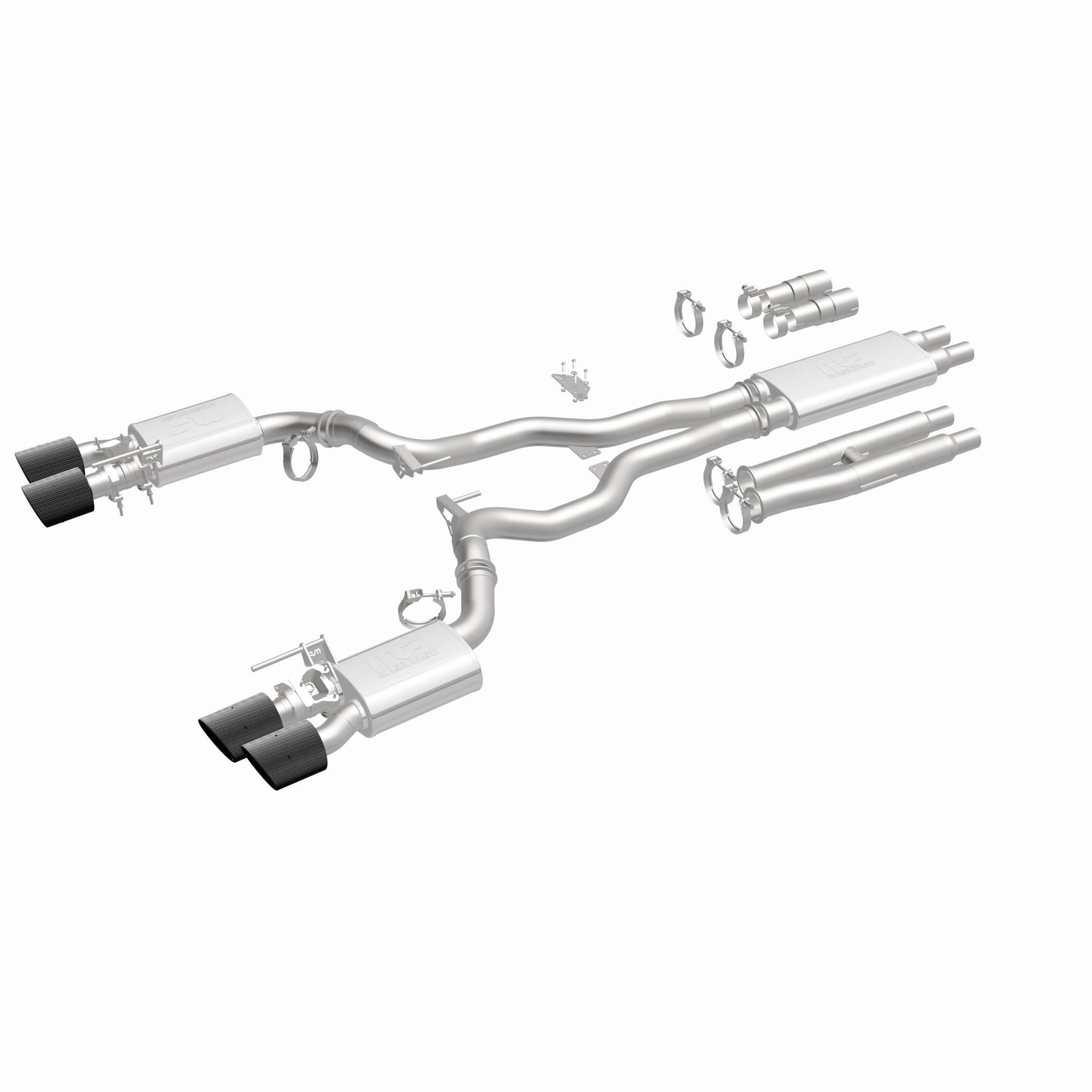

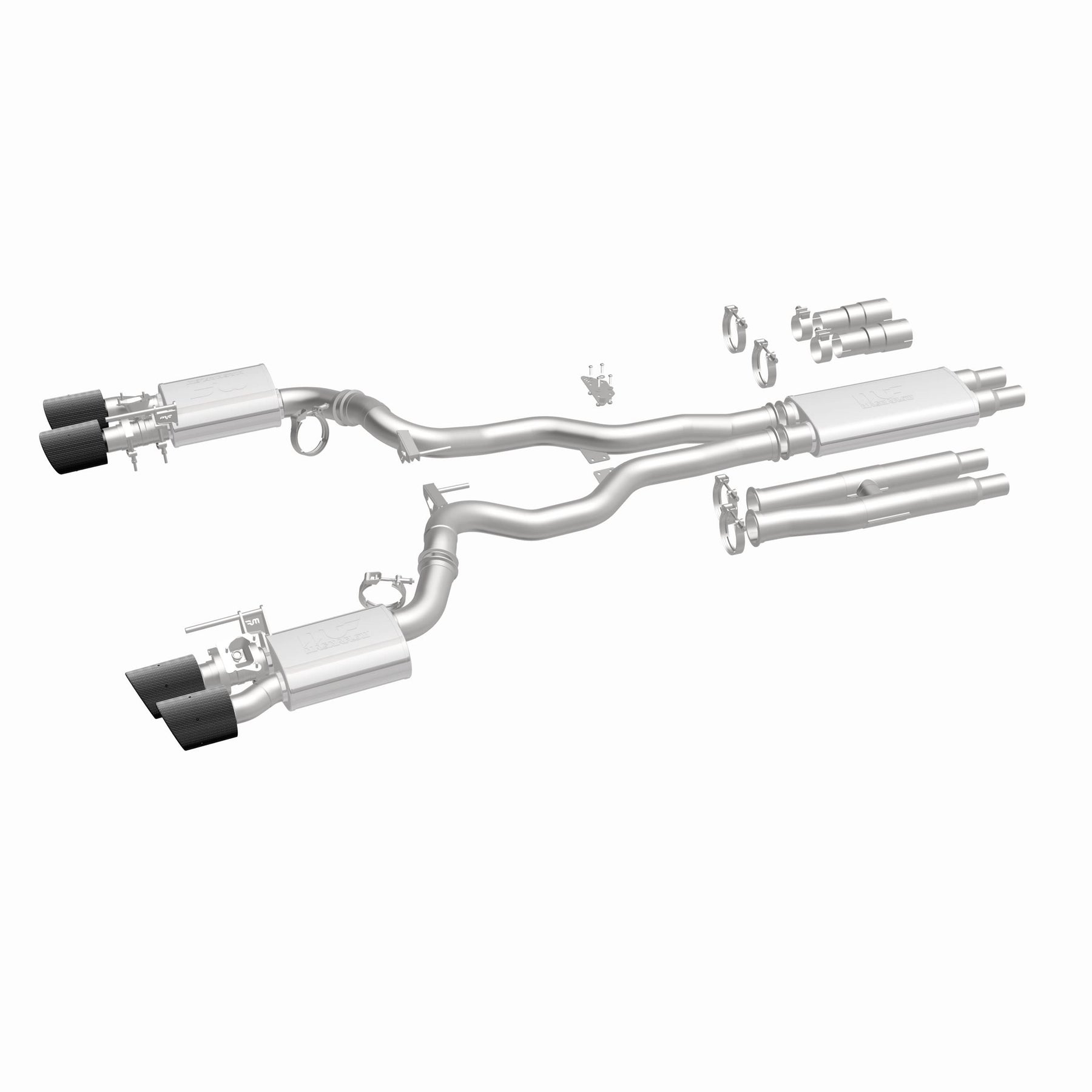

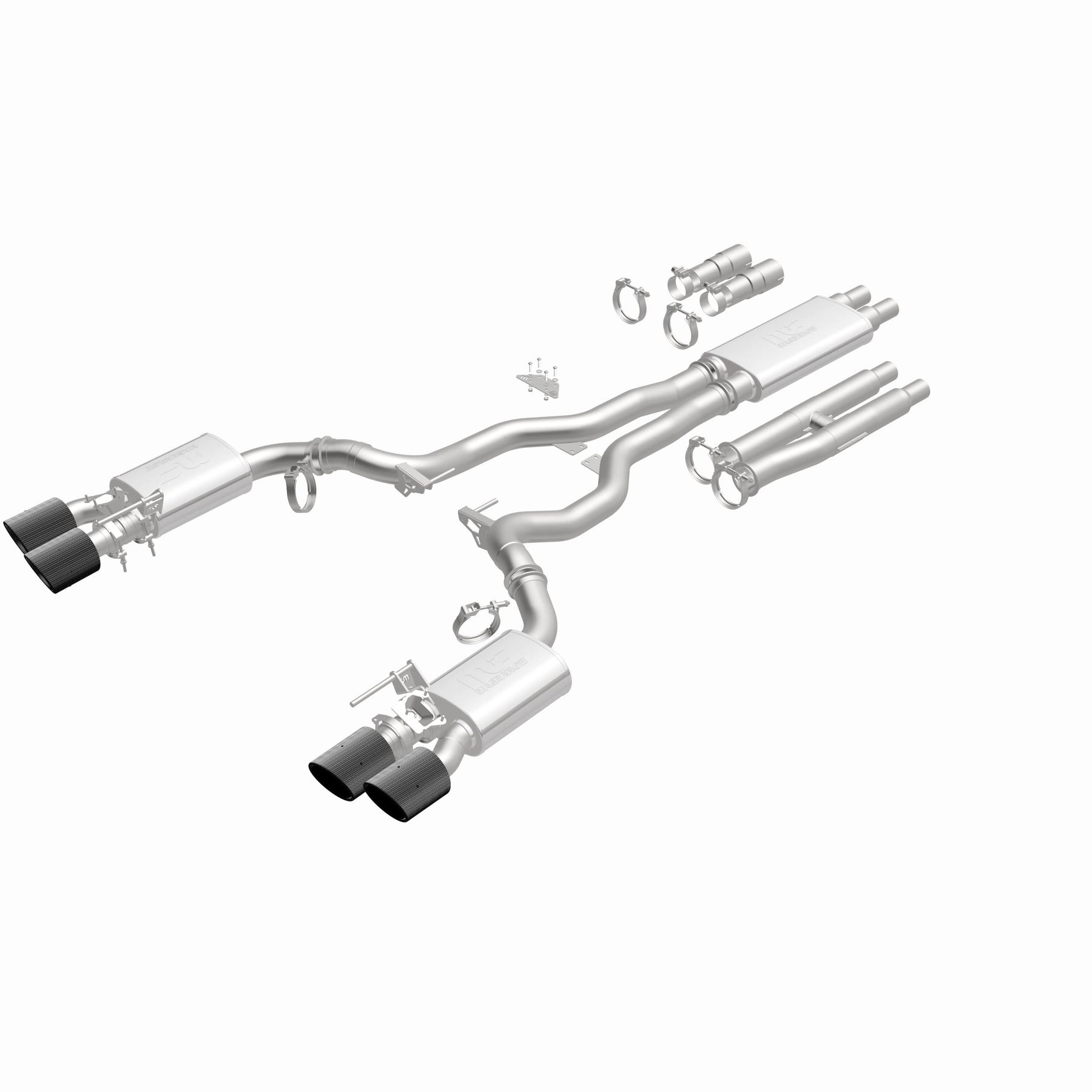

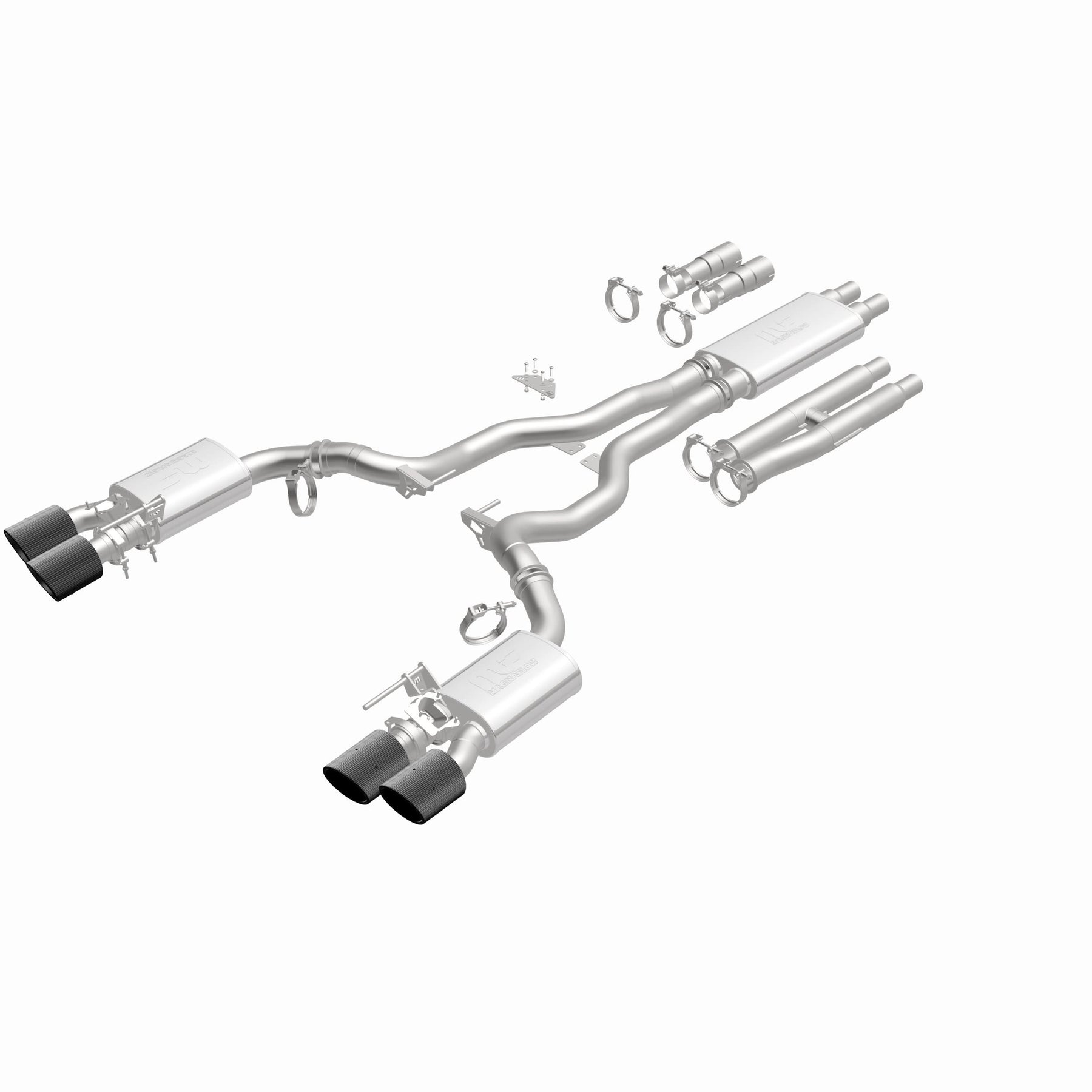

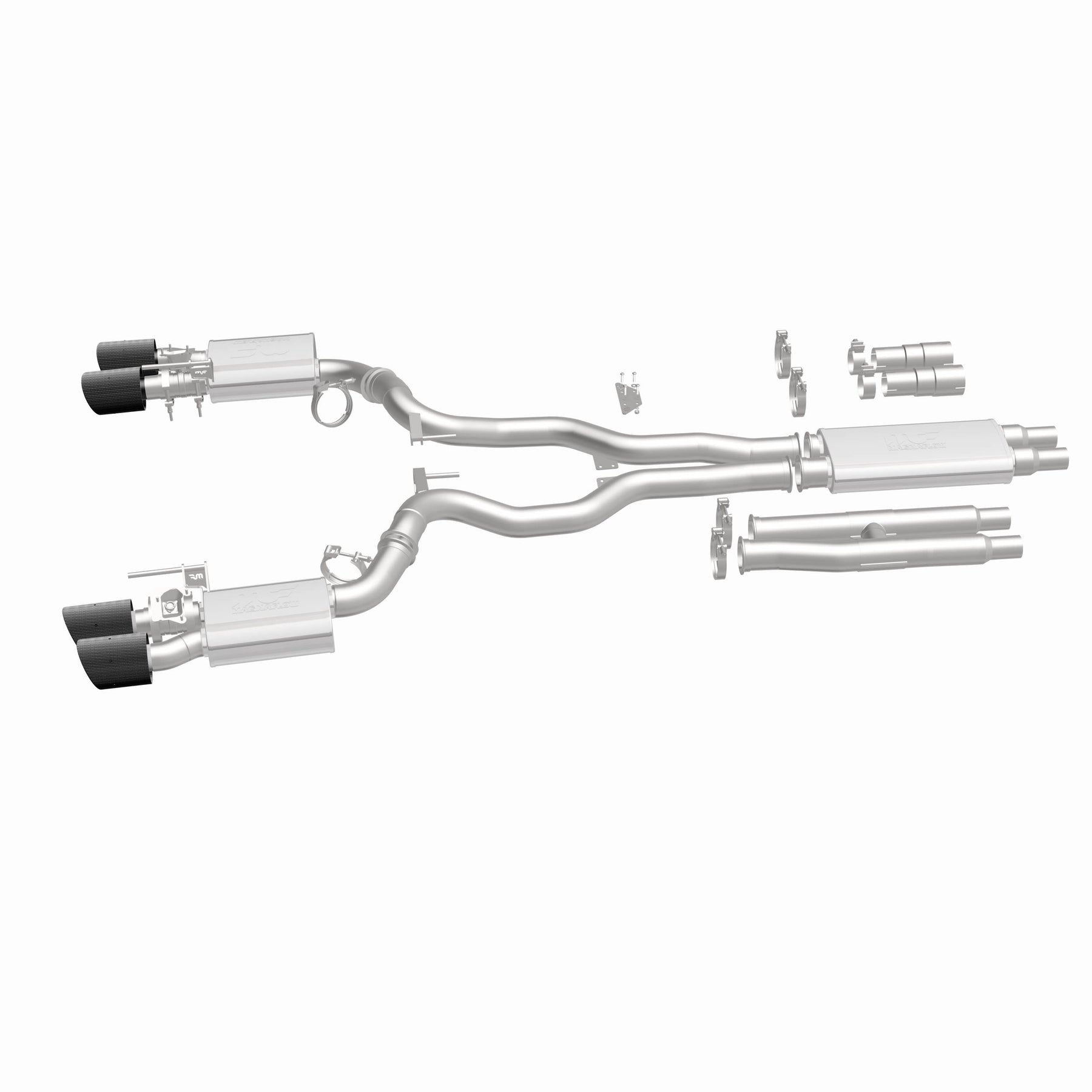

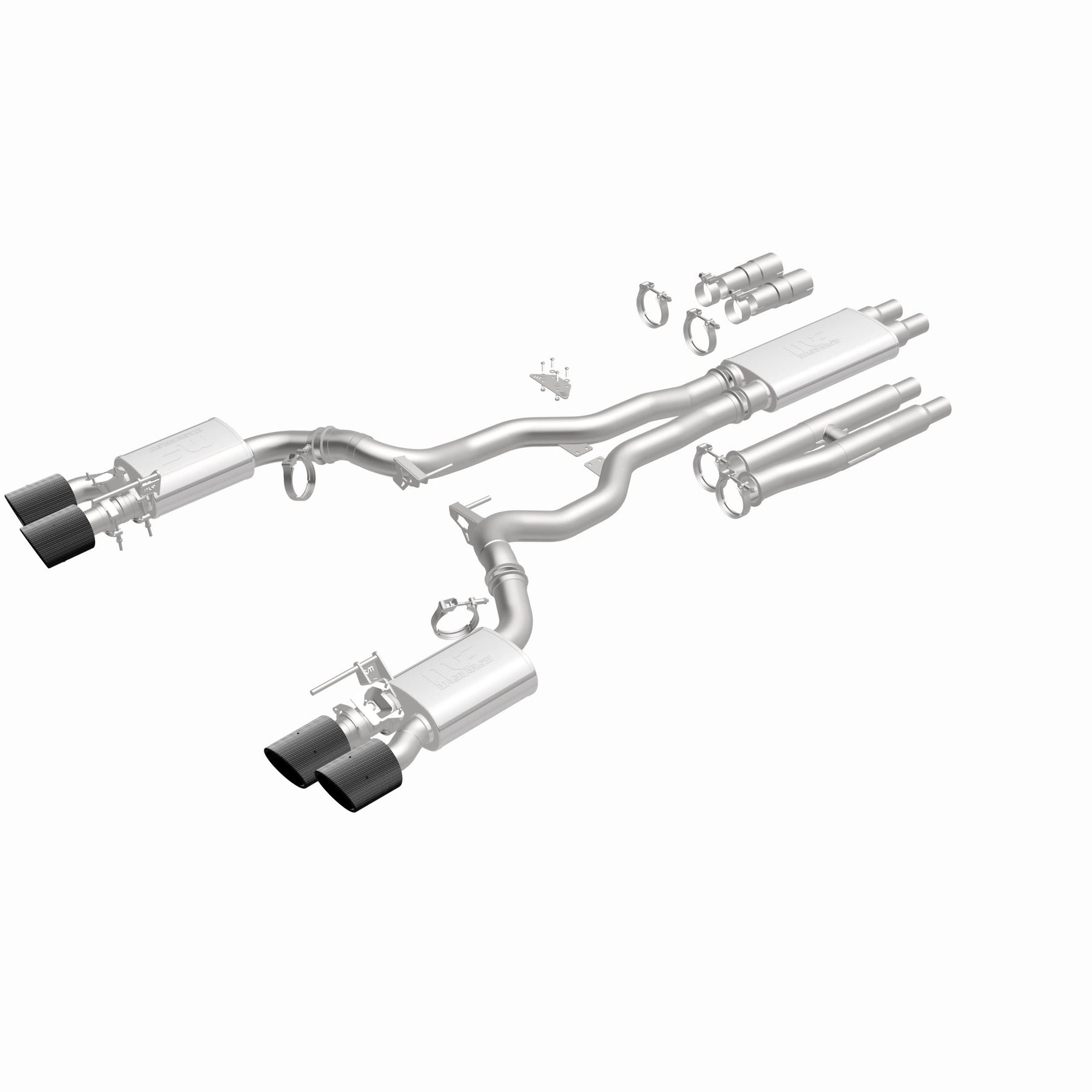

MagnaFlow Exhaust Products 19695 Exhaust System Kit
Product Availability Request
Fill the form and our team will contact you.
Magnaflow xMOD Series Carbon Fiber Tips Cat-Back System
Configure your Mustang Dark Horse for the sound you want, when you want it! MagnaFlow's premium performance exhaust offering, the xMOD Series, provides an unrivaled exhaust experience! The revolutionary MagnaFlow Ford Mustang xMOD Series Cat-Back Performance Exhaust System 19695 offers a completely modular exhaust system with all the benefits a MagnaFlow premium exhaust is known for: lifetime warrantied stainless-steel construction, dyno-proven performance mufflers and fast-flowing mandrel bent pipes. xMOD Muffler Modules for the Mustang offer MagnaFlow's proven straight-through Tru-H core design, and now feature race bred v-band clamps for quick installation and removal. Easily switch from the deep, aggressive signature MagnaFlow exhaust note to the wild straight-pipe race car sound offered by the xMOD xTreme Delete Tru-H. xMOD xTreme Delete Tru-H for the Mustang comes equipped with the same race bred v-bands which allow removal of the Tru-H core muffler modules for that unmatched xMOD xTreme sound experience. PLEASE NOTE: While xMOD systems are 100% emissions legal, the use of xTreme Deletes combined with xTreme Bypass is recommended for track use only. Check local noise regulations for street legality. In addition to the xMOD variable sound and flow modules, this system incorporates MagnaFlowβs latest exhaust tuning advancement called No Drone Technology (NDT). MagnaFlowβs NDT, along with careful muffler design and placement, removes unwanted drone that can occur when creating a maximum performance, high flow exhaust system. xMOD systems retain the original equipment exhaust valve functionality.
Features
- Configurable sound from mild to wild
- No-Drone-Technology allows for a quiet cabin
- xTreme Delete Modules for a straight-pipe setup
Specifications
| Clamps Included | Yes |
| Exhaust Tip Connection | Welded-On |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Diameter | 4.5 IN |
| Exhaust Tip Edge | Folded Edge |
| Exhaust Tip Finish | Carbon Fiber |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 6.75 IN |
| Exhaust Tip Material | Carbon Fiber |
| Exhaust Tip Quantity | 4 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Quad Split Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Main Piping Diameter | 3 IN |
| Mounting Bracket Included | Yes |
| Muffler (Front) Body Height | 4 IN |
| Muffler (Front) Body Length | 11 IN |
| Muffler (Front) Body Width | 9 IN |
| Muffler (Rear) Body Height | 5 IN |
| Muffler (Rear) Body Length | 11 IN |
| Muffler (Rear) Body Width | 8 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Finish | Brushed |
| Muffler Quantity | 3 |
| Type | Cat-Back |
| Valve Included | Yes |
| Valve Type | Passive |
| Series | xMOD |
| Prop 65 Y/N | No |
| Pipe Material | Stainless Steel |
| Muffler Type | Straight-Through |
| Catalytic Converter Included | No |
| Clamping Type | V Band |
Note: Need further assistance? Call 1-800-990-0905.
Short Description: Cat-Back
Invoice Description: Exhaust System
Definition: Exhaust System Kit
Installation Guide: Download PDF
Specifications
MagnaFlow 19695 β Exhaust System Kit, fits 2024-2026 Ford Mustang. Key specs: 3 in. main piping diameter, xmod series.
Warranty: Limited Lifetime Warranty from MagnaFlow
Also known as: UPC 888563206424
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2024-2025 | Ford | Mustang | Dark Horse Premium | 5.0L V8 |
| 2024-2026 | Ford | Mustang | Dark Horse | 5.0L V8 |
2 applications listed.
