Mahle Motorsport 197779155 - Piston (set) - SMALL BLOCK CHEVY 21 Deg FLAT TOP

Name: Mahle Motorsport 197779155 - Piston (set) - SMALL BLOCK CHEVY 21 Deg FLAT TOP
Brand: Mahle Motorsport
SKU: 197779155
Price: 1028.34 USD
Availability: InStock

$1,028.34 USD

Check Availability

Check availability, to reach.

Free shipping over $80 To the USA

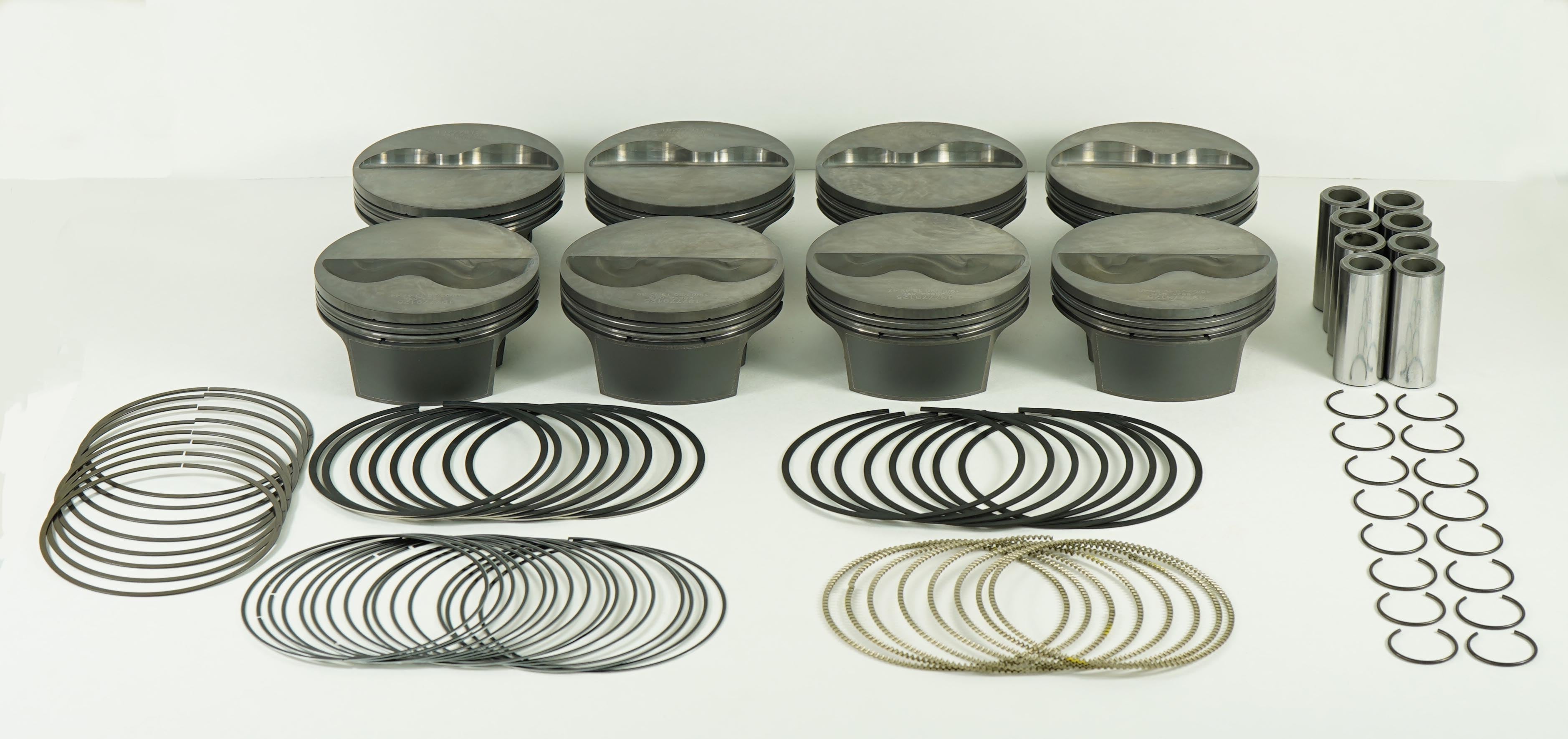

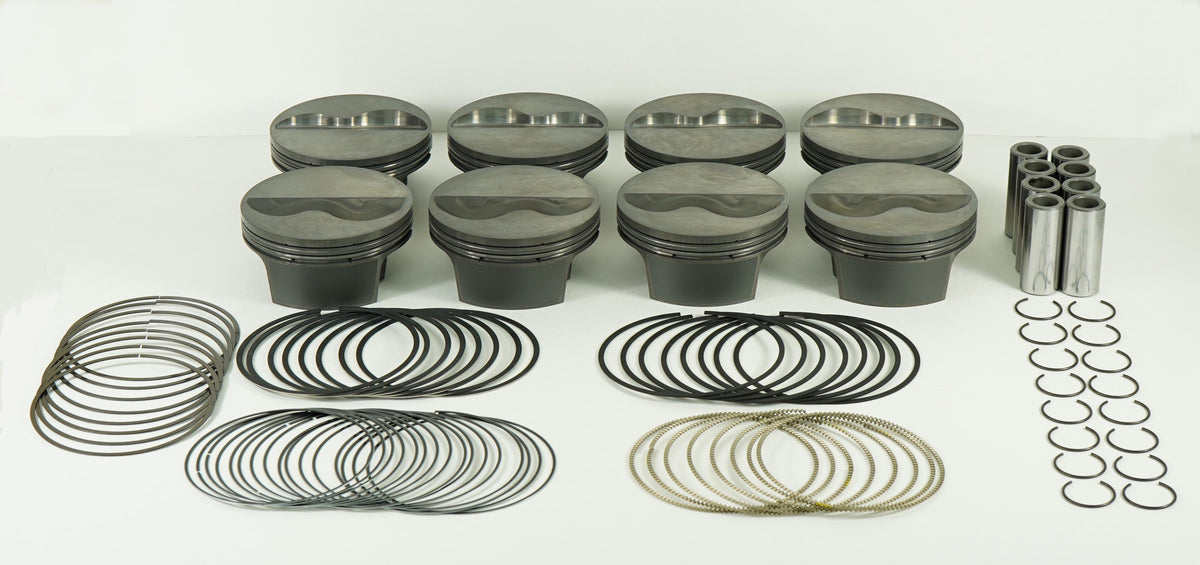

Piston replacement for high-performance engine builds is handled by the Mahle Motorsport piston set, part number 197779155. This set covers a 393cid application with a 4.155 inch bore diameter, a 1.062 RCH, a 3.625 inch stroke, a 6.125 inch rod length, and a compression ratio of 13.1:1. Each forged 2618 aluminum flattop piston features two valve reliefs, a -8.9cc crown volume, and a piston mass of 414g, and the set is sold in a quantity of 8 with pins, rings, and clips included.

Piston Material: Forged 2618 aluminum
Piston Style: Flattop with 2 valve reliefs
Piston Mass: 414g
Crown Volume: -8.9cc
Compression Ratio: 13.1:1
Bore: 4.155 in
Stroke: 3.625 in
Rod Length: 6.125 in
Pin Style: Floating
Pin Material: Steel
Pin Diameter: 23.55mm
Pin Length: 58.1mm
Pin Wall Thickness: 0.168
Pin Mass: 118g
Clip Style: Round Wire
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
UCR Thickness: 1.0mm | Material: 9254 Steel | Coating: HV385
LCR Thickness: 1.0mm | Material: 9254 Steel | Coating: Phosphate
OCR Thickness: 2.0mm | Material: Chrome plated stainless steel | Tension: Standard
File Fit: Yes
Pins Included: Yes
Rings Included: Yes
Clips Included: Yes
Package Quantity: Set of 8

Weight: 14 lb

Country of Origin: United States

California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.

Sold by Specification. This is an engine build part, chosen by its measurements rather than by year, make and model. Match the specifications to your build. If you are unsure, check with your mechanic or dealership. Making sure it fits is the customer's responsibility.

A vehicle fitment list isn’t available for this part.

Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
