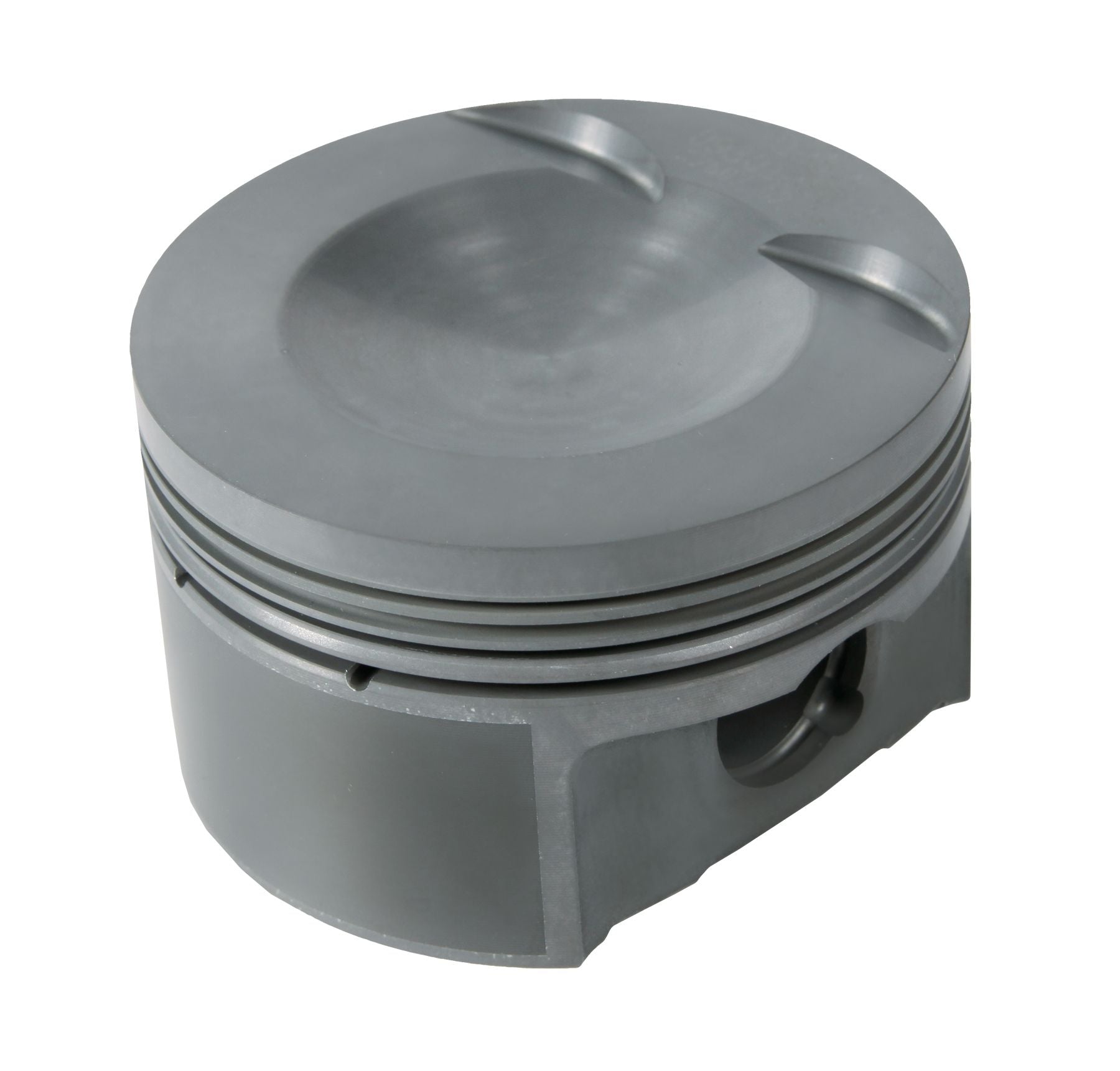

Mahle Motorsport 197800168T - Piston (set) - VOLKSWAGEN TFSi EA113 (2006-2009) 2.0L TURBO

Contact Us for Availability
Regular price $869.46 USD
Need help confirming fitment?
Ships in 2 - 5 business days
Easy return process
Please verify fitment first. Select your vehicle in the Verify Fitment widget and confirm that this part fits your car before adding it to cart.
Product details
  • Vendor Mahle Motorsport
  • SKU 197800168T
  • Barcode NA

Do you have questions about this product?

Ask an expert!

83.00mm x 29.6mm CH, 92.8mm stroke,144mm rod,20mm pin,-11.1cc,318g,9.3CR, M142P, TBC coated

Specifications

Crown Volume -11.1cc
Pin Wall Thickness 0.197
LCR Thickness 1.2mm
UCR Thickness 1.2mm
Piston Ring Thickness 1.2mm, 1.2mm, 2.8mm
Pin Mass 106g
OCR Thickness 2.8mm
Pin Diameter 20.0mm
Piston Mass 318g
Pin Length 59.0mm
LCR Material Cast Iron
OCR Material Chrome plated stainless steel
Piston Style Dish, w/ 2 valve reliefs
Pin Style Floating
Piston Material Forged, M142P
UCR Coating Gas Nitrided
Title Mahle Motorsport Piston (set) - 197800168T
File Fit N
LCR Coating Phosphate
Clip Style Round Wire
Package Quantity Sold as a set of 4
UCR Material Stainless Steel
OCR Tension Standard
Pin Material Steel
Clips Included Y
Pins Included Y
Rings Included Y
