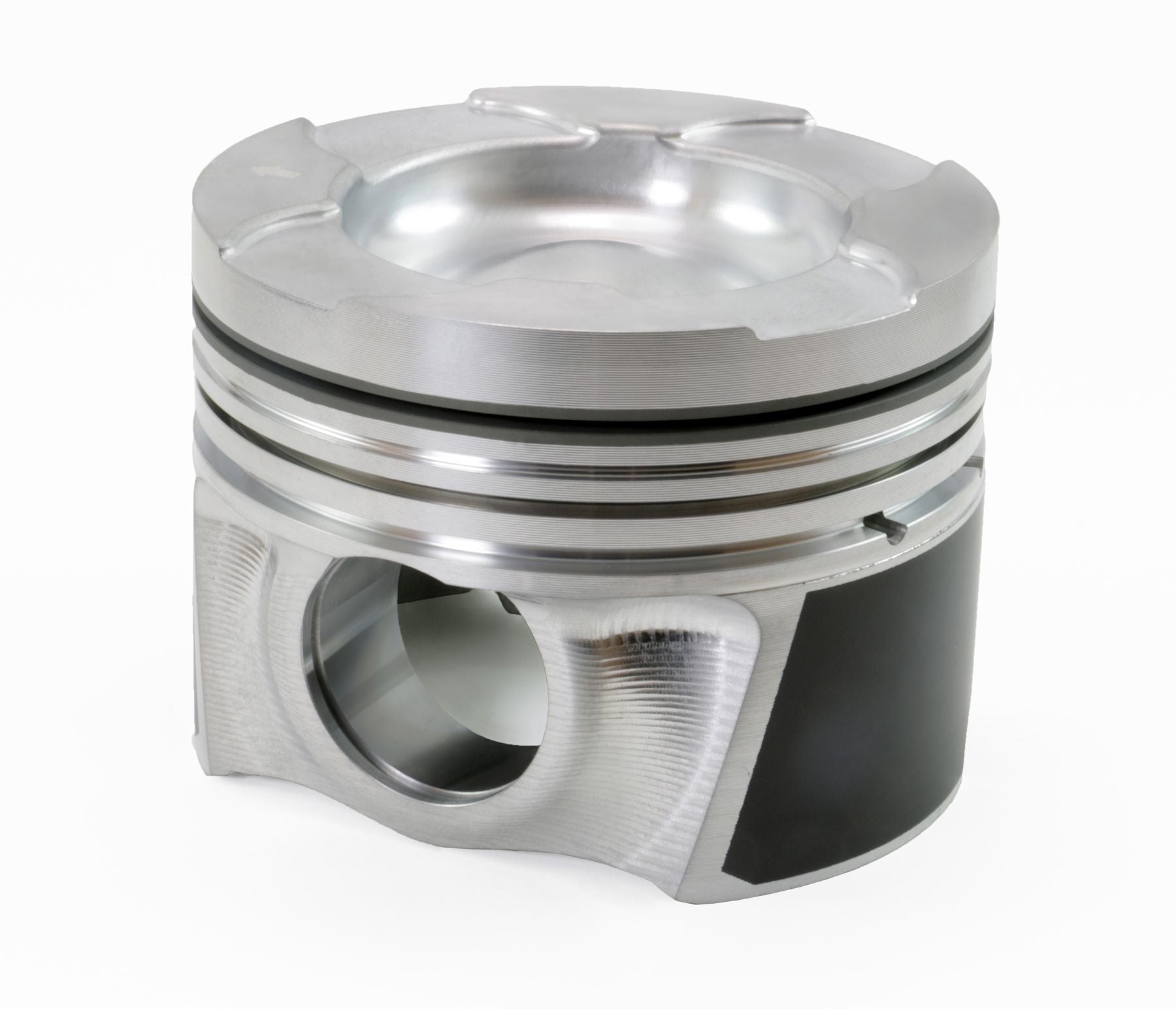

Mahle Motorsport 930036255-1 - Piston (ea) - GM 6.6L Duramax Forged Aluminum Race Pistons

Contact Us for Availability
Regular price $286.50 USD
Need help confirming fitment?
Ships in 2 - 5 business days
Easy return process
Please verify fitment first. Select your vehicle in the Verify Fitment widget and confirm that this part fits your car before adding it to cart.
Product details
  • Vendor Mahle Motorsport
  • SKU 930036255-1
  • Barcode NA

Do you have questions about this product?

Ask an expert!

403cid 4.055 x 1.951CH, 3.898stroke,6.417rod,1.358pin,-41.8cc,774g,16.3CR, M124P, SINGLE PISTON

Specifications

Crown Volume -41.8cc
Pin Wall Thickness 0.325
UCR Thickness 1/16
Piston Ring Thickness 1/16, 2.0mm, 3.0mm
LCR Thickness 2.0mm
OCR Thickness 3.0mm
Pin Diameter 34.5mm
Pin Mass 410g
Pin Length 77.5mm
Piston Mass 774g
LCR Material Cast Iron
LCR Coating Chrome
UCR Coating CrN PVD
Piston Style Dish, w/ 4 valve reliefs
Pin Style Floating
Piston Material Forged, M124P
OCR Material Gas Nitrided stainless steel
Title Mahle Motorsport Piston (each) - 930036255-1
Clips Included N
Pins Included N
Rings Included N
Clip Style Snap Ring
Package Quantity Sold as a set of 1
UCR Material Stainless Steel
OCR Tension Standard
Pin Material Steel
File Fit Y
