Mahle Motorsport 930200630 - Piston (set) - SMALL BLOCK CHEVY FLAT TOP

Name: Mahle Motorsport 930200630 - Piston (set) - SMALL BLOCK CHEVY FLAT TOP
Brand: Mahle Motorsport
SKU: 930200630
Price: 712.99 USD
Availability: InStock

$712.99 USD

In Stock - Fast Shipping

Free shipping over $80 To the USA

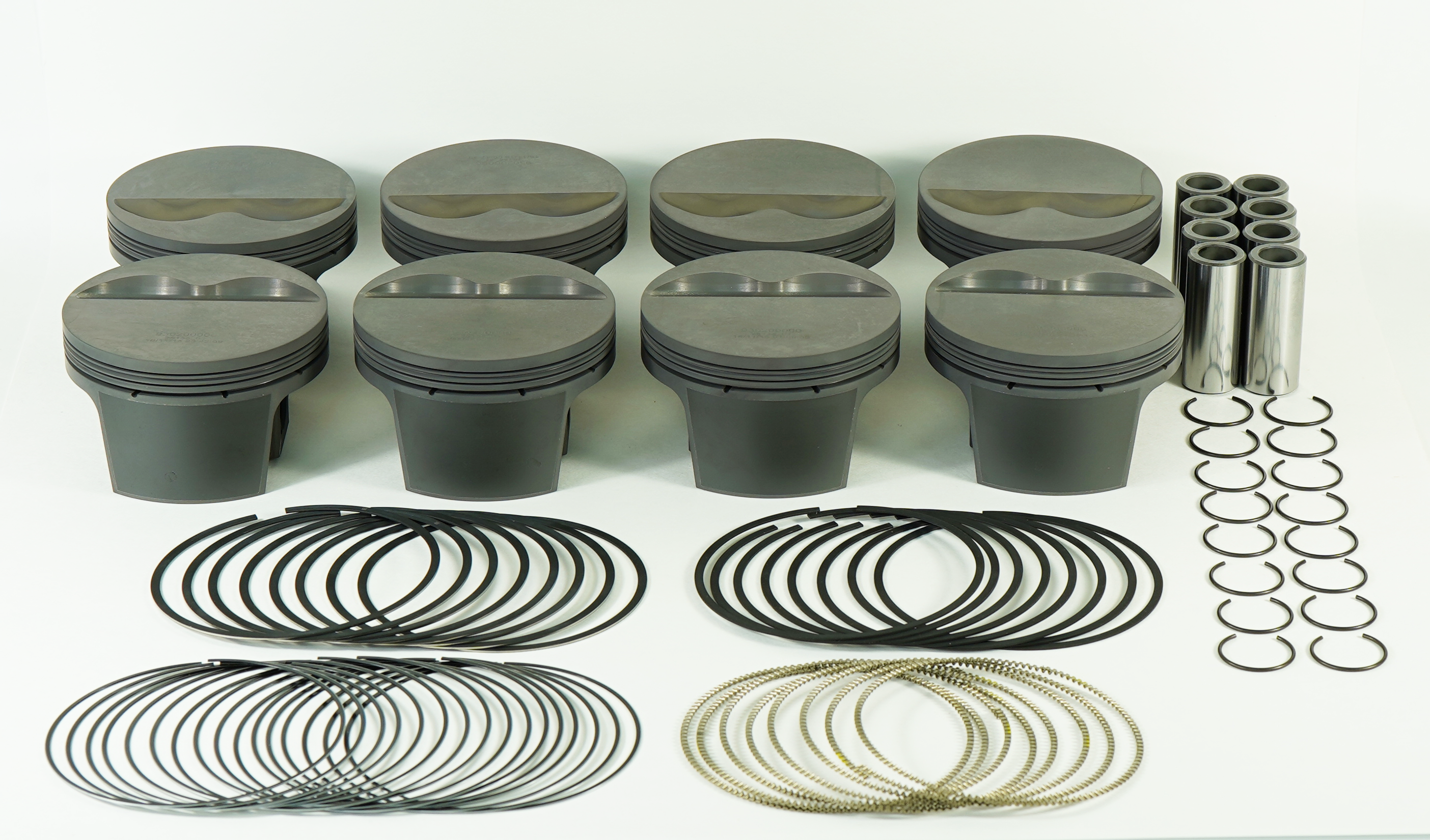

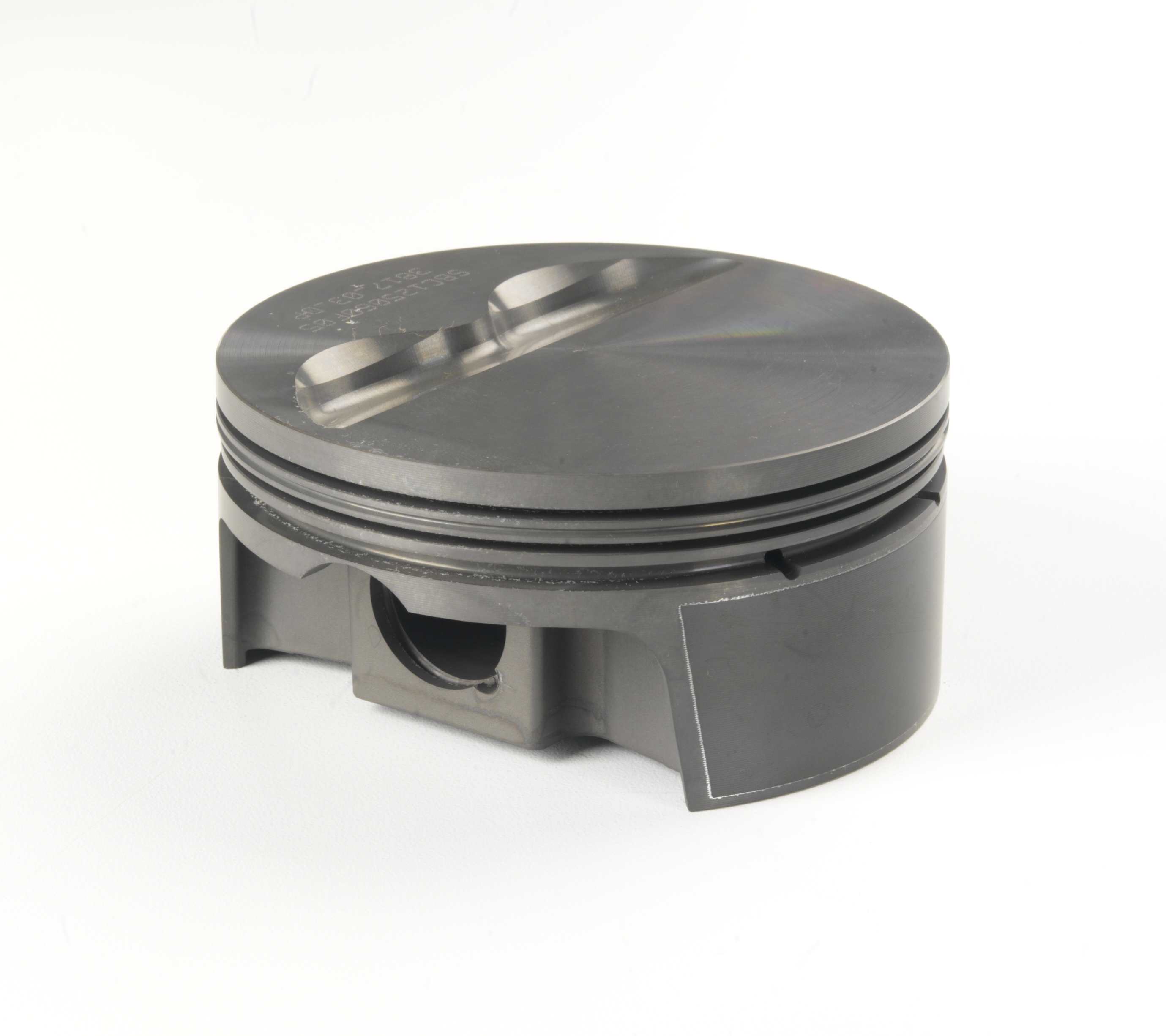

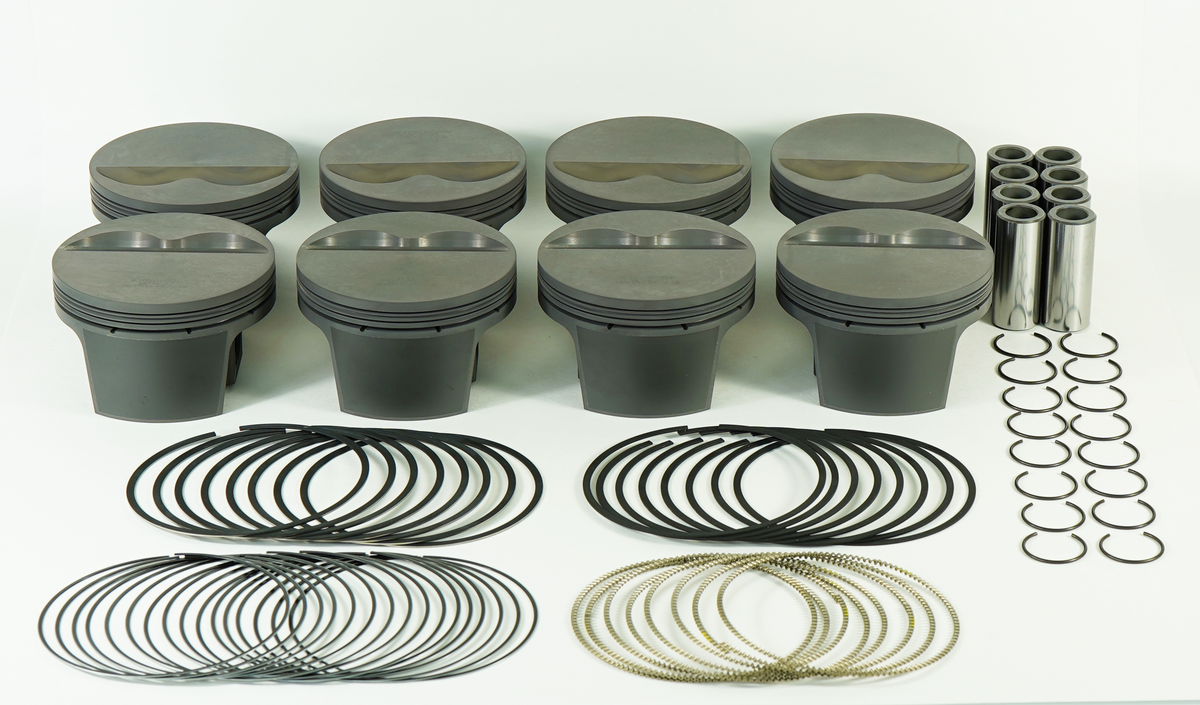

Replacing worn flat-top pistons in a 355cid build calls for a forged solution, and Mahle Motorsport part number 930200630 delivers exactly that. Each piston is forged from 4032 aluminum, measures 4.030 inches in bore diameter with a compression height of 1.125 inches, and carries a -5.0cc crown volume for a 10.4 compression ratio. Designed for use with a 3.480/3.500-inch stroke and a 6.125-inch rod, the flat-top piston features 2 valve reliefs and weighs 420g. Rings, pins, and clips are all included, and the set is sold in a quantity of 8.

Piston Style: Flat-top with 2 valve reliefs
Piston Material: Forged 4032 aluminum
Piston Mass: 420g
Crown Volume: -5.0cc
Compression Ratio: 10.4
Bore Diameter: 4.030 in
Compression Height: 1.125 in
Stroke Compatibility: 3.480/3.500 in
Rod Length Compatibility: 6.125 in
Pin Diameter: 23.55mm
Pin Length: 58.1mm
Pin Wall Thickness: 0.168
Pin Material: Steel
Pin Style: Floating
Pin Mass: 118g
Clip Style: Round Wire
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
UCR Thickness: 1.0mm | Material: 9254 Steel | Coating: HV385
LCR Thickness: 1.0mm | Material: 9254 Steel | Coating: Phosphate
OCR Thickness: 2.0mm | Material: Chrome plated stainless steel | Tension: Standard
File Fit: Yes
Rings Included: Yes
Pins Included: Yes
Clips Included: Yes
Package Quantity: Set of 8

Country of Origin: United States

California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.

Sold by Specification. This is an engine build part, chosen by its measurements rather than by year, make and model. Match the specifications to your build. If you are unsure, check with your mechanic or dealership. Making sure it fits is the customer's responsibility.

A vehicle fitment list isn’t available for this part.

Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
