Mahle Motorsport 930200640 - Piston (set) - SMALL BLOCK CHEVY FLAT TOP

Name: Mahle Motorsport 930200640 - Piston (set) - SMALL BLOCK CHEVY FLAT TOP
Brand: Mahle Motorsport
SKU: 930200640
Price: 776.57 USD
Availability: InStock

$776.57 USD

In Stock - Fast Shipping

Free shipping over $80 To the USA

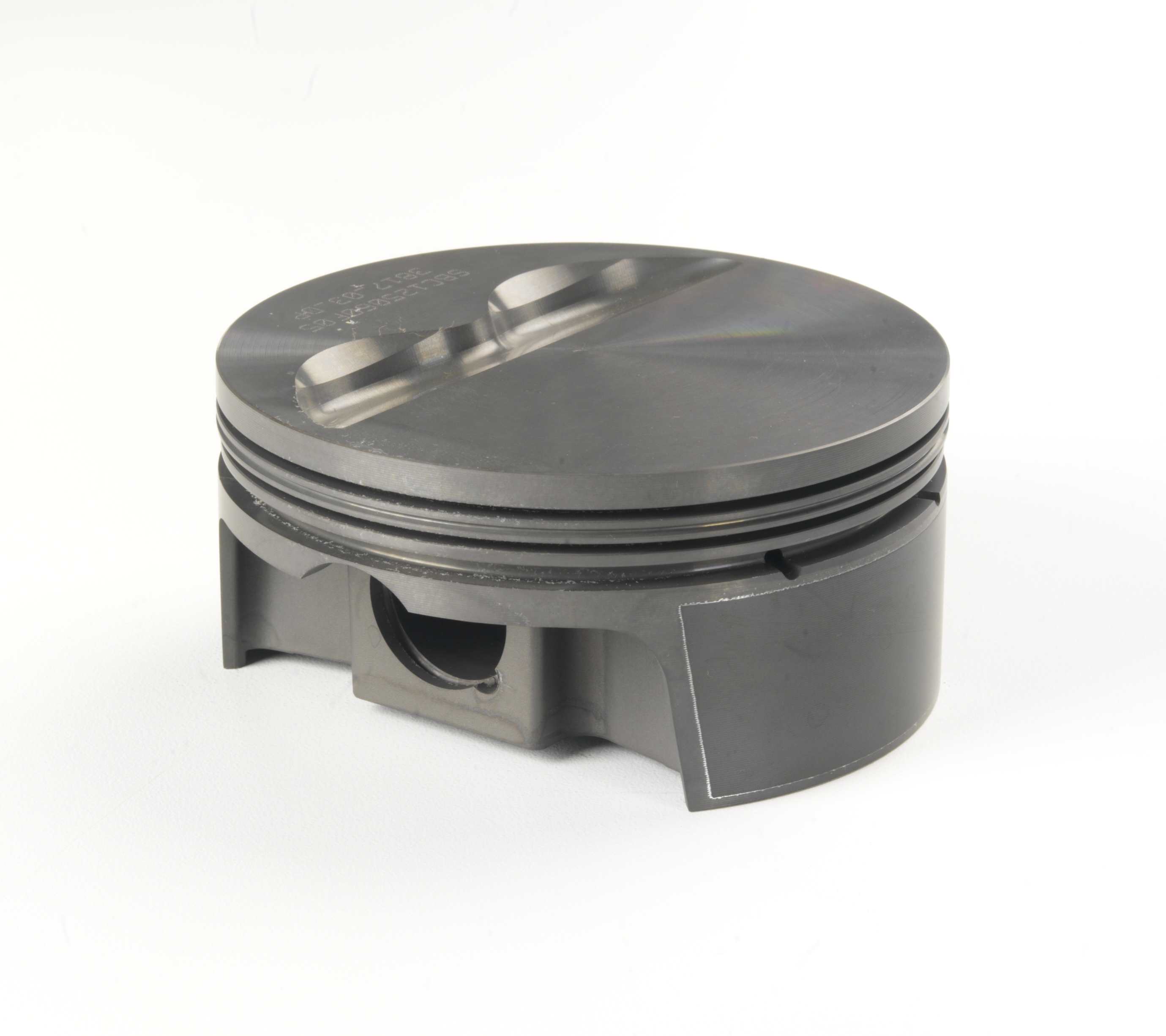

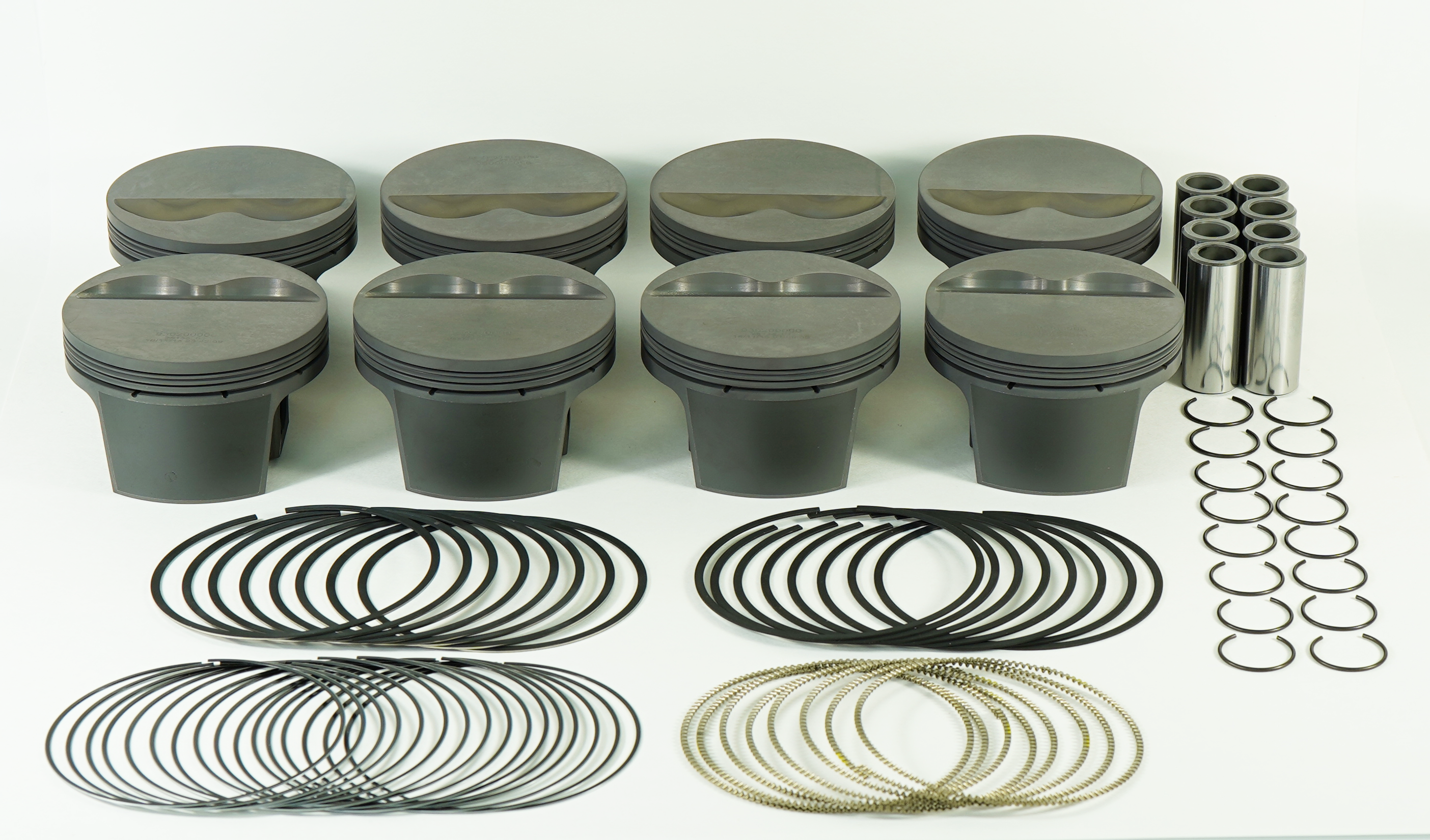

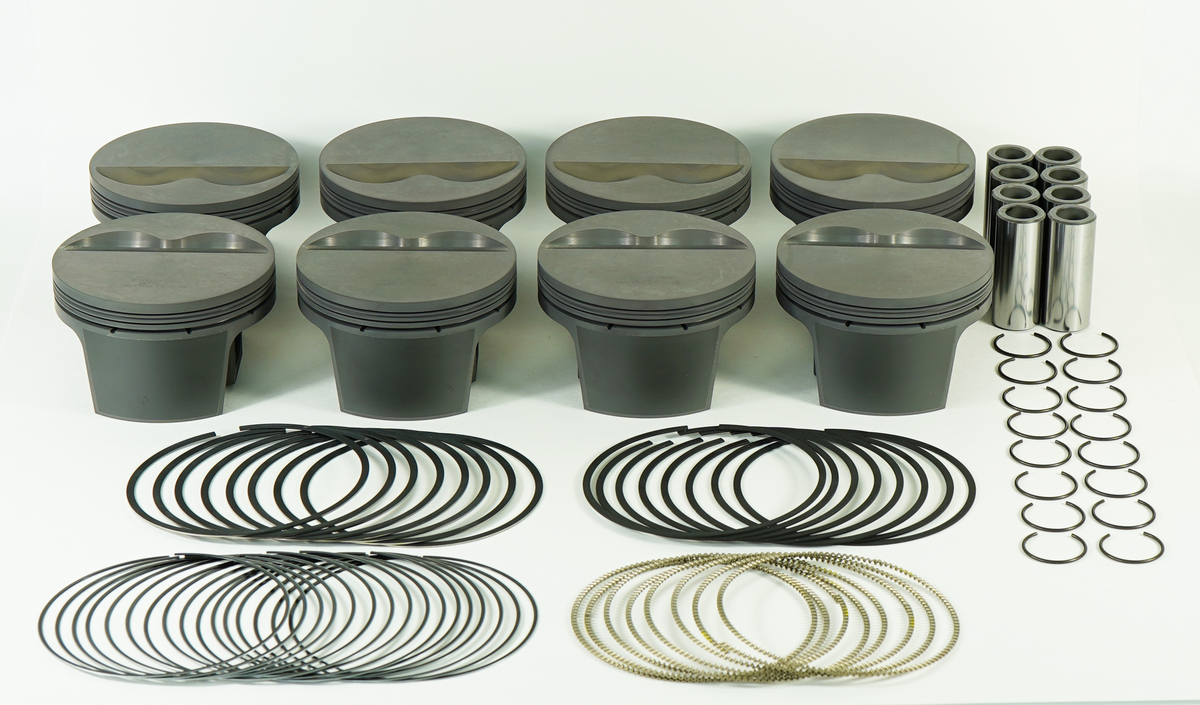

Designed for a 357 cid engine build, this forged flat-top piston set handles a 4.040-inch bore with a 1.125-inch compression height, a 3.480/3.500-inch stroke, a 6.125-inch rod, and a 0.927-inch pin, producing a 10.4 compression ratio. Mahle Motorsport part 930200640 is constructed from 4032 forged aluminum and weighs 423g per piston, featuring a -5.0cc crown volume and 2 valve reliefs. The set of 8 ships complete with floating steel pins, round wire clips, and a three-piece ring package.

Piston Material: Forged 4032 aluminum
Piston Style: Flat-top with 2 valve reliefs
Piston Mass: 423g
Crown Volume: -5.0cc
Compression Ratio: 10.4
Bore: 4.040 in
Compression Height: 1.125 in
Stroke: 3.480/3.500 in
Rod Length: 6.125 in
Pin Diameter: 23.55mm
Pin Length: 58.1mm
Pin Wall Thickness: 0.168
Pin Style: Floating
Pin Material: Steel
Pin Mass: 118g
Clip Style: Round Wire
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
UCR Thickness: 1.0mm | Material: 9254 Steel | Coating: HV385
LCR Thickness: 1.0mm | Material: 9254 Steel | Coating: Phosphate
OCR Thickness: 2.0mm | Material: Chrome-plated stainless steel | Tension: Standard
File Fit: Yes
Pins Included: Yes
Clips Included: Yes
Rings Included: Yes
Package Quantity: Sold as a set of 8

Country of Origin: United States

California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.

Sold by Specification. This is an engine build part, chosen by its measurements rather than by year, make and model. Match the specifications to your build. If you are unsure, check with your mechanic or dealership. Making sure it fits is the customer's responsibility.

A vehicle fitment list isn’t available for this part.

Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
