Mahle Motorsport 930200660 - Piston (set) - SMALL BLOCK CHEVY FLAT TOP
Select your vehicle to confirm fit. Add to Cart unlocks once it fits.
Product Availability Request
Fill the form and our team will contact you.

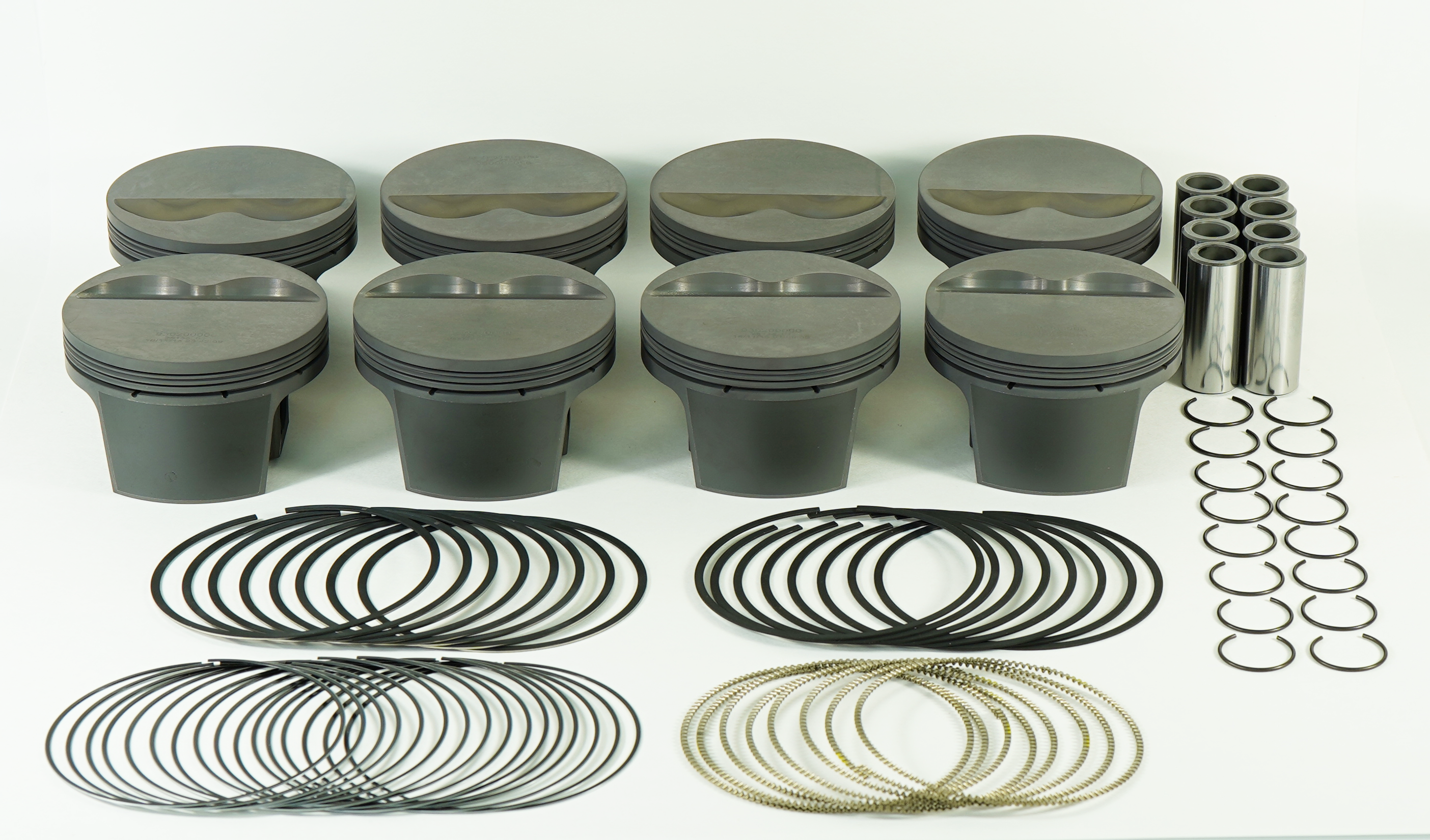

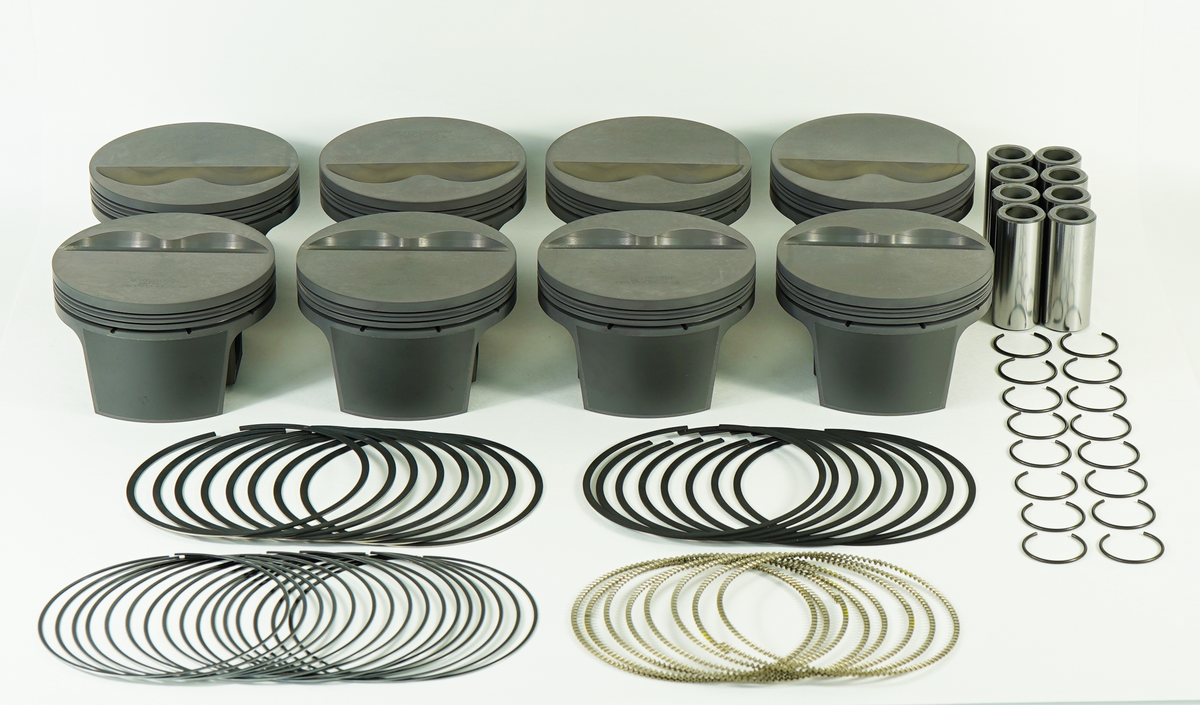

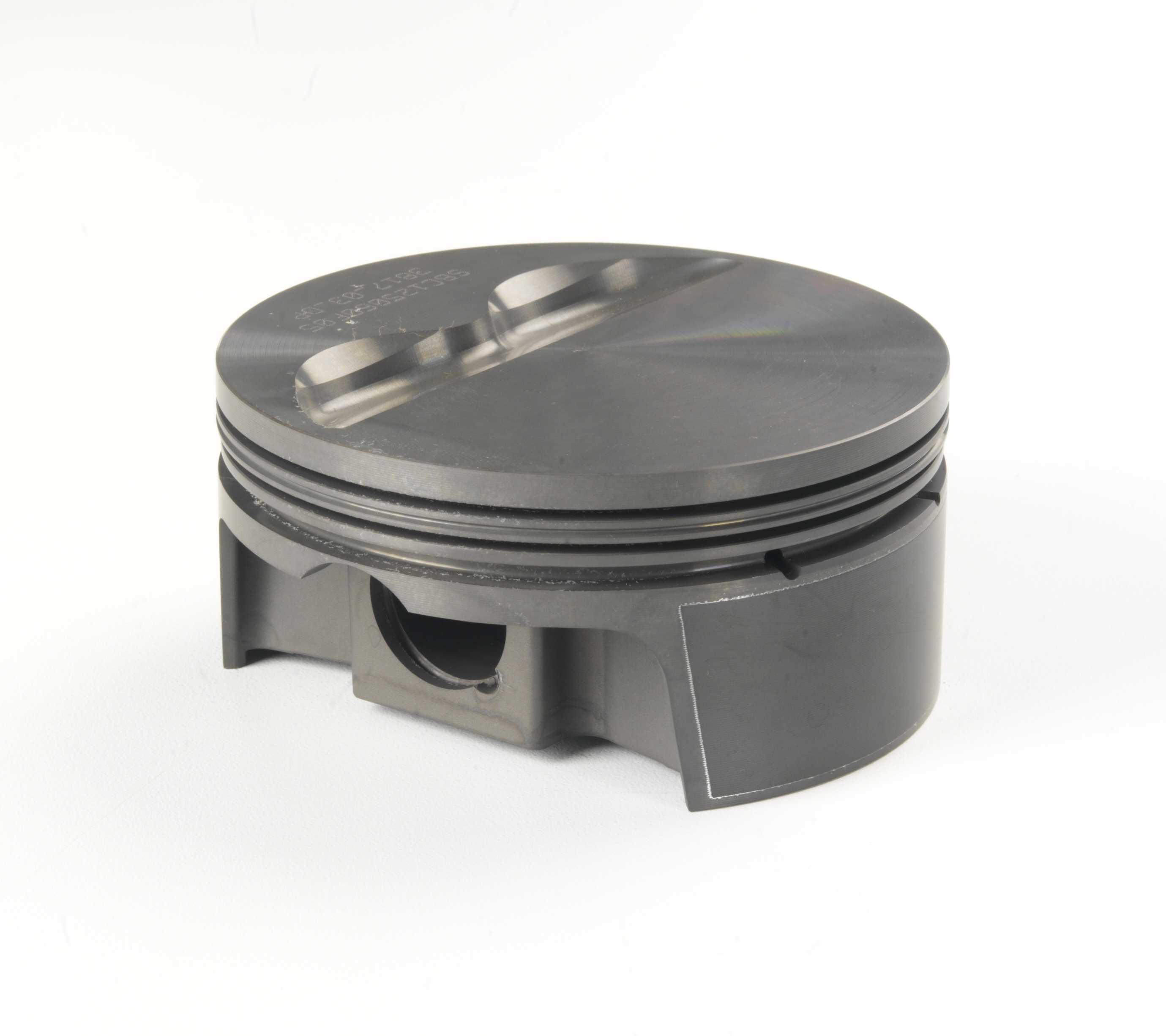

This forged 4032 aluminum piston set from Mahle Motorsport, part number 930200660, delivers a flattop design with 2 valve reliefs and a crown volume of 5.0cc. The set of 8 pistons includes floating steel pins, wire clips, and piston rings, with file fit options available. Each piston weighs 430g and measures 360cid displacement.
The piston rings are 1.0mm, 1.0mm, and 2.0mm in thickness. The floating pins are steel with a diameter of 23.55mm, length of 58.1mm, wall thickness of 0.168, and mass of 118g. Lower and upper compression rings are 9254 steel, 1.0mm thick, with phosphate and HV385 coatings respectively. The oil control ring is chrome plated stainless steel, 2.0mm thick, with standard tension and round wire clips.
- Displacement: 360cid
- Crown Volume: 5.0cc
- Piston Material: Forged 4032
- Piston Mass: 430g
- Piston Style: Flattop with 2 valve reliefs
- Ring Thickness: 1.0mm, 1.0mm, 2.0mm
- Pin Diameter: 23.55mm
- Pin Length: 58.1mm
- Pin Material: Steel
- Pin Mass: 118g
- Pin Style: Floating
- LCR Thickness: 1.0mm
- UCR Thickness: 1.0mm
- OCR Thickness: 2.0mm
- LCR Material: 9254 Steel
- UCR Material: 9254 Steel
- OCR Material: Chrome plated stainless steel
- LCR Coating: Phosphate
- UCR Coating: HV385
- OCR Tension: Standard
- Clip Style: Round Wire
- Clips Included: Yes
- Pins Included: Yes
- Rings Included: Yes
- File Fit: Yes
- Quantity: 8 pistons
Country of Origin: United States
