Mahle Motorsport 930200725 - Piston (set) - SMALL BLOCK CHEVY FLAT TOP

Name: Mahle Motorsport 930200725 - Piston (set) - SMALL BLOCK CHEVY FLAT TOP
Brand: Mahle Motorsport
SKU: 930200725
Price: 718.99 USD
Availability: InStock

$718.99 USD

Out of Stock

This product is currently out of stock. It will be placed on backorder, and shipping can take 2 or more weeks to fulfill your order. and we will notify you as soon as it is back in stock.

Free shipping over $80 To the USA

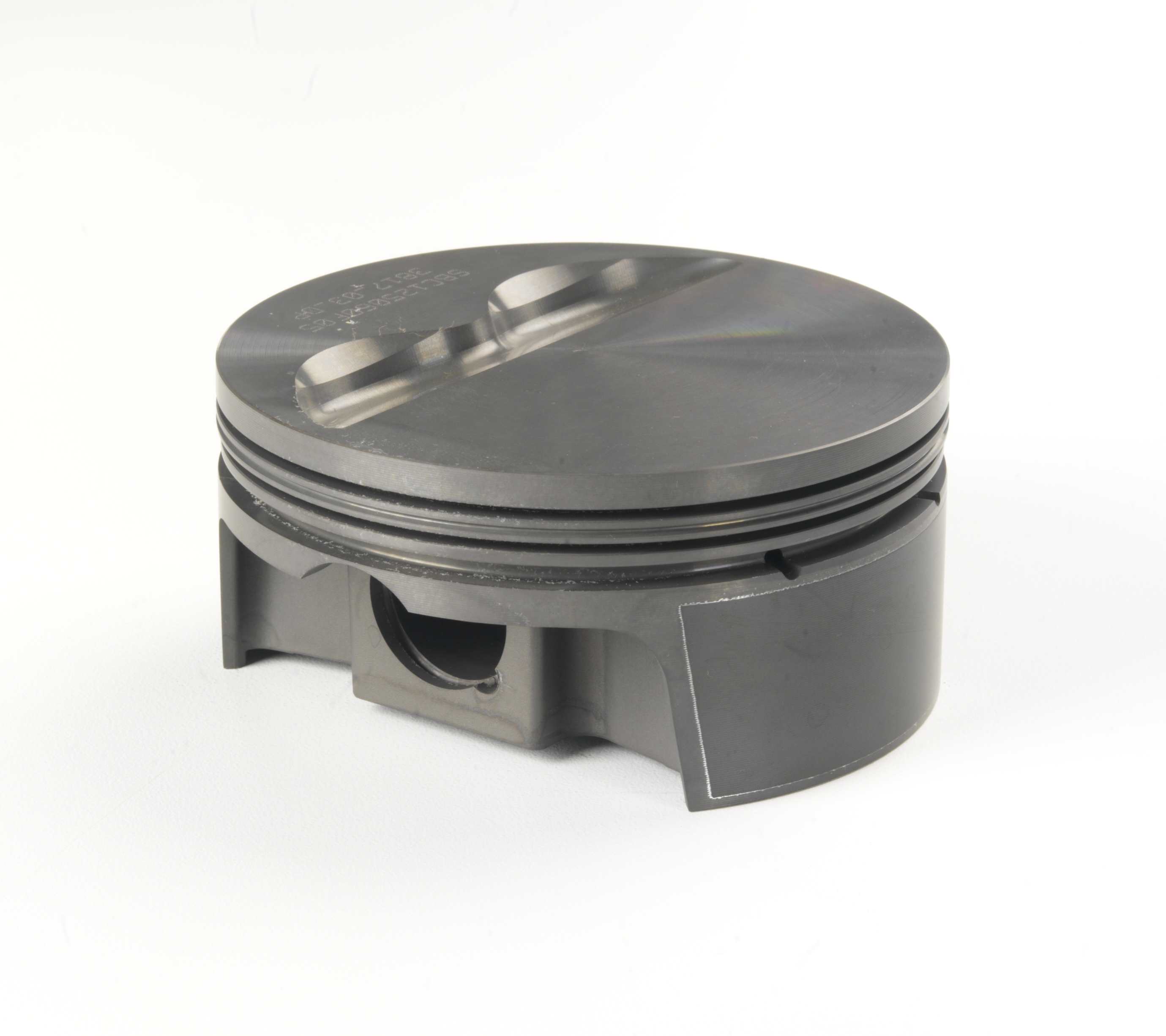

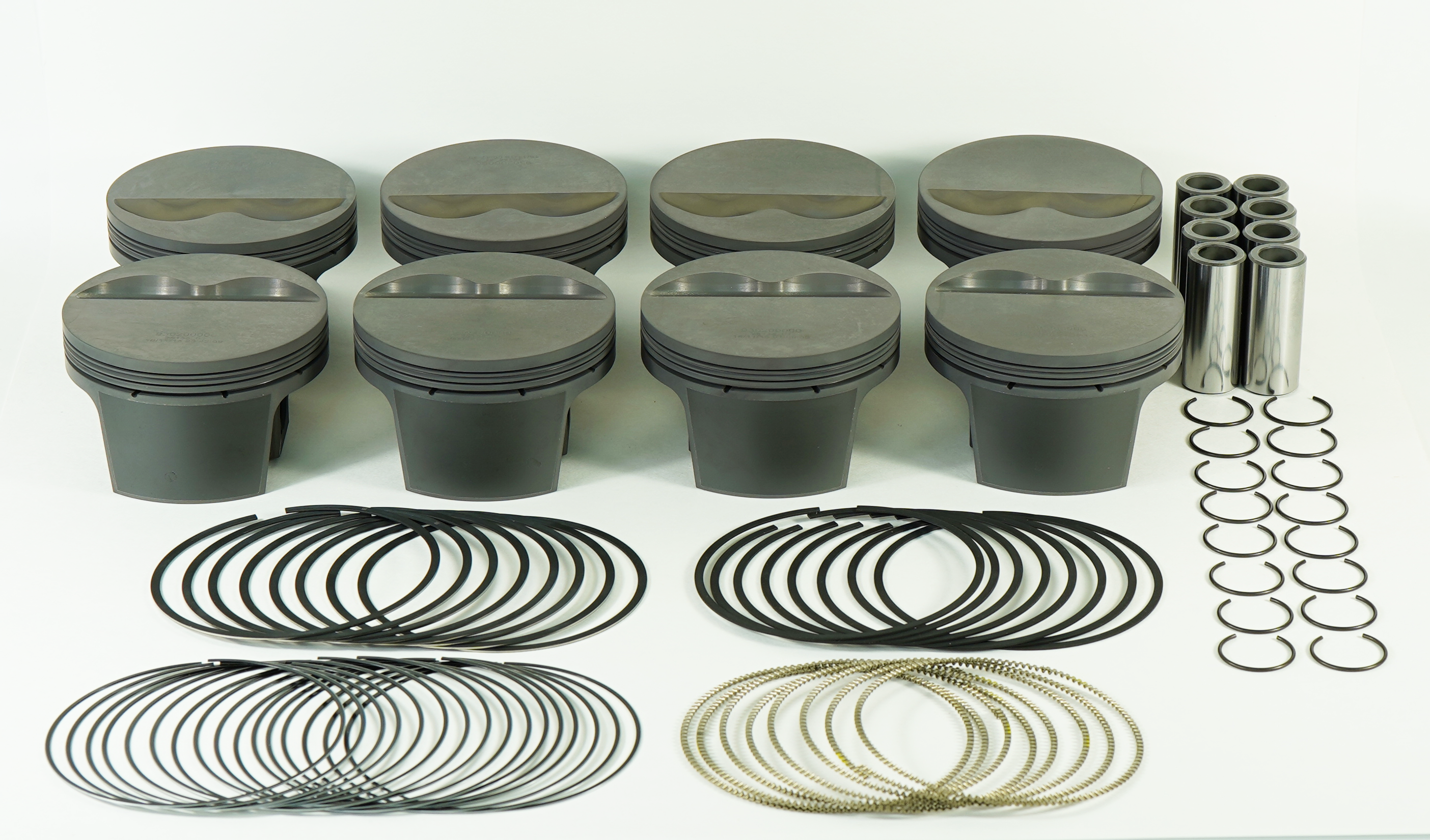

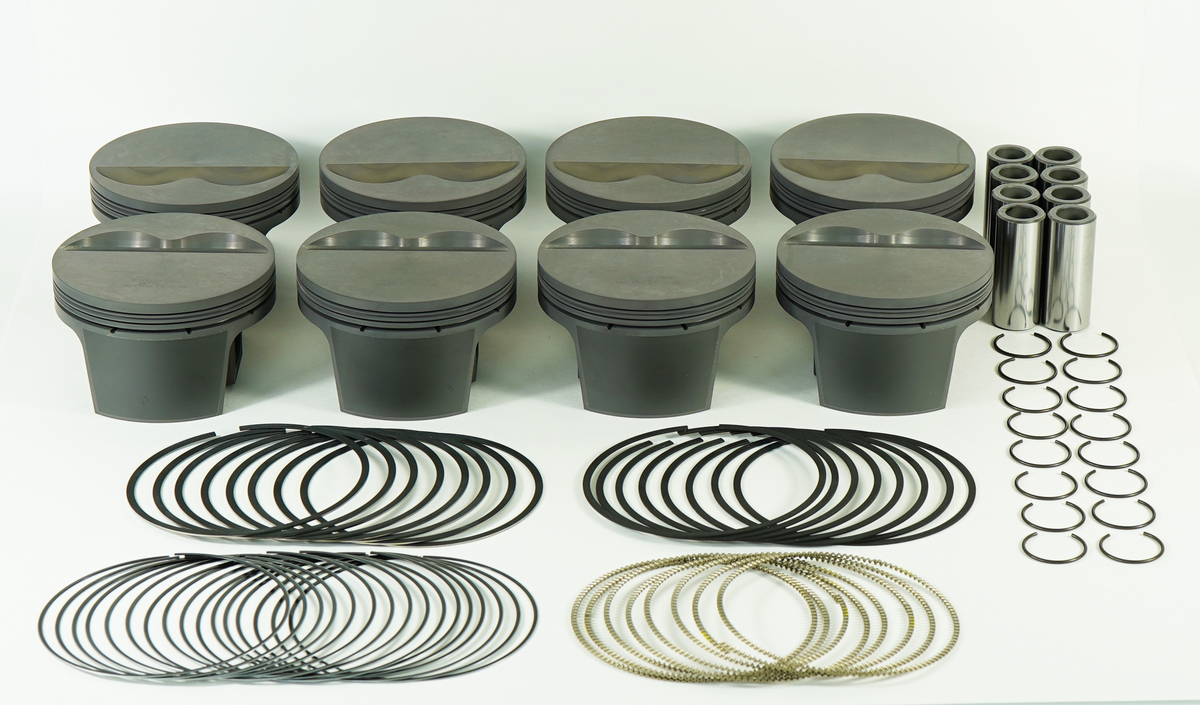

Mahle Motorsport piston 930200725 is a forged 4032 aluminum piston supplied as a set of 8 with a flattop crown featuring 2 valve reliefs. The piston has a crown volume of -5.0cc and weighs 435g. It includes a floating steel pin with a diameter of 23.55mm, length of 58.1mm, wall thickness of 0.168, and mass of 118g. The piston rings are included and consist of upper and lower compression rings at 1.0mm thickness each, plus an oil control ring at 2.0mm thickness.

Displacement: 372cid
Crown Volume: -5.0cc
Piston Mass: 435g
Piston Material: Forged 4032
Piston Style: Flattop with 2 valve reliefs
Pin Diameter: 23.55mm
Pin Length: 58.1mm
Pin Mass: 118g
Pin Material: Steel
Pin Wall Thickness: 0.168
Pin Style: Floating
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
UCR Coating: HV385
OCR Thickness: 2.0mm
OCR Material: Chrome plated stainless steel
OCR Tension: Standard
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Clip Style: Round Wire
Rings Included: Yes
Pins Included: Yes
Clips Included: Yes
File Fit: Yes
Package Quantity: Set of 8

Country of Origin: United States

California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.

Sold by Specification. This is an engine build part, chosen by its measurements rather than by year, make and model. Match the specifications to your build. If you are unsure, check with your mechanic or dealership. Making sure it fits is the customer's responsibility.

A vehicle fitment list isn’t available for this part.

Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
