Mahle Motorsport 930200755 - Piston (set) - SMALL BLOCK CHEVY FLAT TOP

Name: Mahle Motorsport 930200755 - Piston (set) - SMALL BLOCK CHEVY FLAT TOP
Brand: Mahle Motorsport
SKU: 930200755
Price: 718.99 USD
Availability: InStock

$718.99 USD

Out of Stock

This product is currently out of stock. It will be placed on backorder, and shipping can take 2 or more weeks to fulfill your order. and we will notify you as soon as it is back in stock.

Free shipping over $80 To the USA

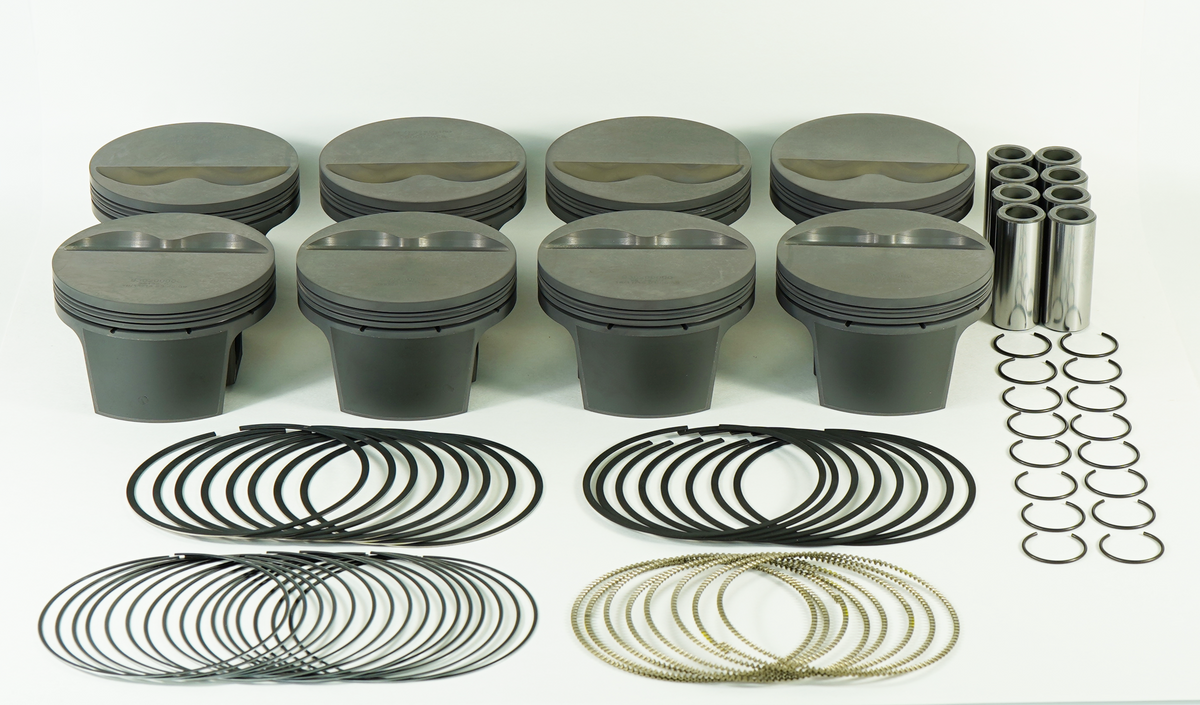

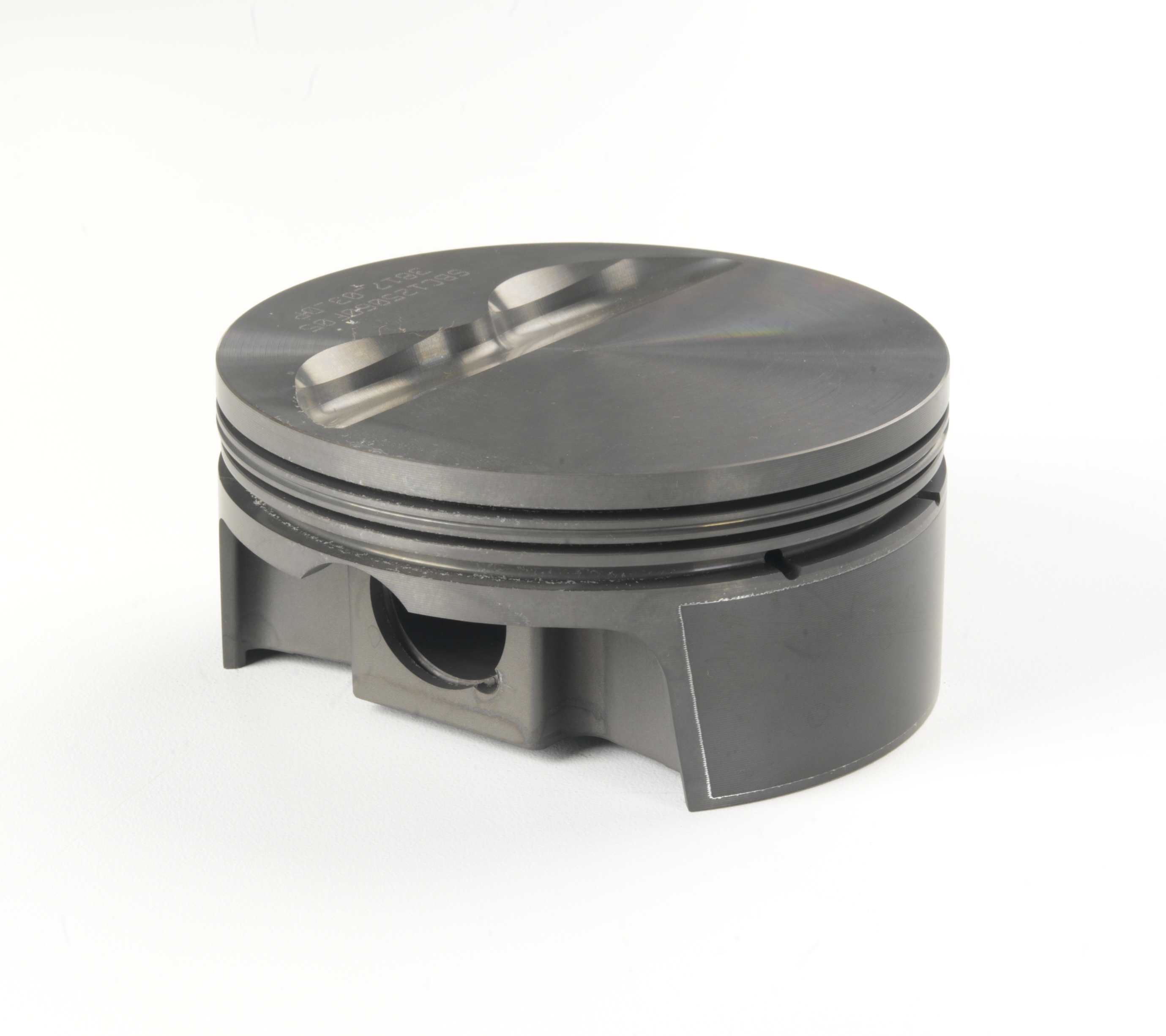

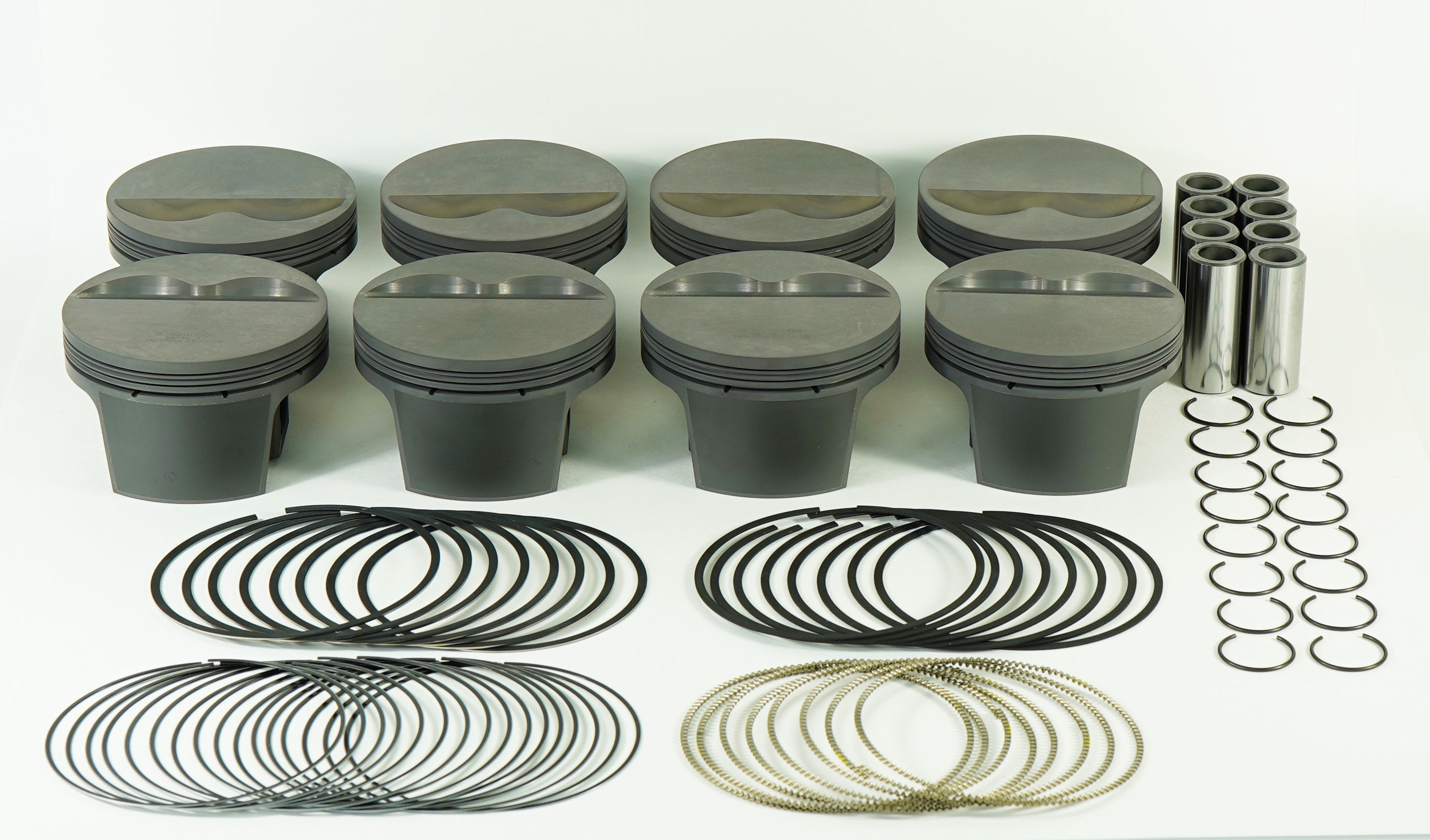

Designed for a 377cid build with a 4.155 bore and 3.480/3.500 stroke, these forged 4032 aluminum pistons from Mahle Motorsport (part number 930200755) use a flattop style with 2 valve reliefs and a -5.0cc crown volume to deliver a 10.9 compression ratio. Each piston weighs 446g, carries a 1.125 compression height, and is paired with a 6.125 rod and a 0.927 floating steel pin. Clips, pins, and rings are included; the set is file-fit and sold as a set of 8.

Piston Material: Forged, 4032
Piston Style: Flattop, w/ 2 valve reliefs
Piston Mass: 446g
Crown Volume: -5.0cc
Compression Ratio: 10.9
Pin Diameter: 23.55mm
Pin Length: 58.1mm
Pin Wall Thickness: 0.168
Pin Mass: 118g
Pin Style: Floating
Pin Material: Steel
Clip Style: Round Wire
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
UCR Thickness: 1.0mm | Material: 9254 Steel | Coating: HV385
LCR Thickness: 1.0mm | Material: 9254 Steel | Coating: Phosphate
OCR Thickness: 2.0mm | Material: Chrome plated stainless steel | Tension: Standard
Clips Included: Yes
Pins Included: Yes
Rings Included: Yes
File Fit: Yes
Package Quantity: Set of 8

Country of Origin: United States

California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.

Sold by Specification. This is an engine build part, chosen by its measurements rather than by year, make and model. Match the specifications to your build. If you are unsure, check with your mechanic or dealership. Making sure it fits is the customer's responsibility.

A vehicle fitment list isn’t available for this part.

Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
