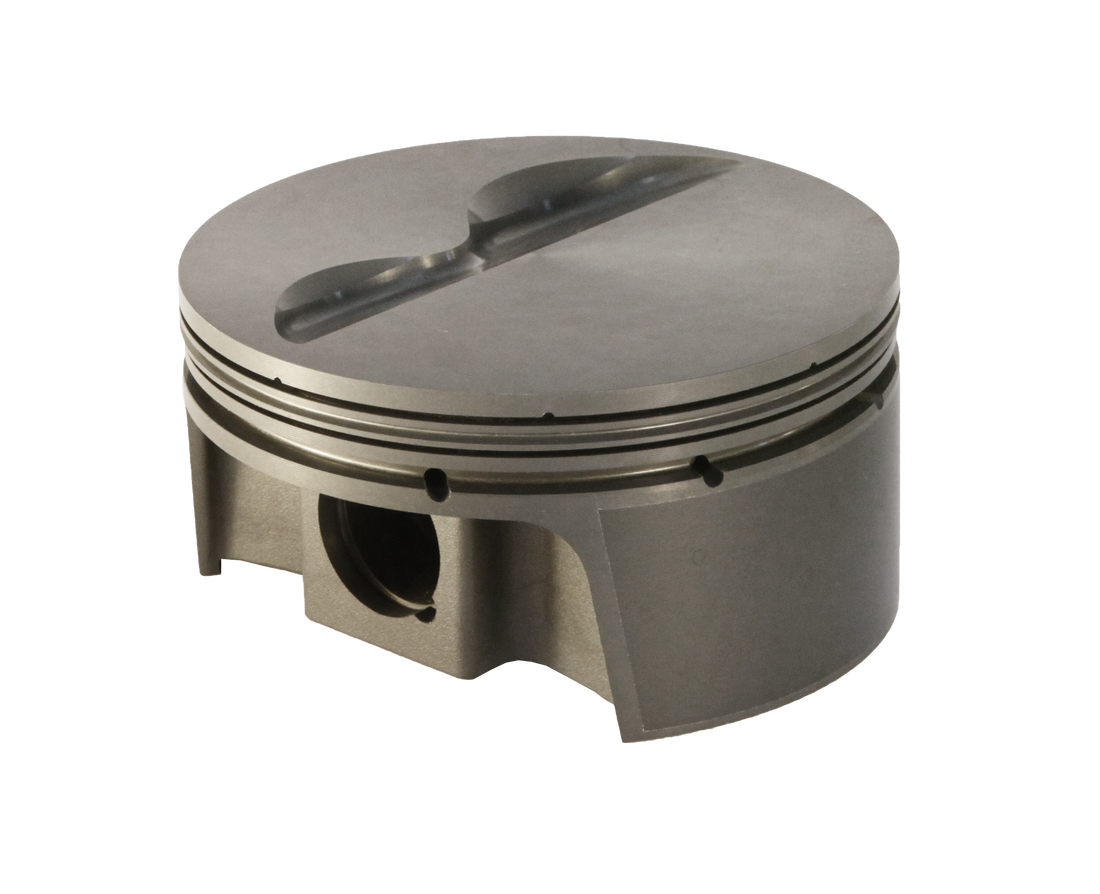

Mahle Motorsport 930202530 - Piston (set) - SMALL BLOCK CHEVY HIGH OUTPUT

Name: Mahle Motorsport 930202530 - Piston (set) - SMALL BLOCK CHEVY HIGH OUTPUT
Brand: Mahle Motorsport
SKU: 930202530
Price: 814.99 USD
Availability: InStock

$814.99 USD

In Stock - Fast Shipping

Free shipping over $80 To the USA

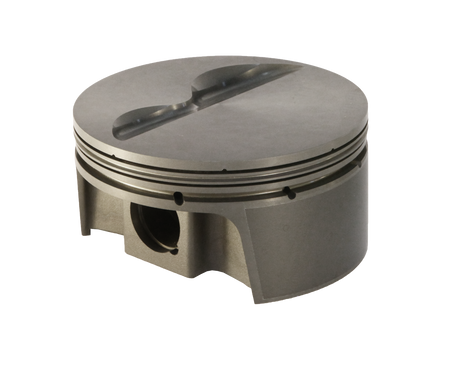

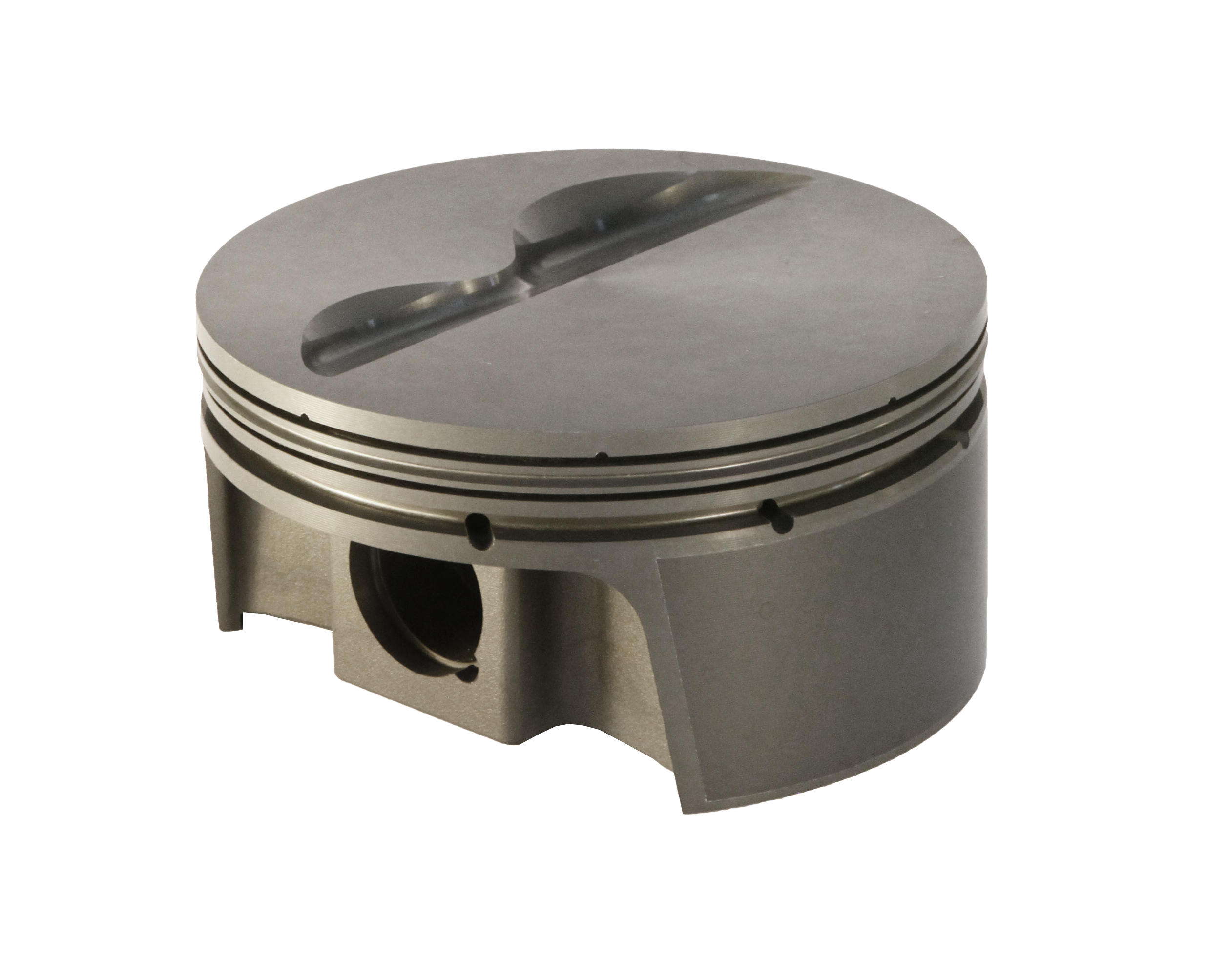

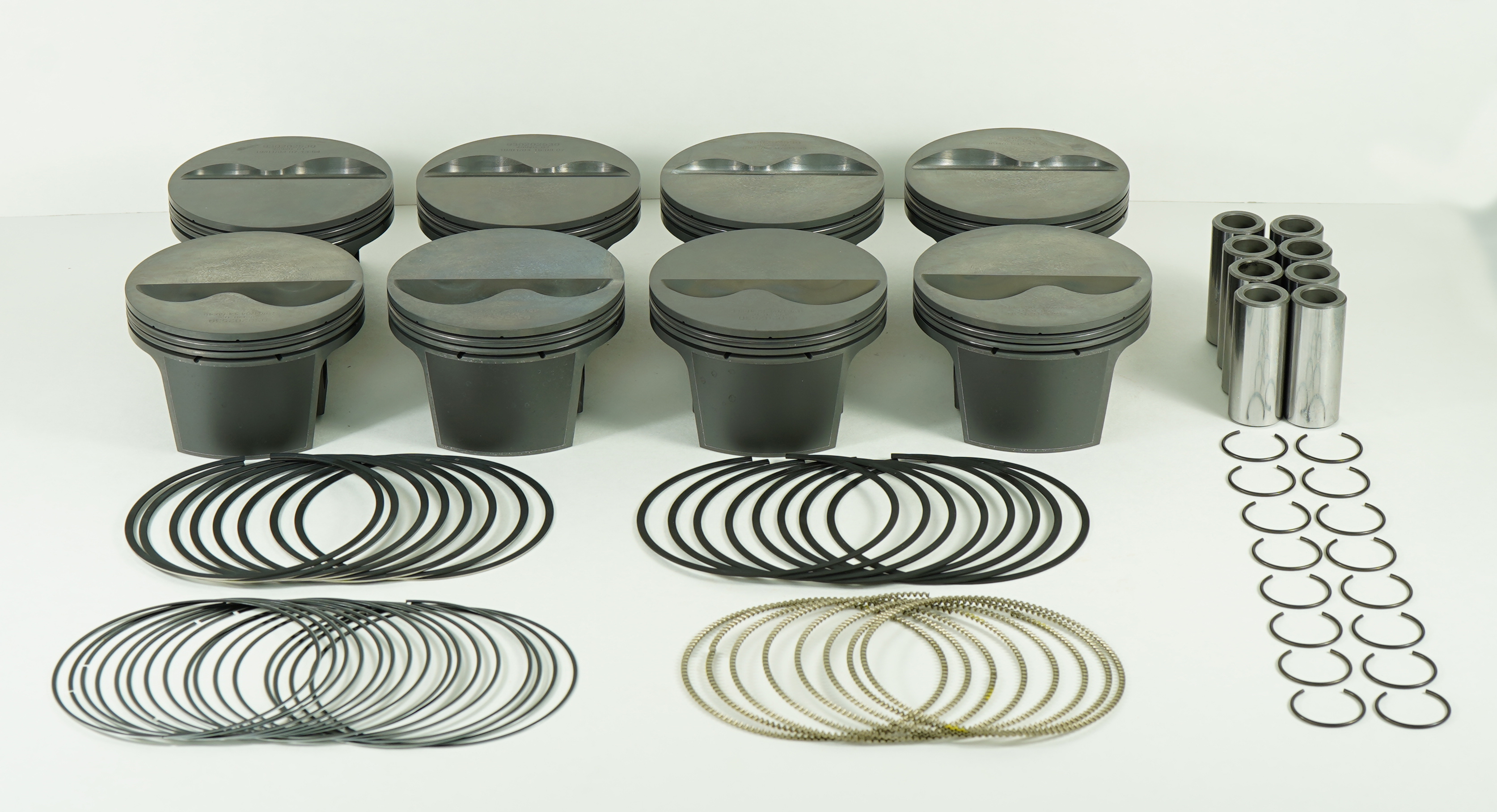

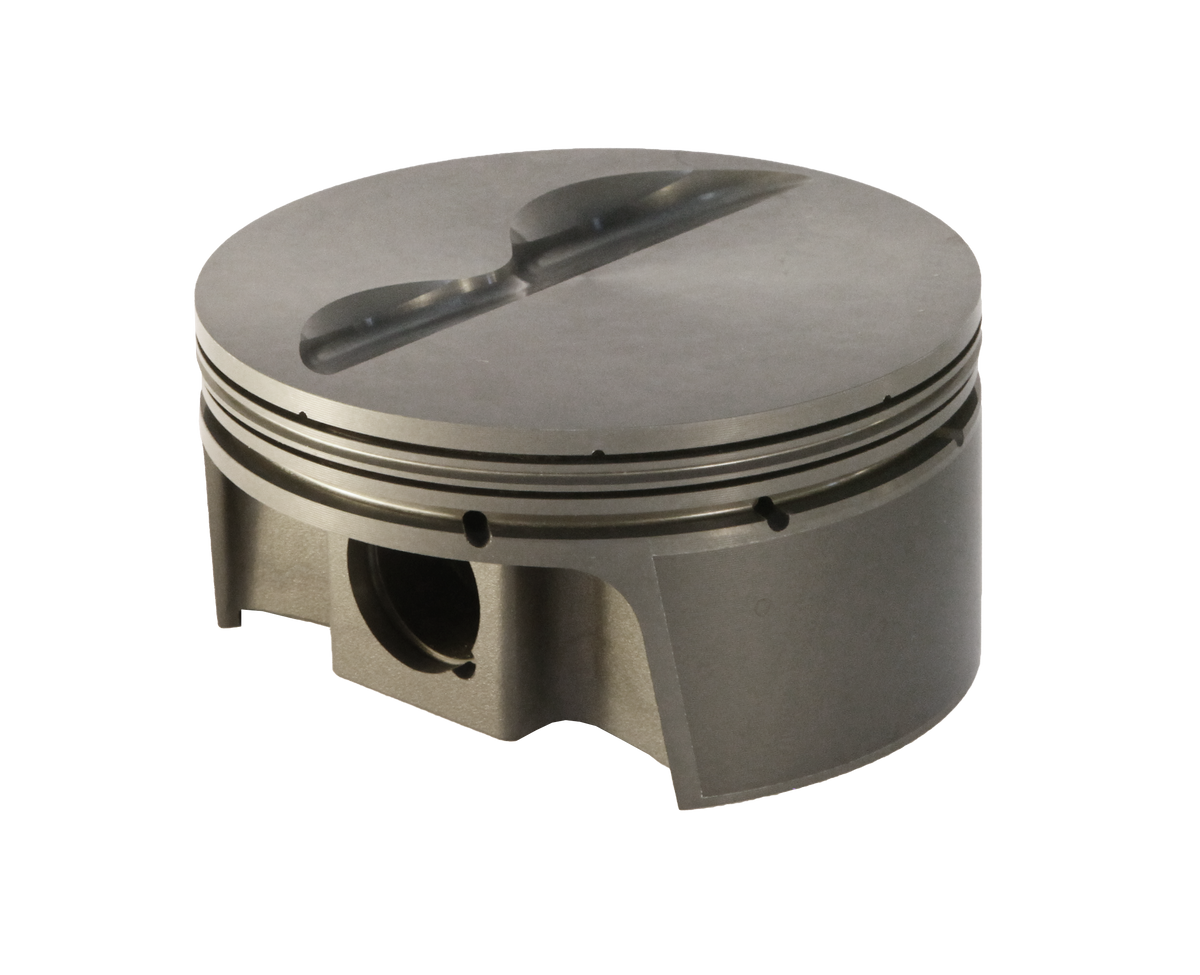

Forged from 4032 aluminum, the Mahle Motorsport piston set 930202530 is a flattop design with 2 valve reliefs built for a 357 cid application using a 4.030 in. bore, 3.500 in. stroke, 5.700 in. rod length, and a 10.6 compression ratio. Each piston carries a -4.1cc crown volume and weighs 429g, and the set is sold in a quantity of 8 complete assemblies with pins, rings, and clips included. Ring grooves accept a file-fit ring pack sized 1.0mm / 1.0mm / 2.0mm, with the upper compression ring coated HV385 and the lower compression ring phosphate-coated, both in 9254 Steel, while the oil control ring is chrome-plated stainless steel at standard tension.

Piston Material: Forged 4032 aluminum
Piston Style: Flattop with 2 valve reliefs
Piston Mass: 429g
Crown Volume: -4.1cc
Compression Ratio: 10.6
Bore: 4.030 in.
Stroke: 3.500 in.
Rod Length: 5.700 in.
Displacement: 357 cid
Pin Diameter: 23.55mm
Pin Length: 58.1mm
Pin Wall Thickness: 0.129
Pin Mass: 93g
Pin Material: Steel
Pin Style: Floating
Clip Style: Round Wire
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
UCR Thickness: 1.0mm / Material: 9254 Steel / Coating: HV385
LCR Thickness: 1.0mm / Material: 9254 Steel / Coating: Phosphate
OCR Thickness: 2.0mm / Material: Chrome-plated stainless steel / Tension: Standard
Pins Included: Yes
Rings Included: Yes
Clips Included: Yes
File Fit: Yes
Package Quantity: Set of 8

Country of Origin: United States

California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.

Sold by Specification. This is an engine build part, chosen by its measurements rather than by year, make and model. Match the specifications to your build. If you are unsure, check with your mechanic or dealership. Making sure it fits is the customer's responsibility.

A vehicle fitment list isn’t available for this part.

Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
