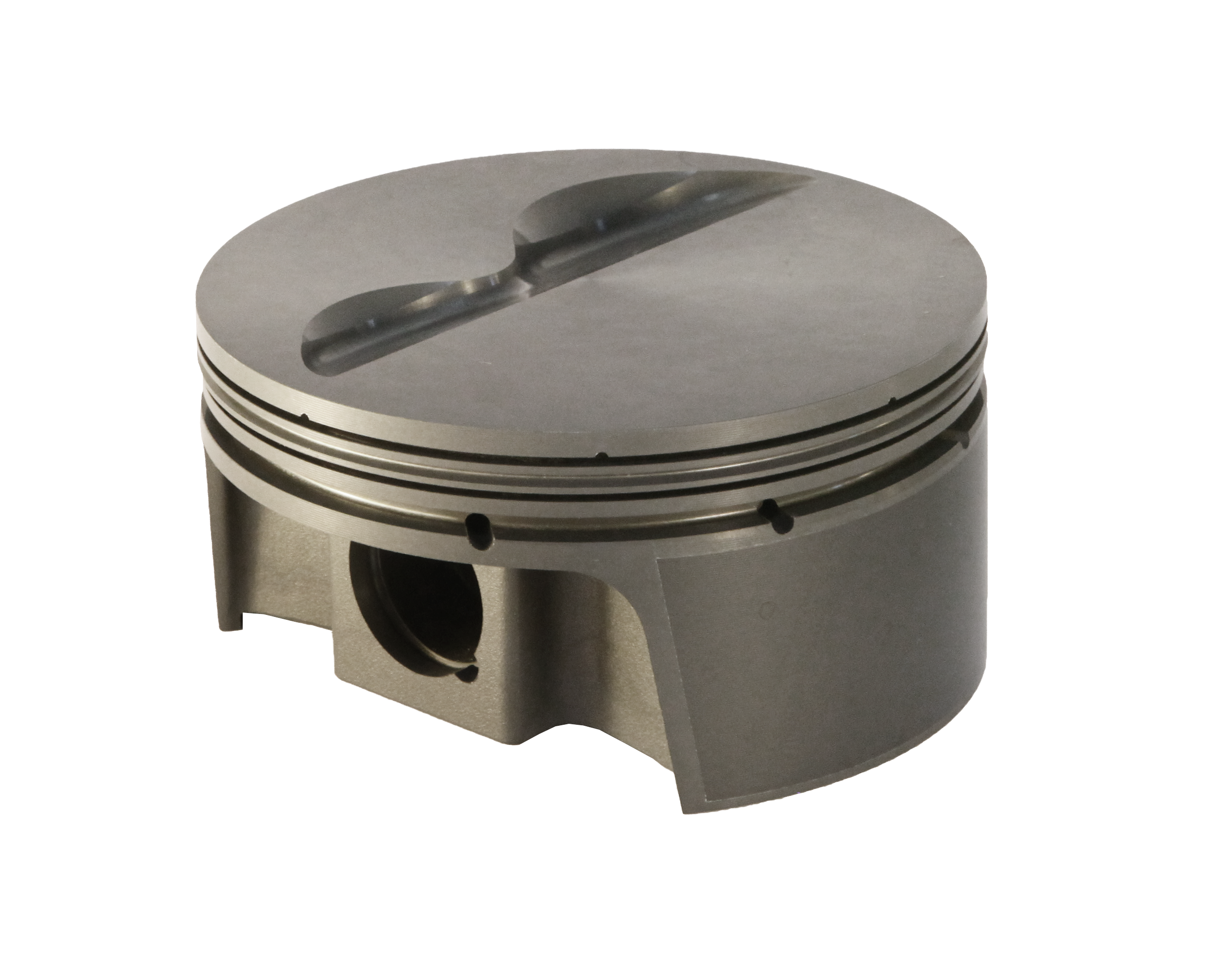

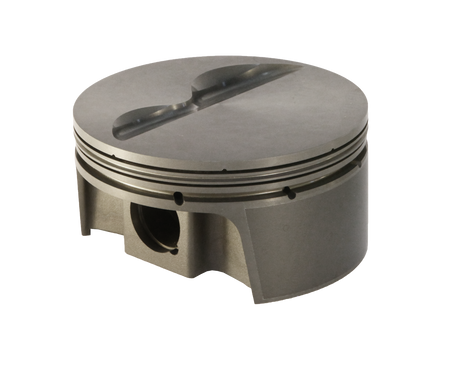

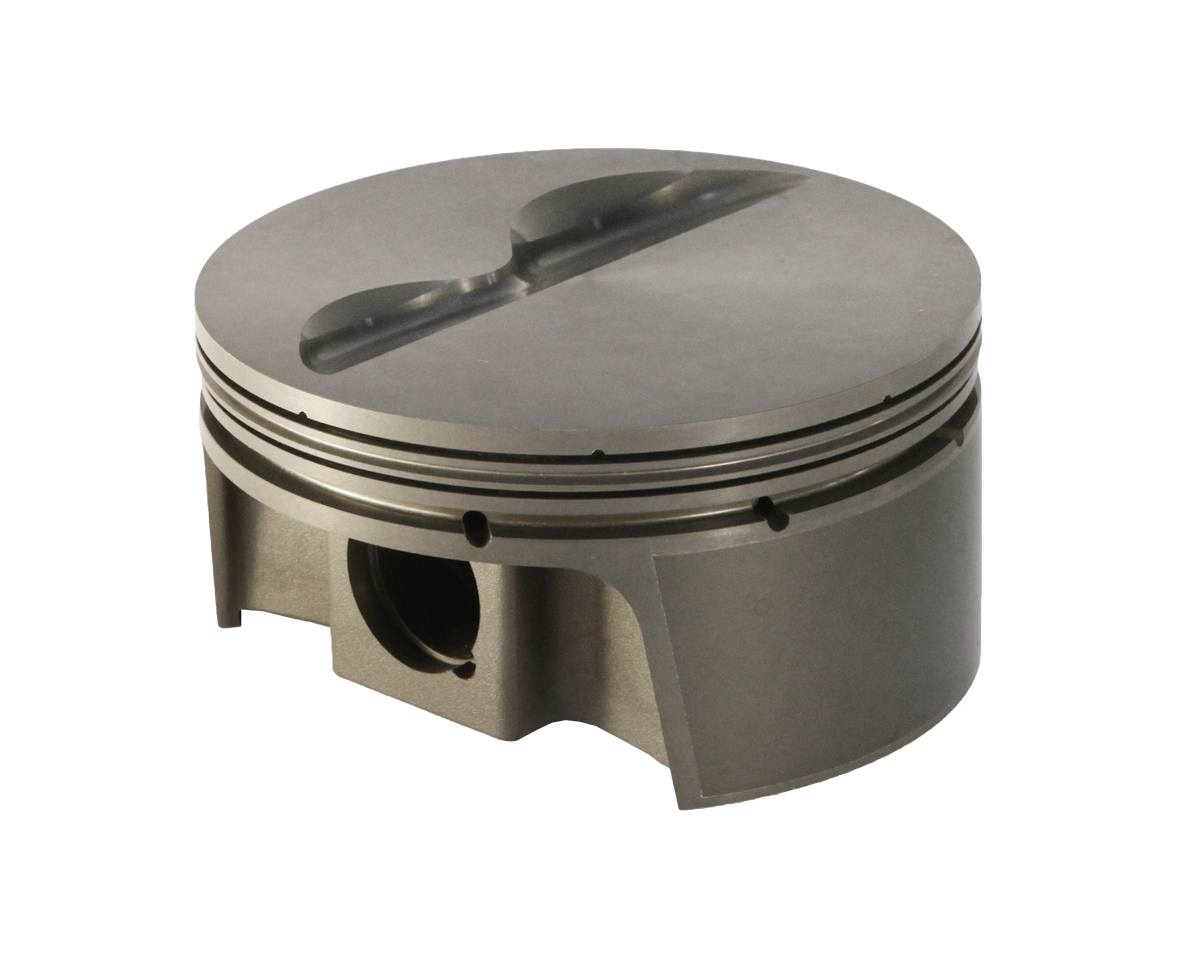

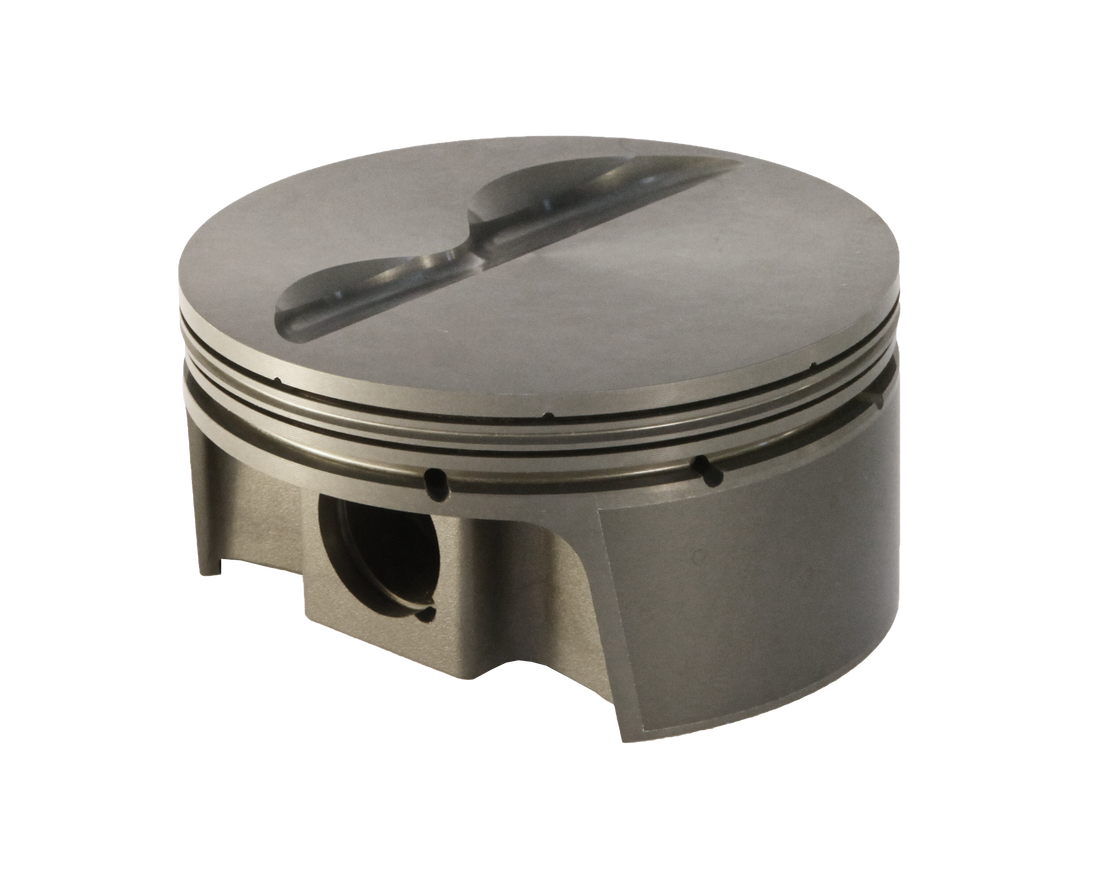

Mahle Motorsport 930202540 - Piston (set) - SMALL BLOCK CHEVY HIGH OUTPUT

Name: Mahle Motorsport 930202540 - Piston (set) - SMALL BLOCK CHEVY HIGH OUTPUT
Brand: Mahle Motorsport
SKU: 930202540
Price: 814.99 USD
Availability: InStock

$814.99 USD

In Stock - Fast Shipping

Free shipping over $80 To the USA

For a 359 cid engine build, the Mahle Motorsport piston set 930202540 delivers a forged 4032 aluminum flat-top piston with two valve reliefs, a 4.040 inch bore, a -4.1cc crown volume, and a 10.6 compression ratio matched to a 3.500 inch stroke, 5.700 inch rod, and 0.927 inch pin. Each piston weighs 433g and is sold as a set of 8, with pins, rings, and round-wire clips all included. The 1.550 inch compression height and file-fit design allow precise ring end-gap tuning during assembly.

Part Number: 930202540
Package Quantity: Set of 8
Bore: 4.040 in
Compression Height: 1.550 in
Stroke: 3.500 in
Rod Length: 5.700 in
Compression Ratio: 10.6
Crown Volume: -4.1cc
Piston Mass: 433g
Piston Material: Forged 4032 aluminum
Piston Style: Flat-top with 2 valve reliefs
Pin Diameter: 23.55mm
Pin Length: 58.1mm
Pin Wall Thickness: 0.129
Pin Mass: 93g
Pin Material: Steel
Pin Style: Floating
Clip Style: Round Wire
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
UCR Coating: HV385
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
OCR Thickness: 2.0mm
OCR Material: Chrome plated stainless steel
OCR Tension: Standard
File Fit: Yes
Pins Included: Yes
Rings Included: Yes
Clips Included: Yes

Country of Origin: United States

California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.

Sold by Specification. This is an engine build part, chosen by its measurements rather than by year, make and model. Match the specifications to your build. If you are unsure, check with your mechanic or dealership. Making sure it fits is the customer's responsibility.

A vehicle fitment list isn’t available for this part.

Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
