Mahle Motorsport 930202560 - Piston (set) - SMALL BLOCK CHEVY HIGH OUTPUT

Name: Mahle Motorsport 930202560 - Piston (set) - SMALL BLOCK CHEVY HIGH OUTPUT
Brand: Mahle Motorsport
SKU: 930202560
Price: 814.99 USD
Availability: InStock

$814.99 USD

In Stock - Fast Shipping

Free shipping over $80 To the USA

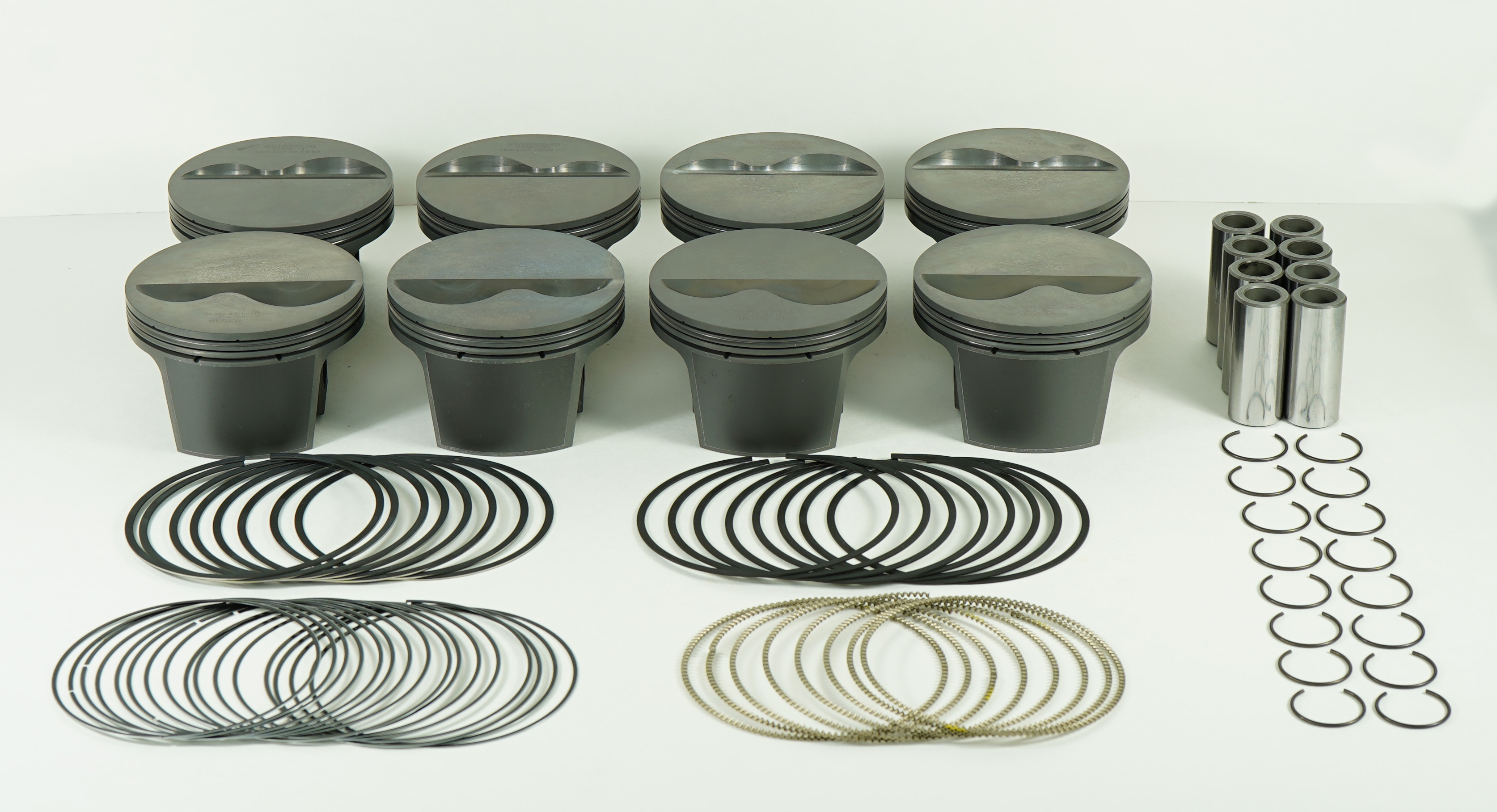

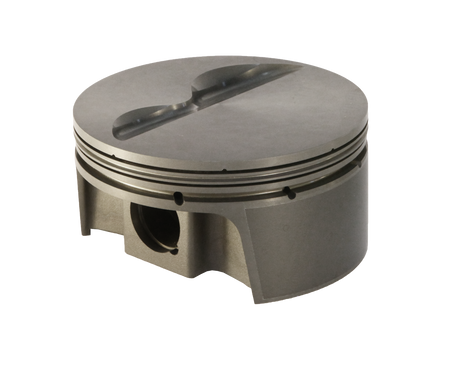

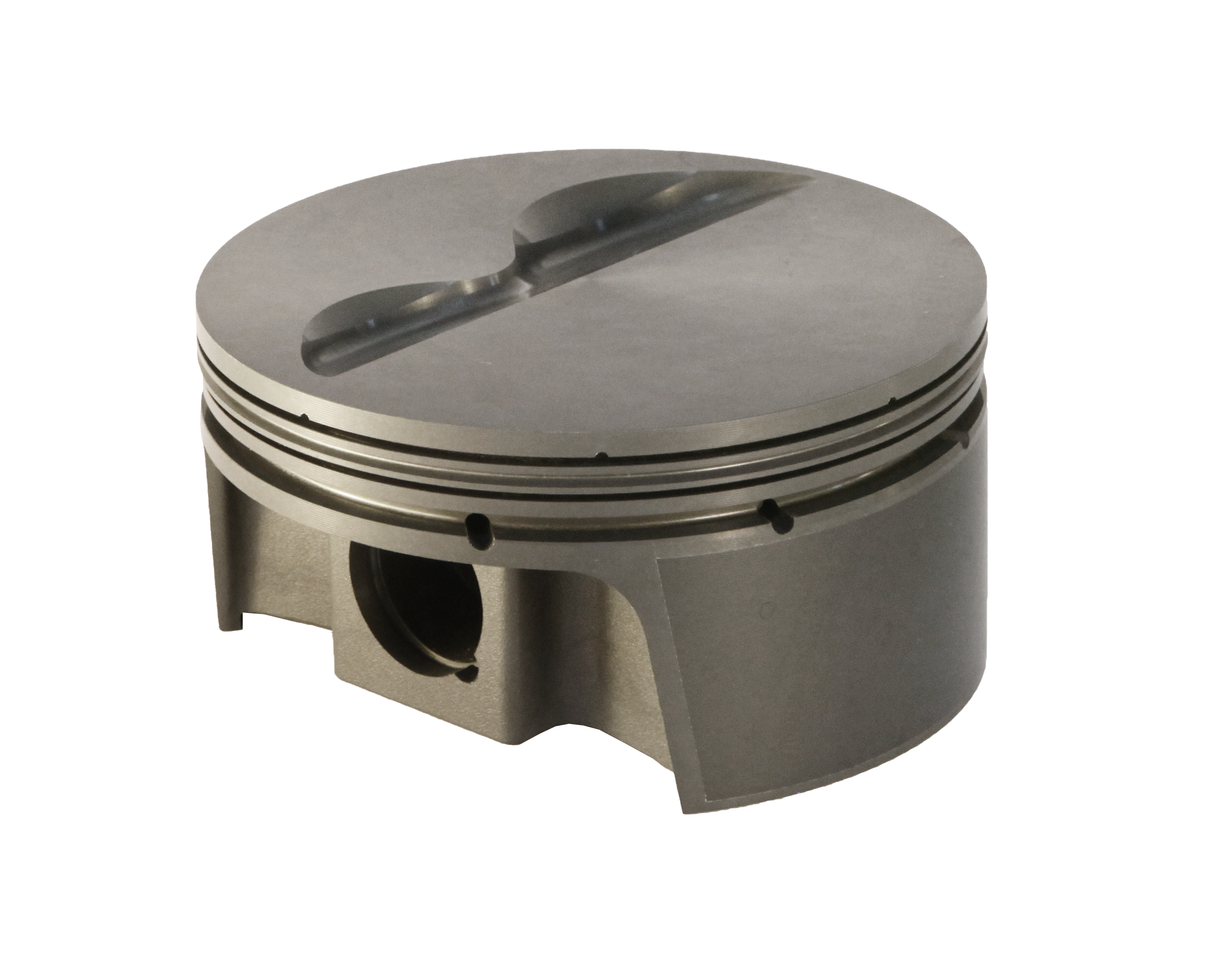

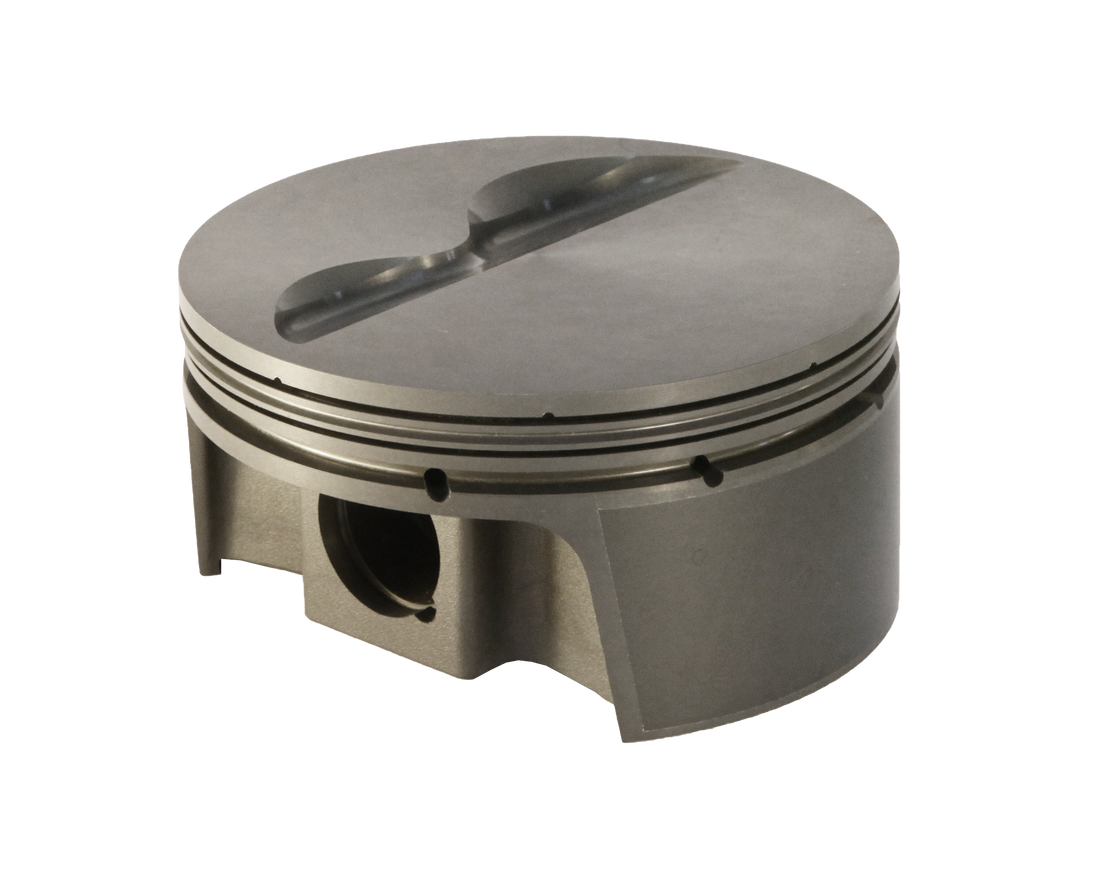

Forged from 4032 aluminum alloy, the Mahle Motorsport piston set 930202560 is built for a 362cid displacement with a 4.060-inch bore, 1.550-inch compression height, 3.500-inch stroke, and 5.700-inch rod length. Each flattop piston features 2 valve reliefs, a -4.1cc crown volume, a 10.7CR compression ratio, and a mass of 441g. The set of 8 ships with floating steel pins, rings, and round-wire clips included.

Displacement: 362cid
Piston Material: Forged, 4032
Piston Style: Flattop, w/ 2 valve reliefs
Piston Mass: 441g
Crown Volume: -4.1cc
Compression Ratio: 10.7CR
Pin Style: Floating
Pin Material: Steel
Pin Diameter: 0.927 in / 23.55mm
Pin Length: 58.1mm
Pin Mass: 93g
Pin Wall Thickness: 0.129
Clip Style: Round Wire
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
UCR Material: 9254 Steel
UCR Thickness: 1.0mm
UCR Coating: HV385
LCR Material: 9254 Steel
LCR Thickness: 1.0mm
LCR Coating: Phosphate
OCR Material: Chrome plated stainless steel
OCR Thickness: 2.0mm
OCR Tension: Standard
File Fit: Yes
Package Quantity: Sold as a set of 8

Weight: 14 lb

Country of Origin: United States
