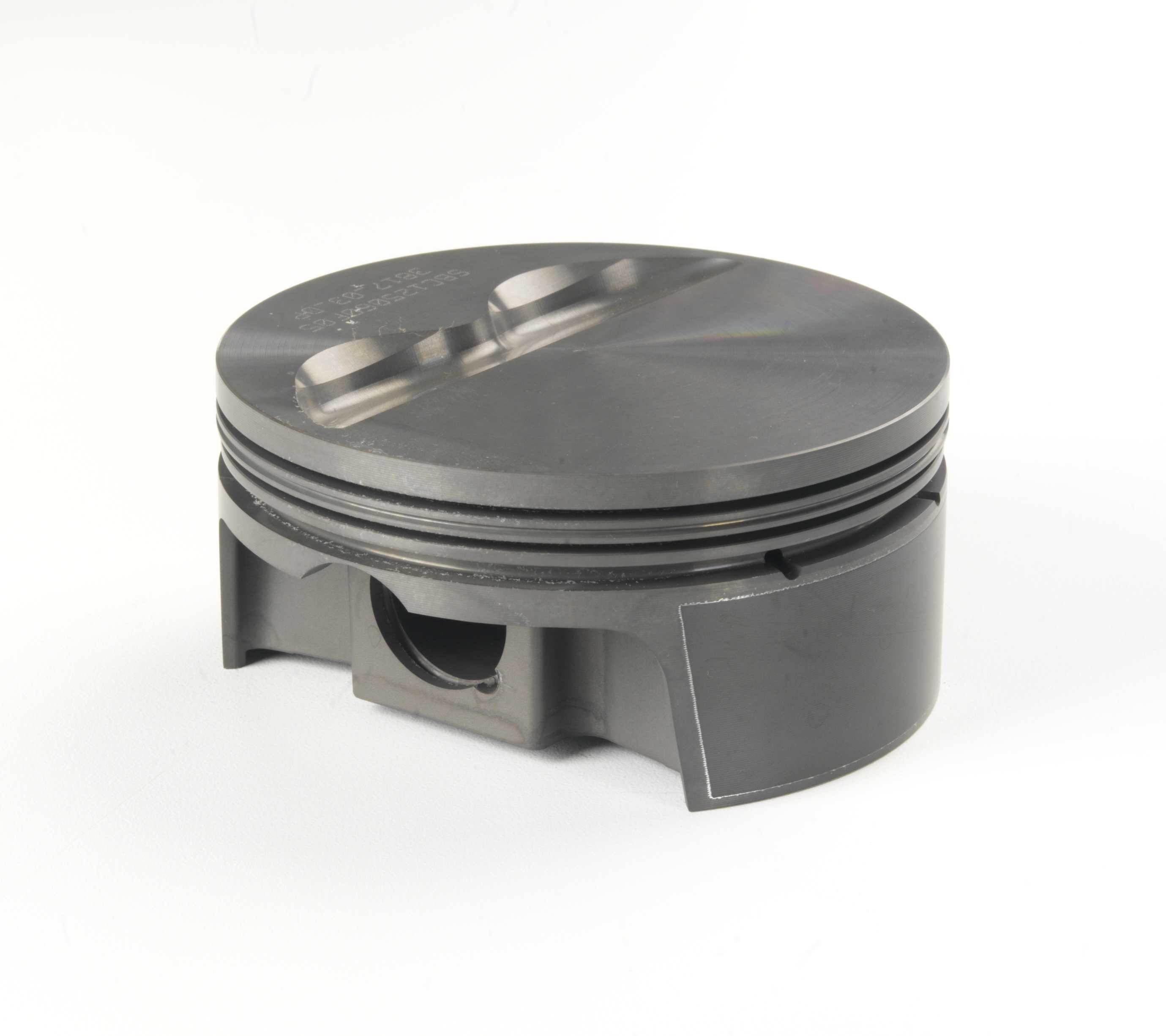

Mahle Motorsport 930206540 - Piston (set) - SMALL BLOCK CHEVY 2bbl LIGHT WEIGHT FLAT TOP

Name: Mahle Motorsport 930206540 - Piston (set) - SMALL BLOCK CHEVY 2bbl LIGHT WEIGHT FLAT TOP
Brand: Mahle Motorsport
SKU: 930206540
Price: 763.99 USD
Availability: InStock

$763.99 USD

In Stock - Fast Shipping

Free shipping over $80 To the USA

359cid 4.040 x 1.550CH, 3.500stroke,5.700rod,0.927pin,-2.4cc,415g,10.8CR, 4032

Specifications

Crown Volume	-2.4cc
Pin Wall Thickness	0.129
LCR Thickness	1.0mm
UCR Thickness	1.0mm
Piston Ring Thickness	1.0mm, 1.0mm, 2.0mm
OCR Thickness	2.0mm
Pin Diameter	23.55mm
Piston Mass	415g
Pin Length	58.1mm
LCR Material	9254 Steel
UCR Material	9254 Steel
Pin Mass	93g
OCR Material	Chrome plated stainless steel
Piston Style	Flattop, w/ 2 valve reliefs
Pin Style	Floating
Piston Material	Forged, 4032
UCR Coating	HV385
Title	Mahle Motorsport Piston (set) - 930206540
LCR Coating	Phosphate
Clip Style	Round Wire
Package Quantity	Sold as a set of 8
OCR Tension	Standard
Pin Material	Steel
Clips Included	Y
File Fit	Y
Pins Included	Y
Rings Included	Y

⚠ WARNING: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Sold by Specification. This is an engine build part, chosen by its measurements rather than by year, make and model. Match the specifications to your build. If you are unsure, check with your mechanic or dealership. Making sure it fits is the customer's responsibility.

A vehicle fitment list isn’t available for this part.

Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
