Mahle Motorsport 930207960 - Piston (set) - SMALL BLOCK CHEVY 23 Deg DOME

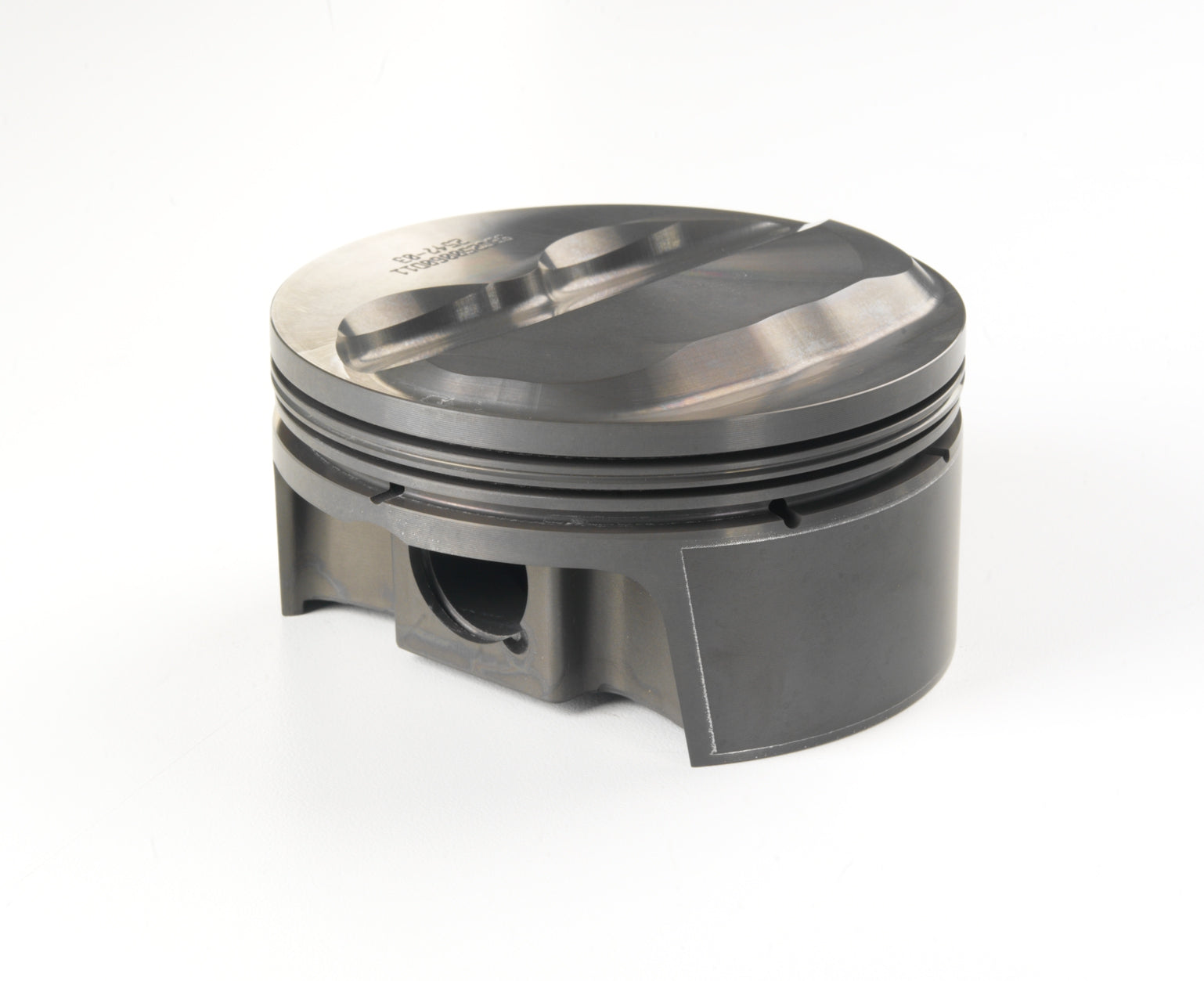

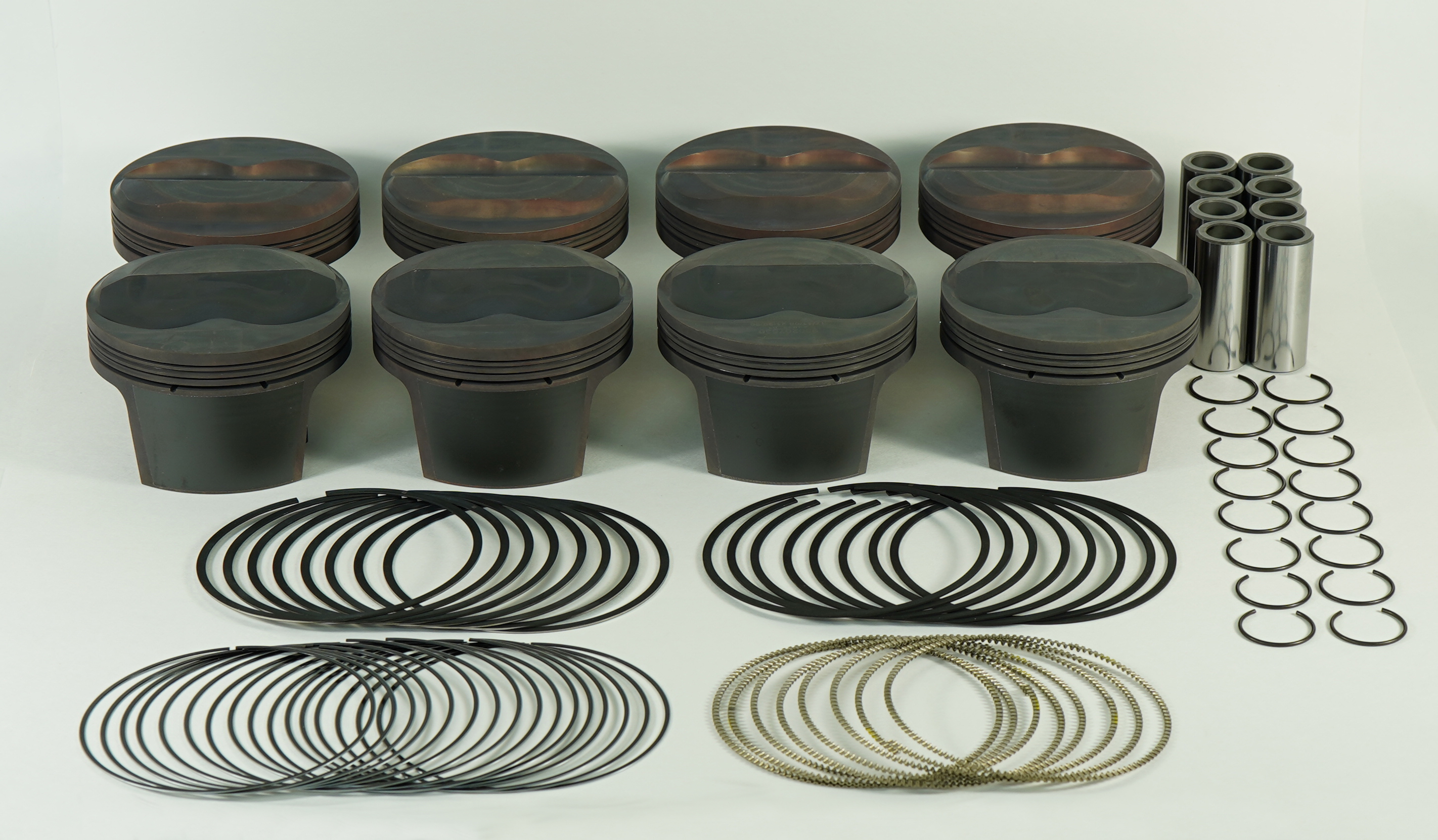

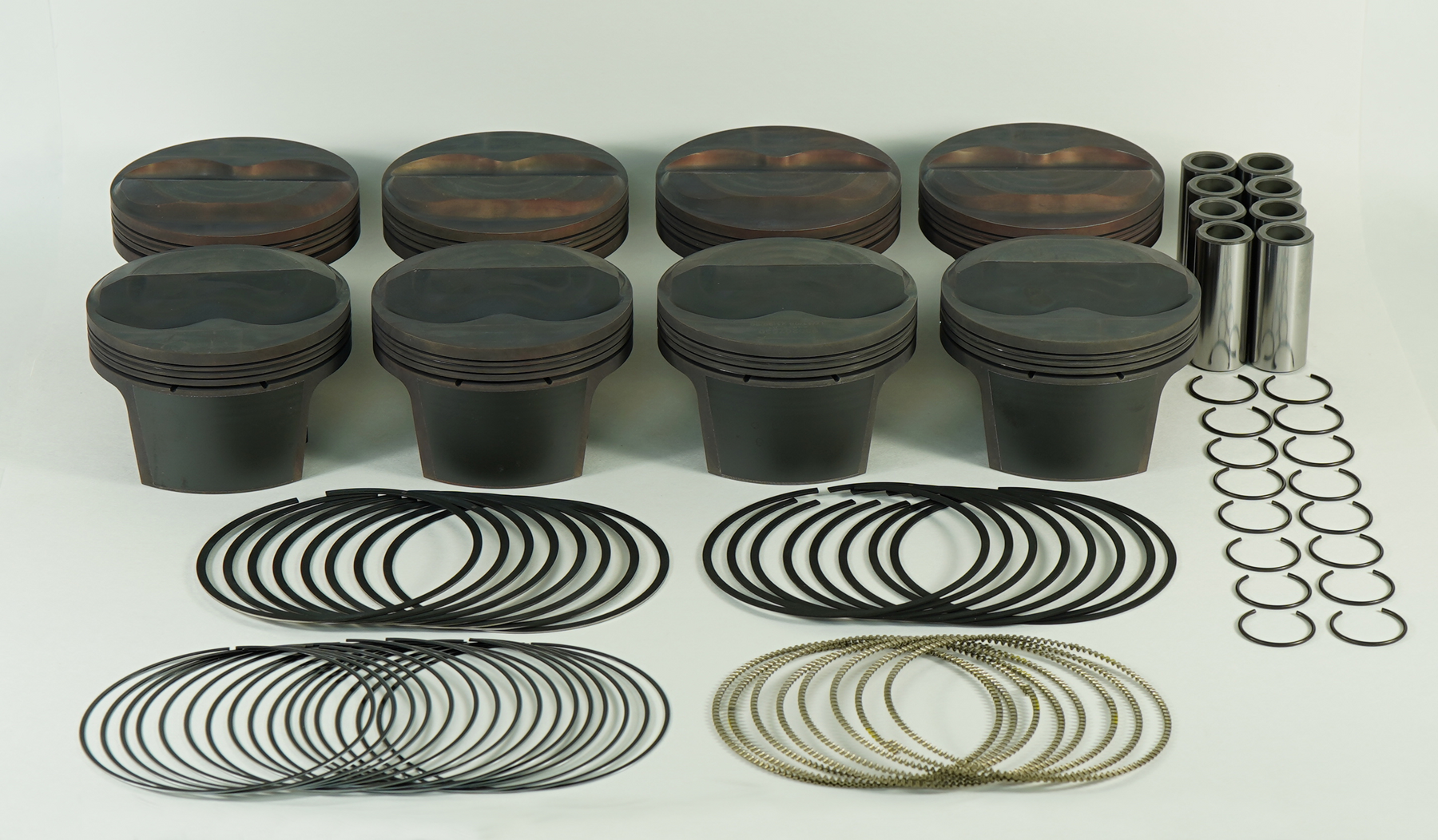

Piston sets for 360cid engine builds come from Mahle Motorsport 930207960, which includes 8 forged 2618-aluminum pistons with dome crowns and 2 valve reliefs. Each piston weighs 496 grams with an 11.1cc crown volume. The piston ring configuration includes upper and lower compression rings of 1.0mm thickness and an oil control ring of 2.0mm thickness, all materials specified. Floating steel pins measure 23.55mm diameter and 58.1mm length with 0.168 wall thickness, weighing 118 grams each. Round-wire clips retain the pins for secure assembly. All clips, pins, and rings are included with the set, with file-fit machining required for proper fitment on some applications.

• Pin Wall Thickness: 0.168
• LCR Thickness: 1.0mm
• UCR Thickness: 1.0mm
• Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
• Crown Volume: 11.1cc
• Pin Mass: 118g
• OCR Thickness: 2.0mm
• Pin Diameter: 23.55mm
• Piston Mass: 496g
• Pin Length: 58.1mm
• LCR Material: 9254 Steel
• UCR Material: 9254 Steel
• OCR Material: Chrome plated stainless steel
• Piston Style: Dome, w/ 2 valve reliefs
• Pin Style: Floating
• Piston Material: Forged, 2618
• UCR Coating: HV385
• LCR Coating: Phosphate
• Clip Style: Round Wire
• Package Quantity: Sold as a set of 8
• OCR Tension: Standard
• Pin Material: Steel
• Clips Included: Y
• File Fit: Y
• Pins Included: Y
• Rings Included: Y
