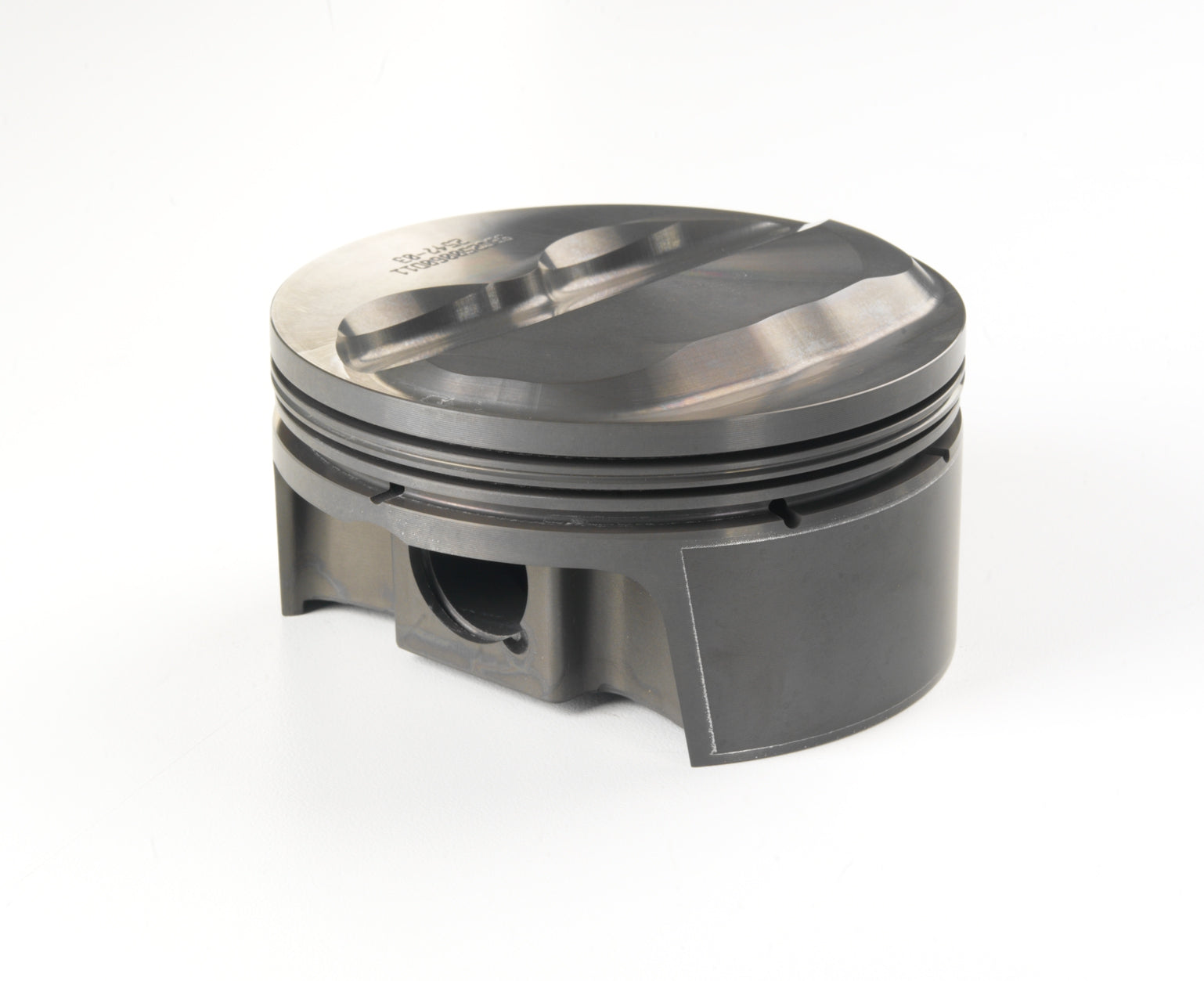

Mahle Motorsport 930208140-1 - Piston (ea) - SMALL BLOCK CHEVY 23 Deg DOME 3

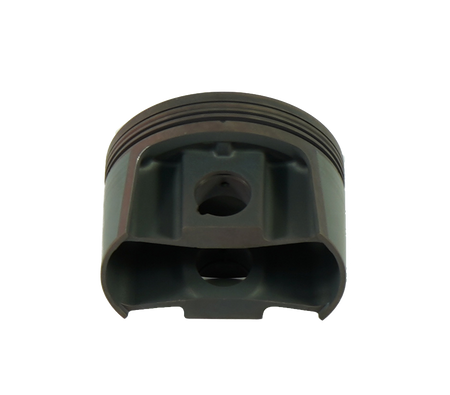

Mahle Motorsport 930208140-1 - Piston (ea) - SMALL BLOCK CHEVY 23 Deg DOME 4
Mahle Motorsport
SKU 930208140-1

Mahle Motorsport 930208140-1 - Piston (ea) - SMALL BLOCK CHEVY 23 Deg DOME

$92.69 USD
Backorder Available
Backorder available, and we will notify you as soon as this product is back in stock.
Free shipping For USA, up to 50 lbs
90-day returns Free, no restocking fees

357cid 4.040 x 1.125CH, 3.480/3.500stroke,6.125rod,0.927pin,11.1cc,474g,12.9CR, 2618, SINGLE PISTON

Specifications

Pin Wall Thickness 0.168
LCR Thickness 1.0mm
UCR Thickness 1.0mm
Piston Ring Thickness 1.0mm, 1.0mm, 2.0mm
Crown Volume 11.1cc
Pin Mass 118g
OCR Thickness 2.0mm
Pin Diameter 23.55mm
Piston Mass 474g
Pin Length 58.1mm
LCR Material 9254 Steel
UCR Material 9254 Steel
OCR Material Chrome plated stainless steel
Piston Style Dome, w/ 2 valve reliefs
Pin Style Floating
Piston Material Forged, 2618
UCR Coating HV385
Title Mahle Motorsport Piston (each) - 930208140-1
Clips Included N
Pins Included N
Rings Included N
LCR Coating Phosphate
Clip Style Round Wire
Package Quantity Sold as a set of 1
OCR Tension Standard
Pin Material Steel
File Fit Y
