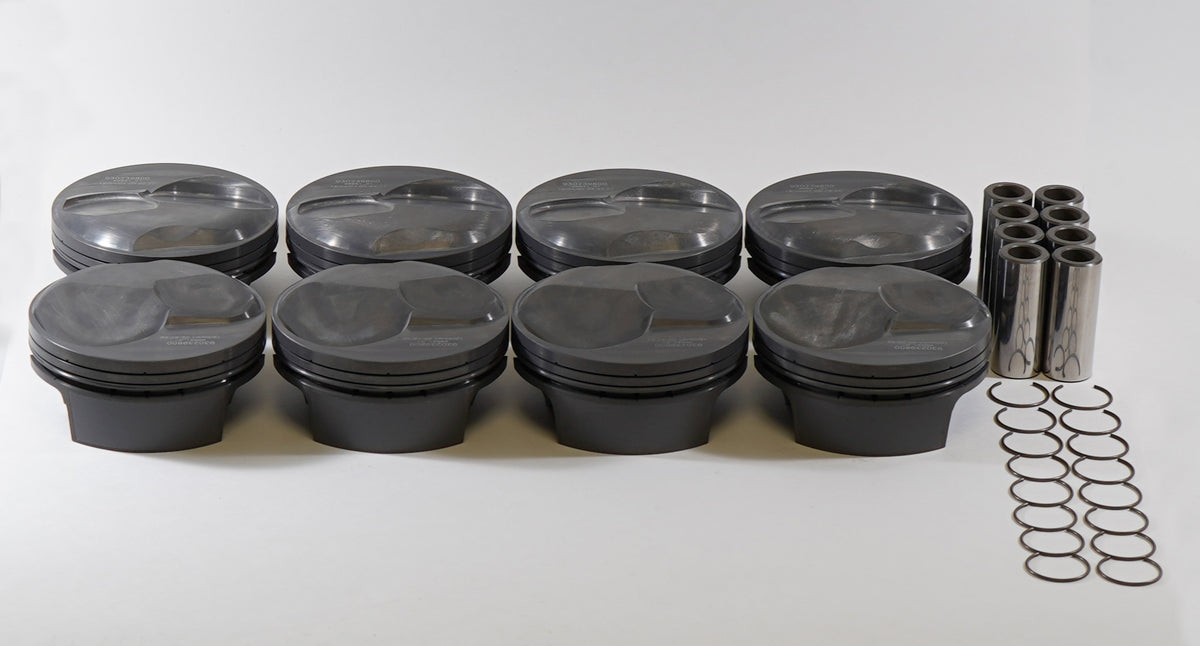

Mahle Motorsport 930240010 - Piston (set) - BIG BLOCK CHEVY ELITE SPORTSMAN DRAG SERIES 20 Deg

Name: Mahle Motorsport 930240010 - Piston (set) - BIG BLOCK CHEVY ELITE SPORTSMAN DRAG SERIES 20 Deg
Brand: Mahle Motorsport
SKU: 930240010
Price: 1097.27 USD
Availability: InStock

$1,097.27 USD

Out of Stock

This product is currently out of stock. It will be placed on backorder, and shipping can take 2 or more weeks to fulfill your order. and we will notify you as soon as it is back in stock.

Free shipping over $80 To the USA

568cid 4.610 x 1.270CH, 4.250stroke,6.385rod,0.990pin,28.0cc,647g,15.5CR, 2618

Specifications

Piston Ring Thickness	.043, .043, 3.0mm
LCR Thickness	0.043
UCR Thickness	0.043
Pin Wall Thickness	0.18
Pin Mass	171g
Pin Diameter	25.146mm
Crown Volume	28.0cc
OCR Thickness	3.0mm
Piston Mass	647g
Pin Length	74.42mm
Piston Style	Dome, w/ INT valve relief
Pin Style	Floating
Piston Material	Forged, 2618
Title	Mahle Motorsport Piston (set) - 930240010
Rings Included	N
Clip Style	Round Wire
Package Quantity	Sold as a set of 8
Pin Material	Steel
Clips Included	Y
Pins Included	Y

⚠ WARNING: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Sold by Specification. This is an engine build part, chosen by its measurements rather than by year, make and model. Match the specifications to your build. If you are unsure, check with your mechanic or dealership. Making sure it fits is the customer's responsibility.

A vehicle fitment list isn’t available for this part.

Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
