Mahle Motorsport 930244130 - Piston (set) - SMALL BLOCK FORD FLAT TOP

Name: Mahle Motorsport 930244130 - Piston (set) - SMALL BLOCK FORD FLAT TOP
Brand: Mahle Motorsport
SKU: 930244130
Price: 776.57 USD
Availability: InStock

$776.57 USD

Out of Stock

This product is currently out of stock. It will be placed on backorder, and shipping can take 2 or more weeks to fulfill your order. and we will notify you as soon as it is back in stock.

Free shipping over $80 To the USA

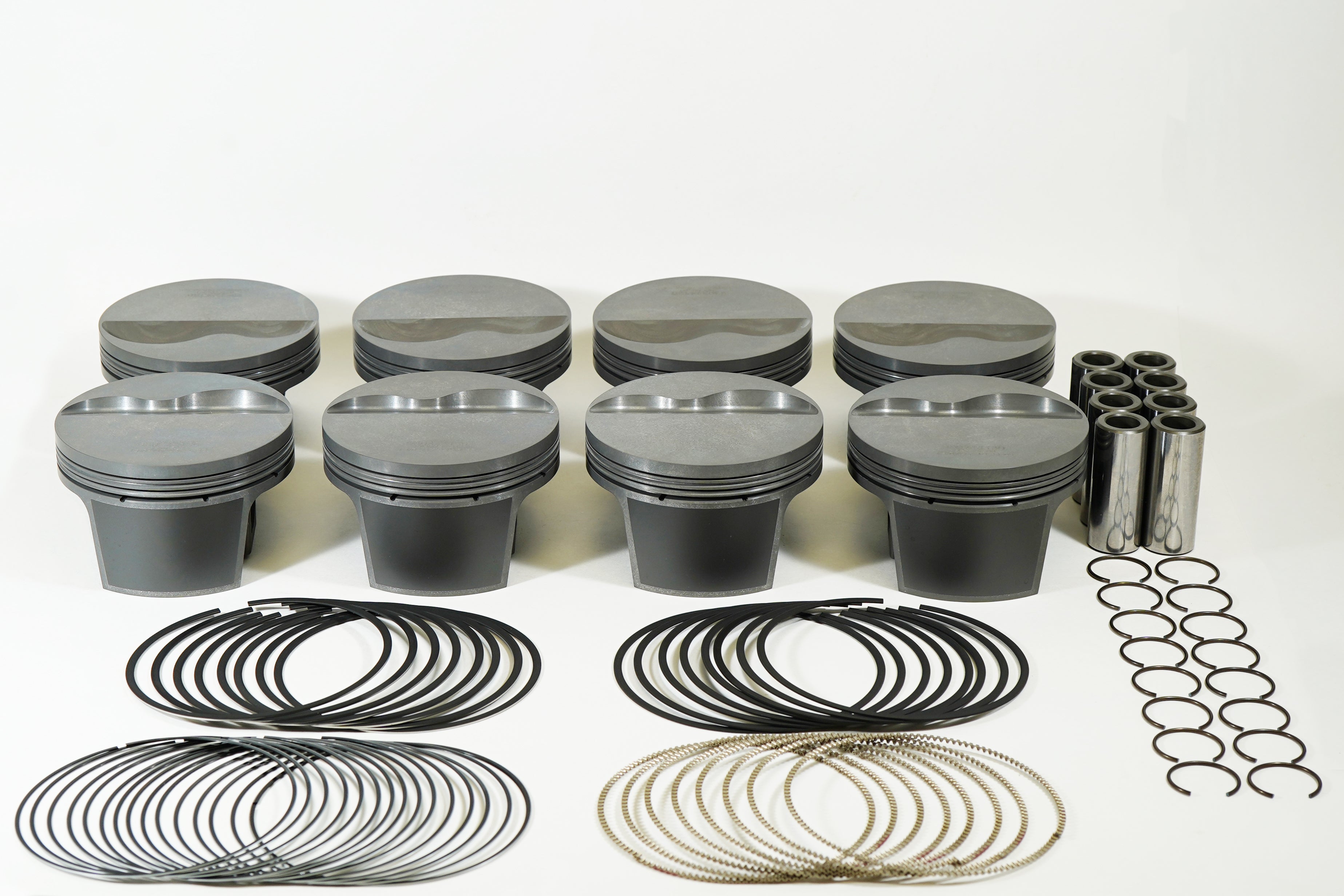

Forged from 4032 aluminum, the Mahle Motorsport piston set 930244130 is a flattop design with 2 valve reliefs, a -6.5cc crown volume, and a 9.0 compression ratio built for a 306cid application with a 4.030 inch bore, 3.000 inch stroke, and 5.090 inch rod length. Each piston weighs 469g and pairs with a floating steel wrist pin measuring 23.165mm in diameter, 58.1mm in length, with a 0.171 pin wall thickness and a pin mass of 116g. The set ships as 8 pistons complete with pins, rings, and round wire clips included.

Piston Material: Forged 4032 aluminum
Piston Style: Flattop with 2 valve reliefs
Piston Mass: 469g
Crown Volume: -6.5cc
Compression Ratio: 9.0CR
Bore: 4.030 in
Compression Height: 1.600 in
Stroke: 3.000 in
Rod Length: 5.090 in
Pin Style: Floating
Pin Material: Steel
Pin Diameter: 23.165mm
Pin Length: 58.1mm
Pin Wall Thickness: 0.171
Pin Mass: 116g
Clip Style: Round Wire
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
UCR Thickness: 1.0mm | Material: 9254 Steel | Coating: HV385
LCR Thickness: 1.0mm | Material: 9254 Steel | Coating: Phosphate
OCR Thickness: 2.0mm | Material: Chrome plated stainless steel | Tension: Standard
File Fit: Yes
Pins Included: Yes
Rings Included: Yes
Clips Included: Yes
Package Quantity: Sold as a set of 8

Country of Origin: United States
